Not every project needs all of these fields. The required data should follow the actual workflow.
RFID Tool Identity Is the Starting Point
Traceability becomes difficult when the physical tool cannot be reliably connected to its digital record.
Each tool should normally have a unique identifier. The RFID tag provides an electronic identity that can be associated with information such as:
Tool number
Tool name
Specification
Department
Location
Calibration requirements
Maintenance status
The tag itself does not need to contain the entire tool history. In many system designs, the RFID identifier is used to retrieve the corresponding record from software.
This approach can make the data structure easier to maintain when tool information changes.

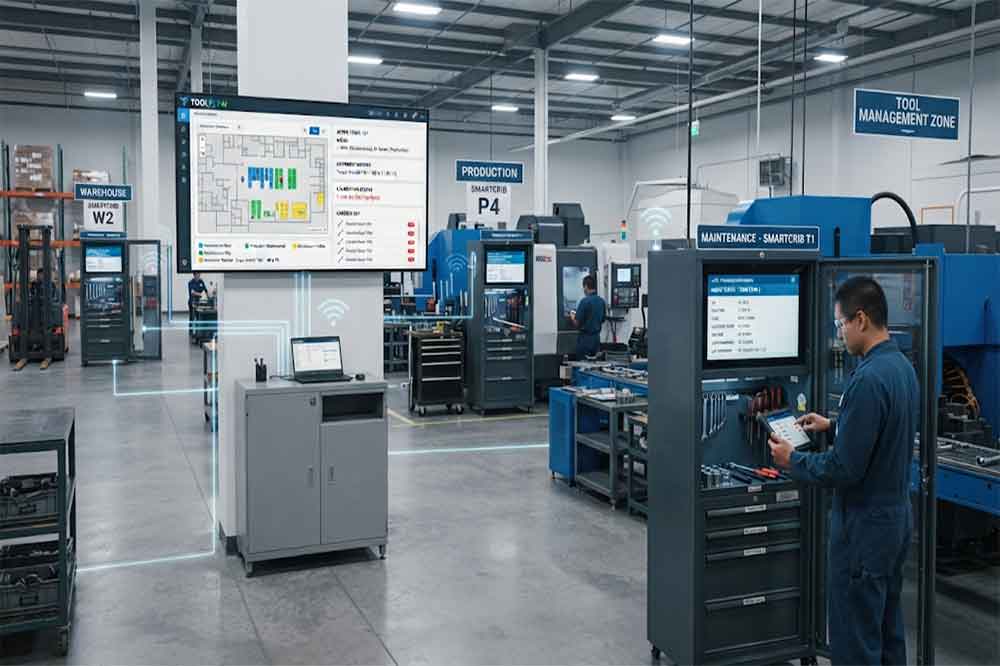

Tracking Tool Movement
A tool may pass through several locations during normal operation.
For example:
Tool Cabinet → Maintenance Area → Production Line → Inspection Area → Tool Cabinet
Each movement can become a traceability event when the relevant RFID readers, cabinets, or workstations identify the tool.
This is particularly useful when several departments share the same tools. Instead of asking where a tool was last seen, staff can review its recorded movement history.
However, the exact tracking capability depends on the RFID hardware layout. A cabinet can identify tools entering or leaving its reading area, but it should not automatically be treated as a real-time indoor positioning system.

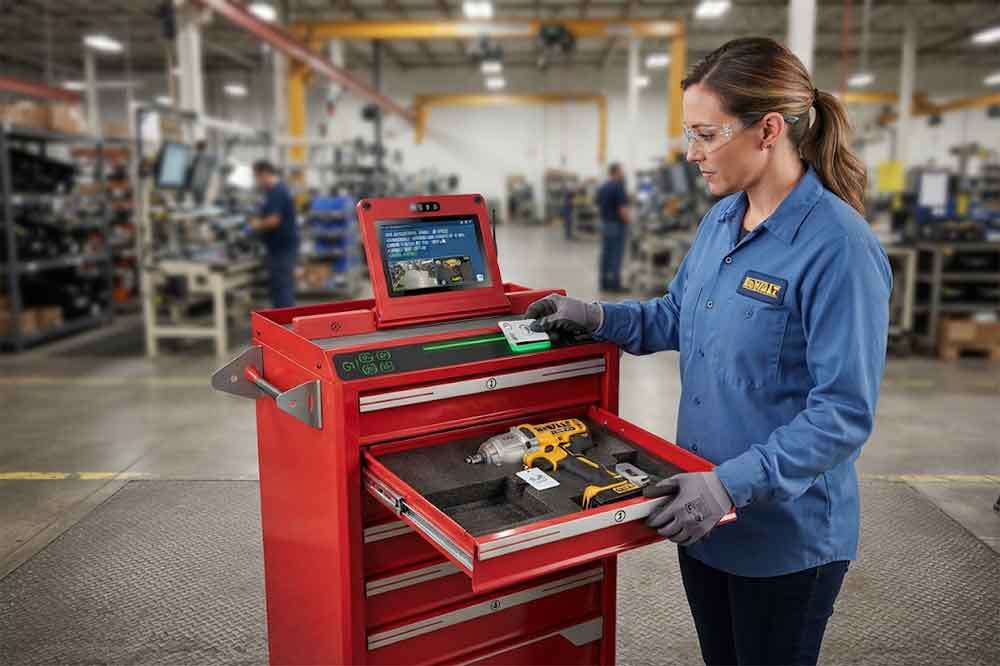

Linking Tools With Users
A traceability system becomes more useful when tool events are connected to user identities.
For example, a checkout event may contain:
Tool ID + User ID + Cabinet ID + Time + Transaction Type
This creates a practical record of responsibility.
For restricted or high-value tools, user authentication can also be combined with permissions. The system can determine whether a person is authorized to access a particular tool before recording the transaction.
Tools do not remain in perfect condition throughout their service life.
A tool may be:
Sent for repair
Marked as damaged
Returned after maintenance
Temporarily unavailable
Reinspected
Returned to service
RFID identification can connect these events to the same digital tool record.
This gives maintenance teams a clearer history instead of keeping separate paper records for each repair.
For larger operations, the RFID system can also exchange data with maintenance software or a CMMS.
Calibration Traceability
Calibration is especially important for measuring and precision tools.
A traceability system can connect a tool’s RFID identity with:
Last calibration date
Next calibration date
Calibration result
Calibration certificate
Inspection status
Current availability
When a user attempts to take a tool from a cabinet, the software may check whether the tool is available and whether its calibration status is acceptable.
RFID does not perform calibration itself. It provides the identification and event layer that can connect the physical tool with calibration records.
Connecting tools with work orders adds another useful layer.
For example:
Work Order → Technician → Tool → Checkout → Work → Return
This can help maintenance managers understand which tools were associated with particular jobs.
The exact integration depends on the software environment. An RFID cabinet may communicate with a CMMS, ERP, MES, or custom application through available interfaces.
Historical tool records can become useful during audits or internal investigations.
A manager may need to answer questions such as:
Who used this tool?
Where was it stored?
When was it checked out?
Was it calibrated at the time?
When was it last maintained?
Which work order used it?
When did it move between departments?
A centralized record can make these questions easier to investigate.
The quality of the result still depends on system configuration and whether important events are actually captured.
RFID Tool Traceability vs. Basic Tool Tracking
Basic tracking usually answers:
“Where is the tool now?”
Traceability asks a broader question:
“What happened to this tool over time?”
Tracking focuses mainly on current location or status.
Traceability can combine:
Identity + Location + User + Time + Work Order + Maintenance + Calibration + Events
This makes tool traceability especially relevant for industrial environments where historical records matter.

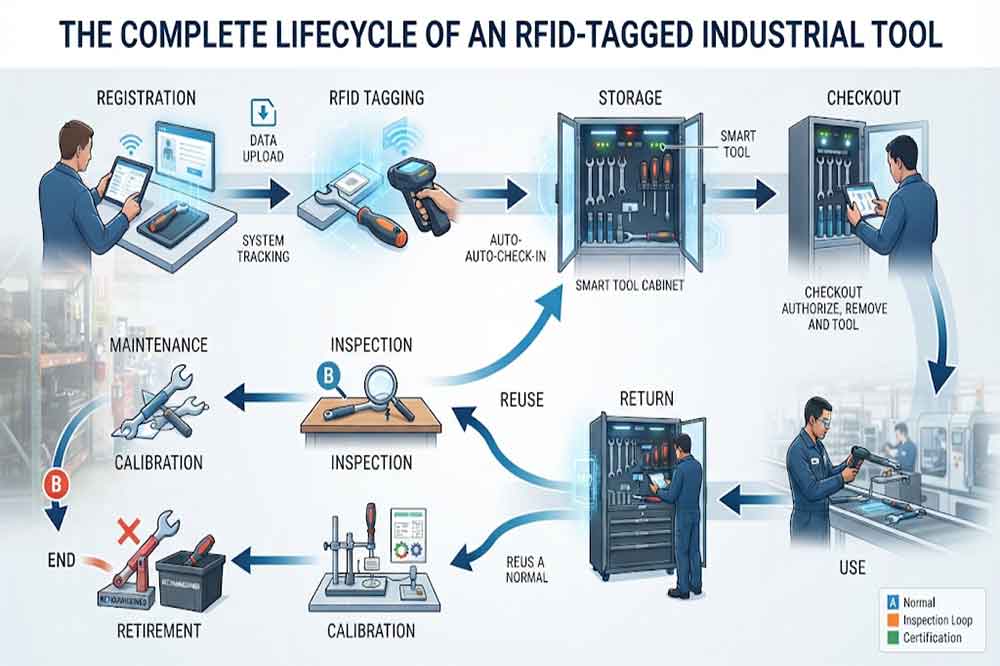

How to Build RFID Tool Traceability System
A practical implementation can follow these steps:
1. Define the tool lifecycle
Identify the important stages from tool registration to retirement.
2. Create unique tool records
Assign each physical tool a unique digital identity.
3. Select suitable RFID tags
Test tags against the actual tool material, shape, and operating environment.
4. Identify important traceability events
Decide which movements, transactions, inspections, and maintenance activities must be recorded.
5. Configure cabinets and readers
Set up RFID reading zones according to the real workflow.
6. Connect management software
Map RFID events to users, tools, locations, work orders, and maintenance records.
7. Test complete workflows
Use real tools and real users instead of testing only individual hardware components.
8. Review historical records
Confirm that the system produces a useful and understandable tool history.
Common Problems to Avoid
A traceability project can become unnecessarily complicated when every possible event is recorded without a clear purpose.
Common problems include:
Poor RFID tag selection
Duplicate tool IDs
Missing user identification
Incomplete location data
Unclear event definitions
Weak software integration
No offline-event strategy
Excessive data fields
No user training
No acceptance criteria
Start with the records that management actually needs. Expand the data model later when the workflow proves useful.
Final Implementation Checklist
Before deployment, confirm:
Every tool has a unique ID
RFID tags work on actual tools
Reading performance has been tested
User identities are available
Tool locations are defined
Important events are documented
Maintenance records can be connected
Calibration records can be connected
Work orders can be linked
Multi-cabinet movement is defined
Software integration is tested
Historical records are searchable
Users understand the workflow
Acceptance criteria are documented
FAQs
1. What is RFID tool traceability?
RFID tool traceability means recording the identity and important events associated with a tool, such as movement, users, checkout, return, maintenance, calibration, and location changes.
2. Can RFID track a tool’s complete history?
It can provide the identification and event data needed for historical tracking. Complete history depends on the cabinet configuration, software integration, and which events are captured.
3. Can RFID trace tool calibration?
Yes. The RFID tag can identify the tool, while software stores calibration dates, results, certificates, and status. RFID itself does not perform calibration.
4. Can one tool be traced across multiple departments?
Yes, when the different cabinets, readers, or workstations share a common tool database and record movement events consistently.
5. Does RFID provide real-time tool location?
Not automatically. Cabinet-based RFID usually identifies tools within defined reading areas. Real-time location requires an appropriate RFID infrastructure and system design.
