RFID Tool Cabinet for Tool Issuing and Return Management

Tool issuing and return sounds straightforward until a tool room has hundreds of tools and many users.

A technician requests several tools before starting maintenance work. Another employee needs the same equipment later. A tool may be returned without being recorded, placed in the wrong compartment, or sent directly to maintenance because it was damaged.

The physical movement is simple.

The record-keeping is where problems often appear.

RFID tool cabinet can connect the physical tool with its digital record. When a tagged tool is issued or returned, the RFID reader can identify the tool and software can update its status.

The system can then associate the transaction with a user, cabinet, department, work order, or expected return time.

This does not mean every tool room process becomes fully automatic. Staff may still need to inspect damaged tools, handle exceptions, approve restricted equipment, or resolve RFID reading issues.

The main benefit is having a more consistent connection between tool movement and tool records.

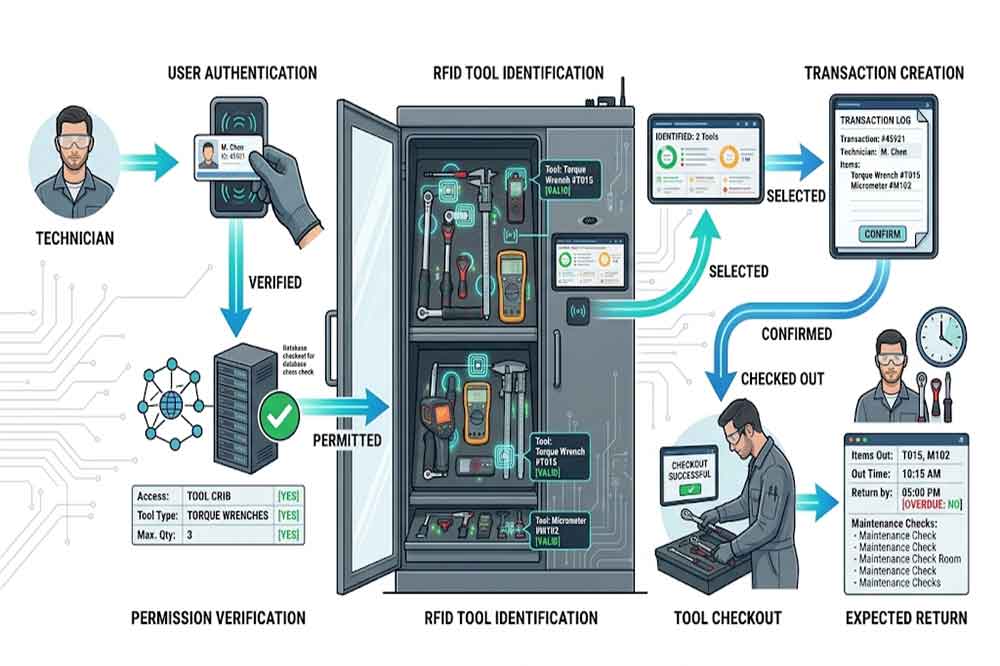

How RFID Tool Issuing Works

A typical issuing process can include several steps.

1. User Authentication

The employee identifies themselves before accessing the cabinet.

Possible methods include:

• Employee RFID card
• ID card
• PIN
• Mobile authentication
• Other supported authentication methods

The method depends on the cabinet and software.

2. Permission Check

The system can check whether the user is allowed to access the requested tool.

For example, a technician may have permission for general maintenance tools but not specialized testing equipment.

3. Tool Identification

The RFID reader identifies tagged tools.

The system may record:

• Tool ID
• User ID
• Cabinet ID
• Location
• Department
• Checkout time
• Work order
• Tool status

4. Transaction Creation

The software creates the issuing record.

The tool status can change from:

Available → Checked Out

5. Expected Return

For tools that require controlled return times, the system can also record an expected return period.

This information can later support overdue notifications.

For the broader checkout workflow, see RFID tool checkout system.

---

Why Tool Return Requires More Than RFID Detection

It is tempting to think that returning a tool simply means putting it back.

In a real tool room, several things may happen.

A tool may be:

• Returned correctly
• Returned late
• Returned damaged
• Returned to the wrong cabinet
• Returned without completing a work order
• Returned with missing accessories
• Returned after calibration expiry
• Returned but not detected correctly

Therefore, the return process should include more than a simple RFID scan.

A practical workflow might be:

Tool returned → RFID identification → User/transaction matched → Condition check → Status update → Storage confirmation

---

RFID Tool Return and Condition Inspection

Some tools should not immediately become available after return.

Consider a torque wrench.

A technician returns it after maintenance work.

The tool is physically present, but the tool room employee may need to confirm:

• Physical condition
• Calibration status
• Accessories
• Cleanliness
• Damage
• Next inspection date

The system can use separate statuses such as:

Returned → Inspection Required → Available

or:

Returned → Damaged → Maintenance

This avoids treating every RFID return event as an automatic “ready for use” condition.

For calibration-related workflows, see RFID Tool Cabinet for Tool Calibration.

---

Managing Multiple Tools in One Transaction

Tool issuing rarely involves only one item.

A technician may need:

• Screwdrivers
• Wrenches
• Pliers
• Test equipment
• Measuring tools
• Specialized equipment

A well-designed RFID cabinet may detect multiple tagged tools during a controlled transaction.

This can reduce the need to record every item manually.

However, multiple-tool reading should always be tested with the actual cabinet structure and tools.

Metal surfaces, tag placement, tool density, antenna position, and cabinet construction can affect RFID performance.

The objective should be reliable identification, not simply reading as many tags as possible.

---

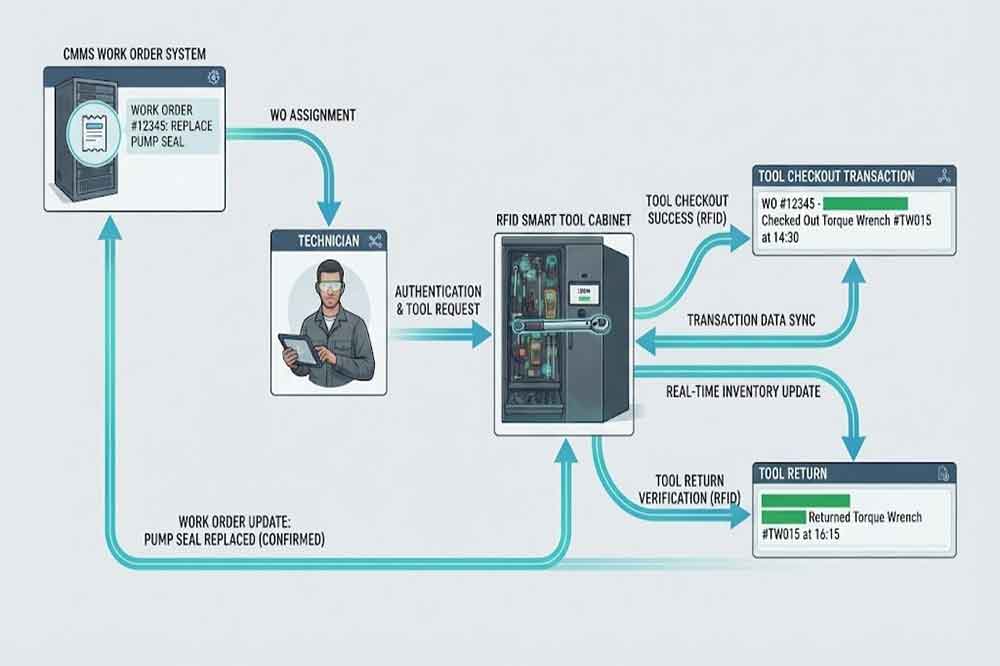

Tool Issuing for Work Orders

Tool issuing can also be connected to maintenance or production work orders.

For example:

CMMS Work Order → Tool Request → User Authentication → Tool Issued → Tool Linked to Work Order

The tool transaction can then become part of the work history.

When the tool is returned:

Tool Returned → Condition Checked → Work Order Updated

This can help maintenance teams understand which tools were used during a particular job.

The exact integration depends on the CMMS or enterprise software.

---

Managing Overdue Returns

Not every tool has the same expected return time.

A common wrench may stay with a technician for an entire shift.

A specialized inspection instrument may need to return after a specific task.

The system can therefore apply different rules.

For example:

Normal tool: return by shift end.

Shared tool: return within four hours.

High-demand tool: return immediately after the task.

Specialized equipment: return according to work-order requirements.

When the expected return time passes, the system can create an overdue status or alert.

For notification workflows, see RFID Tool Cabinet Alerts and Notifications.

---

Return Exceptions

Return exceptions deserve their own workflow.

Damaged Tool

The tool is identified but should not return to available inventory.

Returned → Damaged → Maintenance

Wrong Tool

The employee returns a tool to the wrong cabinet or compartment.

Detected → Location mismatch → Exception

Missing Tool

The transaction remains open because the expected tool has not returned.

Checked Out → Overdue → Missing Investigation

Calibration Expired

The tool returns physically but cannot be issued again until calibration is completed.

Returned → Calibration Check → Restricted

These rules make the system more useful than a simple electronic checkout log.

---

Tool Issuing and User Accountability

The value of RFID increases when tool transactions are connected to users.

The system can potentially answer:

• Who issued the tool?
• When was it issued?
• Which cabinet issued it?
• Which department requested it?
• Is it still checked out?
• Was it returned?
• Was an exception recorded?

This creates a transaction history.

It should not be viewed as a replacement for management procedures. Rather, it gives supervisors better information when a tool cannot be located.

For permission management, see RFID tool cabinet access control.

---

Tool Issuing and Inventory

Issuing and inventory are closely connected.

When a tool is issued:

Available → Checked Out

When returned:

Checked Out → Available

If damaged:

Checked Out → Maintenance

If missing:

Checked Out → Missing

This status model helps inventory records reflect actual tool conditions.

A tool crib therefore does not need to think of inventory as only “how many tools are physically present.”

A more useful inventory view may include where the tool is, who has it, and what condition it is in.

For more detail, see RFID tool cabinet inventory management.

---

RFID Tool Issuing for Shared Equipment

Shared equipment creates more complicated issuing requirements.

Suppose one calibration instrument is shared by three maintenance departments.

Without clear records, each department may assume the instrument is available.

With RFID-based tool management, the system can show:

Available

or

Reserved by Department A

or

Checked out by Technician B

or

Under calibration

This can reduce unnecessary trips to the tool room.

Reservation and issuing should still remain separate concepts.

A reservation indicates intended use.

An RFID transaction records actual movement.

For reservation workflows, see RFID Tool Cabinet Tool Reservation and Availability Management.

---

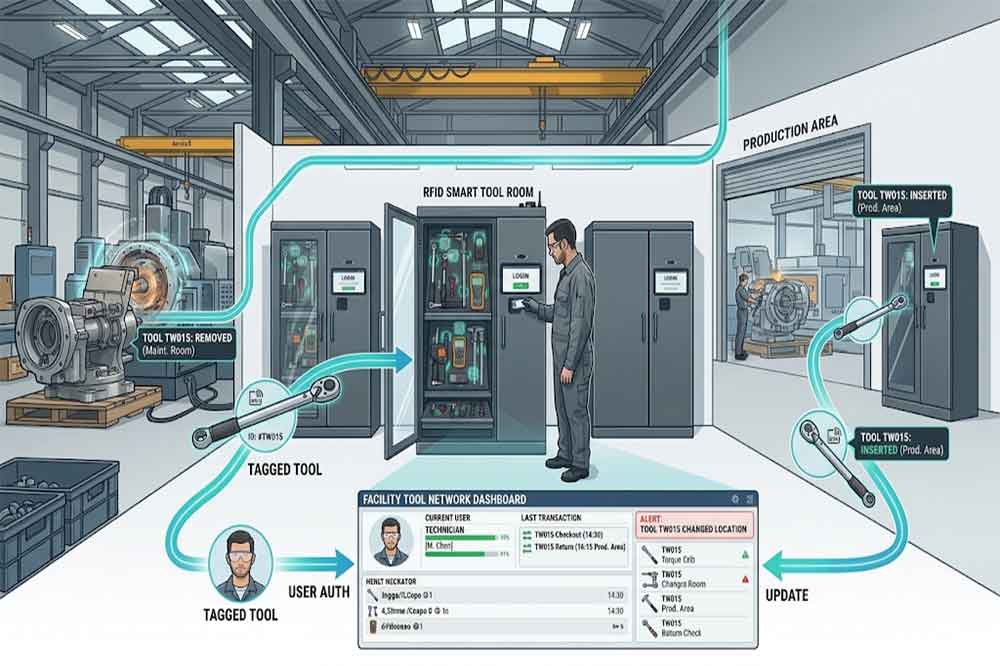

Issuing Tools Across Multiple Cabinets

Large factories may have more than one tool cabinet.

For example:

• Central Tool Crib
• Maintenance Workshop
• Production Line A
• Production Line B
• Quality Department

The same tool may move between locations.

The system therefore needs a consistent tool identity.

A transaction might look like:

Cabinet A → User 102 → Cabinet B → User 205 → Central Tool Crib

The system should preserve the tool ID while updating the latest known location.

This becomes increasingly important in multi-location deployments.

See RFID tool cabinet for multi-location tool management for more planning considerations.

---

Manual Issuing vs. RFID-Based Issuing

Management Area	Manual Process	RFID-Based Process
User identification	Manual entry	System authentication
Tool identification	Visual/manual	RFID-assisted
Checkout record	Paper/software entry	Automated or semi-automated
Return record	Manual confirmation	RFID-assisted
Inventory update	Manual	Automatic or semi-automatic
Overdue tracking	Manual follow-up	Rule-based
User accountability	Depends on records	Transaction-linked
Reporting	Spreadsheet/manual	Digital transaction data

RFID does not eliminate every manual step.

The main difference is how much repetitive identification and data entry can be reduced.

---

Designing a Practical Return Workflow

A return workflow should match the real operation.

For a simple tool:

Return → RFID detection → Available

For a controlled tool:

Return → RFID detection → Inspection → Available

For a calibrated instrument:

Return → RFID detection → Calibration check → Available / Restricted

For damaged equipment:

Return → RFID detection → Damage record → Maintenance

Different tool categories can therefore use different workflows.

---

Common Implementation Problems

Treating Every Return as “Available”

This can allow damaged or overdue equipment to return to circulation without inspection.

Not Testing Multiple Tools

A demonstration with one tool may not represent actual tool crib conditions.

Ignoring Wrong-Location Returns

The system should have a defined response when a tool is placed in the wrong location.

No User Authentication

Without user identification, transaction accountability becomes limited.

No Exception Handling

Missing, damaged, restricted, and calibration-related returns need separate statuses.

Overcomplicating the User Workflow

Technicians should not have to complete unnecessary steps for simple tool returns.

No Real-World Pilot

Actual shifts, tools, employees, and cabinet usage should be tested before full deployment.

---

How to Implement RFID Tool Issuing and Return

Step 1: Map Current Operations

Document the existing issuing and return process.

Step 2: Classify Tools

Separate tools by:

• Value
• Usage frequency
• Material
• Calibration requirements
• Access restrictions
• Return requirements

Step 3: Test RFID Tags

Use representative real tools.

Step 4: Design the Cabinet Workflow

Define authentication, access, issue, return, inspection, and exception handling.

Step 5: Configure Software

Create tool, user, location, status, and transaction records.

Step 6: Test Multiple-Tool Reading

Test realistic tool combinations.

Step 7: Connect Existing Systems

Integrate with CMMS, ERP, MES, WMS, or custom applications when required.

Step 8: Run a Pilot

Use actual employees and real work orders.

Step 9: Review Results

Measure:

• Checkout time
• Return time
• Missing tools
• Wrong-location returns
• Inventory accuracy
• User feedback
• RFID exceptions

For a structured pilot, see RFID tool cabinet pilot project.

---

Practical Acceptance Checklist

Before going live, confirm that the system can:

• Identify selected tools
• Identify users
• Record tool issuing
• Record tool returns
• Handle multiple tools
• Update inventory
• Manage overdue tools
• Handle damaged tools
• Handle restricted tools
• Check calibration status
• Record tool locations
• Produce transaction history
• Support required integrations
• Handle network interruptions
• Generate useful alerts

These acceptance criteria should be tested with actual tool room workflows.

---

FAQs

Can RFID automatically record tool returns?

Yes. When a tagged tool is detected by the cabinet, the software can update the return transaction if the system is configured for automated return detection.

Can several tools be issued at once?

Potentially, yes. RFID systems can be designed to identify multiple tagged tools, but actual performance depends on cabinet design, tags, tool materials, and reader configuration.

What happens if a returned tool is damaged?

The system can assign a damaged or maintenance status instead of returning it directly to available inventory.

Can tool issuing be linked to a work order?

Yes. RFID transactions can potentially be connected with CMMS, ERP, MES, or custom work orders through software integration.

Does RFID eliminate manual tool room work?

No. It can reduce repetitive identification and record entry, but staff may still need to inspect tools, manage exceptions, maintain records, and handle unusual situations.

---
