The main difference between an RFID antenna and an RFID reader is their function. RFID reader manages data communication with RFID tags, while an RFID antenna controls wireless signal transmission and reception. Choosing the right combination is important for warehouse, industrial, and custom RFID projects.
When companies start planning an RFID project, one question appears quite often:
“What is the difference between an RFID antenna and an RFID reader?”
At first, these two components may look like they belong together because they are usually installed in the same system.
They do work together, but they are not the same thing.

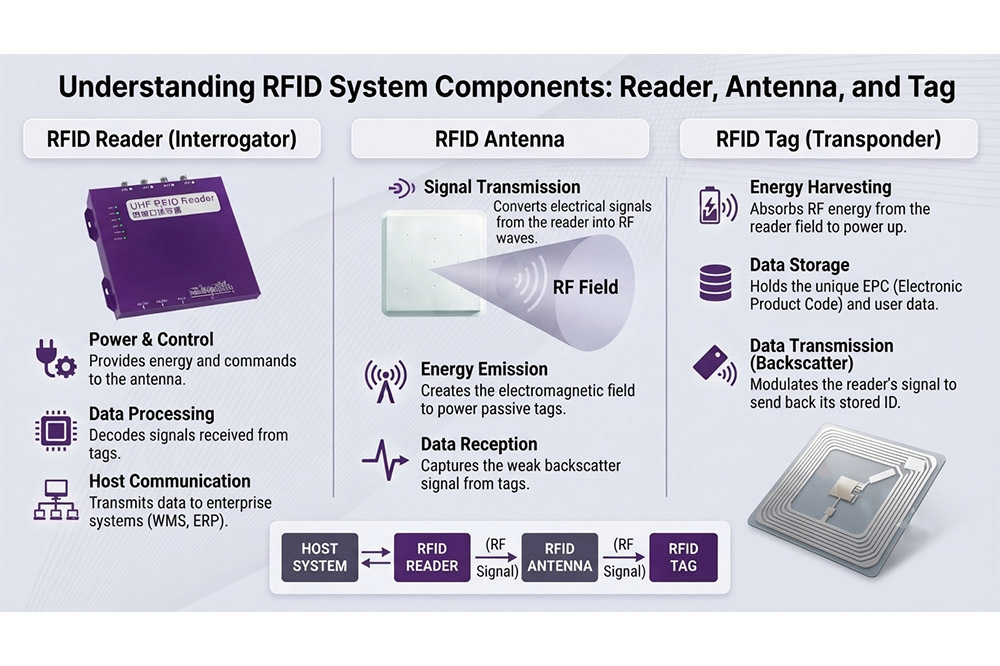

A simple way to understand it:
The RFID reader is the “brain” that processes information.
The RFID antenna is the “communication bridge” that sends and receives radio signals.
Without the reader, the antenna cannot process tag data.
Without the antenna, the reader cannot communicate effectively with RFID tags.
This difference becomes especially important when purchasing RFID equipment in bulk.
Choosing the wrong component can affect the entire system design, installation cost, and future expansion.
An RFID reader is the main electronic device responsible for communication and data processing.
Its main functions include:
For example, in a warehouse inventory system:
A pallet with an RFID tag passes through a gate.
The RFID reader controls the communication process.
It sends commands.
It receives tag responses.
Then it transfers the information to the warehouse management system.
The reader is responsible for handling the data.
The RFID antenna handles the wireless communication between the reader and RFID tags.
Its job is to transmit and receive RF energy.
The antenna affects:
Think about a speaker and amplifier.
The amplifier creates the audio signal.
The speaker delivers the sound.
The reader creates the RFID communication signal.
The antenna delivers that signal into the physical environment.

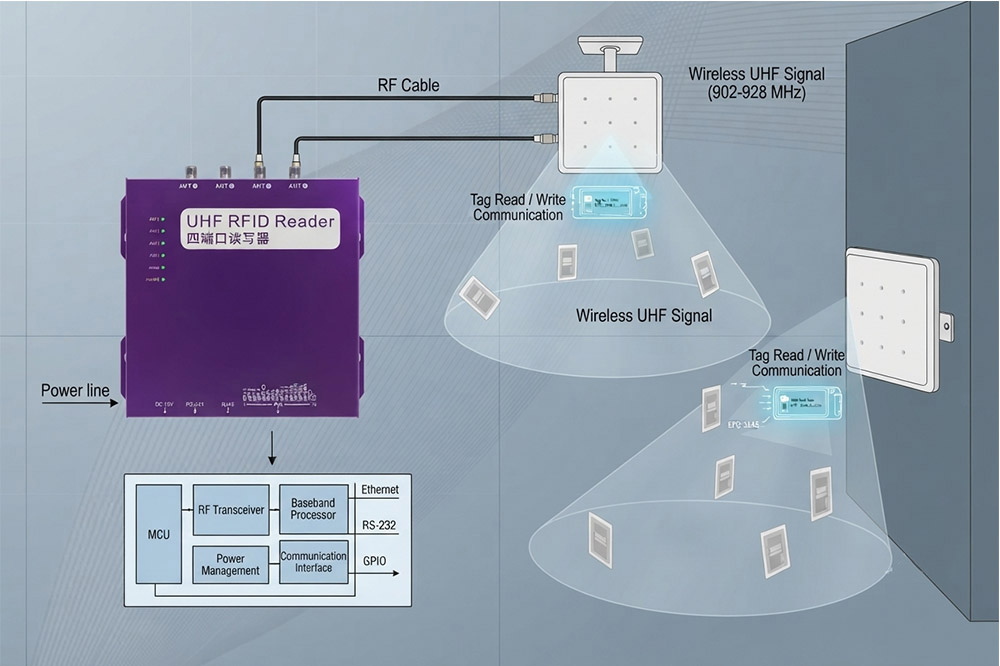

A complete RFID communication process usually looks like this:
The RFID reader generates a radio frequency signal.
The signal travels through the antenna.
The RFID tag receives energy and responds.
The antenna captures the tag response.
The reader processes the information.
Every part matters.
A high-performance reader with a poor antenna setup may still produce disappointing results.
One reason is that many RFID products combine both functions.
For example:
A handheld RFID scanner may include:
Because everything is integrated into one device, users sometimes assume the reader and antenna are the same component.
However, in industrial projects, they are often separate.

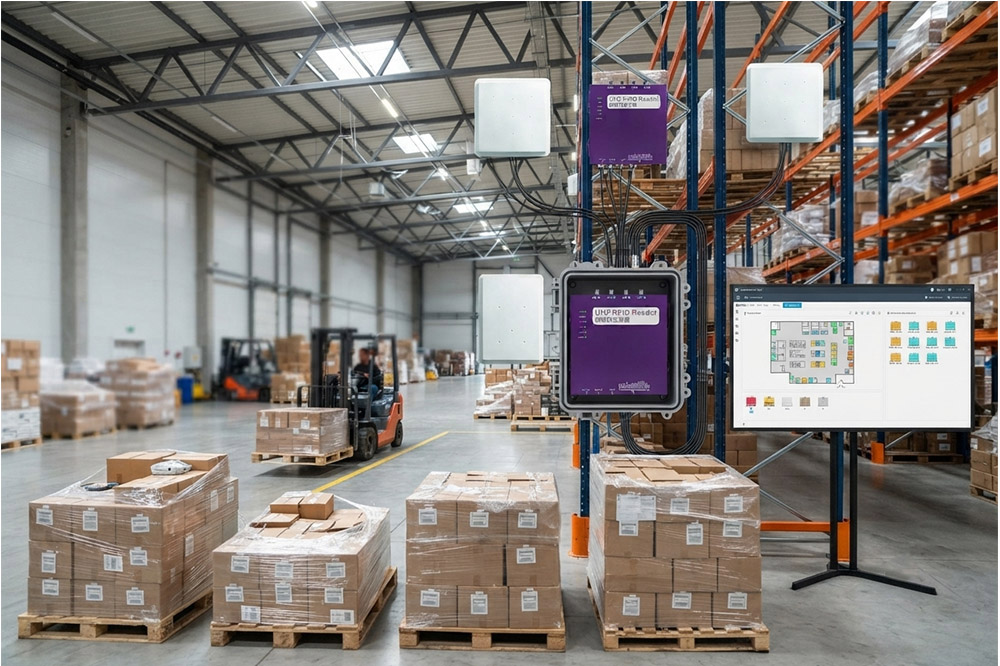

A warehouse RFID system may use:
This allows better coverage and more flexible installation.
Different applications require different designs.
These combine reader and antenna in one device.
Advantages:
Common uses:
These separate the reader and antenna.
Advantages:
Common uses:
For industrial projects, external antenna solutions are often preferred because engineers can adjust antenna locations according to the actual environment.
Many buyers focus heavily on the RFID reader specifications.
They compare:
These are important.
But the antenna choice can directly affect the final user experience.
For example:
A logistics company wants to track pallets entering a warehouse.
The reader may support multiple antennas.
But if the antenna coverage is not designed properly, some pallets may still be missed.
Another example:
A smart tool cabinet needs accurate item detection.
A long-range antenna may cause unwanted reads from nearby tools.
A smaller controlled antenna may actually work better.
Before purchasing RFID hardware, companies should check several factors.
The reader and antenna must operate within compatible frequency ranges.
Common UHF RFID systems operate around:
860-960 MHz.
Antenna gain affects signal concentration.
Higher gain may improve distance.
But it may reduce coverage flexibility.
The connection between reader and antenna matters.
Consider:
The same hardware behaves differently in:
The environment should be considered before selecting equipment.
Some projects choose a powerful reader and later discover the antenna setup does not fit.
The reader cannot solve every antenna problem.
Longer reading distance sounds attractive.
But uncontrolled reading areas can create false detection.
Not every RFID reader works perfectly with every antenna.
Compatibility should be confirmed before bulk orders.
For distributors, system integrators, and OEM customers, choosing RFID hardware is usually a long-term decision.
Important questions include:
A supplier with technical experience can often help avoid expensive redesign later.
Some projects require more than standard products.
Examples:
A machine manufacturer may need a customized antenna integrated into equipment.
A warehouse automation company may need multiple antenna layouts.
A smart cabinet company may need compact antenna designs.
In these cases, working with an RFID manufacturer that understands both antennas and system integration can save development time.
No. The reader processes RFID data, while the antenna sends and receives RF signals.
Some integrated readers include antennas, but external reader systems require separate antennas.
Both are important. The reader controls communication, while the antenna affects signal coverage and reading performance.
Yes. RFID antenna manufacturers can customize size, gain, connectors, and designs for specific applications.
Selecting RFID hardware is not only about comparing specifications.
The right combination of reader and antenna depends on the actual application, installation environment, and future expansion plans.
For RFID distributors, system integrators, and OEM equipment manufacturers, we provide RFID antenna solutions, customization support, and bulk supply services.
Contact us to discuss your RFID project requirements.
