Long Range RFID Scanner for Parking Systems: Smarter Vehicle Access Without Waiting at the Gate

Long Range RFID Scanner for Parking Systems: What Parking Operators Need to Know

When people talk about smart parking, many imagine license plate recognition cameras first. Cameras are common, but in some parking environments they are not always the easiest solution.

A busy factory parking area, residential community, logistics park, or airport parking entrance has different challenges. Rain, dust, poor lighting, dirty license plates, or vehicles entering too closely together can affect camera recognition.

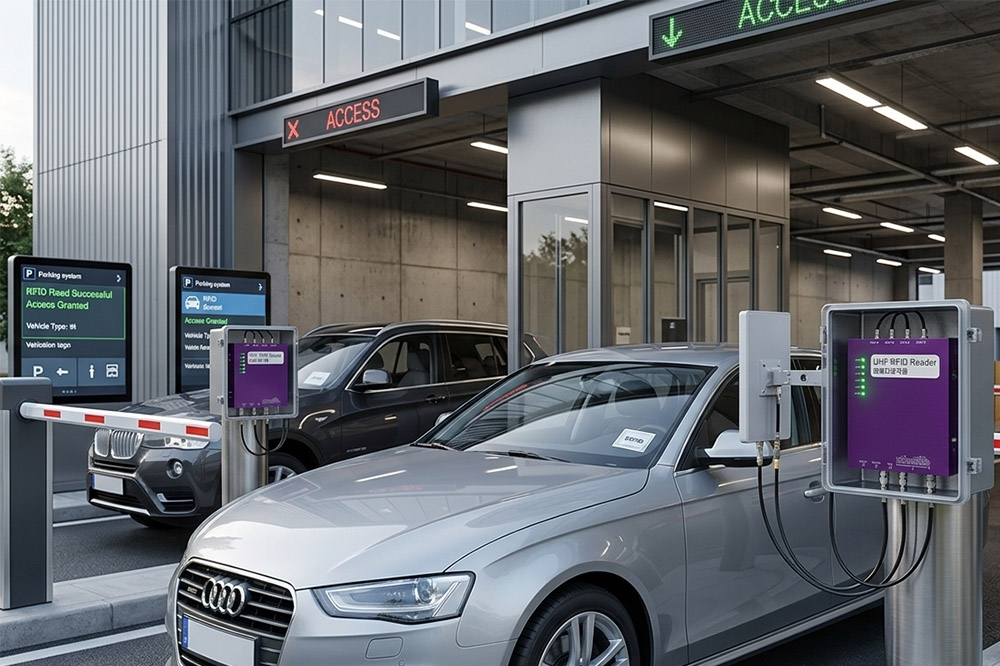

This is where a long range RFID scanner for parking systems becomes interesting.

Instead of waiting for a camera to capture an image, an RFID system identifies the vehicle through an RFID tag attached to the windshield or vehicle body. The driver simply approaches the entrance, the reader detects the tag, and the gate opens automatically.

It sounds simple, but the actual installation details make a big difference.

Many parking projects fail not because RFID technology is not good enough, but because the antenna position, reading angle, tag selection, and software integration are not properly considered.

---

Why Long Range RFID Scanners Are Used in Parking Applications

A parking entrance is a high-frequency movement area. During peak hours, dozens or even hundreds of vehicles may enter within a short time.

A traditional access card system usually requires the driver to stop, lower the window, scan the card, and wait.

For a small parking lot, this may be acceptable.

But imagine a company campus at 8:30 in the morning.

Hundreds of employees arrive within 20 minutes. A few seconds saved for every vehicle can significantly reduce waiting lines.

A long range RFID scanner can usually identify vehicles from several meters away depending on the reader power, antenna design, tag type, and installation environment.

For parking system integrators, this provides more flexibility:

• Vehicle access control
• Employee parking management
• Visitor vehicle tracking
• Monthly parking authorization
• Fleet management
• Toll parking applications

The system is not only opening a gate. It is creating a connection between vehicles, users, and parking data.

---

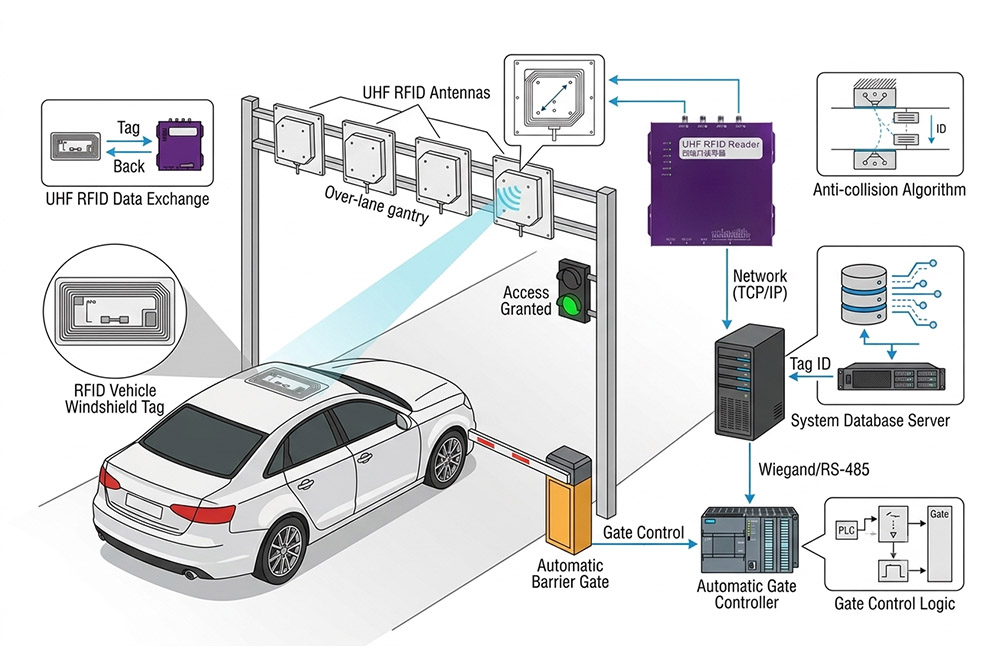

How RFID Parking Systems Work in Real Projects

A typical RFID parking system contains several components:

1. UHF RFID reader
2. Directional RFID antenna
3. Vehicle RFID tag
4. Barrier gate controller
5. Parking management software

The process is quite straightforward.

A vehicle approaches the entrance.

The long range RFID scanner sends signals through the antenna. The RFID tag receives the signal and returns its unique identification information.

The software checks whether this vehicle is authorized.

If everything matches, the gate opens.

The entire process can happen without the driver taking any action.

However, in real projects, there are some details that engineers usually pay attention to.

For example, installing the antenna too low may reduce reading distance. Installing two antennas too close together may create unnecessary interference. Using the wrong RFID tag type may cause unstable reading performance.

These small things often decide whether a parking project works smoothly.

---

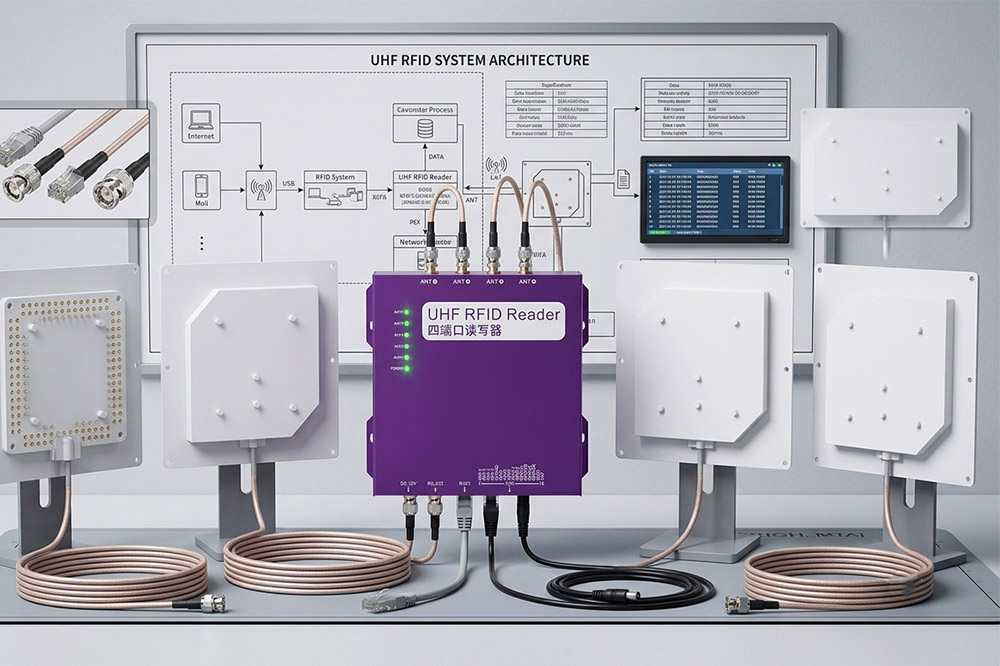

Choosing the Right Long Range RFID Scanner for Parking Gates

Not every RFID reader is suitable for vehicle identification.

Parking applications usually require stable long-distance reading performance.

For example, a warehouse inventory reader may focus on reading hundreds of tags inside a controlled area. A parking RFID reader needs to identify a moving vehicle quickly and accurately.

Several factors should be considered.

Reading Distance

Most parking systems require several meters of reading range.

A vehicle should be detected before reaching the barrier gate, giving enough time for verification and opening.

The actual distance depends on:

• RFID reader power
• Antenna gain
• Vehicle speed
• Tag quality
• Installation environment

A 6-meter reading distance may work for a private parking entrance, while a larger commercial parking system may require longer range performance.

---

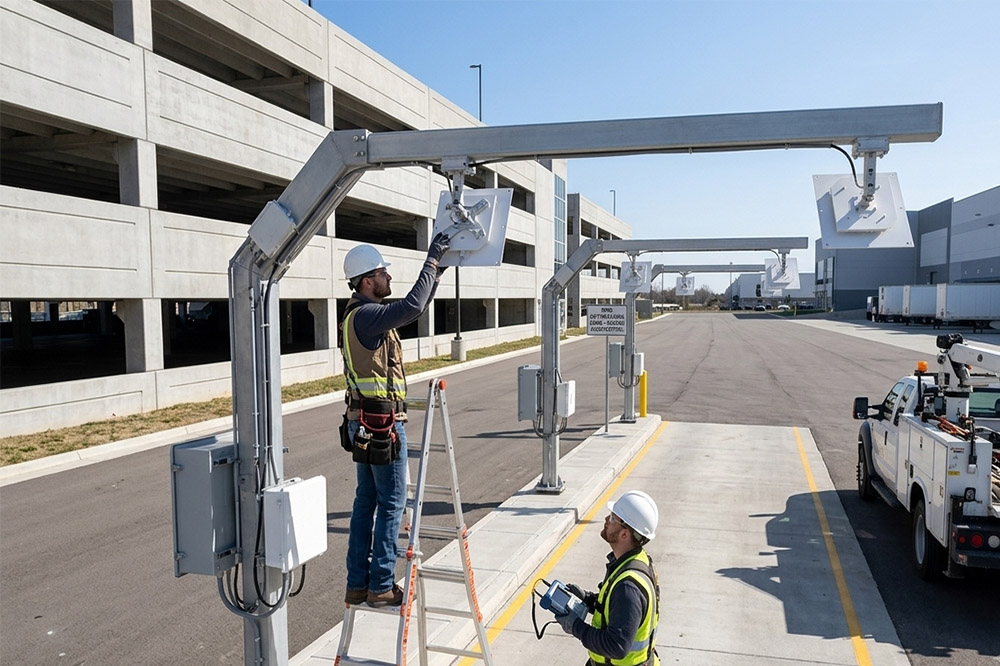

Antenna Direction and Installation Angle

This is often overlooked.

A high-power RFID reader does not automatically mean better results.

In parking applications, controlling the reading area is important.

If the antenna reads too widely, it may detect vehicles in nearby lanes.

For example, in a multi-lane parking entrance, an antenna with a focused beam can help reduce unwanted tag detection.

Many system installers spend more time adjusting antenna angles than changing hardware.

A few degrees of adjustment can sometimes improve the whole system.

---

RFID Tags for Vehicle Identification

The tag is another important part.

A cheap tag may look attractive during quotation, but unstable tags can create problems after installation.

Common options include:

• Windshield RFID tags
• UHF vehicle stickers
• Durable RFID tags for fleet vehicles

For long-term parking management, especially in factories or logistics parks, durability matters.

A parking system may operate every day for years, so the RFID tag needs to handle temperature changes, sunlight exposure, and daily vehicle movement.

Long Range RFID Scanner for Parking Systems: Applications Beyond Simple Gate Opening

Many people still think RFID parking systems are only used for automatic barriers at residential communities. That was true years ago, but current applications are much wider.

In industrial parks, for example, companies often need to manage hundreds of employee vehicles, supplier trucks, and visitor cars every day.

A long range RFID scanner can help create different access rules.

An employee vehicle may have permanent access.

A supplier truck may only enter during specific hours.

A visitor vehicle may require temporary authorization.

The RFID system records each vehicle entry and exit, making it easier for security teams to check parking activity.

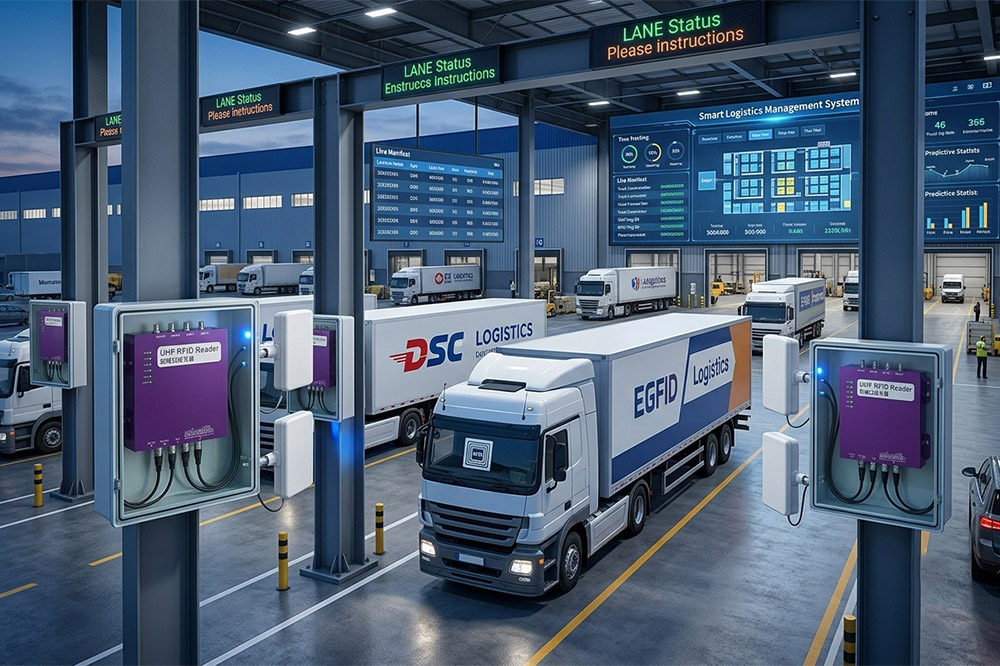

Another interesting application is logistics yards.

A truck arriving at a warehouse gate usually needs registration, checking, and recording. If every truck needs manual confirmation, the process becomes slow.

With RFID vehicle identification, the system can automatically recognize registered trucks and connect the information with warehouse software or ERP systems.

It does not completely replace human management, but it removes many repetitive steps.

---

Long Range RFID Scanner for Parking Systems in Smart Cities

Smart city projects are another growing application area.

Large public parking areas need better ways to manage vehicle flow.

Compared with traditional ticket systems, RFID-based parking solutions can provide:

• Faster vehicle entry and exit
• Reduced waiting time
• Better parking records
• Lower manual operation costs

For example, an airport parking area may have thousands of vehicles entering every day.

During holiday seasons, traffic pressure increases significantly.

A reliable RFID system helps keep vehicles moving instead of creating long queues at payment points.

Of course, many modern parking projects also combine RFID with other technologies such as cameras, mobile applications, and payment platforms.

RFID is not always a replacement for every technology. In many cases, it works best as one part of a complete parking management solution.

---

What Wholesale Buyers and System Integrators Should Check Before Ordering

For distributors, parking solution providers, and engineering companies, choosing an RFID supplier is not only about product price.

A low-cost reader may create additional installation costs later if performance is unstable.

Before purchasing in bulk, buyers usually need to confirm several points.

Hardware Compatibility

Check whether the RFID reader supports common communication interfaces such as:

• Ethernet
• RS232
• RS485
• Wiegand
• TCP/IP

This makes integration with existing parking controllers easier.

---

SDK and Software Support

A parking system is rarely a standalone device.

Most customers want RFID readers connected with:

• Parking management software
• Access control platforms
• ERP systems
• Cloud platforms

A supplier that provides SDK, API documentation, and technical support can reduce development time.

For system integrators, this is often more valuable than saving a small amount on hardware cost.

---

Product Reliability for Outdoor Installation

Parking entrances are usually outdoor environments.

The RFID equipment may face:

• Rain
• Dust
• High temperature
• Direct sunlight
• Vehicle vibration

Therefore, enclosure protection, stable RF performance, and long working hours are important.

A product that performs well inside a test room may not always perform the same way after being installed at a real parking entrance.

---

Common Questions About Long Range RFID Scanner for Parking Systems

How far can a long range RFID scanner read a vehicle tag?

The reading distance depends on the reader power, antenna type, RFID tag, and installation environment.

For vehicle parking applications, many systems are designed for several meters of reliable detection, while specialized configurations can achieve longer distances.

---

Can RFID read through a car windshield?

Yes. UHF RFID windshield tags are commonly designed for vehicle identification.

However, windshield material, tag position, and antenna direction can influence performance.

---

Can one RFID reader control multiple parking lanes?

It depends on the reader model and system design.

Some multi-port RFID readers can connect with multiple antennas, allowing one controller to manage several reading points.

For multiple lanes, engineers usually consider antenna coverage carefully to avoid reading vehicles from the wrong lane.

---

Is RFID better than license plate recognition for parking?

Both technologies have advantages.

License plate recognition is useful when visual identification is required.

RFID provides fast identification with authorized tags and works well for closed environments such as factories, campuses, residential communities, and fleet parking.

Some advanced parking systems use both technologies together.

---

Working With Long Range RFID Scanner Supplier

For companies purchasing RFID parking equipment in bulk, the most important factor is usually not just the reader itself.

A successful parking project depends on the complete solution:

• Suitable RFID reader
• Correct antenna selection
• Proper installation guidance
• Software integration support
• Stable supply capability

This is especially important for distributors and system integrators who need to deploy the same solution across multiple customer sites.

A good supplier should understand real installation problems, not only provide hardware specifications.

When evaluating a long range RFID scanner for parking systems, it is worth testing the product in a real environment before large-scale deployment.

A parking entrance is not a laboratory.

Vehicles move differently, weather changes, and installation conditions are never exactly the same.

That practical experience is often what separates a smooth RFID parking project from a system that requires constant adjustment.

---
