How RFID Reader Works: Understanding UHF RFID Communication

How rfid reader works is based on radio communication: the reader sends RF energy through its antenna, activates compatible RFID tags, receives their backscattered responses, separates multiple tag signals, and converts them into digital identification data for the connected system.

That sounds simple until the reader is installed at an actual warehouse doorway.

A reader positioned beside a metal rack, for example, is no longer operating in the clean environment of a laboratory. Antenna polarization, reader power, tag orientation, reflections, interference, cable loss and the physical construction of the products can all affect the result.

This is where understanding the reader itself becomes important.

What Does an RFID Reader Actually Do?

An RFID reader is the active part of the RFID communication system. In a typical passive UHF installation, it performs several jobs rather than simply “scanning” a tag.

Reader function	What happens
RF transmission	Sends electromagnetic energy toward the tag
Tag activation	Provides energy for passive tags within the RF field
Command communication	Sends inventory and access commands
Signal reception	Receives the tag’s backscattered response
Anti-collision	Coordinates communication with multiple tags
Signal processing	Converts RF responses into usable data
Data output	Sends tag information to software or a controller

GS1 explains that passive RAIN RFID readers transmit radio-frequency energy to tags and receive the information returned through backscatter. The reader then communicates that information to the application system.

So when asking how RFID reader works, it is useful to think of the device as a combination of an RF transmitter, receiver, signal processor and communications interface.

The reader is not simply looking for a serial number

During a real inventory cycle, the reader may be dealing with dozens or hundreds of tags simultaneously.

It needs to determine:

• Which tags are present
• Which tags have already responded
• Which tags still need to respond
• Whether a response was corrupted
• What EPC data was returned
• Which reader antenna received the response
• When the tag was detected

That makes the reader’s firmware and RF processing just as important as its maximum output power.

How an RFID Reader Communicates With a Tag

The basic UHF RFID exchange happens extremely quickly.

The reader first establishes the RF field. A passive tag entering that field receives enough energy through its antenna to power its integrated circuit. The reader then issues commands according to the applicable RFID air-interface protocol.

The tag does not behave like a Wi-Fi device transmitting its own independent radio signal.

Instead, it modifies the way it reflects the reader’s RF energy. This is backscatter communication.

GS1’s EPC/RFID architecture describes passive tags as receiving operating energy from the reader’s continuous-wave signal and communicating by changing the reflection characteristics of their antenna.

That small physical interaction is the heart of passive UHF RFID.

A typical reading event

Reader antenna → RF field → RFID tag → backscatter response → reader receiver → digital tag data

The reader’s job is to make this exchange reliable enough that the software can treat the response as an actual inventory event.

This distinction becomes particularly important in UHF RFID reader systems used for high-volume inventory.

RF Power Is Important, But Maximum Power Is Not the Whole Story

One specification frequently highlighted in RFID projects is output power.

For example, Cykeo’s UHF reader products can be configured with output levels reaching 33 dBm, depending on the specific model and application.

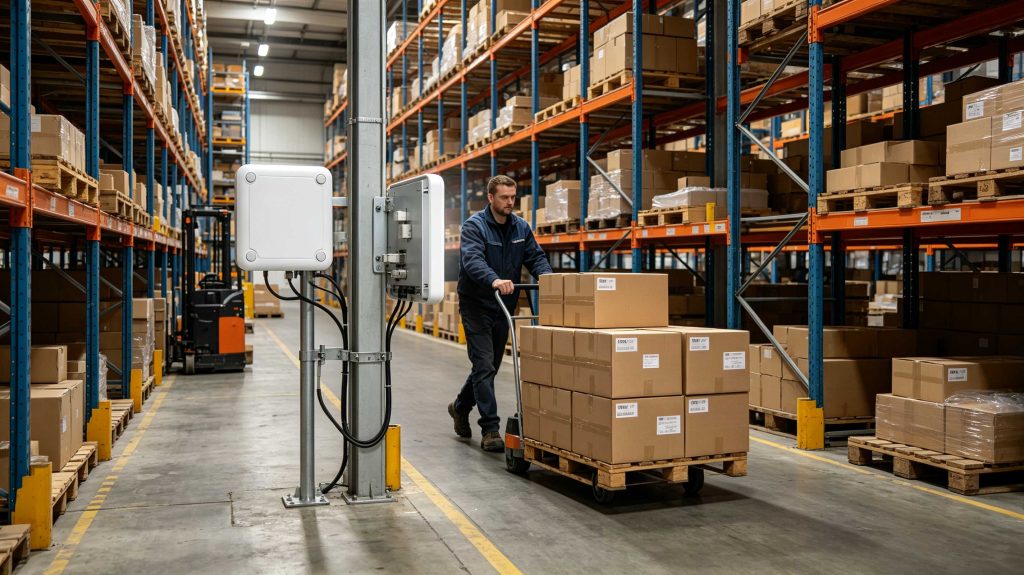

But an engineer standing beside a warehouse doorway rarely solves a reading problem simply by increasing power.

Higher power can enlarge the interrogation area—but that may also increase unwanted reads.

Imagine a warehouse entrance with RFID-tagged garments stored three meters behind the doorway. If the reader is configured too aggressively, those stationary garments can become part of the inventory result while a trolley is being processed.

The better question is:

Where should the RF field exist, and where should it stop?

That is why antenna selection, mounting position, polarization and software filtering need to be considered together with reader power.

GS1 notes that passive UHF read performance depends on reader power, antenna characteristics, tag orientation, interference and the surrounding environment. It also points out that the shape of the readable volume can be more meaningful than maximum read distance.

How RFID Readers Handle Multiple Tags

This is one of the most important differences between RFID and conventional barcode identification.

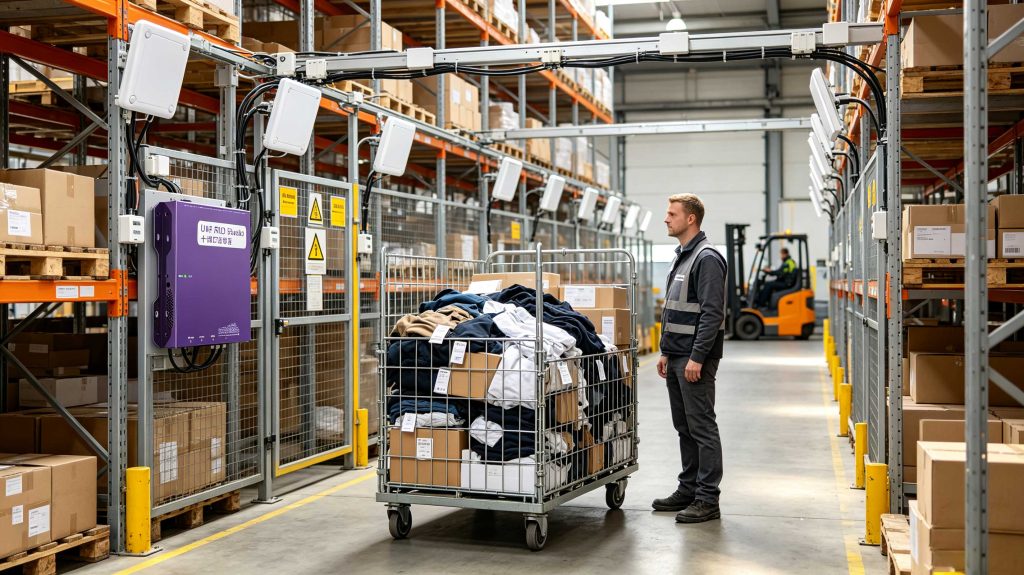

Suppose a warehouse trolley contains 300 RFID-tagged garments.

The reader cannot simply ask all 300 tags to answer at exactly the same moment.

They would collide.

UHF RFID therefore uses an anti-collision mechanism defined by the EPC Gen2 air-interface protocol. The reader manages inventory rounds and controls how tags participate in response slots.

GS1’s EPC Gen2 specification defines the inventory process and random-slotted collision arbitration used to manage multiple responding tags.

The result is a controlled RF conversation rather than a chaotic collection of simultaneous responses.

For a warehouse application, this is the mechanism that allows RFID inventory management to move from one-item-at-a-time identification toward batch identification.

Reader Antennas Determine Where the Reader Can “See”

Strictly speaking, the reader and antenna perform different jobs.

The reader generates and processes the RF signal. The antenna determines how that energy is radiated into the physical environment and how returning signals are received.

This is why a technically powerful reader can still produce disappointing results when paired with the wrong antenna arrangement.

For example:

• A portal application may use multiple antennas to create a controlled reading zone.
• A conveyor application may require antenna placement around the product flow.
• A warehouse shelf may need a more localized field.
• A vehicle or gate application may require a wider coverage pattern.
• An RFID channel machine can use an enclosed structure to restrict the effective reading environment.

In Cykeo’s described UHF inventory channel, PLC-controlled roller shutters are used to close the passage during reading. The purpose is practical: create a defined reading space and reduce the possibility of capturing RFID tags outside the target batch.

This approach is particularly useful when tagged goods are stored close to the movement path.

From RF Signal to Inventory Data

The reader does not normally send raw radio-wave information directly to a warehouse employee.

Its internal processing converts the received response into structured tag information.

A simplified data path looks like this:

RFID Tag → Antenna → RFID Reader → Signal Processing → EPC Data → Ethernet/Communication Interface → Inventory Software

The application can then associate the EPC with:

• Product identity
• Shipment
• Purchase order
• Storage location
• Receiving transaction
• Outbound order
• Inventory record

That separation is valuable. The RFID reader handles the physical identification event; business software decides what that event means.

For Cykeo systems, Ethernet communication can connect the reader with external applications, while specific models and configurations can support additional communication options.

What I Check During an RFID Reader Deployment

After working through RFID equipment specifications and application environments, I would not validate a reader only by putting a single tag in front of its antenna.

The meaningful test is closer to the actual operation.

For a warehouse deployment, I would check:

1. Actual product density — test the reader with the intended batch size.
2. Tag orientation — rotate and reposition representative products.
3. Antenna position — measure the actual reading zone rather than relying on theoretical distance.
4. Nearby tagged inventory — deliberately test unwanted-read conditions.
5. Metal structures — include racks, cages and other metal infrastructure.
6. Movement speed — test goods while they are actually moving.
7. Software response — verify that duplicate reads and incomplete transactions are handled correctly.

That last point is easy to overlook.

A reader can detect the same tag repeatedly during a few seconds of exposure. The inventory application must understand that these repeated observations do not necessarily represent multiple physical items.

The useful output is not “how many RF responses occurred.”

It is which physical items were reliably identified during the intended business event.

How RFID Reader Works Across Different RFID Frequencies

The phrase RFID reader covers several different technologies. The operating frequency changes the way the reader interacts with the tag, so a reader designed for one RFID application cannot automatically be treated as interchangeable with another.

GS1 identifies three major RFID frequency categories: LF, HF and UHF. Passive UHF/RAIN RFID operates in the 860–930 MHz range and is widely used for fast asset identification, inventory and tracking. HF commonly operates at 13.56 MHz, while LF systems typically operate at 125 or 134 kHz.

RFID type	Typical frequency	Typical application characteristic
LF RFID	125 / 134 kHz	Short-range identification
HF RFID	13.56 MHz	Cards, tickets, documents, item tracking
UHF / RAIN RFID	860–930 MHz	Fast inventory, asset identification and tracking

For the warehouse, apparel, linen and electrical-meter applications discussed here, UHF RFID readers are generally the relevant category.

How UHF RFID Readers Achieve Longer Reading Distances

There is no single “RFID read distance.”

GS1 states that passive UHF RFID tags typically have a reading range of several meters, with up to 15 meters possible in special cases. It also notes that highly sensitive UHF readers using phased-array antennas can reach 20 meters in particular configurations. More importantly, GS1 emphasizes that the shape of the readable volume depends strongly on antenna directivity, gain, polarization and tag orientation.

That last point is often more useful than the headline distance.

Imagine a warehouse entrance where a reader needs to identify a trolley passing through a two-meter-wide lane. A huge reading radius could actually make the system worse if it also captures tags sitting on nearby shelves.

The target is a controlled reading volume, not the largest possible RF footprint.

Reader Power and Antenna Gain

Reader output power and antenna characteristics work together.

A higher reader output can provide stronger excitation at the tag, but antenna gain and radiation pattern determine how that energy is distributed. Cable loss between the reader and antenna also matters.

RFID Journal’s engineering guidance highlights reader-to-antenna signal loss, tag-to-antenna distance, tag orientation, antenna polarization and impedance matching as important considerations when designing UHF RFID systems.

For Cykeo’s UHF reader portfolio, configurations with output power up to 33 dBm are available on applicable models. The useful setting, however, depends on the installation.

Maximum power is a specification.

Correct RF coverage is an engineering result.

How RFID Readers Avoid Reading the Same Tag Forever

A busy RFID reader may see the same tag repeatedly while that tag remains inside the RF field.

This is normal.

Consider a garment trolley sitting in front of an antenna for five seconds. The reader might receive multiple valid responses from the same EPC during that period. The software therefore needs to distinguish repeated observations of one item from multiple physical items.

EPC Gen2 provides inventory mechanisms and anti-collision procedures for managing populations of tags. GS1’s specification describes random-slotted collision arbitration, where the reader controls tag response opportunities through inventory rounds and the Q parameter.

Current GS1 Gen2 standards have continued evolving. The latest Gen2v3 release was ratified in February 2026, adding capabilities including improved tag selection and measures intended to reduce interference from fringe tags.

This matters because modern RFID performance is not simply about RF power. Protocol behavior, tag population management and reader firmware all contribute to usable throughput.

Fixed RFID Reader vs. Handheld RFID Reader

The reader form factor should follow the workflow.

Fixed RFID Reader

A fixed reader remains installed at a defined point and is useful when tagged objects repeatedly cross the same location.

Typical examples include:

• Warehouse receiving doors
• Shipping verification stations
• Conveyor lines
• RFID portals
• Inventory channels
• Smart shelves
• Production checkpoints

The advantage is consistency. The RF environment can be engineered around one fixed location.

Handheld RFID Reader

A handheld reader is better suited to mobile inventory work.

An operator can walk through a warehouse, point the antenna toward shelving, and perform cycle counting without moving every product to a fixed portal.

These are not competing technologies in every project.

A warehouse may use handheld RFID readers for periodic stocktaking and fixed readers for inbound and outbound verification.

How Cykeo RFID Readers Fit Into an Inventory System

Cykeo’s UHF RFID reader solutions are designed around the connection between RF identification and the application layer.

A typical architecture is:

RFID Tag → Antenna → Cykeo RFID Reader → Communication Interface → Software → Inventory Database

The reader can identify EPC data, while the software determines what the identification means in the business process.

For example:

EPC detected → shipment matched → receiving completed

or:

EPC detected → expected item missing → exception generated

The distinction is important. An RFID reader does not inherently know that a particular garment belongs to Purchase Order 1048. That relationship comes from the inventory software and database.

GS1’s system architecture similarly separates RFID air-interface operations from higher-level software functions. Its documentation describes Low Level Reader Protocol (LLRP) as an interface between RFID readers and client software, providing detailed control over reader operations.

Where UHF RFID Readers Are Used

Apparel

Individual garments can carry serialized RFID tags. Fixed readers can support receiving, dispatch and inventory checkpoints, while handheld readers can support shelf-level stock counting.

Hotel Linen

RFID readers can identify tagged sheets, towels and uniforms during movement between hotel storage, laundry and distribution points.

Electrical Equipment

For individually identified electrical meters and related equipment, RFID can automate batch receiving and outbound verification.

Leather Goods and Luggage

Item-level identification allows individual products to retain a digital identity throughout warehouse handling.

Warehouse Logistics

At the warehouse door, the reader becomes particularly valuable when many tagged items move together. A controlled RFID channel can turn a manual verification process into an automated identification event.

Technical Checklist Before Installing an RFID Reader

A serious deployment should validate the reader under the same conditions in which it will operate.

Test item	What to verify
Tag population	Test realistic tag quantities
Product material	Include metal, liquid and dense products where applicable
Tag orientation	Test multiple orientations
Antenna position	Confirm the actual reading volume
Reader power	Find the minimum reliable setting
Adjacent inventory	Test unwanted reads
Movement	Test actual trolley/conveyor speed
Communication	Verify Ethernet or other interface stability
Software filtering	Remove duplicate and irrelevant read events
Environmental conditions	Test the real warehouse, not only a laboratory

This testing philosophy follows a basic engineering principle: the RFID reader should be evaluated as part of the complete RF system.

Frequently Asked Questions About How RFID Reader Works

1. How does an RFID reader read a tag?

The reader transmits RF energy through its antenna. A passive tag harvests energy from that field and returns information by modulating the reflected signal. The reader receives and decodes that backscatter into digital tag data.

2. Does an RFID reader need to touch the tag?

No. Passive UHF RFID can identify tags from several meters away under suitable conditions, without physical contact or optical line of sight. Actual performance depends on the reader, antenna, tag and environment.

3. Can an RFID reader read hundreds of tags?

Yes. UHF RFID is specifically designed for multi-tag inventory operations. Anti-collision procedures allow a reader to manage many tags within its interrogation zone. The actual throughput depends on tag density, RF conditions, reader configuration and application design.

4. What frequency does a UHF RFID reader use?

Passive UHF/RAIN RFID systems operate in the 860–930 MHz range according to GS1’s current guidance. Regional regulations determine the exact permitted operating frequencies and power levels.

5. Does increasing RFID reader power increase read distance?

Not necessarily in a useful way. Higher power can extend the RF field, but antenna gain, polarization, tag orientation, interference and environmental materials also affect reading performance. Excessive coverage can even increase unwanted reads.

6. What is the difference between an RFID reader and an RFID antenna?

The reader generates and processes RF signals; the antenna radiates and receives those signals. They work as a system. Antenna selection determines much of the physical shape and direction of the effective reading zone.

7. Can an RFID reader connect to warehouse software?

Yes. Reader data can be passed through communication interfaces and software middleware to inventory, WMS or ERP systems. GS1 also defines LLRP as a standardized interface for controlling RFID readers from client software.

Cykeo Engineering Perspective

After working with RFID reader specifications and deployment conditions, one point remains consistent: a good RFID reader is not simply the reader with the highest output power or longest advertised distance.

The useful reader is the one that produces reliable identification inside the required physical zone, while suppressing unnecessary reads outside it.

For Cykeo applications, that means matching reader configuration, antenna arrangement, tag selection, product characteristics and software processing to the actual movement of goods.

That is the practical answer to how rfid reader works: RF energy creates the communication opportunity, the tag returns its identity through backscatter, the reader separates and decodes those responses, and the application turns them into an operational event.
