what is the rfid technology

RFID technology, or Radio Frequency Identification, uses radio waves to identify and exchange data with tagged objects without requiring direct physical contact or a clear line of sight. An RFID system typically combines tags, readers, antennas, and software to support identification, tracking, inventory control, and automated data collection.

RFID is often described as a replacement for barcodes. That comparison is useful, but incomplete. A barcode scanner generally needs to see a printed code, while an RFID reader can detect compatible tags within its effective radio-frequency field. Depending on the tag type, reader configuration, materials nearby, and operating environment, the system may identify several items in a single read cycle.

For businesses, the important question is not simply whether RFID can read a tag. It is whether the system can reliably identify the right items at the right point in a real workflow.

What Is RFID Technology and How Does It Work?

RFID technology transfers identification data between an RFID tag and a RFID reader using radio-frequency signals. The reader captures the tag’s response and passes the resulting data to an application, database, or management platform.

A typical system contains four elements:

• RFID tag: A small electronic device attached to or embedded in an item. It stores an identifier and, depending on the tag, may hold additional data.
• RFID reader: Equipment that communicates with compatible tags and receives their responses.
• Antenna: A component that transmits and receives radio-frequency signals. It may be integrated into the reader or connected separately.
• Software: The application layer that interprets tag reads and connects them to business records, inventory systems, access control, or other operations.

What happens during an RFID read?

1. The tag enters the reading zone

A tagged carton, product, tool, or asset moves into the reader’s effective radio-frequency field.

2. The reader communicates with the tag

With passive RFID, the reader’s transmitted field powers the tag’s response. The tag returns its stored data through a radio signal, commonly using backscatter in UHF systems.

3. The software processes the read

The application uses the captured identifier to look up an item record or trigger a configured business action, such as updating inventory or recording an asset movement.

This sequence looks simple on paper. In an actual installation, read performance depends on antenna placement, tag orientation, the distance between reader and tag, and nearby materials. A tag attached to a cardboard box may behave differently from the same tag mounted on a metal tool or placed beside liquid-filled containers.

GS1’s RFID technical documentation explains the air-interface standards used for communication between compatible RFID devices. For UHF systems, the GS1 EPC UHF Gen2 standard defines how readers and tags communicate; supported frequencies depend on the applicable regional rules. See the GS1 EPC UHF Gen2 Air Interface Protocol.

Types of RFID Technology: LF, HF, and UHF

RFID is not a single radio technology. Different frequency bands serve different needs, and choosing the wrong one can create unnecessary cost or unreliable reads.

RFID type	Common frequency	Typical applications	Main consideration
Low Frequency (LF)	125–134 kHz	Animal identification, some access-control systems	Short range and relatively low sensitivity to radio interference
High Frequency (HF)	13.56 MHz	Contactless cards, ticketing, document identification, NFC applications	Often designed for close-range interaction
Ultra-High Frequency (UHF)	Approximately 860–960 MHz, depending on the system and region	Warehouse inventory, logistics, retail stock control, asset tracking	Supports longer-range and multi-tag reading, but tag placement and the environment matter

GS1 describes typical LF read distances of around 10–50 cm and HF distances of around 10 cm to 1 m, depending on the application. Passive UHF systems can commonly read tags several metres away; GS1 notes that ranges of up to 15 metres are possible in special circumstances. These figures are reference points, not performance guarantees.

Passive RFID vs. Active RFID

The power source is another important distinction.

• Passive RFID: The tag has no battery dedicated to powering its normal communication. It draws energy from the reader’s field and responds to the reader.
• Active RFID: The tag has its own power source and transmitter, allowing it to send signals over longer distances.
• Battery-assisted passive RFID: A battery supports the tag’s circuitry or sensors, but communication may still use backscatter.

For many item-level inventory projects, passive UHF tags are attractive because they do not need a battery to communicate. Active tags may suit applications where longer-range tracking is needed. The choice depends on the asset, required read behaviour, operating environment, and budget.

Where Is RFID Technology Used?

RFID is valuable when an organisation needs to connect a physical item with a digital record without scanning every label individually.

• Warehousing and logistics: Identify tagged cartons, pallets, and reusable containers at receiving, dispatch, or transfer points.
• Retail: Support stock counts, item identification, and inventory visibility across storage and sales areas.
• Manufacturing: Associate tools, work-in-progress, components, or finished products with production records.
• Libraries: Manage tagged books, borrowing and returns, shelf inventory, and security workflows.
• Access control: Use compatible cards or credentials to identify authorised users.
• Asset and tool management: Record the movement of equipment and help identify missing or misplaced items.

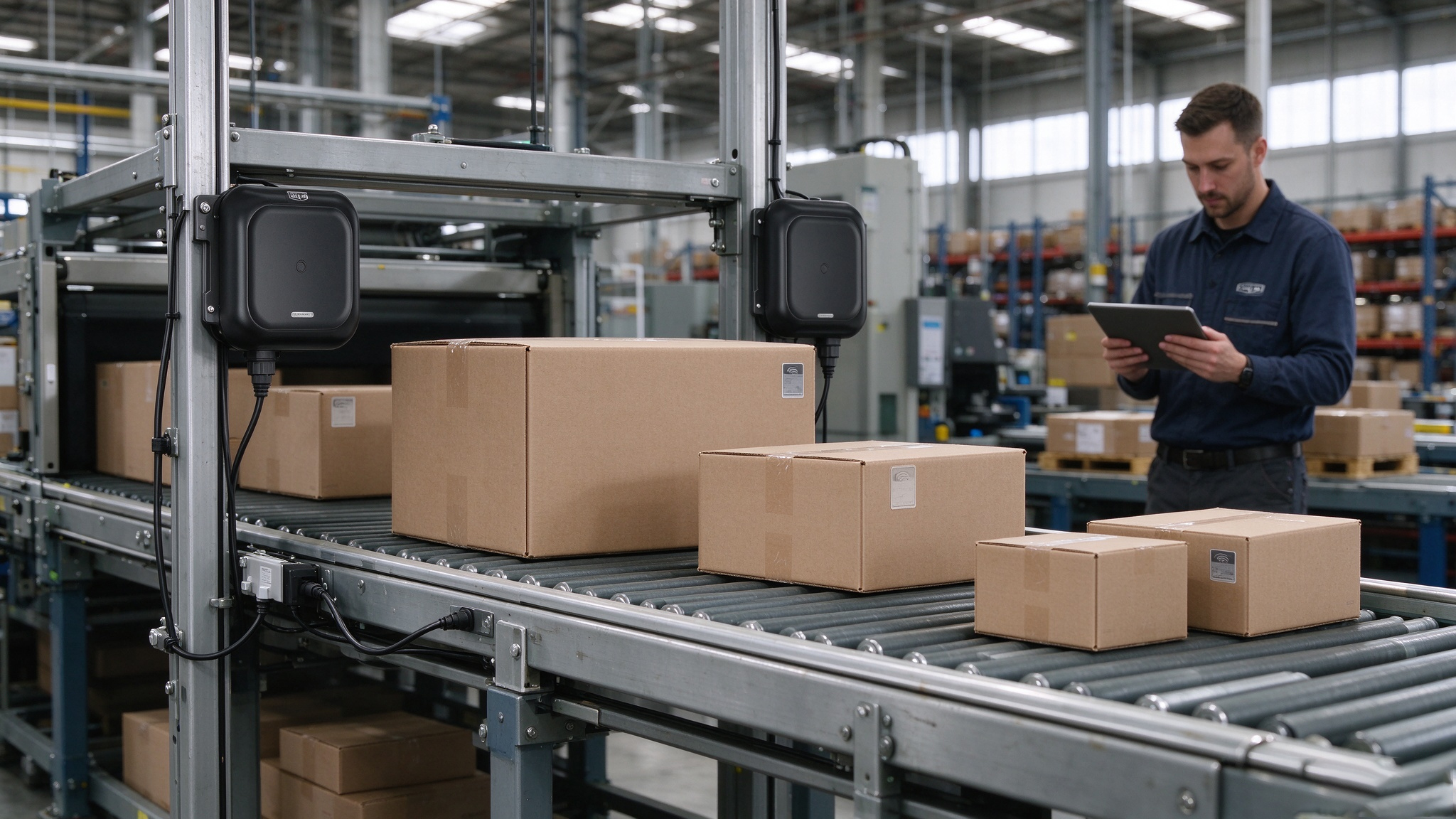

For example, a warehouse can install a fixed UHF RFID reader near a dispatch lane. When tagged cartons pass through the configured read zone, the software can associate their identifiers with a shipment record. That only works reliably when the tags, reader settings, antenna positions, and software rules are configured for the actual lane. A read event alone does not prove that the correct shipment was assembled; the application must check the captured identifiers against the expected order.

What Should Businesses Consider Before Adopting RFID Technology?

RFID technology performs best when the tag, reader, antenna, software, and physical workflow are selected as one system. A reader with a long advertised range cannot compensate for an unsuitable tag, poorly controlled read zone, or software that interprets every detected identifier as a confirmed transaction.

1. Match the tag to the item

The material surrounding an RFID tag matters. Metal can reflect radio waves and detune a conventional tag antenna, while water and liquid-rich products can absorb RF energy and reduce performance. Specially designed on-metal tags and tags intended for challenging materials can help, but they still need to be tested in the intended installation.

2. Design the read zone around the task

A warehouse receiving gate has different requirements from a desktop tag encoder. A receiving gate may need to detect tagged cartons moving through a defined lane. A desktop reader may instead need to identify or encode one item at close range.

Before installation, define:

• Which items should be detected—and which should be ignored.
• The distance and orientation at which tags must be read.
• Whether items are stationary, moving, stacked, or packed closely together.
• How the system should handle duplicate reads, missed reads, and unexpected tags.

3. Check standards and regional requirements

For passive UHF applications, confirm that the reader and tags support a compatible air-interface protocol, such as GS1 EPC Gen2 / ISO/IEC 18000-63 where applicable. Also check that the equipment supports the permitted frequency band and transmission settings in the country where it will operate. GS1’s RFID standards overview describes the identification, air-interface, and software standards used in RFID implementations.

4. Test real items—not just sample tags

A tag that reads well on an empty workbench may behave differently after it is attached to a metal tool, placed on a liquid-filled container, or sandwiched between cartons. Test the actual product, packaging, mounting position, and movement pattern. Record missed and unintended reads instead of relying on a single successful demonstration.

A useful implementation measure is workflow-level accuracy: whether the system correctly records the intended receiving, dispatch, borrowing, or asset-movement event. A high number of tag reads is not enough if the application assigns an item to the wrong shipment or records an event twice.

Frequently Asked Questions About RFID Technology

1. What is the rfid technology used for?

RFID technology is used to identify and track tagged objects through radio-frequency communication. Common applications include warehouse inventory, retail stock management, logistics, library circulation, access control, manufacturing, and equipment tracking. The best application depends on the required reading distance, tag type, operating environment, and how the captured data will be used.

2. How does RFID technology work without line of sight?

RFID readers communicate with tags through radio waves, so compatible tags do not generally need to be visually exposed to the reader like barcodes do. However, this does not mean radio signals can pass through every material without loss. Metal, liquids, packaging, tag orientation, and antenna placement can affect reading performance.

3. What is the difference between RFID and a barcode?

A barcode stores information in a visual pattern that a scanner must be able to see. RFID uses radio-frequency communication to identify compatible electronic tags, often without direct visual contact. RFID systems can read multiple tags within a suitable reading zone, while barcode workflows commonly require individual codes to be presented to a scanner.

4. What is the typical RFID reading range?

There is no single reading distance for all RFID systems. LF and HF systems are commonly used at shorter distances, while passive UHF systems can read tags several metres away under suitable conditions. GS1 describes UHF ranges of up to 10 metres in typical guidance, with actual results depending on the tag, reader, antenna, materials, and installation.

5. Does RFID technology work on metal or near water?

Yes, but the system may require a suitable tag and careful placement. Metal can interfere with conventional tag antennas, and water can absorb UHF radio-frequency energy. Tags designed for metal surfaces or challenging products can improve performance, but the finished item should be tested in its real operating environment.

6. Is RFID technology secure?

RFID security depends on the tag, communication protocol, reader configuration, application, and data-handling practices. Some systems support security features such as authentication or access controls, while others primarily provide identification. Businesses should assess the sensitivity of the data, restrict access to connected systems, and define appropriate privacy and retention policies. GS1 also publishes guidance on responsible EPC/RFID use for consumer products.

Choosing an RFID Solution for Your Business

The practical value of RFID technology comes from connecting physical objects with reliable digital records. Frequency, tag construction, reader configuration, antenna placement, and software integration all influence whether that connection works as intended.

For a warehouse, the priority may be capturing tagged cartons as they pass through a dispatch zone. For a library, it may be identifying books quickly during borrowing, returns, or stocktaking. For industrial asset management, the critical requirement may be reading tags attached to metal equipment under demanding conditions.

Cykeo’s RFID solutions include UHF readers and modules for system integration and item-identification applications. When evaluating equipment, start with the real workflow and the objects to be identified, then validate the tag and reader combination against the required performance.

What is the rfid technology? It is a radio-frequency identification method that connects physical items with digital information. Its success depends not just on the reader’s specifications, but on how well the complete RFID system is designed for the job.
