What Is an Embedded RFID and How Does Embedded RFID Technology Work?

When engineers ask me about embedded RFID solutions, the first question is usually not about the RFID chip itself. It is about integration.

Where will the RFID function exist?

Inside a smart cabinet?
Inside a medical device?
Inside an industrial machine?
Inside a retail checkout terminal?

During RFID hardware development projects, I have seen many applications where adding an external reader created unnecessary space, wiring, and maintenance problems. Embedded RFID solves this by placing the identification technology directly into the equipment architecture.

An embedded RFID system typically contains:

• RFID reader module
• Integrated antenna or antenna interface
• RF processing circuit
• Communication interface
• Control software or SDK

Instead of being a separate scanning device, the RFID capability becomes part of the product itself.

According to the RFID technology overview published by RAIN Alliance, RFID systems are designed to enable automatic identification and data capture using radio frequency communication. Embedded RFID extends this concept by making identification capability part of a larger intelligent system.

How Embedded RFID Technology Works in Real Applications

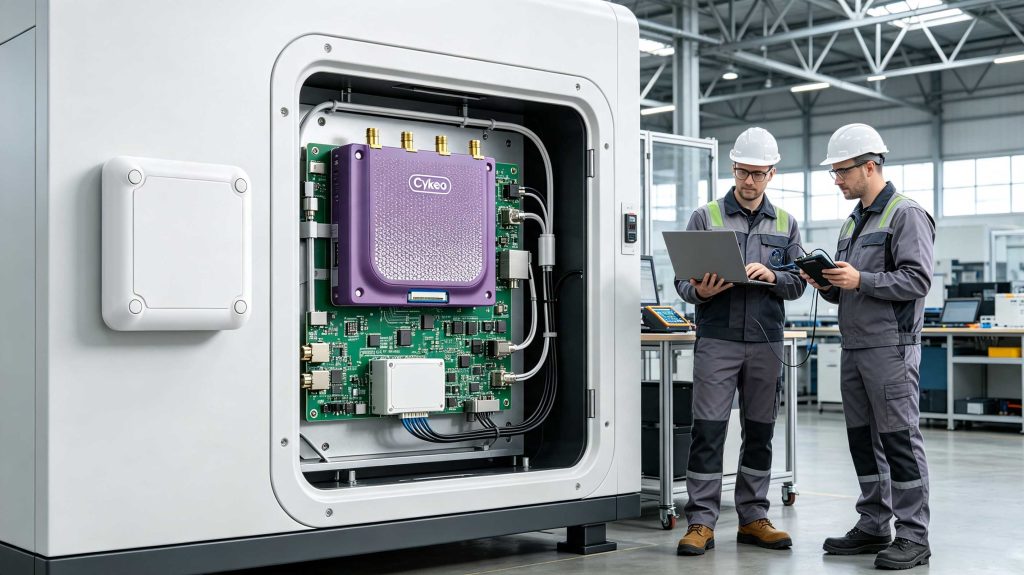

Embedded RFID Module Architecture

A traditional RFID setup usually looks like this:

RFID Tag
   ↓
External RFID Reader
   ↓
Computer / Software System

An embedded RFID design changes the structure:

RFID Tag
   ↓
Embedded RFID Module
   ↓
Device Controller
   ↓
Application Software

The RFID function becomes invisible to the user.

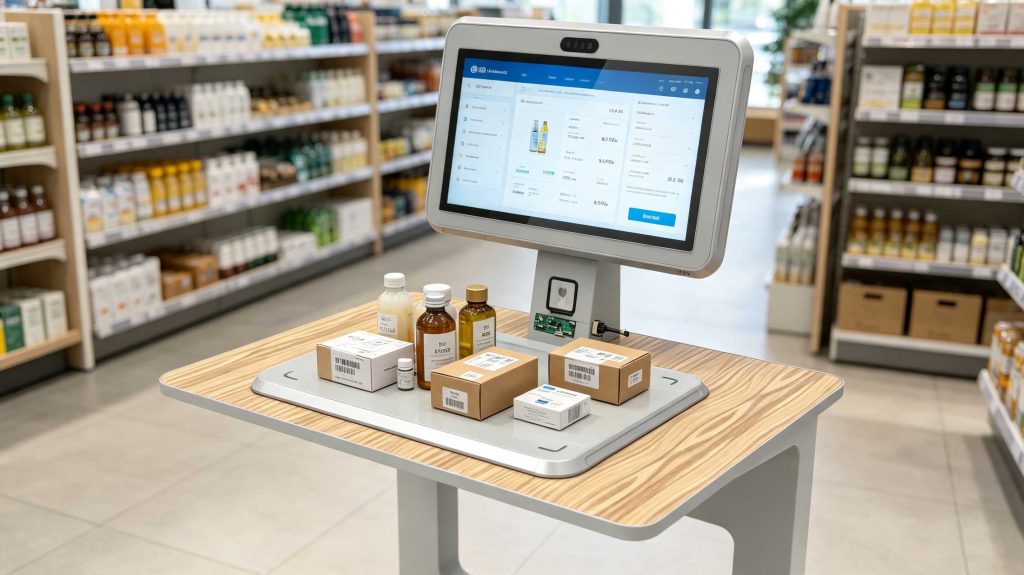

For example, in a smart retail checkout platform, customers do not operate an RFID reader manually. They simply place products on the platform. The embedded RFID system automatically identifies multiple items, transfers information to the payment software, and updates inventory records.

This is where embedded RFID creates practical value.

The technology is not about making RFID smaller only. It is about making RFID easier to deploy.

Embedded RFID Hardware Design Considerations

From my experience working with RFID equipment integration, the most difficult part is usually not reading a tag in a test environment.

The challenge appears after installation.

A successful embedded RFID design requires careful consideration of:

Design Factor	Engineering Requirement
Antenna position	Optimize tag detection area
RF output power	Balance performance and interference
Communication	Match device control system
Thermal design	Ensure long-term operation
Mechanical structure	Fit inside equipment

A reader module that performs well on a laboratory desk may behave differently when surrounded by metal structures, electronic components, or industrial equipment.

That is why embedded RFID development requires both RF engineering knowledge and application experience.

Why Companies Choose Embedded RFID Solutions

Advantages of Embedded RFID Systems

Embedded RFID is increasingly used in devices where space, reliability, and automation are critical.

Main advantages include:

1. Compact Product Design

External RFID readers require additional installation space.

Embedded modules allow manufacturers to create:

• Smaller devices
• Cleaner product designs
• Integrated user experiences

2. Better Application Control

Embedded RFID systems can be customized according to the application.

Examples:

• Smart medical cabinets controlling supplies
• RFID tool management systems
• Automated retail checkout equipment
• Industrial asset tracking devices

3. Easier Software Integration

Professional embedded RFID modules usually provide:

• SDK libraries
• API documentation
• Development examples
• Communication protocols

Cykeo embedded RFID solutions support integration methods such as C# and Java development resources, helping OEM customers connect RFID functionality with their own applications.

Embedded RFID vs External RFID Reader

Feature	Embedded RFID	External RFID Reader
Installation	Inside equipment	Separate device
Size	Compact	Larger
Appearance	Integrated design	Visible hardware
Customization	High	Medium
Best for	OEM products, smart devices	General scanning

Neither solution replaces the other completely.

For temporary inventory operations, handheld or external readers may be better.

For long-term product integration, embedded RFID usually provides better engineering flexibility.

Embedded RFID Applications Across Industries

Where Is Embedded RFID Used?

Embedded RFID technology is commonly deployed in:

Retail Automation

Applications include:

• Smart checkout machines
• Product identification terminals
• Self-service retail systems

Healthcare

Used for:

• Medical supply tracking
• Pharmacy inventory management
• Smart storage cabinets

Manufacturing

Used for:

• Tool identification
• Production tracking
• Equipment management

Logistics

Used for:

• Package identification
• Automated sorting
• Warehouse equipment integration

Embedded RFID Technical Challenges

Although embedded RFID offers many benefits, engineers must solve several challenges:

• Antenna tuning inside limited space
• RF interference from surrounding components
• Heat management
• Software communication stability
• Tag orientation problems

A successful embedded RFID project requires testing the complete system, not only the RFID module.

Embedded RFID and the Future of Smart Devices

The next generation of industrial and commercial equipment will increasingly require built-in identification capabilities.

Machines will not only perform operations; they will understand what objects they interact with.

Embedded RFID provides the connection between physical products and digital systems.

For companies developing smart equipment, embedded RFID creates a practical path toward automation, traceability, and intelligent management.

what is an embedded rfid is ultimately a question about integration — transforming RFID from a separate scanning technology into an invisible intelligence layer inside modern devices.
