what are rfid chips used for: UHF RFID Chip Functions and Industrial Applications

What are RFID chips used for? RFID chips are used to identify, store, and communicate information about physical objects through RFID readers. In UHF RFID systems, chips support fast identification of products, assets, pallets, and components, making automated inventory and industrial tracking possible.

What are RFID chips used for in UHF RFID systems?

The practical answer to what are rfid chips used for is identification.

An RFID chip is the electronic component inside an RFID tag, card, label, or industrial transponder. It stores identification information and manages communication with an RFID reader.

For UHF RFID, the chip works together with an antenna rather than functioning as an independent tracking device.

A typical passive UHF RFID tag contains:

Component	Main Function
RFID Chip	Stores and processes tag data
RFID Antenna	Receives RF energy and communicates with the reader
Substrate	Supports the antenna and chip
Housing / Label	Protects or attaches the RFID inlay

This distinction is important.

The chip identifies the object. The complete RFID system determines where and when that object is detected.

GS1’s current EPC Gen2 standard specifies UHF RFID communication at 860–930 MHz and describes the requirements for communication between interrogators and passive tags. The latest listed release, 3.0.1, was ratified in February 2026.

So when a warehouse reads an RFID tag on a carton, the chip is not independently “sending its location.”

It is participating in an RF communication event initiated by the reader.

How does an RFID chip work?

For passive UHF RFID, the chip normally has no internal battery.

The reader sends an RF signal toward the tag. The tag antenna captures energy from the field, allowing the chip to operate and communicate information back through backscatter.

ISO/IEC 18000-6:2025 specifies the UHF RFID air interface for the 860–930 MHz range and describes passive-backscatter operation and collision arbitration for identifying tags in multiple-tag environments.

The sequence is fast:

1. The reader generates an RF field.
2. The tag antenna receives energy.
3. The RFID chip becomes active.
4. The reader requests information.
5. The chip responds with stored data.
6. The reader decodes the response.

That last step is where industrial RFID becomes interesting.

A reader may encounter many tags in the same RF field. The system therefore needs mechanisms to distinguish individual tags.

For a warehouse pallet, this means one reader can potentially identify numerous tagged items without requiring an operator to scan every label individually.

What data is stored in an RFID chip?

An RFID chip can contain several types of information, depending on its architecture and application.

For UHF EPC Gen2 systems, memory can include areas such as:

• EPC
• TID
• User Memory
• Reserved Memory

The EPC is especially important for item identification.

A business does not necessarily need to put its complete product record inside the chip.

Instead:

RFID chip → EPC → Database record → Product information

For example, a tagged component could carry an EPC associated in the manufacturing database with:

• Part number
• Batch
• Production order
• Supplier
• Location
• Status

This keeps the physical RFID tag relatively simple while allowing the software system to hold much richer information.

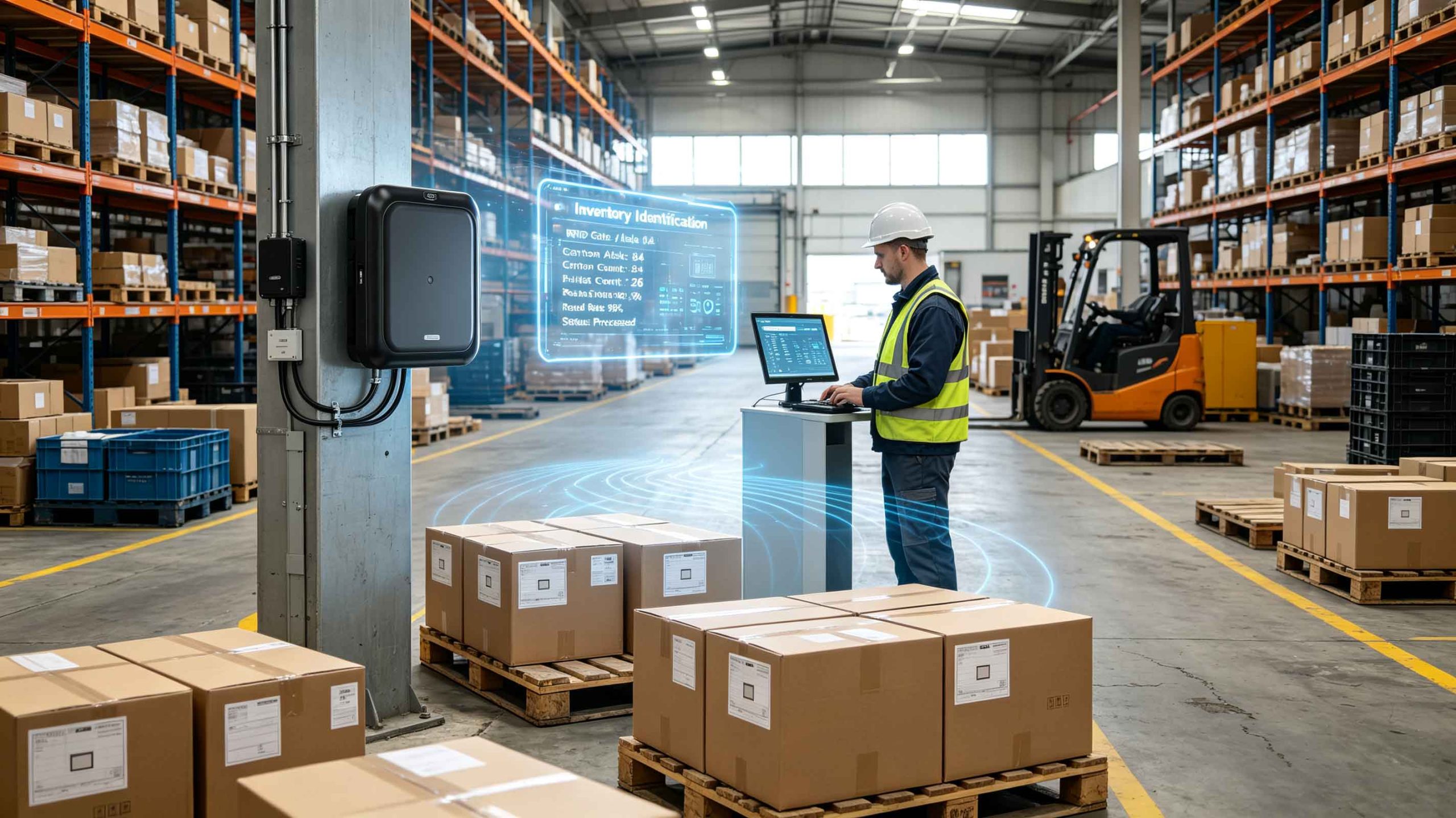

What are RFID chips used for in inventory tracking?

Inventory is one of the most established uses of UHF RFID.

GS1 describes RAIN RFID as a technology used for fast asset identification, inventory, and tracking, with read ranges that can reach up to 10 meters depending on the environment.

That does not mean every installation will achieve 10 meters.

In a real warehouse, read performance changes with:

• Tag orientation
• Reader antenna placement
• Reader power
• Product material
• Tag design
• Metal structures
• Liquids
• RF reflections

This is where field testing becomes more useful than a single number in a product brochure.

A pallet of cardboard cartons may behave very differently from a pallet containing liquid-filled products or metal components.

What are RFID chips used for in supply chains?

RFID chips are used to give physical items machine-readable identities as they move through supply-chain processes.

ISO/IEC 17360:2023 specifically covers RFID applications involving products, product packaging, transport units, returnable transport items, and returnable packaging.

Typical applications include:

• Receiving
• Put-away
• Inventory counting
• Picking
• Packing
• Shipping
• Returns
• Asset movement

Consider a receiving dock.

A shipment arrives with RFID-tagged cartons.

Instead of requiring an employee to individually scan every visible barcode, a properly designed UHF RFID reading zone can identify multiple tags as the goods pass through.

The chip provides the identity.

The reader captures it.

The software turns that read into a business event.

That separation between identification hardware and business software is one of the most important concepts when designing an RFID system.

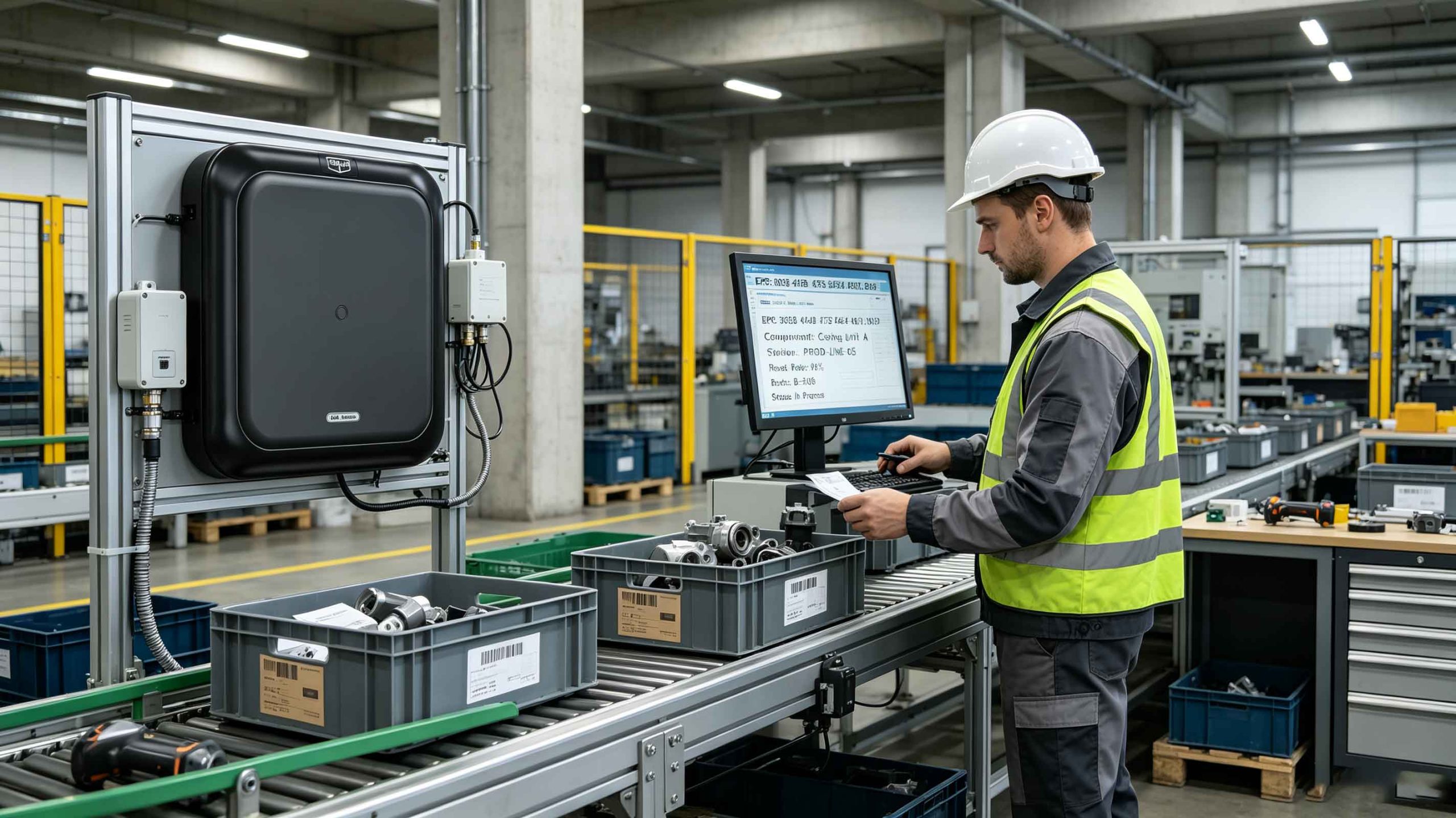

What are RFID chips used for in manufacturing?

Manufacturing environments use RFID chips to identify parts, work-in-progress, tools, containers, and finished products.

A production process may associate an RFID chip with a specific manufacturing record.

For example:

Component → RFID EPC → Work Order → Production Station

When the component reaches a station, the reader identifies it without requiring the operator to manually enter a long identification number.

Potential applications include:

Component identification

RFID chips can identify parts as they move between production stages.

Work-in-progress tracking

A tagged product can be associated with its current manufacturing stage.

Tool management

Reusable tools can receive RFID identities for automated checking and movement records.

Finished-goods tracking

Products can retain an RFID identity as they move into storage and shipping.

Are RFID chips only used for tracking?

No.

“Tracking” is often used as a convenient description, but an RFID chip itself does not necessarily provide continuous location tracking.

A passive UHF chip primarily provides identification and data communication.

A system can infer movement or location when readers are installed at known points.

For example:

Reader A detects tag → Item enters warehouse

Reader B detects tag → Item reaches production area

Reader C detects tag → Item leaves facility

ISO/IEC 22243 specifically addresses methods for localization of RFID tags using compatible RFID air interfaces and reader/tag systems.

That is different from saying that every RFID chip contains GPS.

It does not.

RFID chip applications by industry

Industry	RFID Chip Application
Logistics	Pallet and shipment identification
Retail	Item-level inventory
Manufacturing	Components and work-in-progress
Healthcare	Medical equipment and consumables
Aviation	Tools and equipment
Automotive	Parts and production tracking
Warehousing	Automated inventory and movement detection

The common thread is physical identification.

The chip gives an object a digital identity that software can associate with operational information.

Why UHF RFID chips are important for industrial automation

UHF RFID is particularly useful when many objects need to be identified quickly.

The current ISO/IEC 18000-6:2025 standard specifies not only the RF communication parameters but also the collision-arbitration mechanism used to identify specific tags in a multiple-tag environment.

That matters on a production floor.

A reader may see:

• 10 tags
• 50 tags
• 100+ tags

The system needs to distinguish individual tag responses rather than treating the entire RF field as one object.

For Cykeo applications, this is where UHF RFID readers, antennas, embedded modules, tag designs, filtering, and software integration have to be considered as one system.

The RFID chip is small.

The engineering around it is not.

How to choose an RFID chip for a UHF RFID application

Choosing the chip should start with the application, not the chip’s memory capacity alone.

For a UHF RFID project, engineers normally look at:

• Operating frequency: Ensure regional frequency requirements match the deployment.
• Air-interface protocol: EPC Gen2 / ISO/IEC 18000-63 compatibility is important for RAIN RFID systems.
• Memory: Determine whether EPC-only identification is sufficient or additional user memory is required.
• Read sensitivity: Chip sensitivity influences how easily a tag can respond under real RF conditions.
• Write performance: Important when tags must be encoded or updated during production.
• Security features: Relevant when authentication, access protection, or memory locking is required.
• Tag construction: The same chip can perform differently when paired with different antenna designs and substrates.

One point often missed during procurement: the RFID chip is only part of the RF system.

A high-performing chip cannot compensate for a poorly matched antenna or unsuitable installation location.

RFID chip memory: EPC, TID, and User Memory

UHF RFID memory architecture is easier to understand when each area has a defined job.

EPC memory

The Electronic Product Code is commonly used as the primary item identifier.

For example:

EPC: 3034A8F9127C0045

The database can associate that identifier with a particular product, carton, tool, or asset.

TID memory

TID identifies information associated with the RFID integrated circuit itself.

It is useful when the system needs chip-related identification information rather than only an application-level product number.

User Memory

Some applications require additional application data to be stored directly on the RFID chip.

This can be useful, but it should not automatically be treated as necessary.

In many deployments, keeping operational information in the backend database is simpler and easier to maintain.

Reserved Memory

Reserved memory is used for functions defined by the relevant RFID standard, including security-related information such as access and kill passwords in EPC Gen2 systems.

Passive RFID chips vs active RFID chips

The word “RFID chip” can cause confusion because active and passive RFID systems behave differently.

Feature	Passive UHF RFID	Active RFID
Battery	No internal battery	Battery-powered
Reader interaction	Reader supplies RF energy	Tag has its own power source
Typical size	Small	Usually larger
Communication range	Application-dependent	Often longer
Common use	Inventory and asset identification	Long-range asset/location applications
Maintenance	Generally low	Battery replacement may be required

For most high-volume item identification projects, passive UHF RFID is particularly attractive because the tag does not require a battery.

This makes it practical to attach RFID identification to large quantities of products, cartons, reusable containers, and components.

What affects UHF RFID chip read range?

Read range is one of the most frequently misunderstood RFID specifications.

The chip contributes to tag sensitivity, but the final read distance depends on the entire tag and installation.

Tag antenna

A chip connected to a well-designed antenna can behave very differently from the same chip connected to a poorly matched antenna.

Material

Metal and liquids can significantly change RF behavior.

A tag designed for cardboard may not work well when attached directly to a metal surface.

Reader and antenna

Reader output power, antenna gain, polarization, placement, and receiver sensitivity all influence performance.

Orientation

Tag orientation relative to the reader antenna can affect coupling and backscatter.

RF environment

Reflections from metal structures, machinery, shelving, and nearby equipment can create unexpected read zones.

This is why an RFID specification such as “up to X meters” should be treated as a test condition rather than a guaranteed warehouse distance.

Can RFID chips be rewritten?

Some UHF RFID chips support writing and rewriting of specific memory areas.

However, writing is not simply a matter of changing an identification number.

The reader and software need to support the appropriate commands, and the target memory must be writable.

A typical encoding workstation may perform:

1. Detect the blank RFID tag.
2. Read the tag’s existing information.
3. Write the required EPC or user data.
4. Verify the written information.
5. Record the result in the management system.

For production environments, verification is especially important.

A tag that appears to have been written successfully should still be read back and compared against the expected value.

That extra check catches writing errors before tags reach the warehouse floor.

How RFID chips support automated identification

The real value of an RFID chip appears when it becomes part of a larger information system.

Consider a simple warehouse workflow:

RFID Tag → UHF Reader → Middleware → Database → WMS/ERP

The chip provides the identity.

The reader detects it.

Middleware filters and processes the raw reads.

The business system determines what the detection means.

This distinction becomes particularly important in dense environments. A reader may detect the same tag several times while an item remains inside the RF field. Software therefore needs appropriate filtering and event logic rather than treating every raw read as a new inventory transaction.

In field deployments, this is one of the areas where practical RFID experience matters most. The question is rarely just “Can the reader see the tag?”

The better question is:

“Can the complete system turn that RF detection into a reliable business event?”

What are RFID chips used for in different UHF applications?

Application	What the RFID Chip Provides	Typical Reader Location
Warehouse inventory	Unique item identity	Aisle, dock, inventory station
Pallet tracking	Pallet or shipment ID	Dock door, conveyor
Manufacturing	Part or work-order identity	Production station
Tool tracking	Tool identification	Cabinet, workstation
Retail inventory	Product identity	Store, stockroom
Logistics	Carton or container identity	Sorting or shipping area
Asset management	Reusable asset ID	Entry/exit or storage zone

The physical chip may be only a few millimeters across, but its identity can remain associated with an asset throughout its operational life.

That is the practical reason UHF RFID continues to be used for automated identification.

RFID chip selection checklist for engineers

Before ordering UHF RFID tags or cards, confirm these points:

• What object will carry the tag?
• Is the surface cardboard, plastic, glass, wood, or metal?
• What reading distance is actually required?
• Will multiple tags be read simultaneously?
• Does the application require EPC only or User Memory?
• Will the tag need to be written after manufacture?
• What regional UHF frequency requirements apply?
• Which reader and antenna will be used?
• Where will the reader be installed?
• What software will process the RFID events?

A controlled test using the actual tag material, reader, antenna, mounting position, and operating environment is usually more meaningful than comparing chip names alone.

FAQ: What are RFID chips used for?

1. What is the main purpose of an RFID chip?

The primary purpose is to provide electronic identification and communicate stored information with a compatible RFID reader.

2. Are UHF RFID chips passive?

Many UHF RFID chips used for RAIN RFID applications are designed for passive tags. They receive operating energy from the reader’s RF field and communicate using backscatter.

3. Can an RFID chip store product information?

Yes. Depending on the chip architecture, information can be stored in EPC, User Memory, and other defined memory areas. Many systems use the EPC as an identifier linked to a larger database record.

4. Can RFID chips track location?

An RFID chip does not normally determine its own GPS location. A system can infer movement or location when readers are installed at known locations and tag detections are associated with those reader locations.

5. Can RFID chips be rewritten?

Some RFID chips support writing and rewriting. Whether a particular memory area can be changed depends on the chip architecture, memory configuration, access controls, and reader/software capabilities.

6. How far can a UHF RFID chip be read?

There is no single guaranteed distance. Read performance depends on the chip, antenna, tag construction, reader, reader power, orientation, materials, and RF environment.

7. Are RFID chips the same as RFID tags?

No. The RFID chip is the electronic integrated circuit. An RFID tag normally combines the chip with an antenna and physical substrate or housing so it can be attached to an object.

Final answer: what are RFID chips used for?

What are RFID chips used for? They provide the electronic identity at the center of an RFID tag, allowing readers to identify physical objects and connect those objects with digital records.

For UHF RFID, the chip becomes especially useful when combined with a properly engineered antenna, reader, controlled reading zone, and software platform.

That combination—not the chip alone—is what turns RFID from a small electronic component into a practical industrial identification system.
