RFID Tool Tracking: How to Track Tools Automatically

Keeping track of tools sounds simple until there are hundreds or thousands of them.

A maintenance department may have wrenches, torque tools, measuring equipment, electrical tools, spare parts, and specialized equipment moving between storage rooms, workshops, production lines, and job sites every day.

The problem usually isn’t the tool itself. The problem is knowing where the tool is and who is responsible for it.

Traditional spreadsheets and manual sign-out sheets can record tool movement, but they depend heavily on people remembering to update the information. When a tool is taken without a record, returned to the wrong location, or left on a workbench, the database quickly becomes outdated.

This is where RFID tool tracking becomes useful.

Instead of asking employees to scan every tool manually, an RFID system can identify tagged tools automatically as they move through a designated reading area.

What Is RFID Tool Tracking?

RFID tool tracking uses radio frequency identification technology to identify and monitor tools fitted with RFID tags.

Each tool receives a unique RFID tag. The tag stores or represents an identification number that connects the physical tool with information in the management software.

A typical system includes:

• RFID tags attached to tools
• UHF RFID readers
• RFID antennas
• RFID cabinets, carts, or reading zones
• Management software
• Database or ERP integration

When a tagged tool enters the reader’s coverage area, the RFID reader detects the tag and sends the identification data to the software.

The system can then update the tool’s status.

For example:

Available → Checked Out → In Use → Returned

This simple status change can make a significant difference when many tools are constantly moving around.

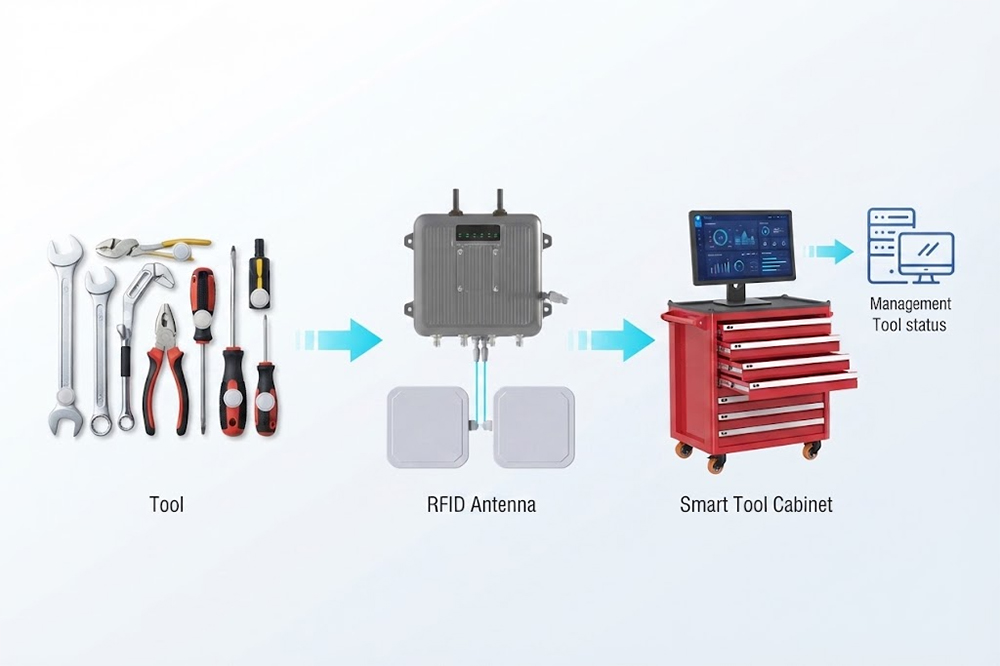

How Does an RFID Tool Tracking System Work?

The basic workflow is easier to understand than it may seem.

1. Attach an RFID Tag to Each Tool

The first step is assigning every important tool a unique RFID identity.

The tag needs to be suitable for the tool’s material and working environment. Metal tools can require specially designed on-metal RFID tags because metal can affect RF performance.

The tag should also be positioned consistently where possible.

2. Install RFID Readers

The next step is deciding where tools need to be identified.

A reader can be installed inside an RFID tool cabinet, at a tool checkout station, on a mobile cart, or in another controlled reading area.

The goal isn’t necessarily to track a tool every second.

In many applications, it is more practical to identify the tool when it enters or leaves an important control point.

3. RFID Antennas Detect the Tags

RFID antennas create the reading area around the reader.

A well-designed antenna layout helps the system identify tags inside the intended zone while reducing unwanted reads outside that area.

This part deserves attention during system design.

A powerful reader alone does not automatically produce a good tracking system. Antenna position, tag orientation, tool material, cabinet structure, and RF interference can all affect the result.

4. Software Updates Tool Status

After the reader detects a tag, the system connects the RFID identification number with the corresponding tool record.

The software can then update information such as:

• Tool ID
• Tool name
• Current status
• User
• Checkout time
• Return time
• Storage location
• Maintenance status

This creates a digital history of tool movement.

Why Use RFID Instead of Manual Tool Tracking?

Manual tracking still works for small tool collections.

If a workshop has 20 tools and only two employees use them, a paper checklist may be enough.

The situation changes when the number of tools increases.

Imagine a maintenance center with several hundred tools shared by multiple teams. Employees may be working different shifts, tools may be transferred between locations, and some equipment may only be used once every few weeks.

Manual records become harder to maintain.

RFID can reduce the number of manual steps involved.

Instead of:

Find tool → write tool number → write employee name → record time → return → update record

the RFID workflow can become:

Identify user → take tool → RFID detects tool → system updates status

That doesn’t remove every management task, but it removes a lot of repetitive data entry.

RFID Tool Tracking for Tool Checkout

Tool checkout is one of the most practical applications.

An employee can authenticate at an RFID tool cabinet or checkout station. When tools are removed, the system identifies the RFID tags and associates the tools with that user.

When the tools are returned, the system can identify them again.

This gives managers a clearer answer to questions such as:

Who has this tool?

When was it checked out?

Has it been returned?

Is the tool still in the correct location?

For maintenance teams, this can be much more useful than simply knowing how many tools are in storage.

RFID Tracking Can Help Find Missing Tools

A missing tool doesn’t always mean that someone stole it.

Sometimes it is sitting on a workbench.

Sometimes it is inside another workshop.

Sometimes another technician borrowed it and forgot to update the record.

Sometimes it was returned to the wrong cabinet.

RFID tracking helps narrow down what happened.

If the system records the last known checkout event, user, and reading location, staff can investigate the movement history instead of searching the entire facility immediately.

This is particularly useful for expensive or safety-critical tools.

RFID Tool Tracking and Inventory Management

Tracking and inventory management are closely connected, but they are not exactly the same thing.

Inventory management answers:

How many tools do we have?

Tool tracking asks:

Where are those tools and what happened to them?

An RFID system can support both.

When a cabinet or storage area scans its contents, the software can compare the detected tools with the expected inventory.

This makes it easier to identify:

• Missing tools
• Extra tools
• Tools in the wrong location
• Unreturned tools
• Duplicate records
• Tools awaiting maintenance

For larger organizations, this can reduce the time spent on routine tool counting.

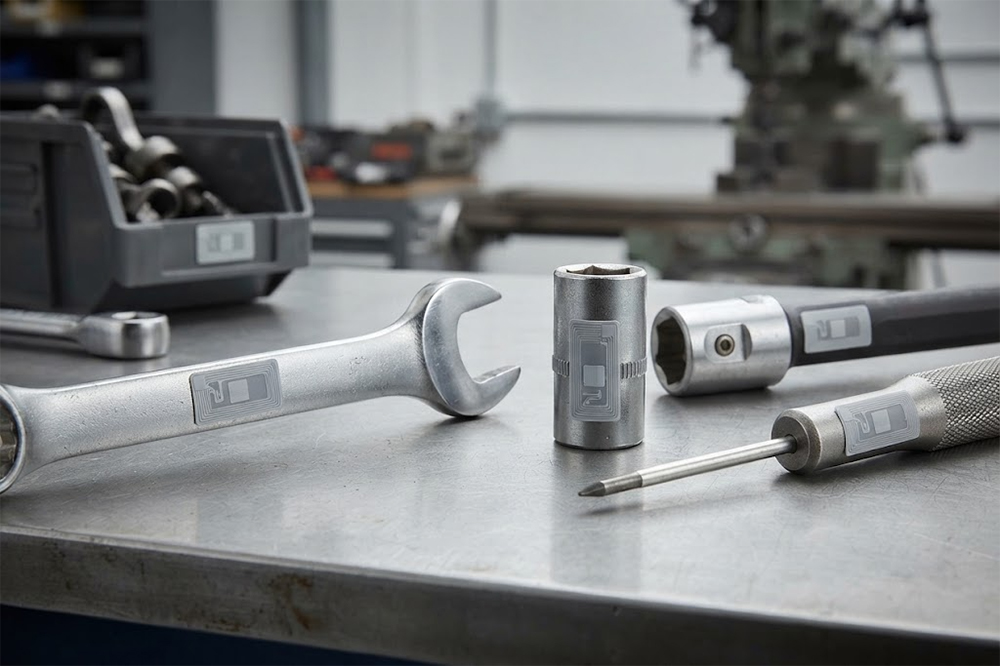

What About Tools Made of Metal?

This is one of the first technical questions that comes up in real RFID projects.

Many industrial tools are made from metal, and metal can influence RFID performance.

That does not mean RFID cannot track metal tools.

It means the system needs the right combination of tag, reader, antenna, mounting position, and RF configuration.

On-metal RFID tags are commonly used for metal surfaces. Their construction is designed to maintain better RF performance when attached to conductive materials.

Tag placement also matters.

A tag hidden between tightly packed metal tools may behave differently from a tag mounted on an exposed surface.

For this reason, testing sample tools before a large deployment is a sensible step.

RFID Tool Cabinets vs Open Tracking Areas

There are several ways to build an RFID tool tracking system.

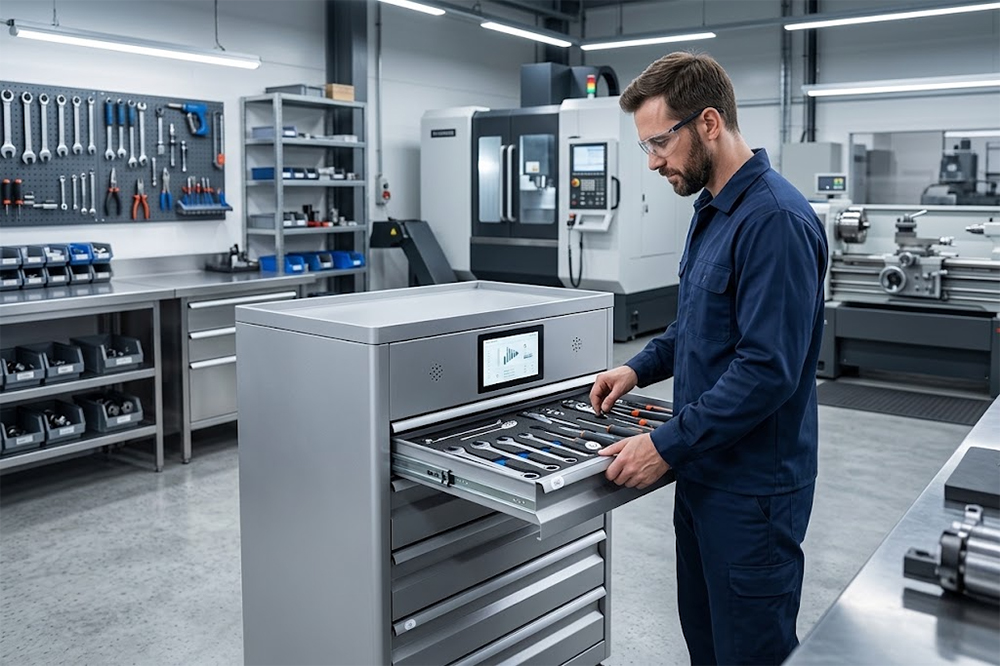

RFID tool cabinet creates a controlled environment.

The cabinet can combine storage, RFID identification, user authentication, and software management in one unit.

This works well when tools need to be stored securely and checked in and out from a defined location.

A more open RFID reading zone may make more sense when tools move through a workshop or logistics area.

Mobile RFID tool carts are another option when technicians need to take groups of tools directly to a work area.

The best setup depends on how tools actually move.

There is no reason to install a large cabinet if employees constantly need to carry tools across multiple locations. Likewise, a simple handheld reader may not provide enough control for a high-value centralized tool room.

Choosing an RFID Tool Tracking System

Before selecting hardware, look at the actual tool workflow.

Start with five basic questions:

1. How many tools need to be tracked?
2. Are the tools mainly metal?
3. Where do tools normally enter and leave storage?
4. Do different employees share the same tools?
5. Does the system need to connect with existing software?

Then consider the hardware.

The RFID reader needs enough performance for the application. Antennas need to provide suitable coverage. RFID tags need to work reliably on the tools.

Software is equally important.

A reader can identify a tag, but the business needs useful information from that identification.

The system should make it easy to see tool status, user activity, inventory information, and exceptions.

RFID Tool Tracking Is About Visibility

The biggest benefit of RFID tool tracking is not simply that a reader can detect a tag.

It is the visibility created by connecting physical tools with digital records.

A manager can see which tools are available.

A technician can check whether a required tool has been returned.

A maintenance team can review tool movement.

An administrator can identify missing equipment without relying entirely on manual records.

When the system is designed around the actual workflow, RFID becomes much more than an identification technology.

It becomes part of the daily tool management process.

Final Thoughts

RFID tool tracking provides a practical way to improve visibility over tools that move frequently between people and locations.

UHF RFID is particularly useful when multiple tagged tools need to be identified quickly without scanning each item individually.

The most important part, however, is not simply choosing an RFID reader.

Tag selection, antenna placement, reading zones, cabinet design, software, and workflow all affect the final result.

For companies managing large numbers of maintenance, production, aviation, or industrial tools, RFID can turn tool tracking from a manual task into a more automated process.

And once tool movement becomes visible, the next step is easier: connecting tracking with inventory, checkout, user management, and the wider RFID tool management system.

RFID tool tracking is one part of a broader RFID tool management strategy. While tool management covers the overall process, tracking focuses on where tools are, who is using them, and when they move between locations.

RFID tool tracking relies on several connected devices, including RFID tags, readers, antennas, smart cabinets, and software. Together, these devices form the foundation of modern RFID Tools & Devices solutions.
