RFID Tool Management: How RFID Makes Tool Control Easier

Why Tool Management Becomes Difficult

A workshop with 20 tools is easy to manage.

A factory with 500 tools is different. Add several maintenance teams, multiple work areas, shared equipment, and tools that move every day, and keeping accurate records becomes a real job on its own.

Someone has to record what was taken, who took it, when it should come back, and whether it was actually returned.

That is where RFID tool management becomes useful.

Instead of relying entirely on paper records, spreadsheets, or individual barcode scans, RFID gives each tool a digital identity. RFID readers can then identify tagged tools and send the information to management software.

The result is a more connected way to control tools from storage to actual use.

For a broader overview of RFID readers, tags, cabinets, carts, and other equipment, see our guide to RFID Tools & Devices.

---

What Is RFID Tool Management?

RFID tool management is a system that uses radio frequency identification technology to identify, track, and manage physical tools.

A typical system includes:

• RFID tags
• RFID readers
• RFID antennas
• Tool cabinets or carts
• User identification
• Management software
• Database or ERP integration

The process can be as simple as:

Tag the tool → Store the tool → Identify the user → Track movement → Update inventory

The important part is that RFID connects the physical tool with digital information.

For example, instead of simply seeing:

Torque Wrench #025

the system can potentially show:

Torque Wrench #025 — Checked Out — Technician 018 — 10:24 AM

That extra information is what makes RFID useful for tool control.

---

How Does an RFID Tool Management System Work?

The first step is to assign an RFID tag to every tool that needs to be tracked.

The tag contains a unique identification number.

When a tool enters an RFID reading area, an RFID reader detects the tag. The reader sends the identification information to the software, which matches it with the corresponding tool record.

A basic architecture looks like this:

RFID Tag → Reader → Antenna → Software → Database

For a smart tool cabinet, the process can become more automated.

A technician identifies themselves, accesses the cabinet, removes a tool, and the system records the transaction.

When the tool comes back, the RFID system can update its status again.

This means the tool record changes as the tool moves instead of waiting for someone to update a spreadsheet later.

---

RFID Tool Management vs. Manual Tool Control

Manual management is still common, especially in smaller workshops.

A typical process might look like this:

1. Employee asks for a tool.
2. Manager records the tool number.
3. Employee signs a paper sheet.
4. Tool is used.
5. Employee returns it.
6. Someone updates the record.

It works—until the workload increases.

With RFID, many of these steps can be automated.

Manual Tool Management	RFID Tool Management
Paper records	Digital records
Manual identification	Automatic identification
Individual scanning	Multiple-tag reading
Manual inventory	Faster inventory checks
Limited history	Tool movement history
Difficult accountability	User-based tracking

RFID does not eliminate every management task, but it can reduce the amount of manual recording required.

---

What Can RFID Tool Management Track?

A good system can track more than simple tool location.

Depending on the software and hardware configuration, it can manage:

Tool Identity

Every tagged tool has a unique digital ID.

Tool Status

The system can show whether the tool is:

• Available
• Checked out
• Returned
• Missing
• Under maintenance
• Under calibration

User Information

The system can associate a tool transaction with an employee, technician, department, or authorized user.

Check-In and Check-Out

Tool movements can be recorded when equipment leaves or returns to controlled storage.

Inventory

Managers can quickly check which tools are currently available.

Usage History

Historical data can show how often a tool is used and who has used it.

This information becomes increasingly useful as the tool inventory grows.

---

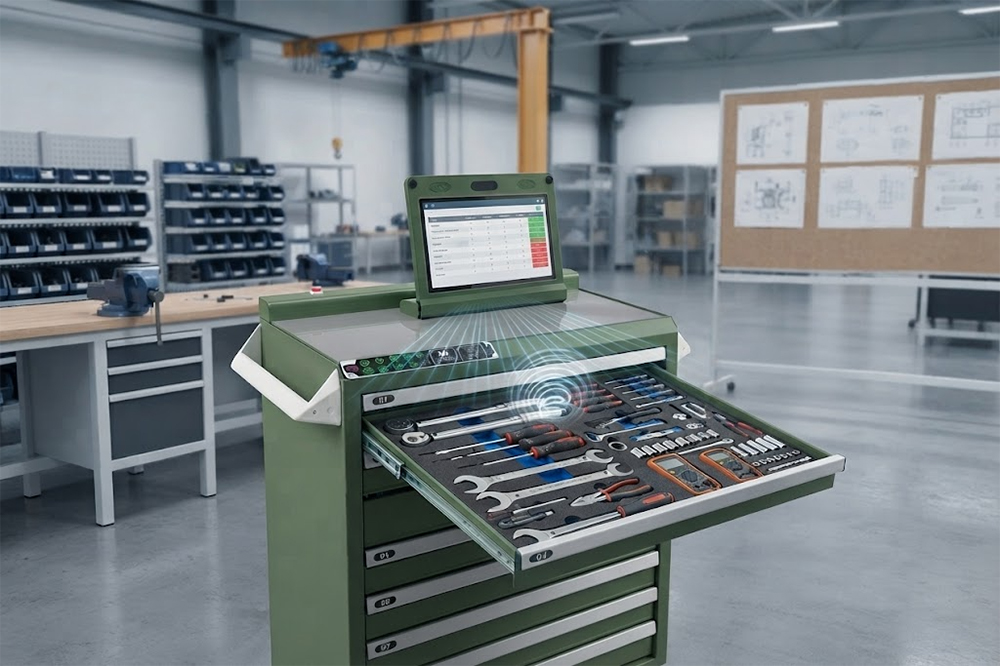

RFID Tool Cabinets for Controlled Storage

For organizations where tools are normally stored in one location, an RFID tool cabinet can be one of the most practical ways to implement RFID tool management.

The cabinet combines physical storage with RFID identification.

Instead of opening a normal cabinet and manually checking the contents, users can interact with an intelligent cabinet designed to identify tagged tools and record transactions.

Depending on the configuration, RFID cabinets may support:

• User authentication
• Automatic inventory
• Tool check-out
• Tool return
• Access control
• Tool status management
• Alerts
• Software integration

Cykeo’s RFID Tool Cabinet product range includes different cabinet configurations designed for industrial tool management applications.

Explore RFID Tool Cabinet Solutions

---

RFID Tool Tracking Beyond the Cabinet

An RFID tool management system does not have to stop at the cabinet.

Tools often leave the storage area.

A technician may take a set of tools to a production line, aircraft, machine room, or construction site.

This is where other RFID devices can complement the cabinet.

Handheld RFID Readers

Handheld readers can be used for mobile inventory checks and tool verification.

RFID Tool Carts

Mobile carts allow technicians to transport tools while keeping RFID-based management close to the work area.

RFID Tool Bags

For field technicians, RFID-enabled bags or backpacks can provide a portable tool management point.

This creates a broader system:

RFID Cabinet → RFID Tool Cart → Handheld Reader → Field Operation

The exact combination depends on the workflow.

---

Why RFID Tool Management Helps Reduce Missing Tools

One of the most common problems in shared tool environments is not necessarily theft.

Sometimes a tool is simply somewhere else.

It may be:

• On another production line
• With another technician
• Inside a maintenance vehicle
• Left at a work station
• Waiting for calibration
• Returned to the wrong location

Without digital tracking, finding that tool can take time.

RFID provides a clearer record of tool movement.

If a system records that Tool #102 was checked out by Technician 018 at 10:20 AM, the maintenance manager has a starting point.

This is much more useful than discovering three days later that the tool is missing from the cabinet.

---

RFID Tool Inventory Management

Inventory checking is another area where RFID can save time.

Imagine a tool room containing 800 tagged tools.

A manual inventory requires someone to inspect and count the tools.

With an RFID-enabled system, readers can identify multiple tags within the designed reading area.

This makes periodic inventory checks much faster.

The exact performance depends on:

• RFID tag type
• Tool material
• Cabinet design
• Antenna placement
• Reader configuration
• Tag orientation
• RF interference

For metal tools, selecting suitable on-metal RFID tags is especially important.

---

RFID Tool Management for Different Industries

Manufacturing

Factories can use RFID to manage production tools, maintenance equipment, measuring instruments, and shared workshop equipment.

Aviation Maintenance

Aircraft maintenance operations place a strong emphasis on tool accountability. RFID can help teams manage tool issue, return, inventory, and responsibility.

Construction

Construction tools often move between workers and work areas. RFID can provide better visibility into tool allocation and return.

Oil and Gas

Industrial and remote environments can benefit from controlled access, digital records, and faster inventory checks.

Field Service

Technicians working away from a central tool room may use handheld readers, RFID tool bags, or mobile RFID carts.

---

What Should You Consider Before Buying an RFID Tool Management System?

There is no universal RFID configuration.

Before selecting equipment, consider the actual working environment.

Number of Tools

A system for 50 tools may be very different from one managing 5,000.

Tool Material

Metal tools can create RF challenges. Test the actual tools and tags rather than relying only on laboratory specifications.

Storage Method

If tools stay in one location, an RFID cabinet may be suitable.

If tools move frequently, mobile devices may be needed.

Reading Area

Define where tools need to be identified.

Is it:

• Inside a cabinet?
• At a doorway?
• On a workbench?
• Across a maintenance area?
• In a warehouse?

User Authentication

If tools are shared among multiple technicians, user identification can make the system much more useful.

Software Integration

Large organizations may need RFID data to connect with ERP, MES, WMS, or maintenance systems.

Ask about APIs, SDKs, database access, and integration options before purchasing.

---

RFID Tool Management Is About the Workflow

It is tempting to compare RFID systems by reader power or advertised reading distance.

Those specifications matter, but they are not everything.

A tool management system should be designed around the actual workflow.

Consider a simple example.

A technician starts a maintenance job at 8:00 AM and needs 15 tools.

The tools leave the cabinet.

The technician uses them for several hours.

At 1:00 PM, the job finishes.

The tools return to storage.

A useful RFID system should make the transition from:

Available → Checked Out → In Use → Returned → Available

easy to record and easy to understand.

That is more important than simply having an RFID reader installed somewhere in the room.

---

Final Thoughts

RFID tool management provides a practical way to connect physical tools with digital records.

RFID tags identify the tools. Readers and antennas detect them. Smart cabinets and mobile devices provide controlled reading points. Software turns the collected data into useful information.

For a fixed tool room, an RFID tool cabinet can provide a strong starting point. For mobile maintenance teams, handheld readers, RFID carts, or smart tool bags can extend the system into the field.

The best solution depends on the number of tools, tool materials, storage environment, user workflow, and software requirements.

For companies looking to move away from manual tool control, RFID is not simply another inventory technology. It can become the foundation of a more visible and accountable tool management process.
