rfid sensors: How RFID Becomes a Real-Time Sensing System

RFID sensors are systems that use RFID readers and tags to detect, track, and monitor objects in real time, enabling automated identification, data capture, and environmental awareness across industries.

That’s the textbook version. In the field, RFID doesn’t feel like a “sensor” at first—it feels like visibility finally catching up with reality.

The moment a system starts detecting hundreds of tagged items per second without human input, you stop thinking in terms of scanning. You start thinking in terms of sensing.

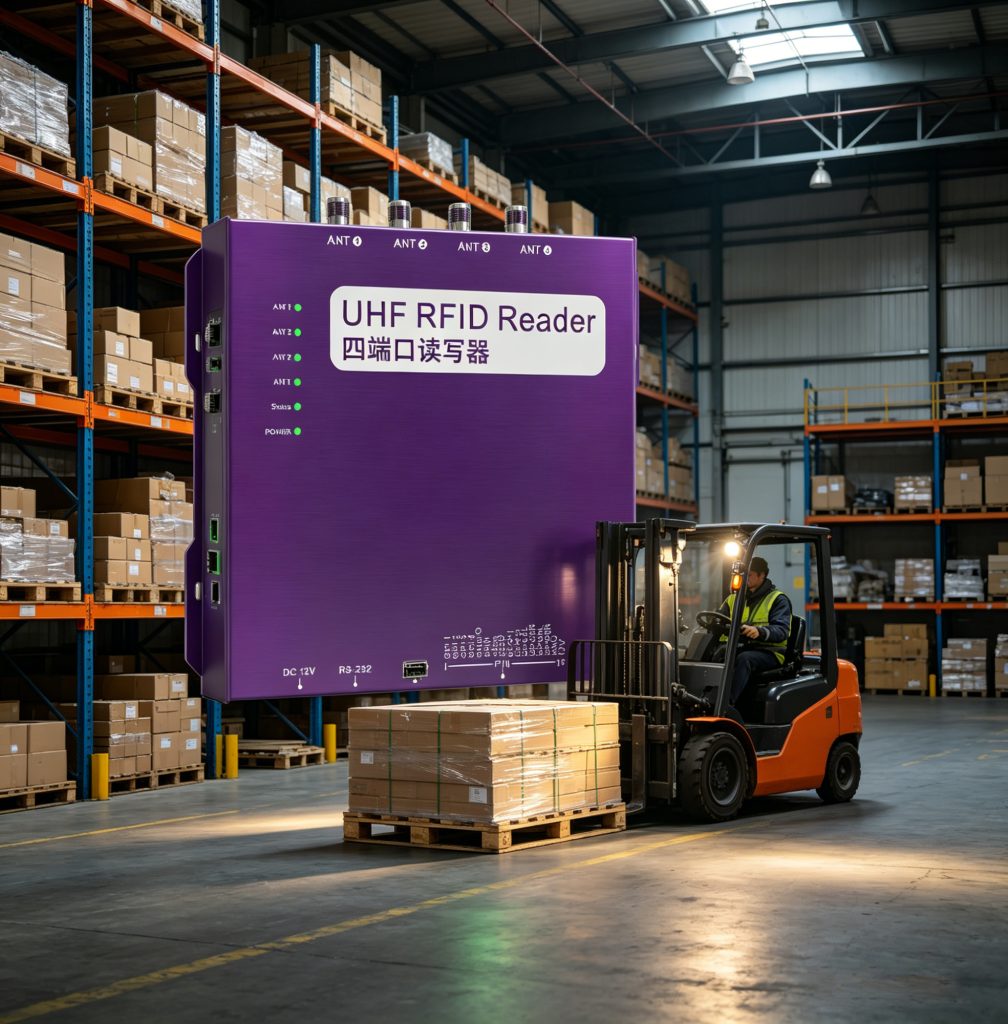

uhf rfid sensor system in real deployments

RFID becomes a sensor when it continuously observes—not just reads.

With a device like Cykeo CYKEO-R4L, that shift is obvious:

• Long-range detection up to 15 meters
• High-speed reading >400 tags/sec
• Multi-tag simultaneous sensing
• Real-time data streaming

What it actually “senses”

• Presence (is the item there?)
• Movement (is it entering or leaving?)
• Quantity (how many items are present?)
• Timing (when did it move?)

rfid tracking sensors industrial: performance in numbers

In one deployment across a logistics checkpoint (~15,000 daily reads), RFID sensors replaced manual scanning entirely.

Metric	Manual Process	RFID Sensor System
Throughput	Limited	Continuous
Accuracy	~85–90%	99%+
Labor dependency	High	Minimal

According to RAIN RFID Alliance:

• RFID systems can achieve over 99% inventory accuracy

And GS1highlights:

• RFID enables real-time visibility across supply chains, reducing delays and errors

These aren’t isolated results—they’re consistent when systems are tuned correctly.

smart rfid sensing technology: what enables it

RFID sensors aren’t a single component—they’re a system.

Core building blocks

• RFID reader (like CYKEO-R4L)
• Antenna system (range + direction control)
• Tagged objects
• Software layer (filtering + interpretation)

Where CYKEO-R4L fits

• Acts as the data capture engine
• Supports multiple protocols (EPC C1G2, ISO18000-6B/C)
• Works across global frequency bands
• Integrates with automation via GPI/GPO

rfid asset tracking sensors: where they create value

RFID sensors don’t just collect data—they remove blind spots.

Applications I’ve seen firsthand

• Warehouse flow tracking → real-time pallet movement
• Vehicle identification → automatic checkpoint validation
• Archive management → instant file location detection
• Retail inventory → continuous stock visibility

Unexpected advantage

You don’t need to ask “where is it?” anymore.

The system already knows.

rfid sensors vs traditional sensing systems

Feature	RFID Sensors	Barcode / Manual
Continuous tracking	Yes	No
Multi-item detection	Yes	No
Line-of-sight needed	No	Yes
Automation level	High	Low
Data richness	High	Limited

RFID doesn’t just improve sensing—it changes what “sensing” means.

deployment insights: what actually matters

From experience, performance depends less on hardware—and more on setup.

Common issues

• Signal reflection (metal environments)
• Tag orientation inconsistency
• Overlapping read zones

What solved them

• Antenna positioning and angle tuning
• Controlled read zones
• Filtering irrelevant tag signals

The CYKEO-R4L provides stable RF output, but environment tuning is still critical.

<h2>FAQ: rfid sensors</h2>

Are RFID sensors different from RFID readers?

RFID sensors refer to systems where readers continuously monitor and interpret tag data asenvironmental input.

How accurate are RFID sensor systems?

Properly deployed systems achieve up to 99%+ accuracy in tracking and identification.

Where are RFID sensors used?

Logistics, asset tracking, vehicle identification, retail, archives, and security systems.

Field Note

RFID sensors don’t announce themselves.

They sit quietly, reading, filtering, interpreting.

Then one day you notice something missing—not the inventory, not the data—but the manual effort you used to rely on.

That’s usually when you realize the system isn’t just reading anymore.

It’s sensing.
