RFID Read Zone Control Is Usually Harder Than It Looks

Most RFID projects start with a simple goal.

Read tags when they enter a certain area.

Sounds straightforward.

Then the equipment arrives, the reader gets mounted, antennas are installed, and somebody runs the first test.

That’s usually where expectations begin to meet reality.

The reading zone shown in the antenna datasheet rarely looks the same inside a warehouse.

Not because the specifications are wrong.

The environment changes everything.

A gate that worked perfectly during testing can suddenly start reading rfid tags from the neighboring lane. A pallet sitting several meters away might appear in the system log even though nobody intended to scan it.

At that point, many teams start looking at readers, firmware, or software filters.

Oddly enough, the actual issue is often happening in the air.

Not in the software.

Not in the database.

But in the way radio waves behave inside the building.

The Reading Area Is Never Just a Circle or a Rectangle

One thing that surprises new RFID users is how difficult it is to draw a clean boundary around an RFID reading area.

People naturally think in physical shapes.

This gate.
This aisle.
This room.

RF signals don’t really care about those boundaries.

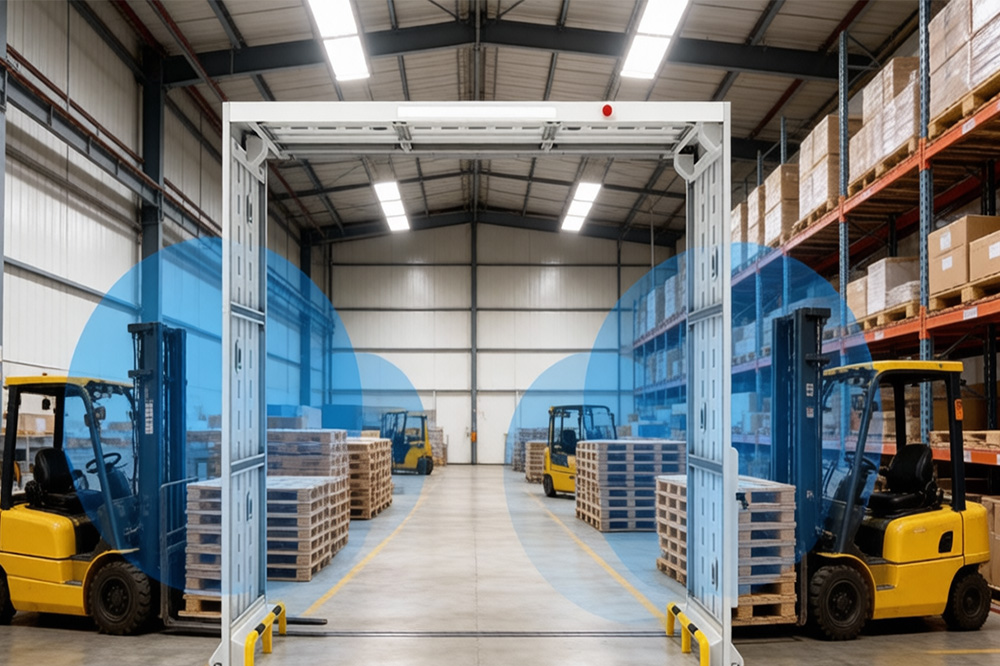

Imagine a warehouse receiving area during a busy afternoon.

Forklifts are moving.
Metal racks are loaded.
Several tagged pallets are waiting nearby.

The antenna may be pointed toward one lane, but reflections can push energy into places nobody expected.

The system is technically working.

It’s simply reading more than the operator wants.

That difference matters.

Because in inventory systems, “extra data” often creates bigger problems than missing data.

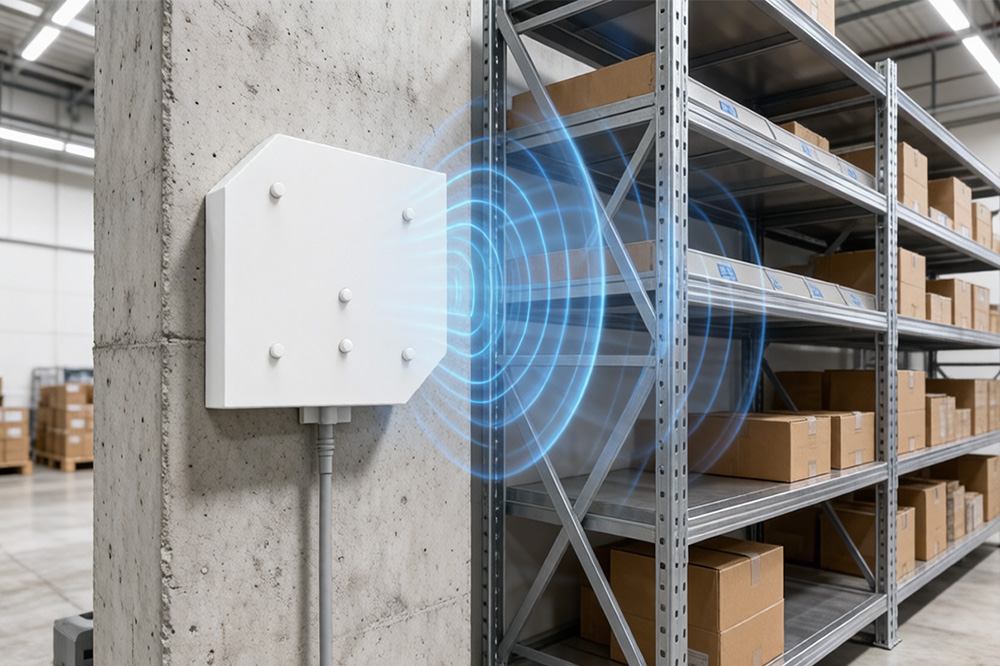

Why Beam Width Looks Different After Installation

A common question from system integrators is:

“We bought a 60-degree rfid antenna. Why is it reading outside that area?”

The short answer is that beam width numbers are measured under controlled conditions.

Real facilities are not controlled environments.

The moment metal shelving enters the picture, the beam starts behaving differently.

In one warehouse project, a gate was positioned between two rows of steel racks.

The antenna itself was performing exactly as designed.

Yet tags from the adjacent storage lane were occasionally appearing in records.

After several tests, it became obvious that reflected RF energy was creating additional read zones that weren’t visible during planning.

Nobody had installed the system incorrectly.

The environment had quietly changed the shape of the coverage area.

That happens more often than people think.

Metal Changes Everything

If there is one thing that repeatedly causes unexpected RFID behavior, it’s metal.

Metal doesn’t just block signals.

Sometimes it redirects them.

Sometimes it strengthens them in unexpected spots.

Sometimes it creates small pockets where tags suddenly become easier to read.

Walking through an industrial warehouse with a handheld analyzer can be eye-opening.

You may find weak signal areas directly in front of an antenna and stronger areas several meters away because of reflections.

This is why two warehouses using identical hardware can produce completely different results.

The equipment isn’t different.

The environment is.

Signal Leakage Is Usually a Layout Problem Before It’s a Hardware Problem

People often describe unwanted reads as “signal leakage.”

That description is actually pretty accurate.

The challenge is figuring out why the signal is leaking.

Many teams immediately assume they need a higher-end reader or a stronger antenna.

Sometimes the opposite is true.

A narrower beam may help.

A lower mounting height may help.

Changing the antenna angle by a few degrees may help.

In one logistics project, the engineering team spent days adjusting software filters.

The results improved slightly.

Then one technician lowered the antenna position by less than half a meter.

The unwanted reads almost disappeared.

It felt almost unfair considering how much time had already been spent on software tuning.

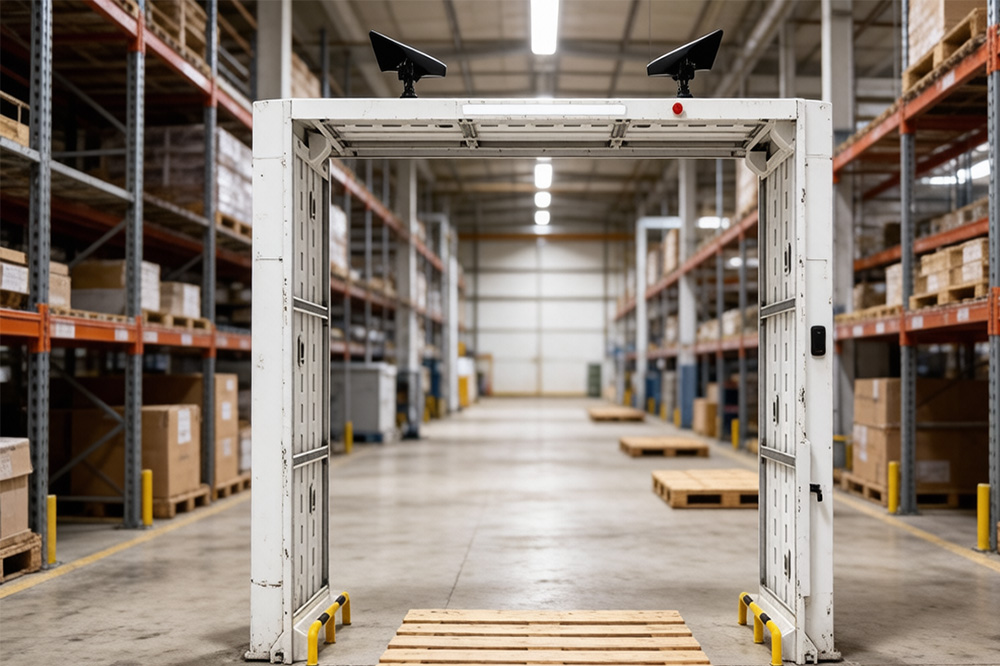

Gate Systems Need Controlled Paths, Not Maximum Coverage

This is something experienced integrators learn fairly quickly.

The goal of a warehouse gate is not maximum reading distance.

The goal is predictable reading behavior.

Those are very different things.

A gate should create a controlled corridor.

The system should know exactly where reads begin and where they end.

When coverage becomes too wide, data quality often starts declining.

A slightly smaller reading area can actually improve overall system performance.

Clients don’t usually ask for larger read zones.

They ask for cleaner data.

Directional Antennas Help, But Placement Still Wins

Directional antennas are one of the most effective tools for read zone control.

They allow engineers to concentrate energy into a more specific area instead of broadcasting broadly.

Still, there is a temptation to think directional antennas solve everything.

They don’t.

A poorly positioned directional antenna can create just as many problems as a poorly positioned omnidirectional one.

Sometimes an antenna with the correct beam width is mounted too high.

Sometimes the tilt angle is wrong.

Sometimes nearby metal structures create reflection paths nobody anticipated during design.

This is why site surveys remain valuable even for experienced RFID teams.

There are things a floor plan simply won’t tell you.

What Experienced Integrators Usually Check First

When unexpected reads start showing up, many experienced engineers don’t replace equipment immediately.

Instead they look at:

• Antenna angle
• Mounting height
• Gate width
• Nearby metal surfaces
• Reader power settings
• Traffic flow direction
• Tag orientation

Often the answer appears somewhere in that list.

Not always.

But often enough that checking physical conditions first has become standard practice for many deployment teams.

A More Practical Way to Think About Read Zone Control

The most successful RFID gate projects rarely focus on achieving the largest coverage area.

They focus on building a reading area that behaves consistently every day.

That’s what warehouse operators care about.

That’s what inventory managers trust.

And that’s usually what system integrators end up optimizing after the first few weeks of deployment.

The antenna matters.

The reader matters.

But in many projects, the difference between a frustrating RFID system and a reliable one comes down to how well the reading zone is controlled.
