how to rfid: A Practical Guide to RFID Technology, Deployment, and Business Applications

how to rfid is achieved by connecting RFID tags, readers, antennas, and software into an identification system that captures object data automatically. RFID uses radio frequency communication to identify, track, and manage assets without direct scanning, enabling real-time visibility across warehouses, retail, healthcare, and industrial environments.

Understanding How RFID Technology Works in Real-World Environments

Many companies first approach RFID with a simple question: “How can I replace barcode scanning?” In actual projects, RFID is not just a faster barcode. It changes how physical items communicate with digital systems.

I have participated in RFID solution evaluations and deployment discussions involving warehouses, manufacturing workshops, medical storage rooms, and retail environments. One pattern appears repeatedly: companies that focus only on purchasing readers often face problems later. The strongest RFID systems are designed around workflow first, hardware second.

An RFID system normally contains four connected layers:

RFID Layer	Main Function
RFID Tag	Stores identification information attached to an item
RFID Reader	Sends RF signals and collects tag responses
Antenna System	Controls communication coverage and reading performance
Software Platform	Processes data and connects with business systems

When an RFID reader transmits radio frequency energy, passive tags receive power through electromagnetic coupling and send stored identification information back to the reader. The software then converts these events into usable business information.

For example, in a warehouse environment, an RFID system can automatically record when tagged products enter receiving areas, move between storage zones, or leave through shipping doors.

The important point is that RFID does not “see” products like a camera. It identifies objects through encoded electronic information.

According to GS1, EPC-based RFID technology supports supply chain visibility by recording event information such as what happened, when it happened, where it happened, and why it happened through EPCIS standards.

How RFID Frequency Selection Affects System Performance

One of the first technical decisions in an RFID project is choosing the correct frequency.

Different frequencies provide different reading characteristics:

Frequency	Typical Usage	Characteristics
LF 125–134 kHz	Access control, animal identification	Short distance, stable near liquids
HF 13.56 MHz	NFC cards, libraries, smart documents	Short-range communication
UHF 860–960 MHz	Warehouse, logistics, retail inventory	Longer range and multi-tag reading

For commercial tracking applications, UHF RFID is commonly selected because it can identify multiple tagged items quickly.

During field assessments, I normally check several details before recommending RFID equipment:

• What material is being tagged?
• Are metal surfaces affecting signal performance?
• How many tags need to be read simultaneously?
• Is the reading area controlled or open?
• Does the customer require API integration?

A warehouse storing cardboard cartons requires a different RFID design from a manufacturing line handling metal components. The tag, antenna position, reader power, and software filtering strategy all need adjustment.

How to RFID Systems Are Built for Industrial Applications

A reliable RFID system is usually developed through several practical stages.

1. Define the Tracking Objective

Before selecting RFID hardware, companies need to define what information they want to collect.

Typical RFID objectives include:

• Inventory counting
• Asset tracking
• Production process monitoring
• Medical supply management
• Retail product identification
• Logistics visibility

A successful project starts with a business problem, not a product catalog.

2. Select Suitable RFID Tags

RFID tags are not universal. The correct tag depends on:

Environment	Recommended Consideration
Warehouse cartons	Standard UHF labels
Metal equipment	Anti-metal RFID tags
Medical environments	Durable and traceable tags
Retail products	Small flexible RFID labels

Tag placement is also important. A tag mounted incorrectly may reduce reading reliability even when the reader performance is excellent.

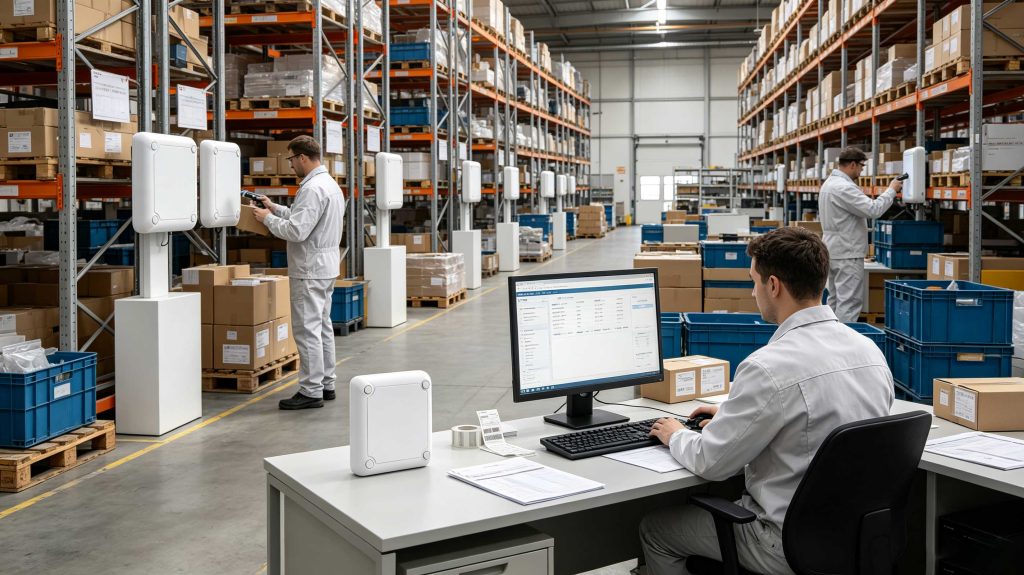

3. Install and Configure RFID Readers

Different applications require different reader types:

• Fixed RFID readers for warehouse entrances and production lines
• Handheld RFID readers for mobile inventory checks
• Desktop RFID readers for tag encoding and registration

Cykeo develops UHF RFID solutions supporting ISO 18000-6C / EPC C1G2 standards, multi-tag identification, adjustable output power, and software integration through SDK and API resources.

Practical Experience: What Makes RFID Projects Successful

In real deployments, RFID performance is rarely limited by the reader alone. The environment creates unexpected challenges.

A warehouse may have hundreds of tags passing through a reading zone within seconds. Without proper anti-collision technology and filtering algorithms, the system may capture repeated reads or unnecessary data.

The Auburn University RFID Lab conducted retail RFID research and reported improvements in inventory record accuracy after RFID implementation in controlled studies.

From engineering experience, the difference between a demonstration system and a production-ready RFID solution is usually found in small details:

• Antenna placement
• Read zone planning
• Tag orientation
• Software filtering rules
• Data integration method

These factors determine whether RFID becomes a reliable operational tool or simply another piece of unused equipment.

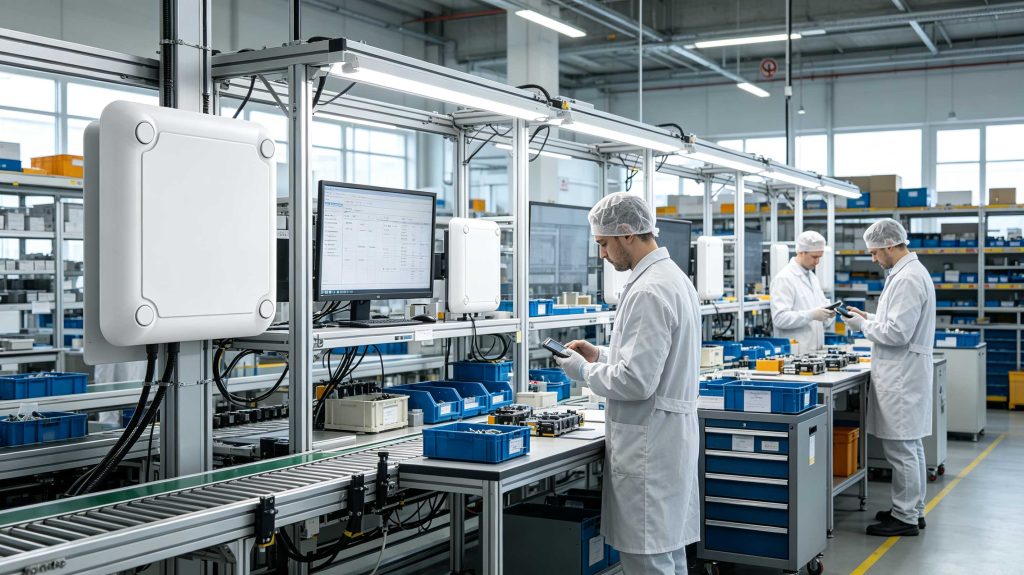

RFID System Architecture: From Tag Data to Business Decisions

A professional RFID deployment is not complete when a reader successfully detects a tag. The real value appears when collected RFID events are connected with business operations.

A complete RFID architecture usually includes:

System Layer	Purpose in RFID Deployment
RFID Tags	Provide unique electronic identification for assets or products
RFID Readers	Capture tag information through wireless communication
Middleware	Filters duplicate reads and manages reader communication
Business Software	Connects RFID data with ERP, WMS, MES, or inventory platforms

In large-scale applications, the reader may capture thousands of tag signals every hour. The software layer determines which information is meaningful.

For example, when a pallet passes through a warehouse entrance, the system does not simply record “tag detected.” A properly designed RFID platform can identify:

• Which product entered
• When it arrived
• Which warehouse zone received it
• Whether the quantity matches the shipment record

GS1 EPC/RFID architecture defines RFID infrastructure as a combination of readers and tags communicating through standardized interfaces. Passive tags receive energy from reader signals and return information through backscatter communication.

How to RFID for Different Industry Applications

RFID adoption is not limited to logistics. Different industries use RFID according to their operational requirements.

Warehouse and Supply Chain

Common RFID functions include:

• Automatic receiving verification
• Pallet tracking
• Inventory counting
• Shipment confirmation
• Location monitoring

A fixed RFID reader installed at a warehouse doorway can automatically identify tagged items moving through the area without employees manually scanning each box.

Retail

Retail companies use RFID for:

• Item-level inventory visibility
• Faster stock checking
• Loss prevention
• Self-checkout solutions

Retail environments usually require small flexible RFID labels and reliable high-volume reading performance.

Healthcare

Medical applications often require stronger traceability:

• Pharmaceutical inventory control
• Medical equipment tracking
• Consumable management
• Secure storage monitoring

In hospitals, RFID is often combined with access control and inventory software to create a controlled management process.

Cykeo RFID Technology Advantages for Real Deployment

Cykeo focuses on practical RFID engineering, helping customers build systems that can operate continuously in real environments.

The main technical advantages include:

1. Reliable UHF RFID Identification

Cykeo UHF RFID products support ISO 18000-6C / EPC C1G2 protocols, enabling compatibility with mainstream UHF RFID applications.

GS1 EPC Gen2 defines the communication requirements between UHF RFID readers and passive tags operating in the 860–930 MHz range and has become one of the major standards supporting RAIN RFID deployments.

2. Multi-Tag Reading Capability

Industrial RFID environments rarely contain only one tag.

A warehouse door may process:

• Multiple cartons
• Several pallets
• Different product categories

Cykeo RFID readers support anti-collision technology to help identify multiple tags efficiently.

3. Flexible Integration

RFID systems often need connection with existing software.

Cykeo provides:

• API integration support
• SDK development resources
• Ethernet communication
• Serial communication options

This allows RFID data to connect with customer management platforms instead of creating isolated hardware systems.

Common Mistakes When Implementing RFID

Based on practical project experience, several RFID problems appear repeatedly.

Problem	Reason	Solution
Low reading rate	Incorrect tag selection	Test tags in real environment
Too many duplicate reads	Poor filtering configuration	Adjust software rules
Short reading distance	Wrong antenna setup	Optimize reader and antenna position
Failed deployment after testing	Pilot environment differs from production	Test actual workflow

A common mistake is performing a laboratory test with only a few tags and assuming the same performance will happen in a busy warehouse.

RFID should always be tested under real operating conditions.

RFID Implementation Checklist

Before launching an RFID project, companies should evaluate:

What assets need identification?
How many tags must be read simultaneously?
What materials are involved?
What reading distance is required?
Which software systems need integration?
How will RFID data improve daily operations?

This planning stage reduces unnecessary hardware investment and improves long-term reliability.

Frequently Asked Questions About How RFID Works

1. How does RFID identify objects?

RFID identifies objects by using radio frequency communication between RFID tags and readers. Each tag contains identification data that can be captured automatically when it enters the reader’s communication range.

2. What is needed for an RFID system?

A complete RFID system requires RFID tags, readers, RFID antennas, software, and communication interfaces. The exact configuration depends on the application environment.

3. Can RFID read multiple tags at the same time?

Yes. UHF RFID systems are designed for multi-tag identification. Proper reader configuration and anti-collision technology allow multiple tags to be captured efficiently.

4. Is RFID better than barcode systems?

RFID provides advantages when companies need automatic identification, bulk reading, or real-time tracking. However, barcode and RFID may both be suitable depending on operational requirements.

5. How far can RFID read tags?

RFID reading distance depends on frequency, tag type, reader power, antenna design, and environment. UHF RFID generally provides longer reading distances than HF or LF systems.

6. Can RFID connect with existing software?

Yes. RFID systems can integrate with business platforms through APIs, SDKs, middleware, or standard communication protocols.

Conclusion: How to RFID Successfully in Business Operations

how to rfid is not only about installing tags and readers. A successful RFID system requires accurate planning, suitable hardware selection, software integration, and continuous optimization based on real operational conditions.

From warehouse inventory to healthcare management, RFID creates a connection between physical objects and digital information. Companies that design RFID around their workflow can achieve better visibility, stronger traceability, and more efficient operations.
