Long Range RFID Scanner for Warehouse Inventory: How to Scan Hundreds of Tags Faster

A long range RFID scanner can speed up warehouse inventory by reading multiple UHF RFID tags at the same time instead of scanning products one by one. To get reliable results, the reader, antenna, tag placement, reading distance, and inventory software need to be matched to the actual warehouse environment.

Warehouse inventory is one of those jobs that looks easy from the office.

The system says there should be 8,000 items.

Someone goes into the warehouse with a scanner.

A few hours later, the numbers still don’t match.

Then someone checks the shelves again.

And again.

This is one reason RFID remains interesting for warehouse operators. Instead of requiring workers to point a scanner at every individual barcode, a UHF RFID system can identify multiple tagged products within its reading area.

The real question, however, isn’t simply whether RFID can read hundreds of tags.

It is whether it can do it reliably in the customer’s actual warehouse.

That distinction matters when selecting a long range RFID scanner.

---

Why RFID Changes the Inventory Process

With traditional barcode inventory, the basic workflow is usually:

Find product → locate barcode → point scanner → scan → move to next product

RFID can reduce some of those steps.

A reader can detect several tags without requiring direct visual alignment.

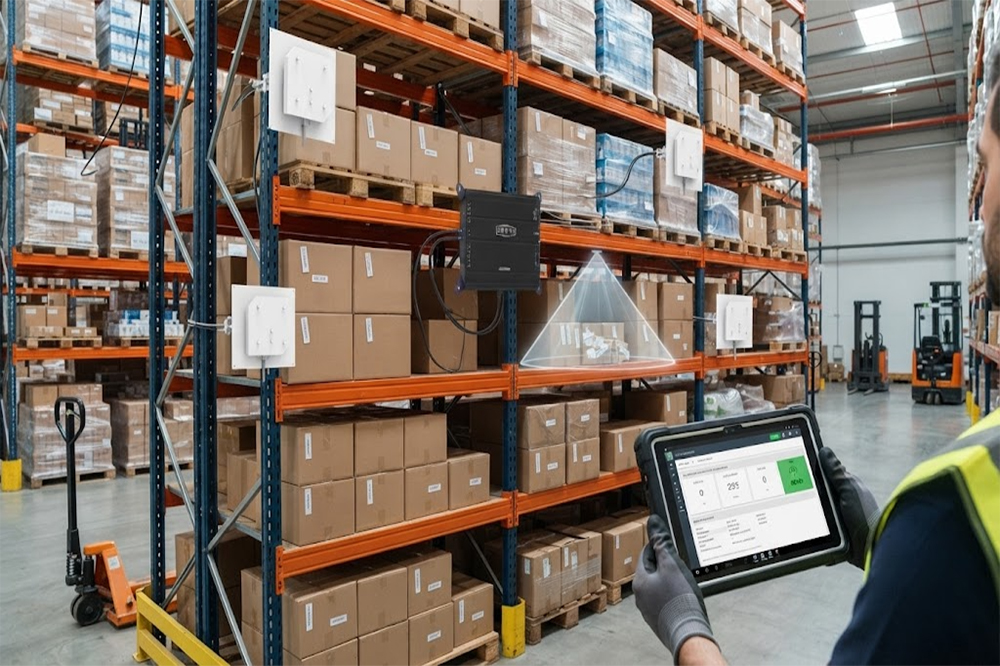

For example, a warehouse worker may walk along a rack carrying an RFID scanner.

The system can detect tags on nearby cartons as the worker moves.

Instead of manually scanning each box, the operator can collect multiple tag IDs in a short period.

For large warehouses, that difference can become significant.

---

How Many Tags Can a Long Range RFID Scanner Read?

This is a question buyers ask frequently.

There isn’t one universal number.

A reader may technically identify a large number of tags, but the actual result depends on:

• Tag quantity
• Reading distance
• Tag sensitivity
• Reader configuration
• Antenna gain
• Tag orientation
• Product material
• Tag density
• RF environment
• Movement speed

A test with 20 tags on an empty table tells you very little about what happens when 300 tags are packed into several cartons.

For inventory applications, tag density deserves special attention.

---

Bulk Reading Is Not the Same as Long Reading Distance

These two ideas are often mixed together.

A long range RFID scanner is designed to detect tags from a relatively long distance.

Bulk reading means detecting multiple tags efficiently.

A reader might have excellent range but perform poorly in a dense tag environment.

Another reader might handle hundreds of tags well but not need extremely long range.

For warehouse inventory, the ideal balance depends on how the customer performs inventory checks.

If the operator walks down an aisle, the required reading distance might only be a few meters.

If the customer wants to identify pallets from a vehicle, the requirement could be very different.

---

Start With the Inventory Method

Before selecting hardware, ask how the customer wants to perform inventory.

There are several common approaches.

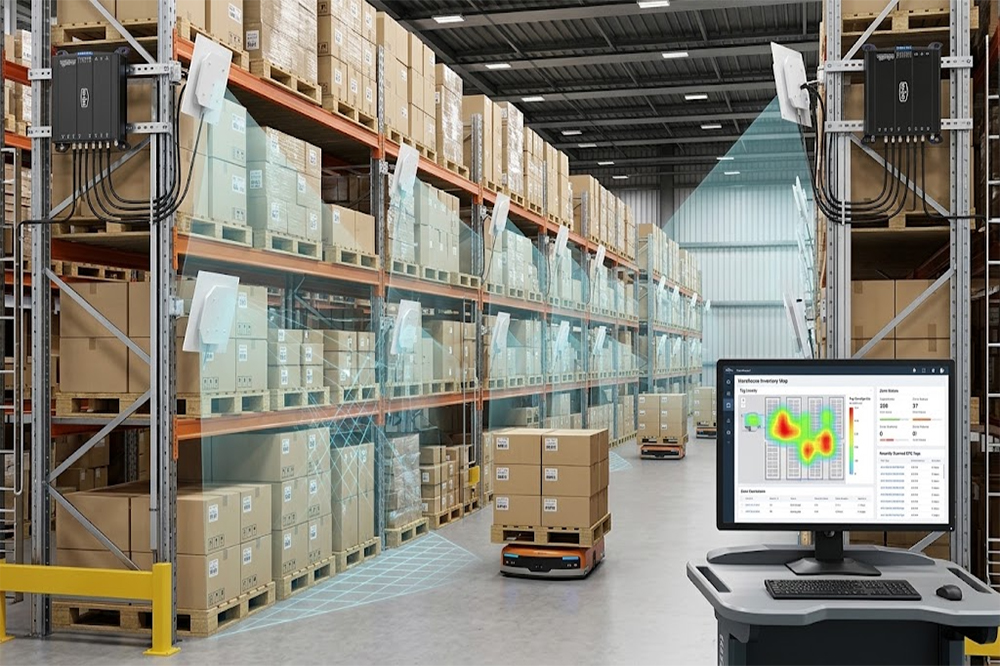

Fixed Inventory Reading

Readers and antennas are permanently installed around storage areas.

Tags are automatically detected as products move through defined zones.

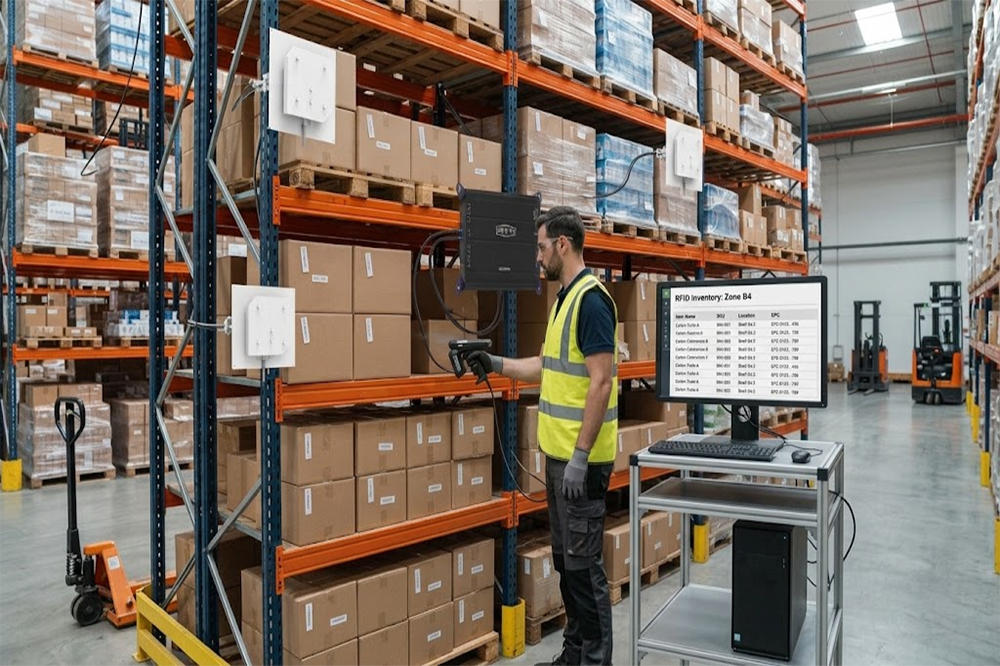

Mobile Inventory

An operator walks through the warehouse using a handheld or portable RFID reader.

This is useful when the warehouse doesn’t justify installing readers everywhere.

Gate-Based Inventory

RFID readers are installed at entrances, exits, or loading areas.

Inventory changes are captured as tagged products pass through the checkpoint.

Hybrid Systems

Large warehouses may combine fixed readers, handheld devices, and gate readers.

The right approach depends on warehouse size, workflow, product value, and automation requirements.

---

Why Tag Placement Matters During Inventory

Imagine a rack containing hundreds of cartons.

If every RFID tag is placed in the same general position, the reading pattern becomes easier to predict.

If tags are placed randomly, some may face away from the antenna.

Others may be hidden behind products.

Some could be pressed against metal.

This can create inconsistent results.

When working with a customer, I would rather spend time standardizing tag placement than trying to compensate for poor tag positioning with maximum reader power.

The former usually produces a more controllable system.

---

Dense Tags Can Change the Reading Experience

Suppose a warehouse shelf contains 200 RFID-tagged products.

The reader may see many tag responses at once.

Modern UHF RFID readers are designed to handle multiple tags, but system performance still depends on configuration and environment.

This is where actual testing becomes useful.

Try:

20 tags

then:

50 tags

then:

100 tags

and eventually the expected maximum.

Watch how quickly the system identifies them.

More importantly, check whether certain tags repeatedly disappear from the results.

The total number of reads is not the only metric.

---

Inventory Accuracy Is More Important Than Raw Speed

A warehouse manager may initially say:

“I want to count everything in ten seconds.”

That’s understandable.

But if the system misses 5% of the tags, the speed advantage doesn’t mean much.

A better target is:

Fast enough + repeatable + accurate

The RFID system should produce consistent results when the same inventory area is scanned several times.

If the first scan finds 492 tags, the second finds 476, and the third finds 501, there is a problem that needs investigation.

The reader may not be the only cause.

Tag placement, antenna position, RF interference, and software timing can all contribute.

---

Antenna Selection Makes a Difference

The antenna controls how the RFID reader interacts with the inventory area.

For warehouse inventory, antenna selection depends heavily on the scanning method.

A directional antenna may be useful when the operator needs to focus on one rack or aisle.

A different configuration may work better for a fixed reading zone.

The antenna should match:

• Reading distance
• Coverage area
• Product location
• Tag orientation
• Rack design
• Reader output
• Installation height

There is no reason to choose an antenna simply because it has the highest gain.

Higher gain does not automatically mean better inventory results.

---

What About Warehouse Shelves?

Metal shelving can create a more complicated RF environment.

If RFID tags are placed directly against metal, standard labels may perform poorly.

The customer may need on-metal RFID tags.

If antennas are mounted close to large metal structures, their position may also need adjustment.

This is particularly important in industrial warehouses.

The same RFID reader can perform differently in an open demonstration room and between steel storage racks.

That’s normal.

The environment is part of the system.

---

Walking Speed Also Matters

For handheld inventory applications, the operator’s movement affects reading performance.

If the worker walks slowly, the reader has more time to detect tags.

If the operator moves quickly down the aisle, the reading window becomes shorter.

The system should therefore be tested at the speed workers are actually likely to use.

Don’t design a workflow around a five-minute inventory process if warehouse employees naturally move through the aisle in two minutes.

The technology needs to fit the operation.

---

Reading Distance Should Match the Rack Layout

Suppose the RFID antenna can detect tags from 10 meters.

The warehouse aisle is only 3 meters wide.

That might sound great.

But if the reader also detects tags from the next aisle, it becomes a problem.

This is similar to warehouse gate applications.

More range can sometimes mean more unwanted reads.

The goal should be to create a useful reading zone.

For mobile inventory, the operator should ideally be able to control which shelf or area is being counted.

---

Software Filtering Is Part of Inventory Accuracy

Raw RFID data can contain repeated reads.

A tag might be detected many times while it remains inside the reading zone.

The software needs to turn those raw reads into useful inventory information.

For example:

EPC detected → identify location → remove duplicates → compare with database → update inventory

The system might also record:

• First detection time
• Last detection time
• Reader location
• Antenna port
• EPC number
• Inventory status

This allows the RFID platform to do more than simply display a list of tag numbers.

---

RFID Can Help Find Missing Inventory

This is one of the more useful applications.

Suppose the warehouse database says that a product should be stored in Rack A.

The RFID inventory scan doesn’t detect the tag there.

The system can flag the item.

The operator can then search another area.

This changes inventory work from simply counting products to identifying exceptions.

For larger warehouses, that can save considerable time.

---

RFID and Barcode Can Work Together

RFID does not necessarily need to replace barcode systems overnight.

Many warehouses already have barcode labels and established WMS processes.

A practical approach may be:

Barcode + RFID

The barcode remains useful for certain operations.

RFID handles automated identification and bulk inventory.

The two technologies can coexist while the warehouse gradually expands RFID coverage.

This is often easier for customers who don’t want to rebuild the entire operation at once.

---

What System Integrators Should Test

When evaluating a long range RFID scanner for warehouse inventory, I would test several things rather than just reading distance.

1. Single Tag

Confirm basic tag compatibility.

2. Multiple Tags

Increase the number of tags gradually.

3. Dense Tags

Put tags close together.

4. Different Orientations

Turn some tags in different directions.

5. Real Products

Use actual customer cartons and products.

6. Real Shelves

Test near the actual warehouse racks.

7. Normal Movement

Use the same movement speed expected in operation.

8. Repeatability

Run the same inventory scan several times.

This provides a much better picture of real performance.

---

What Should Distributors Look for?

For distributors and wholesalers, technical specifications are important, but supply capability matters too.

A commercial RFID project may require dozens or hundreds of readers.

Before placing a bulk order, it is worth confirming:

• Frequency range
• Supported protocols
• Chipset
• Sensitivity
• RF output power
• Antenna ports
• Ethernet
• TCP/IP
• USB or serial interfaces
• API/SDK
• Firmware support
• OEM options
• Sample availability
• MOQ
• Lead time
• Bulk pricing

The ability to provide samples is particularly useful.

It lets the distributor validate the reader before recommending it to end customers.

---

Don’t Judge an RFID Scanner From One Demonstration

A clean showroom demonstration can make RFID look almost effortless.

A warehouse is different.

There may be 500 tags.

There may be metal racks.

There may be forklifts moving around.

There may be several readers operating at the same time.

There may be products that absorb or reflect RF energy differently.

So when comparing suppliers, ask for a practical sample test.

Use the customer’s tags.

Use the customer’s products.

Use the intended antenna.

Then test the actual workflow.

That result is much more valuable than simply comparing “10 meters” versus “20 meters” on two datasheets.

---

A Practical Example

Imagine a distributor is working with a warehouse that stores 30,000 tagged cartons.

The warehouse currently performs manual inventory twice a month.

The customer wants to shorten the process.

The integrator installs a long range UHF RFID reader and tests it with the actual cartons.

At first, several tags are missed.

The team discovers that some tags are positioned behind other cartons.

They standardize the tag position.

Then they find that the reader also detects products from the next rack.

The antenna angle is adjusted and the RF power is reduced.

After several rounds of testing, the inventory scan becomes much more consistent.

Notice that the final solution did not come from simply buying a stronger reader.

It came from tuning the entire system.

---

Is a Long Range RFID Scanner Right for Your Warehouse?

It can be, especially when the warehouse handles large quantities of tagged products and wants to reduce manual scanning.

The strongest use cases usually have one or more of these characteristics:

• Large inventory volume
• Frequent stock counting
• High labor cost
• Repetitive scanning work
• Need for real-time inventory visibility
• Many tagged products
• Automated inbound/outbound processes

For smaller warehouses with very low inventory volume, barcode scanning may still be more economical.

RFID makes more sense when the operational savings justify the hardware and tag investment.

---

Final Thoughts for RFID Buyers

A long range RFID scanner can make warehouse inventory much faster, but the real benefit comes from bulk identification and repeatable data collection, not simply maximum reading distance.

When choosing a reader, look at the whole application.

How many tags will be read?

How close are they?

What are the products made of?

Where will the antennas be installed?

How fast will the operator or pallet move?

How will the RFID data connect to the WMS?

And perhaps most importantly:

Can the supplier test the equipment with your actual tags and products?

For RFID distributors, wholesalers, and system integrators, these questions are often more useful than comparing a few numbers on a product page.

If you are sourcing long range RFID scanners for warehouse inventory, UHF RFID readers, RFID antennas, or complete inventory tracking hardware, providing the required reading distance, tag quantity, product type, warehouse layout, and estimated order quantity can help the supplier recommend the right configuration and arrange sample testing before bulk purchasing.
