Long Range RFID Scanner for Cold Chain Logistics: How to Track Temperature-Sensitive Shipments and Containers

Short Answer

A long range RFID scanner helps cold chain operators identify and track tagged pallets, insulated containers, reusable transport boxes, cases, and refrigerated shipment assets as they move through warehouses, cold rooms, loading docks, and distribution centers. RFID records the identity and movement of each tagged item, while temperature monitoring requires sensor-enabled RFID tags or separate temperature sensors connected to the same software platform.

How Does RFID Work in Cold Chain Logistics?

A typical cold chain RFID system includes four main components:

1. RFID tags attached to pallets, containers, cases, or reusable transport units.
2. Long range UHF RFID readers installed at warehouse doors, loading lanes, conveyors, or transfer points.
3. Directional antennas that create a controlled reading zone.
4. Warehouse, transportation, or cold chain software that records movement events.

When a tagged asset enters the reading area, the RFID reader captures its electronic product code, commonly called an EPC. The software can then associate that EPC with a shipment number, pallet ID, container record, purchase order, or delivery route.

This allows operators to answer practical questions:

• Was the shipment loaded?
• Which reusable container left the cold room?
• Did the pallet reach the dispatch area?
• Which containers returned to the warehouse?
• Was the correct shipment assigned to the refrigerated truck?
• When did the asset pass through a specific checkpoint?

RFID does not need direct line-of-sight like a barcode. However, cold chain environments contain moisture, liquids, metal racks, insulated packaging, and dense shipments. These factors must be considered during tag selection and system testing.

Tracking Pallets and Reusable Cold Chain Containers

Cold chain operations often depend on reusable assets such as:

• Insulated transport boxes
• Plastic totes
• Refrigerated containers
• Pallet boxes
• Roll cages
• Temperature-controlled shipping units
• Reusable pharmaceutical containers
• Food distribution crates

These assets may circulate between manufacturers, warehouses, distributors, hospitals, retailers, and transport companies. Manual tracking becomes difficult when containers are returned late, placed in the wrong area, or mixed with another customer’s equipment.

A long range RFID scanner can identify each tagged container when it passes through a warehouse entrance, return area, staging lane, or loading dock. The system can update the asset status automatically without requiring workers to scan every item individually.

For example, a reusable cold-chain box may move through the following stages:

Cleaning → Filling → Cold Storage → Loading → Transportation → Delivery → Return → Inspection

RFID can record these transitions and help operators understand where containers are located and how often they are used.

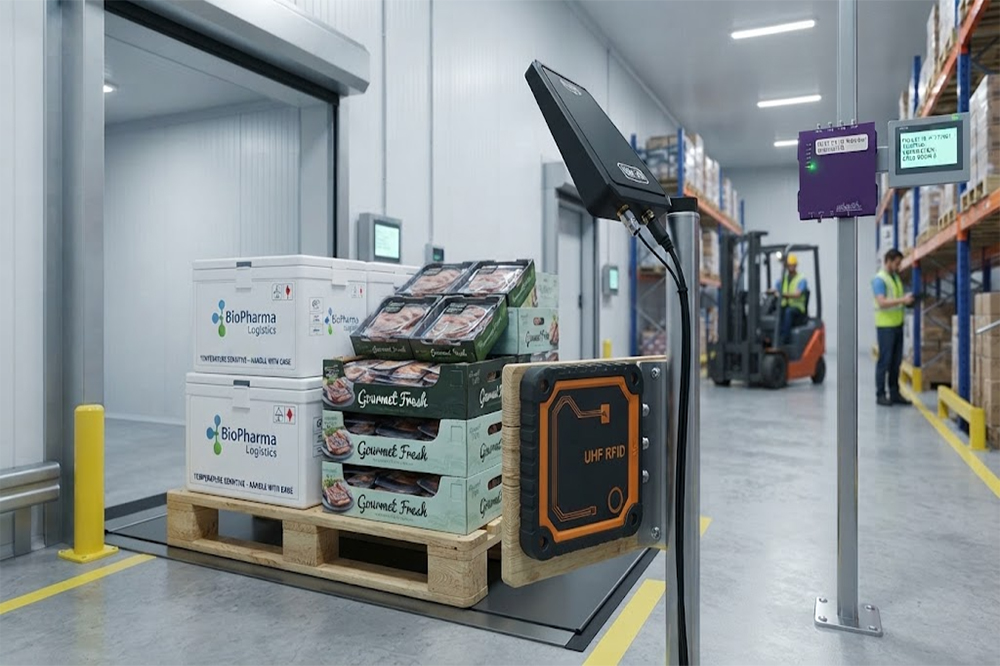

RFID for Refrigerated Warehouses and Cold Rooms

Cold storage facilities usually have limited visibility because workers wear gloves, doors open frequently, and products may be stacked closely together. A fixed RFID reader installed near a cold-room entrance can record tagged assets as they enter or leave.

Common installation points include:

• Cold-room doors
• Freezer entrances
• Pallet staging areas
• Receiving docks
• Dispatch docks
• Conveyor transfer points
• Reusable container return zones
• Quarantine or inspection areas

The reading zone should be designed carefully. A reader that detects tags from several nearby lanes may create incorrect inventory or shipment records. Directional antennas, shielding, trigger sensors, and software filtering can help define the intended area.

Condensation is another practical issue. The RFID reader and antenna housing should be suitable for the environment, while the tags must be tested under actual temperature and moisture conditions. A tag that works well in a dry warehouse may perform differently inside a cold room with condensation or frost.

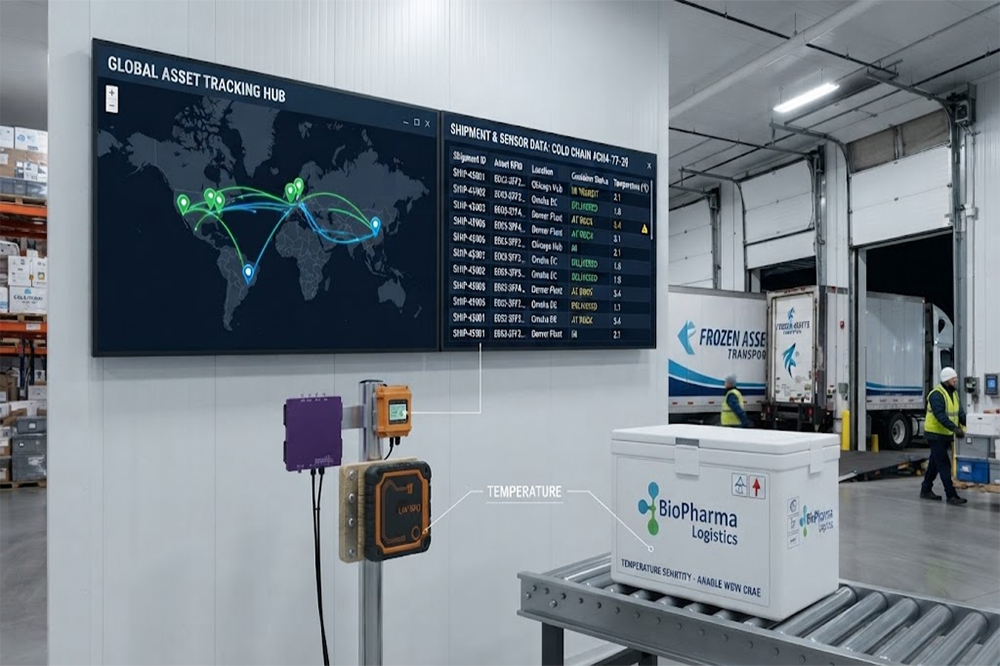

RFID and Temperature Monitoring Are Not the Same

This distinction is important for cold chain projects.

A standard passive UHF RFID tag normally identifies an object. It does not automatically measure and store temperature. To monitor temperature, a project may use:

• RFID tags with integrated temperature sensors
• Battery-assisted sensor tags
• Bluetooth or other wireless temperature sensors
• Data loggers
• Separate temperature monitoring devices connected to the warehouse or transport platform

The RFID system can identify the shipment or container, while the sensor system provides temperature information. Software can combine both records.

For example:

Container EPC 3025 passed the loading dock at 14:05. The associated temperature sensor reported 4.2°C at the same event.

This creates a more useful traceability record than either RFID or temperature monitoring alone.

RFID records identity and movement. Sensor technology records temperature. The final system should make the relationship between these two data streams clear.

Tracking Temperature-Sensitive Shipments

Cold chain shipments may include food, beverages, vaccines, pharmaceutical materials, biological products, dairy products, seafood, fresh produce, and other temperature-sensitive goods.

A long range RFID scanner can be used to identify:

• Shipment pallets
• Cartons and cases
• Insulated shipping boxes
• Refrigerated containers
• Product batches
• Returnable transport units
• Delivery cages
• Loading and unloading assets

In some projects, the RFID tag is attached to the pallet or container rather than every individual product. This approach can reduce tag quantity and simplify deployment. In other cases, item-level tagging may be useful when products are separated, repacked, or distributed across different destinations.

The correct tagging level depends on the required traceability. A pallet-level system may be sufficient for warehouse movement, while batch-level or case-level tracking may be required for regulated or high-value shipments.

RFID for Refrigerated Truck and Reefer Loading

A long range RFID scanner can be installed at the loading dock to confirm which pallets or containers enter a refrigerated truck. The reader records the shipment identity and time of loading, while the transportation management system can associate the event with a vehicle, route, driver, or delivery order.

This can reduce several common problems:

• Loading the wrong pallet
• Missing a shipment during dispatch
• Recording shipment information manually
• Failing to confirm returned containers
• Mixing different delivery routes
• Losing track of reusable cold-chain assets

RFID alone does not provide GPS tracking for the truck. It also does not replace the truck’s temperature monitoring system. Instead, it creates reliable loading and unloading events that can be combined with GPS, temperature, route, and delivery data.

Can a Long Range RFID Scanner Read Multiple Cold Chain Assets?

Yes. UHF RFID technology can identify multiple tagged assets in one reading area. This is useful when several pallets, totes, or containers move through a dock at the same time.

However, reading performance depends on:

• Tag orientation
• Distance between tags
• Pallet density
• Liquid content
• Metal packaging
• Insulated materials
• Reader output power
• Antenna gain and direction
• Movement speed
• Door structure
• Nearby RFID equipment

A pallet containing liquid products may behave differently from a pallet containing dry packaged goods. Metal-lined containers and refrigerated equipment can also reflect or absorb radio energy.

For this reason, a cold chain RFID project should not rely only on a laboratory reading distance. Testing should use the actual products, packaging, containers, and movement conditions.

Why Antenna Position Matters in Cold Chain Applications

A long range RFID scanner is only one part of the reading system. Antenna placement often determines whether the system produces clean data.

For a cold-room door, antennas may be installed on both sides of the passage to improve tag coverage. For a loading lane, directional antennas can be aimed toward the pallet path. For a conveyor, the antenna angle should match the tag position and movement direction.

The system should also prevent tags from being read outside the intended zone. Possible methods include:

• Lowering reader power
• Adjusting antenna angle
• Using directional antennas
• Installing shielding materials
• Adding photoelectric or motion triggers
• Filtering duplicate reads in software
• Using separate reader zones for entry and exit

The goal is not simply to read as far as possible. The goal is to read the correct assets at the correct location.

RFID Software Integration for Cold Chain Operations

A cold chain RFID system becomes more valuable when it connects with existing business software, such as:

• Warehouse Management Systems
• Transportation Management Systems
• Enterprise Resource Planning platforms
• Cold storage inventory software
• Temperature monitoring platforms
• Quality management systems
• Shipment tracking portals
• Asset management systems

The RFID reader may send data through Ethernet, TCP/IP, serial communication, APIs, or other supported interfaces. The software can then convert raw EPC reads into business events.

For example:

RFID Read → Pallet Identification → Shipment Verification → Loading Confirmation → Inventory Update

For sensor-enabled projects, the software may also process:

Temperature Data → Threshold Check → Alert or Exception Record

System integrators should define the event logic before installing hardware. A single RFID read should not always create a new shipment event. The software may need filtering, time windows, direction logic, and duplicate-read handling.

A Practical Cold Chain RFID Example

Consider a food distributor operating refrigerated warehouses and regional delivery routes.

The company uses reusable insulated boxes for dairy and fresh food shipments. Previously, workers recorded container movements manually. Some boxes remained in the wrong staging area, and returned containers were difficult to locate.

The company attaches rugged RFID tags to the reusable boxes and installs long range RFID scanners at:

1. The cold-room exit
2. The dispatch staging area
3. The refrigerated truck loading dock
4. The returned-container inspection area

Each RFID event updates the container’s status. A separate temperature monitoring system records the temperature inside selected boxes or vehicles.

The result is a clearer movement history:

• The box entered cold storage.
• The box was assigned to a delivery route.
• The box was loaded onto a refrigerated vehicle.
• The box arrived at the delivery point.
• The box returned to the distribution center.
• The box passed inspection and became available again.

The project still requires testing for condensation, tag durability, pallet density, and false reads between nearby loading lanes.

What Should You Test Before Deployment?

Before purchasing a large quantity of equipment, test the complete system in the real operating environment.

Important test conditions include:

• Actual cold-room temperature
• Condensation and frost
• Wet or damp packaging
• Metal shelves and doors
• Insulated containers
• Liquid-filled products
• Full and partially loaded pallets
• Tag placement and orientation
• Reading distance
• Pallet movement speed
• Multiple pallets passing together
• Loading dock interference
• Reader performance near other equipment
• Software event accuracy
• Temperature sensor integration, if required

It is also useful to test the system during normal working conditions. Workers may move quickly, open doors frequently, stack pallets unevenly, or place containers in unexpected orientations. These details can affect RFID performance more than the nominal specifications.

What Should Distributors and System Integrators Look For?

When selecting a long range RFID scanner for cold chain logistics, consider the following points:

• Support for the required UHF RFID frequency range
• Compatibility with EPC C1G2 or ISO18000-6C tags
• Stable performance in industrial environments
• Suitable reader sensitivity and output power
• Multiple antenna ports for wider reading zones
• Ethernet, serial, or API communication
• Support for external triggers or digital I/O
• Rugged housing for warehouse and dock conditions
• Compatibility with cold-rated RFID tags
• Integration with WMS, TMS, ERP, or sensor platforms
• Availability of samples and engineering support
• OEM or custom configuration options
• Testing support for actual containers and packaging

The reader should be selected together with the antenna, tag, mounting method, and software logic. Choosing the reader alone is rarely enough to guarantee reliable performance.

RFID Supports Traceability, but Does Not Replace Cold Chain Controls

RFID can improve visibility, reduce manual recording, and connect physical movement with shipment data. It can help operators identify missing assets, confirm loading events, and track reusable containers.

However, RFID does not replace:

• Temperature compliance procedures
• Refrigerated transport controls
• Product quality inspections
• Cleaning and sanitation procedures
• Regulatory documentation
• Sensor calibration
• Food safety or pharmaceutical quality systems

For temperature-sensitive goods, the RFID system should work alongside the established cold chain process rather than being treated as a replacement for it.

Final Takeaway

A long range RFID scanner can improve cold chain logistics by identifying pallets, insulated boxes, refrigerated containers, reusable transport units, and temperature-sensitive shipments at key movement points. It is especially useful at cold-room doors, warehouse staging areas, loading docks, and container return stations.

The strongest solution combines suitable UHF RFID tags, correctly positioned antennas, reliable reader hardware, and software that connects RFID events with shipment, inventory, and temperature records. With real-world testing, RFID can provide a clearer and more automated view of cold chain operations.

Frequently Asked Questions

1. Can RFID track temperature-sensitive shipments?

Yes. RFID can identify and track the shipment, pallet, or container. Temperature monitoring requires sensor-enabled RFID tags or separate temperature sensors connected to the software.

2. Can a long range RFID scanner work in a cold room?

Yes, but the reader, antenna, and RFID tags should be selected and tested for low temperatures, condensation, moisture, and nearby metal structures.

3. Can RFID read several cold-chain pallets at once?

Yes. UHF RFID can identify multiple tagged pallets or containers, although liquids, metal, tag orientation, packaging density, and antenna placement affect performance.

4. Does RFID replace temperature data loggers?

No. Standard RFID tags identify assets and record movement. Temperature data loggers or sensor-enabled tags are still needed for temperature monitoring.

5. Where should RFID readers be installed in a cold chain facility?

Common locations include cold-room doors, receiving areas, dispatch docks, pallet staging zones, conveyor transfer points, and reusable container return areas.

For larger refrigerated containers and transport units, RFID container tracking can provide useful movement records across ports, warehouses, and distribution facilities.

For cold chain checkpoints, warehouse doors, and loading lanes, explore long range RFID scanner solutions that support multi-antenna deployment and industrial software integration.
