How to read rfid tags

How to read rfid tags requires an RFID reader transmitting radio signals to activate the tag, capture stored chip data, and transfer identification information into software systems for tracking, inventory, and automation.

RFID tags are read through wireless communication rather than physical scanning. When an RFID reader sends energy through its antenna, the tag responds with stored information such as EPC codes, identification numbers, or application data.

During Cykeo RFID deployment projects, engineers often discover that successful RFID reading depends less on simply increasing power and more on matching the reader, antenna, tag type, and working environment.

A warehouse with thousands of products, a retail checkout station, and a desktop tag issuing device all require different reading strategies.

Understanding How RFID Tag Reading Works

The Basic RFID Reading Process

RFID tag reading follows a wireless communication process:

1. The RFID reader generates a radio frequency signal.
2. The antenna broadcasts the signal into the reading area.
3. The RFID tag receives energy and activates its chip.
4. The chip sends stored data back through radio waves.
5. The reader decodes the information.
6. Software processes the tag data.

Unlike traditional barcode scanning, RFID does not require direct visual contact.

A worker can read multiple tagged items without manually locating each label.

This difference becomes important in applications where speed and automation matter.

Passive RFID Tag Reading Process

Most retail and logistics RFID systems use passive RFID tags.

Passive RFID tags do not contain batteries.

They receive power from the reader signal and respond automatically.

Advantages include:

• Low tag cost
• Long service life
• Small size
• Easy deployment

Passive UHF RFID technology is widely used for:

• Retail products
• Warehouse inventory
• Apparel tracking
• Asset management

According to GS1, EPC-based RFID enables unique item identification throughout supply chains, allowing businesses to connect physical products with digital information.

RFID Reader Components for Reading Tags

RFID Reader Module

The RFID reader is the core device responsible for communication.

A professional RFID reader includes:

• RF transmission circuit
• Signal processing module
• Communication interface
• Firmware control

Cykeo RFID readers are designed for stable tag identification in commercial and industrial environments.

Key capabilities include:

• Multi-tag recognition
• Adjustable power control
• Fast data processing
• Software integration

RFID Antenna Selection

The rfid antenna directly affects reading performance.

Different environments require different antenna solutions.

Application Scenario	Suitable Antenna
Warehouse entrance	Directional high-gain antenna
Retail shelf	Controlled coverage antenna
Desktop writing station	Near-field antenna
Production line	Industrial RFID antenna

A common mistake during RFID installation is focusing only on reader specifications.

In real projects, antenna placement often determines whether the system performs well.

During one retail inventory test, moving an antenna position by less than one meter changed the reading consistency because product density and signal reflection affected the RF field.

How to Read RFID Tags Step by Step

Step 1: Select the Correct RFID Reader

The reader must match the RFID tag frequency.

Common RFID frequencies include:

Frequency	Typical Application
LF 125 kHz	Animal identification, access systems
HF 13.56 MHz	Cards, NFC applications
UHF 860–960 MHz	Retail, logistics, inventory

For large-scale inventory applications, UHF RFID is commonly selected because it supports longer reading distance and faster tag identification.

Step 2: Configure the Reading Area

RFID reading performance depends on:

• Reader output power
• Antenna direction
• Tag orientation
• Environmental materials

Metal and liquid can influence RFID signals.

For example:

• Metal equipment may require special RFID tags.
• Liquid containers may require optimized tag placement.
• Dense product shelves may need antenna adjustment.

Step 3: Connect RFID Data With Software

Reading RFID tags is only the first step.

The collected data must connect with business systems.

Common connections include:

• Warehouse management systems
• ERP platforms
• Retail software
• Asset databases

A complete RFID workflow looks like:

RFID Tag → RFID Reader → Software Platform → Business Decision

Factors Affecting RFID Tag Reading Accuracy

Tag Position

RFID tags contain antennas that interact with electromagnetic fields.

The position of the tag can influence:

• Signal strength
• Reading distance
• Communication stability

Reading Distance

The reading range depends on:

• Reader power
• Antenna gain
• Tag sensitivity
• Environment

A warehouse reader may require several meters of range, while a desktop RFID reader may intentionally limit reading distance.

Interference Control

Industrial environments may include:

• Metal shelves
• Machinery
• Electronic equipment

Professional RFID deployment requires testing in actual operating conditions.

Laboratory performance numbers cannot always represent real-world results.

RFID Tag Reading Applications

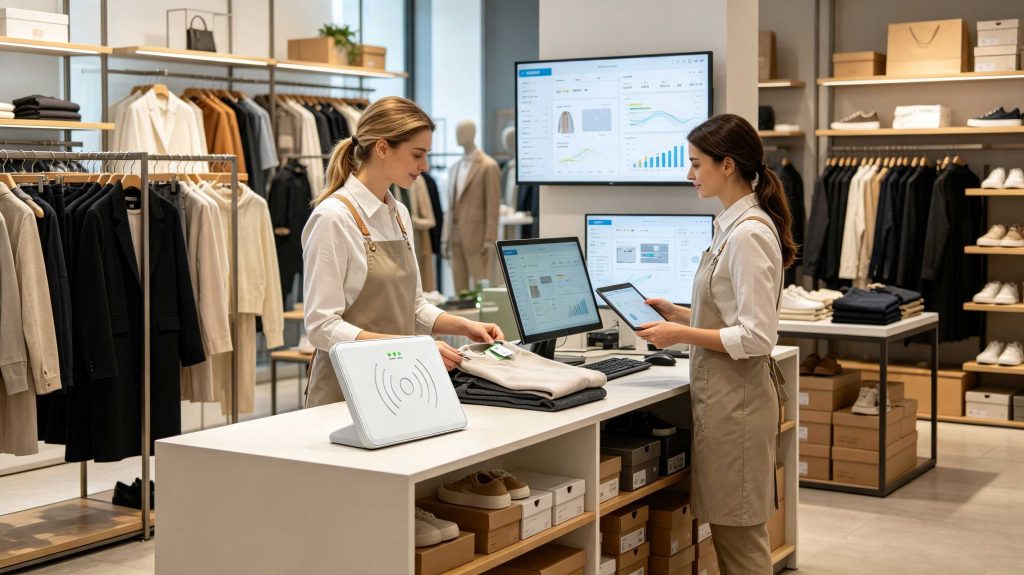

Retail Inventory Tracking

Retailers use RFID reading systems for:

• Stock counting
• Product locating
• Smart checkout
• Loss prevention

RFID allows employees to identify many items quickly instead of scanning products one by one.

Warehouse Management

Warehouses use RFID readers to track:

• Incoming goods
• Storage locations
• Shipping operations
• Inventory levels

Healthcare Asset Management

Hospitals apply RFID reading technology to manage:

• Medical equipment
• Surgical instruments
• Consumables

Manufacturing Operations

Factories use RFID tag reading for:

• Production tracking
• Tool management
• Quality control

RFID Tag Reading Technical Reference

According to testing research from Auburn University RFID Lab, RFID system performance is influenced by tag placement, reader configuration, antenna setup, and environmental conditions.

Professional RFID deployment therefore requires field testing instead of relying only on theoretical specifications.

Cykeo RFID Tag Reading Technical Advantages

Reading RFID tags reliably in real environments requires more than a reader with high output power. Industrial RFID performance depends on RF stability, anti-collision capability, antenna design, software integration, and the ability to handle changing operating conditions.

Cykeo RFID reading solutions are designed around practical deployment requirements discovered from retail, warehouse, healthcare, and manufacturing environments.

During RFID system testing, engineers often encounter situations where theoretical reading distance does not equal production performance. A reader may achieve long-distance detection in an open area but fail when hundreds of products are stacked together.

The solution is usually a combination of:

• Correct antenna selection
• Stable RF output
• Optimized tag positioning
• Efficient filtering algorithms
• Software-level data management

Cykeo RFID Reader Performance Architecture

High-Performance RFID Processing Engine

Cykeo RFID readers use advanced UHF RFID processing technology to improve tag identification stability.

Core capabilities include:

Technical Feature	Practical Benefit
High-speed anti-collision algorithm	Reads multiple tags simultaneously
Adjustable RF output power	Adapts to different environments
Tag filtering function	Reduces repeated data processing
Stable communication interface	Supports enterprise integration

For applications such as inventory counting or retail checkout, the ability to process multiple tags at the same time is critical.

A worker walking through a warehouse aisle should not need to stop and scan every item individually. The RFID system should capture product information naturally during normal operation.

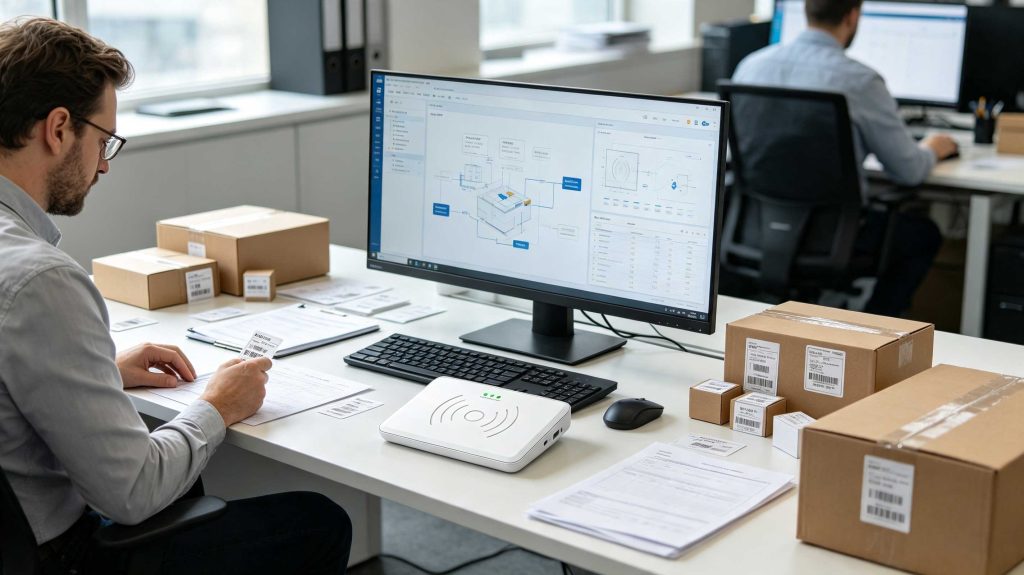

Near-Field RFID Reading for Desktop Applications

Desktop RFID reading requires a completely different approach from warehouse systems.

Cykeo desktop RFID readers use near-field antenna technology to control the electromagnetic area.

Typical applications include:

• RFID tag issuing
• Product registration
• Library management
• Small item checkout
• Access card programming

Advantages:

• Reading range controlled within approximately 30 cm
• Writing range controlled within approximately 10 cm
• Reduced interference from nearby tags
• Improved writing consistency

This controlled reading area is especially useful when operators need to write individual tags without accidentally affecting surrounding RFID labels.

RFID System Architecture

A complete RFID system is not only a reader and a tag.

A professional RFID deployment normally includes five layers:

1. RFID Tag Layer

The RFID tag stores identification information.

Typical data includes:

• EPC number
• Product ID
• Asset number
• Batch information

2. RFID Reader Layer

The RFID reader communicates with tags through radio frequency.

Responsibilities:

• Sending RF signals
• Receiving tag responses
• Filtering duplicate reads
• Transmitting data

3. Antenna Layer

Antennas define the reading area.

Different installations require different designs:

• Portal reading
• Shelf reading
• Conveyor reading
• Desktop reading

4. Middleware Layer

RFID middleware processes large amounts of tag information.

Functions include:

• Data filtering
• Device management
• Event processing

5. Application Layer

Business systems convert RFID data into operational value.

Examples:

• Inventory visibility
• Automated checkout
• Asset tracking
• Production monitoring

RFID vs Barcode vs NFC Comparison

Feature	RFID	Barcode	NFC
Contact required	No	Yes	Near contact
Multiple tag reading	Yes	No	Usually one-to-one
Reading speed	Very fast	Slower	Moderate
Line of sight	Not required	Required	Usually required
Typical distance	cm to meters	Short	Few centimeters

RFID is selected when businesses need automatic identification at scale.

Barcode technology remains useful for simple product identification, but it requires manual scanning.

NFC is excellent for consumer interaction, payment, and short-range communication.

RFID fills the gap between manual scanning and fully automated identification.

RFID Industry Case Studies

Retail Inventory Management

Retail companies use RFID tag reading systems to improve:

• Stock accuracy
• Product availability
• Checkout efficiency

According to research published by Auburn University RFID Lab, RFID implementation has demonstrated significant improvements in retail inventory accuracy when properly deployed.

Retail environments commonly use:

• Fixed RFID readers
• Smart shelves
• RFID checkout stations
• Handheld RFID scanners

Healthcare Supply Tracking

Hospitals use RFID technology for:

• Medical equipment tracking
• Consumable management
• Pharmaceutical inventory

The main advantage is visibility.

Staff can identify where equipment is located without manually searching storage rooms.

Manufacturing and Tool Management

Factories use RFID readers to monitor:

• Production materials
• Tools
• Work-in-progress products

In high-value manufacturing, missing tools can create significant delays. RFID provides automatic tracking records.

RFID Deployment Strategy

Successful RFID deployment usually follows practical testing rather than immediate large-scale installation.

Phase 1: Application Analysis

Define:

• What items need tracking?
• Required reading speed?
• Reading distance?
• Environmental challenges?

Phase 2: Site Testing

Test:

• Tag placement
• Reader position
• Antenna direction
• Interference factors

Real-world testing is essential.

A warehouse full of metal racks behaves differently from an empty testing room.

Phase 3: System Integration

Connect RFID data with:

• ERP systems
• Warehouse software
• Retail platforms
• Cloud databases

Phase 4: Scale Deployment

After successful validation:

• Expand reader locations
• Optimize workflows
• Train operators

Frequently Asked Questions About How to Read RFID Tags

FAQ 1: Can RFID tags be read without touching them?

Yes. RFID tags communicate wirelessly with RFID readers. Depending on frequency, antenna design, and environment, tags can be read from several centimeters to multiple meters away.

FAQ 2: Can RFID readers scan multiple tags at once?

Yes. UHF RFID readers are designed for multi-tag identification. This allows inventory systems to capture many tagged items simultaneously.

FAQ 3: Do RFID tags need batteries?

Most RFID tags used in retail and logistics are passive tags. They receive energy from the RFID reader signal and do not require internal batteries.

FAQ 4: Why does an RFID tag sometimes fail to read?

Common causes include:

• Incorrect antenna position
• Metal interference
• Liquid absorption
• Poor tag placement
• Insufficient system configuration

FAQ 5: What is the difference between reading and writing RFID tags?

Reading retrieves stored tag information. Writing updates data stored inside the RFID chip.

FAQ 6: Can RFID systems connect with existing software?

Yes. Professional RFID systems can integrate through APIs, SDKs, Ethernet, USB, serial communication, and other interfaces.

How to Read RFID Tags With Professional RFID Solutions

Understanding how to read rfid tags requires looking beyond the reader itself. Reliable RFID identification depends on the complete system: tag selection, antenna design, reader performance, software integration, and real deployment experience.

Cykeo provides RFID solutions designed for practical business environments, including retail inventory, desktop RFID programming, warehouse tracking, healthcare management, and industrial applications.

From controlled desktop writing stations to large-scale RFID inventory systems, professional RFID technology helps organizations move from manual identification toward automated data visibility.
