How to Read RFID: Complete Guide to RFID Tag Reading Technology

How to read rfid

How to read rfid requires an RFID reader sending radio frequency signals to activate a tag, receive stored identification data, and transfer information to software systems for tracking, inventory, or automation.

RFID reading is not simply “scanning” an object like a barcode. During real deployments, the reader and tag communicate through electromagnetic coupling or radio waves, creating a wireless identification process that works without direct visual contact.

After years working with RFID identification projects in retail, manufacturing, and logistics environments, Cykeo engineers have found that reading performance depends on three practical factors: reader hardware capability, antenna design, and application environment.

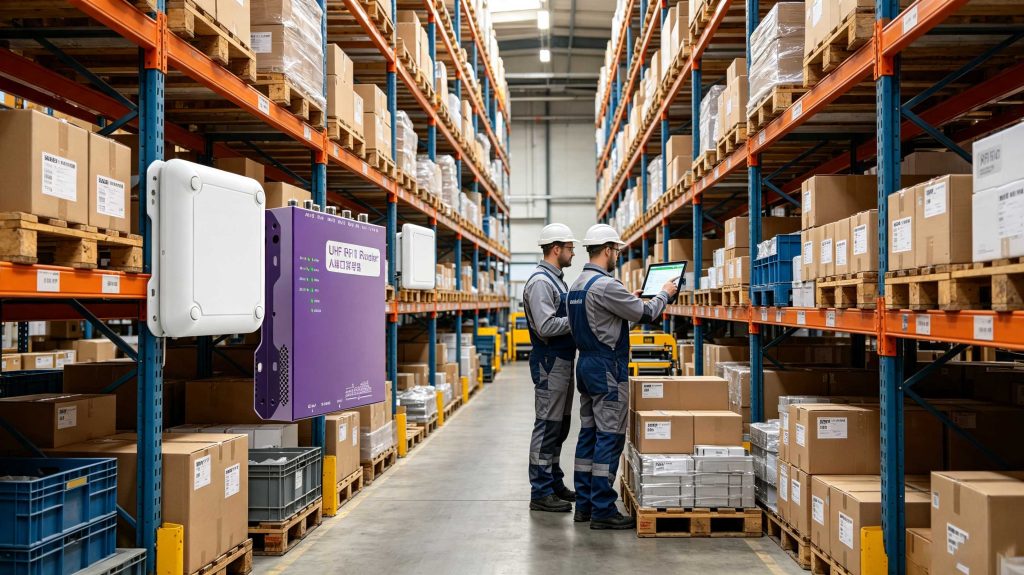

A warehouse installation may require long-distance UHF reading across several meters, while a desktop issuing station may need precise short-range control to avoid reading neighboring tags.

That difference is where professional RFID system design becomes important.

How RFID Reading Technology Works in Real Applications

RFID Reader Sends Radio Frequency Energy

The RFID reading process begins when the reader transmits RF energy through its antenna.

For passive RFID tags, this energy powers the chip temporarily. The tag then responds by sending stored information back to the reader.

The communication process includes:

1. RFID reader generates RF signals.
2. RFID antenna transfers energy into the environment.
3. RFID tag receives the signal.
4. RFID chip processes stored information.
5. Tag sends data back to the reader.
6. Software receives and manages the information.

Unlike barcode systems, RFID does not require a laser or camera to visually capture every item.

This allows companies to identify multiple objects simultaneously.

Passive RFID vs Active RFID Reading

RFID reading methods vary depending on the tag type.

RFID Type	Power Source	Typical Reading Distance	Common Applications
Passive RFID	Powered by reader signal	Several centimeters to several meters	Retail, inventory, logistics
Active RFID	Internal battery	Tens to hundreds of meters	Vehicle tracking, industrial assets
Semi-passive RFID	Battery-assisted	Medium distance	Monitoring applications

Most retail and inventory systems use passive UHF RFID because it provides a balance between cost, reading speed, and scalability.

According to GS1, EPC-based RFID technology is widely used for automatic identification across supply chains because each tagged item can carry a unique digital identity.

RFID Reader Hardware Components Explained

RFID Reader Module

The RFID reader is responsible for generating signals and decoding tag responses.

A professional RFID reader usually contains:

• RF front-end module
• Digital signal processor
• Communication interface
• Firmware control system

Cykeo RFID readers integrate high-performance processing technology to support stable multi-tag identification in industrial environments.

RFID Antenna

The antenna determines how efficiently signals are transmitted and received.

Different applications require different antenna designs:

Environment	Recommended Antenna Type
Retail entrance	Directional antenna
Warehouse portal	High-gain antenna
Desktop issuing	Near-field antenna
Production line	Industrial integrated antenna

During a clothing inventory project, we tested RFID reading at different shelf positions. The largest improvement did not come from increasing power alone. Correct antenna positioning reduced missed reads significantly.

This is a common engineering detail overlooked in early RFID deployments.

How to Read RFID Tags Step-by-Step

Step 1: Select the Correct RFID Reader

The reader must match the RFID frequency and application.

Common frequencies:

• LF RFID: 125 kHz
• HF RFID: 13.56 MHz
• UHF RFID: 860–960 MHz

For warehouse and retail inventory, UHF RFID is widely adopted because of longer reading distance and faster bulk identification.

Step 2: Install and Configure Antennas

Antenna installation affects:

• Reading coverage
• Signal direction
• Interference control
• Tag recognition rate

In large warehouses, incorrect antenna angles can create blind areas where tags are physically present but unread.

Step 3: Connect Reader Software

RFID readers communicate with software through interfaces such as:

• Ethernet
• USB
• RS232
• Wi-Fi
• Bluetooth

The software receives tag IDs and connects them with business data.

Examples:

• Product information
• Asset records
• Inventory quantity
• Location information

Factors Affecting RFID Reading Performance

Tag Material and Environment

RFID signals can be affected by:

• Metal surfaces
• Liquids
• Dense materials
• Electromagnetic interference

For example, metal equipment often requires special on-metal RFID tags.

Reader Power Settings

Increasing power is not always the best solution.

Higher output power may increase reading distance but can also create unwanted reads from nearby tags.

Professional RFID systems balance:

• Output power
• Antenna direction
• Reading sensitivity
• Application requirements

Tag Orientation

RFID performance changes depending on tag placement.

During product testing, rotating tags only a few centimeters could change signal strength because antenna alignment affects communication efficiency.

Real RFID Reading Applications

Retail Inventory

Retailers use RFID readers to:

• Count inventory quickly
• Track product movement
• Reduce manual scanning

RFID enables employees to check thousands of items faster than traditional barcode methods.

Healthcare Management

Hospitals use RFID reading systems for:

• Medical equipment tracking
• Consumable management
• Asset identification

Manufacturing

Factories apply RFID reading for:

• Production tracking
• Work-in-progress monitoring
• Tool management

RFID Reading Technical Data Reference

According to research published by Auburn University RFID Lab, RFID technology testing focuses heavily on read accuracy, tag orientation, reader configuration, and environmental conditions because these factors directly influence system reliability.

In commercial deployments, RFID reading performance should always be validated in the actual working environment rather than relying only on laboratory specifications.

Cykeo RFID Reading Technical Advantages

Stable Multi-Tag Reading Performance

Professional RFID reading requires more than detecting one tag. Enterprise applications often involve hundreds or thousands of tagged items moving through a process simultaneously.

Cykeo RFID reading solutions are designed for high-efficiency tag identification with:

• High-speed UHF RFID communication
• Multi-tag anti-collision processing
• Adjustable RF output power
• Stable long-term operation
• Flexible integration interfaces

In practical inventory projects, the difference between a consumer-grade RFID reader and an industrial RFID reader becomes obvious during peak operation.

A retail store may only test a few products on a table, but an actual warehouse portal handles cartons, metal shelves, workers, and changing environmental conditions at the same time.

The reader must maintain reliable performance under those variables.

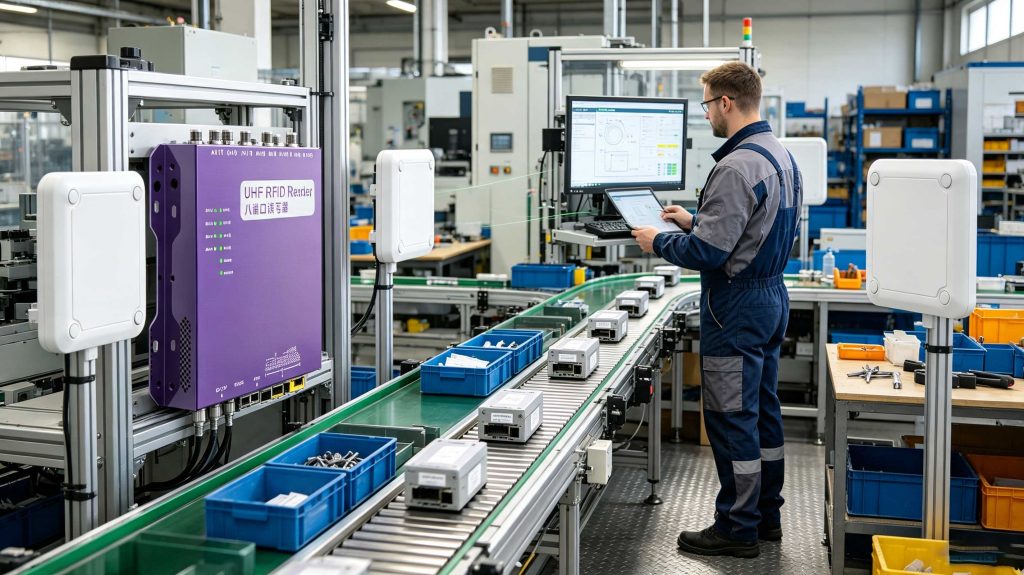

Cykeo RFID Reader Architecture

A complete RFID reading system contains several technical layers working together.

1. RF Communication Layer

The RF module is responsible for communication between reader and tag.

Main functions include:

• Signal transmission
• Tag activation
• Data reception
• Anti-collision processing

Cykeo RFID readers support UHF RFID protocols including:

• ISO 18000-6C
• EPC Class 1 Gen 2
• ISO 18000-6B

These standards allow compatibility with global RFID tag ecosystems.

2. Antenna System Layer

The antenna determines the reading area and signal distribution.

Different deployment environments require different designs.

Application	Antenna Requirement
Warehouse gate	Wide-area coverage
Retail shelf	Controlled reading zone
Production line	Stable directional reading
Desktop workstation	Short-distance precision

For example, Cykeo desktop RFID solutions use near-field antenna design to control reading and writing areas.

This prevents accidental reading of nearby tags during issuing or payment operations.

3. Data Processing Layer

After receiving RFID data, the system processes:

• EPC numbers
• Tag status
• Inventory information
• Product identity

The data can then connect with:

• ERP systems
• Warehouse management systems
• Retail platforms
• Asset databases

RFID vs Barcode vs NFC Comparison

Choosing the correct identification technology depends on application requirements.

Feature	RFID	Barcode	NFC
Reading method	Radio frequency	Optical scanning	Short-range wireless
Line of sight required	No	Yes	Usually no
Multiple tag reading	Yes	Limited	Limited
Reading speed	High	Medium	Medium
Data storage	Higher	Lower	Medium
Typical usage	Inventory, logistics	Retail labeling	Mobile interaction

RFID vs Barcode

Barcode systems require manual alignment between scanner and label.

RFID allows:

• Bulk item reading
• Faster inventory counting
• Automated identification

For large-scale inventory environments, RFID reduces dependence on manual scanning.

RFID vs NFC

NFC is excellent for close-range interactions such as:

• Mobile payment
• Smart cards
• Consumer authentication

RFID, especially UHF RFID, is better suited for:

• Warehousing
• Retail inventory
• Industrial tracking

RFID Reading Industry Case Studies

Retail Inventory Management

Retail companies use RFID readers to improve visibility from warehouse to store.

Typical workflow:

RFID Tag → Reader → Inventory Software → Business System

Applications include:

• Clothing inventory
• Smart shelves
• Self-checkout systems
• Loss prevention

According to research from GS1, RFID adoption in retail helps improve inventory visibility by creating item-level identification throughout supply chains.

Smart Self-Service Checkout

RFID reading technology enables customers to place multiple tagged products into a checkout area.

The system can:

1. Read multiple RFID tags automatically.
2. Identify products.
3. Calculate payment information.
4. Update inventory status.

Compared with traditional barcode checkout, RFID improves customer convenience.

Healthcare Inventory Tracking

Hospitals use RFID reading systems for:

• Medical equipment tracking
• Consumable management
• Pharmaceutical inventory

The advantage is not only speed.

It is knowing where critical items are located at any moment.

Manufacturing and Tool Management

Factories use RFID readers to track:

• Production materials
• Maintenance tools
• Finished products

Real-time identification helps reduce missing equipment and manual recording errors.

RFID Deployment Strategy

Step 1: Define Reading Requirements

Before installation, evaluate:

• Required reading distance
• Number of tags per operation
• Environment conditions
• Tag materials

A retail shelf and a factory production line require completely different RFID configurations.

Step 2: Select RFID Hardware

Hardware selection should consider:

Requirement	Recommended Solution
Large warehouse	Fixed RFID reader
Desktop issuing	Desktop RFID reader
Mobile operation	Handheld RFID reader
Industrial environment	Rugged RFID reader

Step 3: Software Integration

A professional RFID solution should support:

• SDK development
• API connection
• Database integration
• Data filtering

Cykeo provides development resources for engineers integrating RFID systems into customized applications.

Step 4: Real Environment Testing

RFID performance should always be tested on-site.

Important factors:

• Metal interference
• Product density
• Antenna position
• Reader power

A successful RFID project is usually achieved through engineering optimization, not simply installing a reader.

FAQ: How to Read RFID

1. Can RFID readers read multiple tags at the same time?

Yes. UHF RFID readers support anti-collision technology, allowing multiple tags to be identified simultaneously.

2. Do RFID tags need batteries to be read?

No. Most UHF RFID tags are passive and receive energy from the reader signal.

3. How far can an RFID reader read a tag?

Reading distance depends on reader power, antenna design, tag type, and environment. Industrial UHF RFID systems can achieve several meters of reading range.

4. Can RFID read through packaging?

Yes. RFID can often identify products through packaging materials, but metal and liquid environments may affect performance.

5. Why does RFID sometimes fail to read?

Common causes include:

• Incorrect antenna position
• Signal interference
• Unsuitable tags
• Poor system configuration

6. Can RFID replace barcode systems?

RFID can replace or complement barcode systems depending on business requirements. Many companies use both technologies together.

7. What industries use RFID reading technology?

RFID reading is widely used in:

• Retail
• Logistics
• Healthcare
• Manufacturing
• Transportation
• Asset management

Build Smarter Identification With Cykeo RFID Reading Solutions

Understanding how to read rfid is the foundation of modern automated identification.

A reliable RFID system requires cooperation between:

• RFID readers
• Antenna design
• Tag technology
• Software platforms

Cykeo develops RFID reading solutions for retail, logistics, manufacturing, healthcare, and industrial applications.

From desktop RFID reading stations to fixed industrial readers, Cykeo focuses on stable communication, practical deployment, and long-term system reliability.

RFID is no longer only a replacement for barcode scanning. It has become a digital identification infrastructure connecting products, assets, and business systems.
