How to Choose the Right RFID Reader for Your Application

Buying an RFID reader can look easy at first.

Search for an RFID reader, compare a few specifications, find a price, and place an order.

In a real project, it usually does not go that smoothly.

A warehouse manager may say they need a reader that can “read 10 meters.” A system integrator may ask for an 8-port reader. Another customer may simply say, “We need RFID for inventory.”

Those descriptions are useful, but they are not enough to choose the hardware.

The better starting point is the application.

Where will the reader be installed? Will someone carry it? How many tags are expected in the reading area? Are the tags on metal, plastic, cartons or vehicles? Does the customer need automatic reading or manual inventory checks?

These details often matter more than one impressive number on a product specification sheet.

Cykeo provides different RFID reader options, including fixed, handheld, USB, portable and long-range readers, allowing the hardware to be matched to different project requirements. (cykeorfid.com)

---

First Question: What Are You Actually Tracking?

Start here.

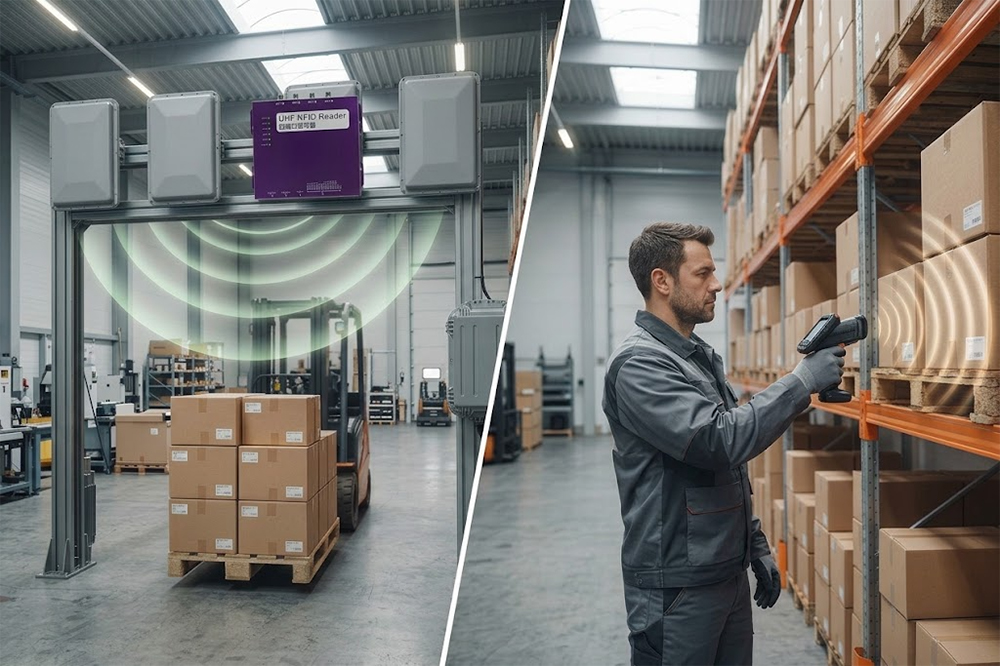

If the customer wants to track pallets in a warehouse, that is one type of problem.

If they want to check tools inside a workshop, it is another.

If the RFID tags are attached to vehicles, the installation becomes different again.

For example, imagine a warehouse with 500 pallets moving through several loading doors every day.

A fixed RFID reader with multiple antennas may be a reasonable solution because the reading process can happen automatically as pallets pass through a controlled area.

Now imagine a maintenance department with 300 tagged tools.

The employee may need to walk between shelves and find a particular tool. A handheld RFID reader could make much more sense.

Same RFID technology. Very different workflow.

This is why I would avoid choosing the reader before understanding the movement of the tagged objects.

---

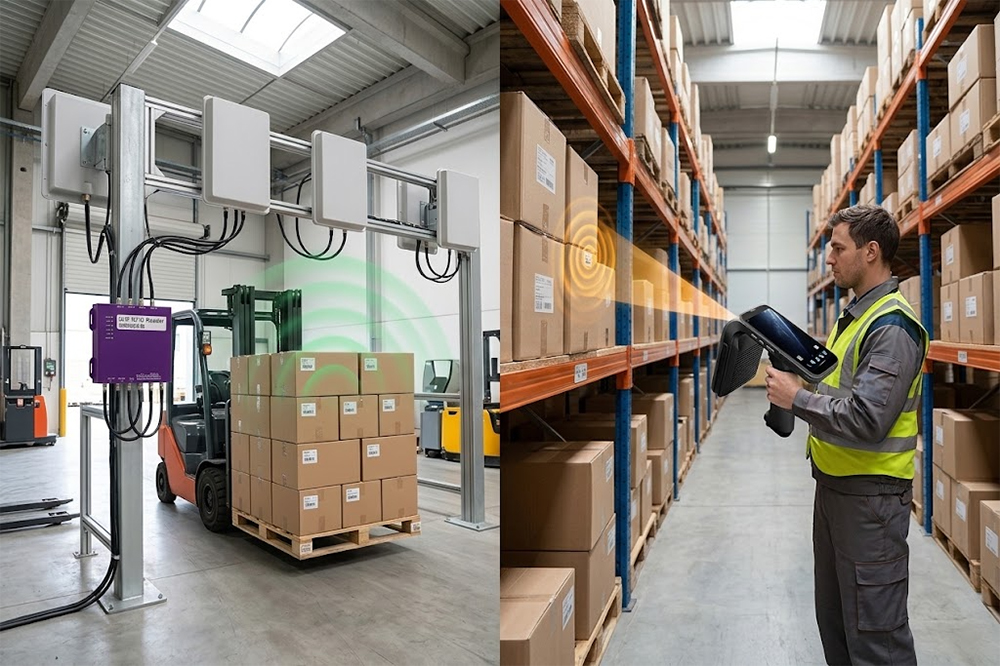

Fixed or Mobile?

This is probably the quickest way to narrow down the options.

Fixed RFID Reader

Choose a fixed reader when the reader itself stays in one location.

Common examples:

• Warehouse entrances
• Conveyor systems
• Production lines
• Loading docks
• Access gates
• Smart cabinets
• Vehicle checkpoints

Cykeo’s fixed RFID reader range includes 4-port, 8-port and 16-port configurations, which can support multiple antenna connections for larger or more controlled reading areas. (cykeorfid.com)

Handheld RFID Reader

A handheld reader is more suitable when the worker needs to move around.

It works well for:

• Inventory counting
• Tool tracking
• Asset inspection
• Stock checking
• Field service

Here is a simple way to think about it:

Fixed reader: bring the tags to the reading zone.

Handheld reader: bring the reader to the tags.

Of course, real installations can mix both approaches.

USB RFID Reader

If the entire process happens at a desk, a USB reader might be enough.

A worker can place a tagged product near the reader, capture its ID, and continue with the next item.

There is not much point installing an industrial gate system for that kind of workflow.

Cykeo offers USB RFID readers designed for desktop and embedded applications. (cykeorfid.com)

Before choosing a model, it helps to understand what actually happens between the reader, antenna, RFID tag, and software. If you are new to RFID or want to understand the basic communication process first, our guide on what is an RFID reader and how does it work explains the technology in practical terms before getting into product selection.

---

How Much Reading Distance Do You Really Need?

This is where RFID discussions often become confusing.

Customers frequently ask:

“How far can it read?”

The answer depends.

A UHF RFID reader may be capable of long-distance reading, but the actual result depends on the antenna, tag, output power, tag orientation, installation and surrounding environment.

A tag attached to a cardboard box in an open area is one thing.

A tag placed close to metal is another.

A tag inside a crowded warehouse full of metal racks can behave differently again.

So instead of saying, “We need the longest-range reader,” it is better to describe the actual reading zone.

For example:

Reading distance: 5–8 meters
Reading direction: one-way
Tag position: pallet side
Environment: warehouse doorway
Movement: forklift
Expected tags: several per pallet

That information is much more useful to an RFID supplier.

Cykeo’s long-range RFID solutions include different antenna configurations, with actual performance depending on the reader, antenna, tag and installation environment. (cykeorfid.com)

---

What About the Number of Tags?

Reading one tag is easy compared with reading hundreds of tags in a busy environment.

Suppose a customer wants to identify 100 tagged items passing through a warehouse gate.

The question is no longer just:

“Can the reader detect the tag?”

It becomes:

“Can the system reliably identify the tags I need while they are moving through the reading zone?”

Reader processing speed, tag placement, antenna coverage, RF interference and the physical layout can all become important.

For a small desktop application, this may hardly matter.

For a high-volume logistics project, it can be one of the first things to test.

This is also why sample testing is useful before a large order. A specification sheet can tell you what the hardware is designed to do, but the customer’s actual environment tells you whether the complete setup works as expected.

---

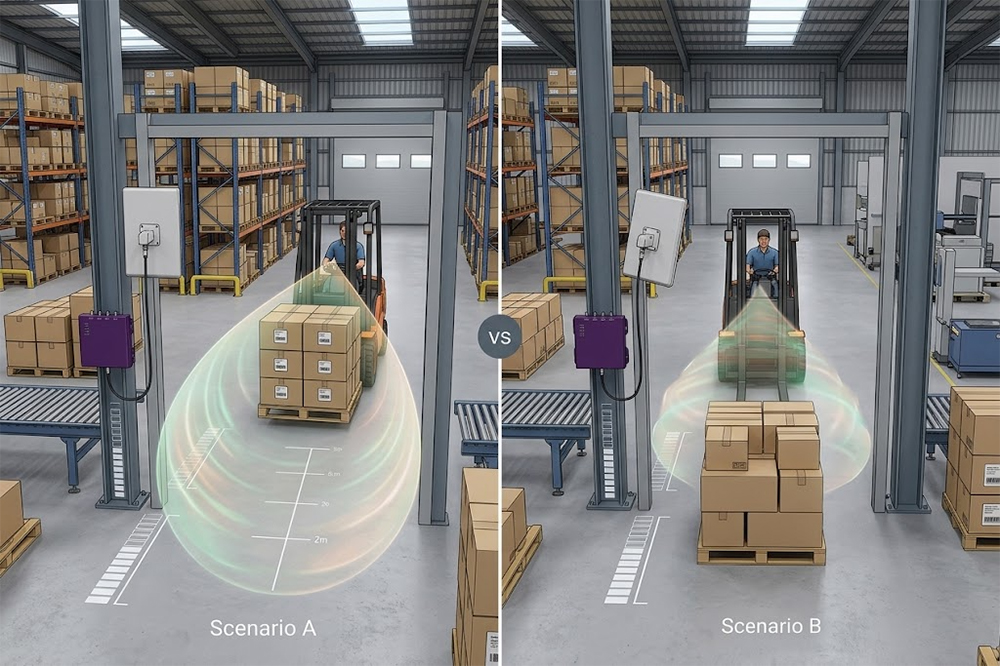

Antenna Selection Is Part of Reader Selection

This is an easy mistake for new RFID buyers.

They choose the reader first and think about the antenna later.

For many UHF systems, that order is not ideal.

The reader and antenna work together to create the reading zone.

A directional antenna may be useful when the customer wants a controlled reading area.

A different antenna arrangement may make more sense when the goal is to cover several directions.

For fixed readers with multiple ports, the number and position of antennas can also affect the overall system design.

If a customer says:

“We need to cover a 6-meter-wide warehouse entrance.”

That tells you much more than simply knowing the desired reader model.

You can start thinking about antenna positioning, reading direction and possible tag locations.

---

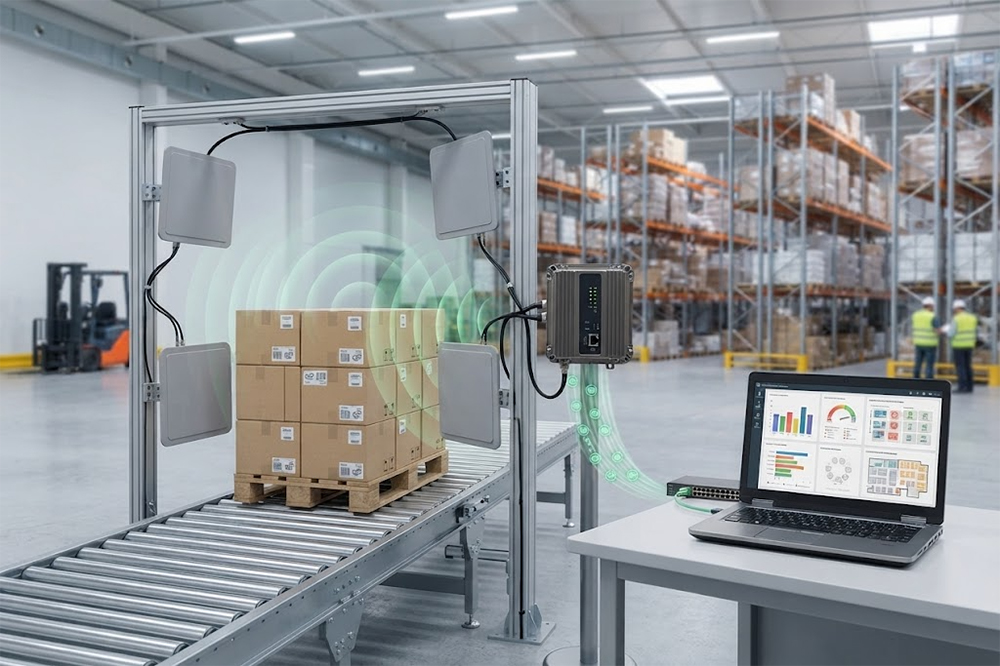

Don’t Forget the Software

Hardware is only half the project.

A customer may have a perfectly good RFID reader but still run into problems if the reader cannot communicate properly with the existing software.

Before ordering, check:

• Communication interfaces
• SDK availability
• API support
• Operating system compatibility
• Data output format
• Trigger options
• Integration documentation

Cykeo provides SDK, API and demo software support for RFID reader integration, which can be important for system integrators building RFID applications around WMS, ERP, MES or custom software. (cykeorfid.com)

For an OEM project, I would ask about integration quite early, not after the hardware has already been purchased.

Changing the software architecture halfway through a project is rarely fun.

---

A Simple RFID Reader Selection Example

Let’s take a practical case.

A distributor has a customer operating a logistics warehouse.

The customer wants RFID tracking at three loading gates.

They expect:

• Several pallets at each gate
• Tags attached to cartons and pallets
• Automatic reading
• Fixed installation
• Integration with warehouse software
• Reading distance of several meters

In this situation, a fixed UHF RFID reader would probably be the first category to investigate.

Multiple antenna ports may be useful because each gate could require more than one antenna depending on the physical layout.

Now change the project.

The same warehouse wants employees to perform weekly inventory checks inside storage aisles.

A handheld RFID reader could be a better choice for this part.

The customer might therefore need both fixed and handheld readers.

This kind of mixed deployment is fairly common, and it is one reason B2B buyers should look at a supplier’s complete RFID reader portfolio rather than searching for one “best RFID reader.”

---

What Should B2B Buyers Ask an RFID Supplier?

If you are buying for distribution or a system integration project, I would prepare the following information before requesting a quotation:

Application: What are you tracking?

Reading distance: How far are the tags from the antenna?

Tag type: What kind of RFID tags are being used?

Tag quantity: How many tags may appear simultaneously?

Installation: Indoor, outdoor, gate, conveyor, cabinet or mobile?

Antenna: How many reading zones are required?

Interface: Ethernet, USB, RS232, Wi-Fi or another connection?

Software: Existing WMS, ERP, MES or custom application?

Quantity: Sample order, small batch or wholesale volume?

Customization: Standard product or OEM/ODM requirement?

The more complete this information is, the easier it becomes for a manufacturer to recommend a suitable model instead of simply sending a general catalog.

Cykeo works with system integrators, solution providers and other B2B customers looking for RFID reader hardware and integration support. (cykeorfid.com)

If you are planning a new RFID deployment or sourcing readers for resale, you can review the RFID reader product range and contact Cykeo with your application details for model selection and bulk pricing.

Frequently Asked Questions

What is the best RFID reader for warehouse use?

It depends on the workflow. Fixed UHF readers are often suitable for gates, conveyors and automatic tracking, while handheld readers work better for manual inventory and asset checks.

How do I choose RFID reader read range?

Define the actual reading zone first. Consider tag type, antenna, mounting position, output power and the surrounding environment instead of choosing a reader only by its maximum advertised range.

How many antennas do I need for an RFID reader?

There is no fixed number. It depends on the size and shape of the reading zone, tag movement and required coverage. Fixed readers with multiple antenna ports can support larger or more complex installations.

Should I test an RFID reader before buying in bulk?

For commercial projects, testing is strongly recommended, especially in environments with metal, liquids, moving tags or high tag density. A sample installation can reveal issues that are difficult to predict from specifications alone.

What information should I send RFID manufacturer for a quotation?

Provide the application, tag type, reading distance, number of tags, installation environment, antenna requirements, software interface, quantity and any OEM/ODM requirements. This gives the supplier enough context to recommend a suitable reader.
