How to Choose a Long Range RFID Scanner for Industrial RFID Projects

When companies start looking for a long range RFID scanner, the first question is usually simple: “How far can it read?”

It sounds like the most important specification, but after working with different RFID applications, this is not always the deciding factor.

A scanner that can read 20 meters in an open test environment may perform very differently inside a warehouse full of metal racks, machines, and moving vehicles.

For RFID solution providers and system integrators, choosing the right long range RFID scanner is more about matching the reader with the actual working environment.

A good RFID system is not built by choosing the strongest reader. It is built by choosing the reader that fits the project.

---

Reading Distance Is Important, But It Is Not Everything

Most long range RFID scanners are designed for UHF RFID applications, usually operating between 860MHz and 960MHz.

Manufacturers often advertise impressive reading distances, such as 10 meters, 20 meters, or even more. However, these numbers are normally measured under ideal conditions.

In a real project, many factors affect RFID performance:

• RFID tag type
• antenna gain
• installation height
• surrounding materials
• tag orientation
• interference from other devices

For example, a logistics warehouse may require a scanner to identify pallets passing through a gate. A parking management system may need a reader to identify vehicles from several meters away.

These two applications both need “long range”, but the RFID solutions are completely different.

This is something many buyers discover only after testing.

---

1. Understand Your Application Before Selecting the RFID Scanner

Before choosing a long range RFID scanner, it is better to define what you actually need to identify.

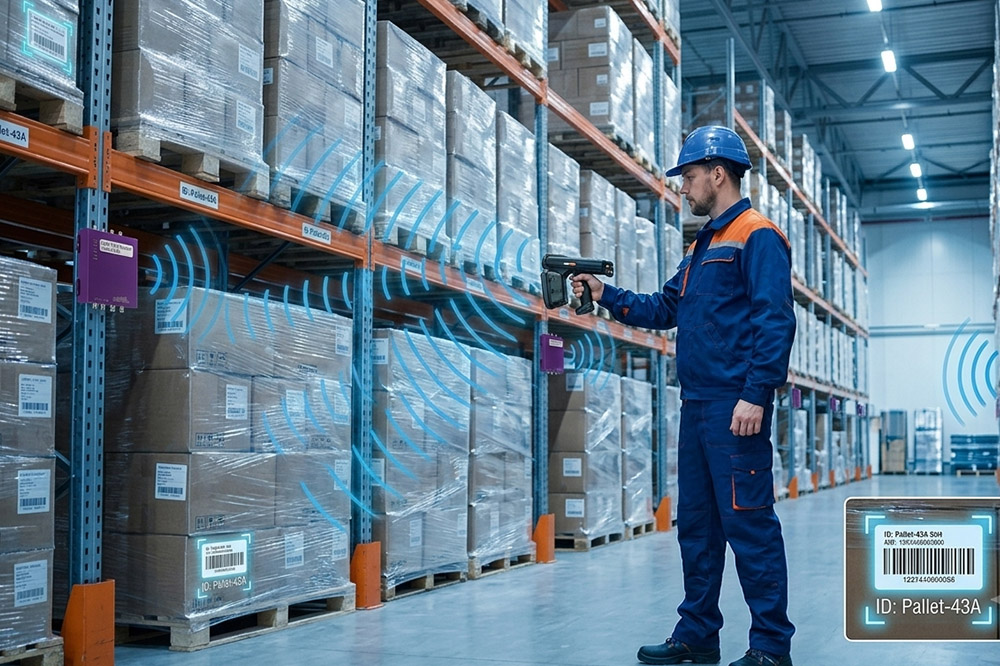

A warehouse inventory project usually requires wide-area scanning.

For example:

A worker drives a forklift through an aisle. Hundreds of tagged products are stored on both sides. The RFID reader needs to capture multiple tags quickly without missing items.

In this situation, reading speed and anti-interference capability may be more important than maximum distance.

On the other hand, an access control system may only need to identify one RFID tag at a longer distance.

The required reader configuration will be different.

From our experience, many unsuccessful RFID projects happen because buyers select hardware based only on distance numbers.

---

2. Check Reader Power and Antenna Configuration

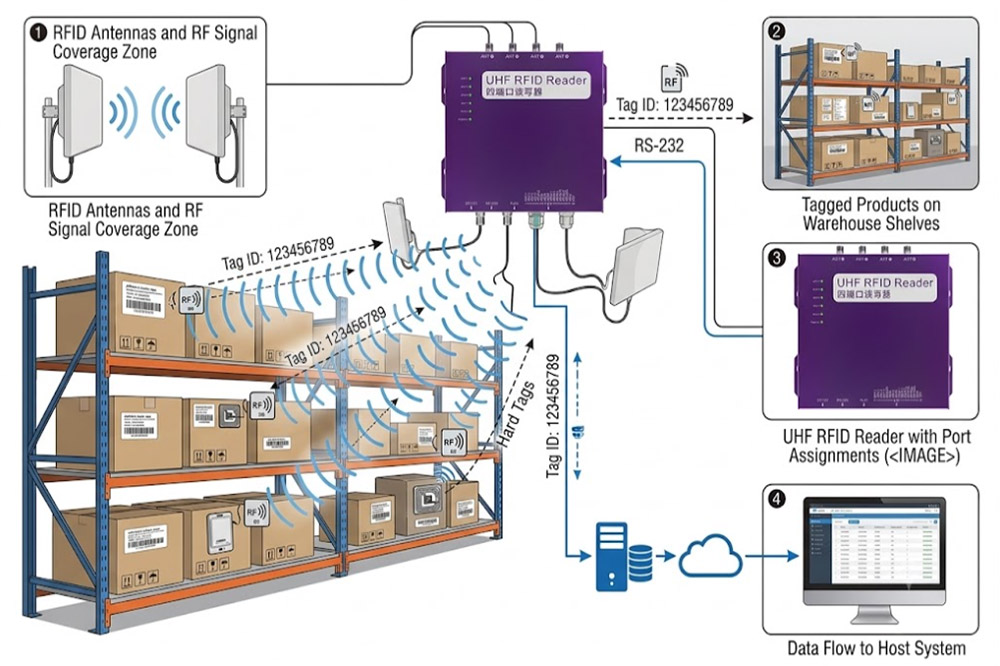

The reader itself is only one part of a long range RFID system.

The antenna plays a very important role.

A long range RFID scanner normally works together with different antenna options:

• Circular polarization antenna
• Linear polarization antenna
• Directional antenna
• Omnidirectional antenna

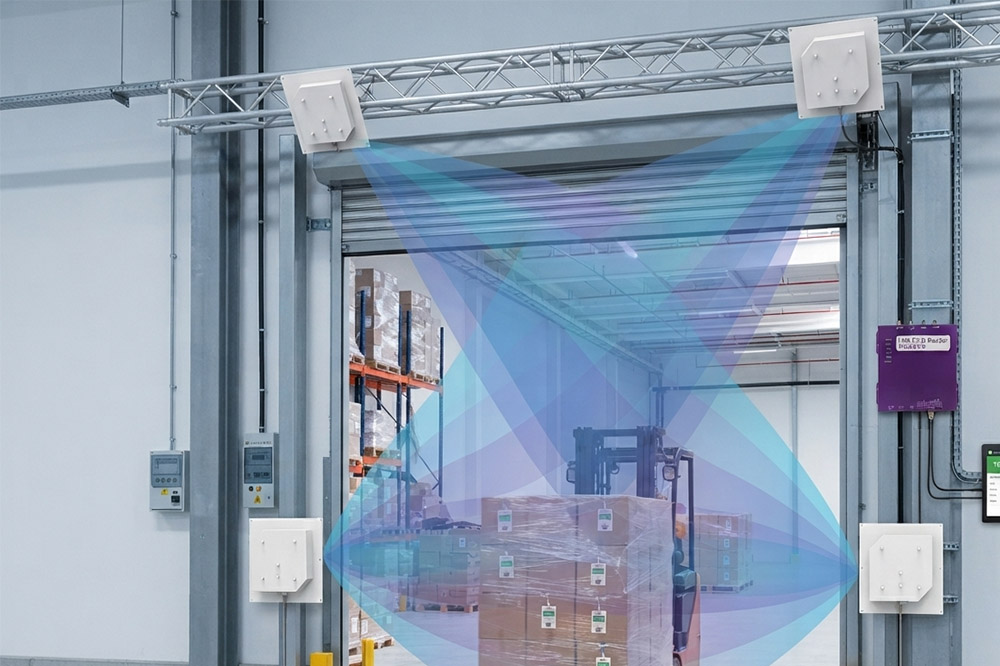

For example, a warehouse entrance may use a directional antenna because the reading area needs to be controlled.

A retail showroom may prefer wider coverage because customers and products are moving constantly.

Some projects also require multiple antenna ports. A 4-port or 8-port RFID reader can connect several antennas to cover larger areas.

This gives system integrators more flexibility during deployment.

---

3. Consider the RFID Environment

One thing that looks simple on paper can become complicated at the installation site.

Metal is one of the biggest challenges for RFID systems.

Metal shelves, equipment frames, and containers can reflect RFID signals and create unexpected reading areas.

Liquids can also reduce RFID performance because radio waves are affected by water content.

For industrial projects, it is recommended to test the scanner with the actual RFID tags and environment before mass deployment.

A reader that works perfectly in a laboratory may need different antenna placement after installation.

---

4. Pay Attention to Integration Capability

For B2B RFID projects, hardware is only part of the solution.

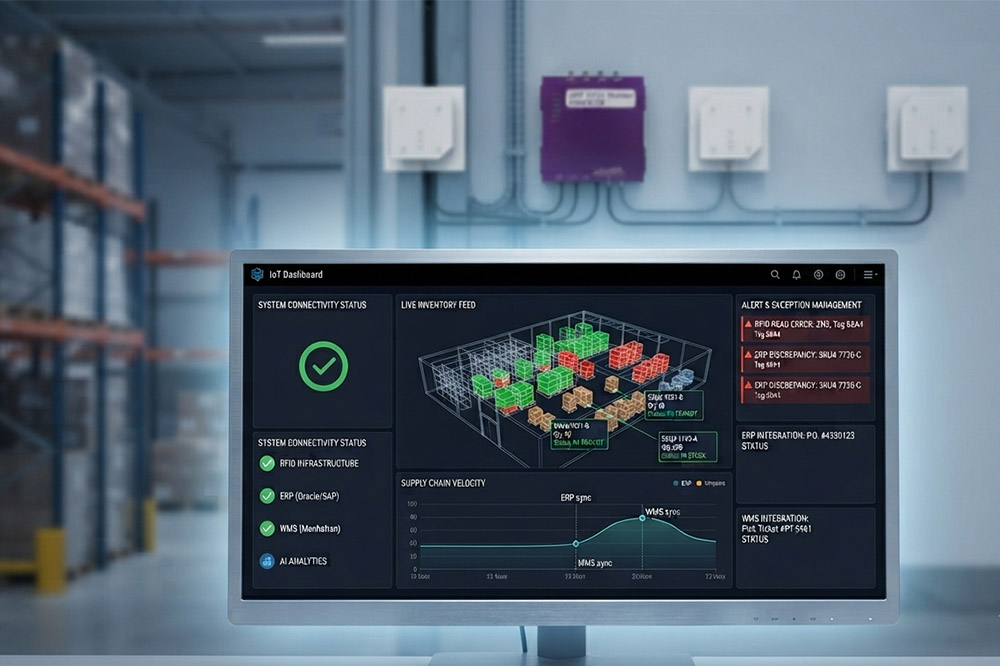

Most customers need RFID readers to connect with:

• Warehouse Management System (WMS)
• Enterprise Resource Planning (ERP)
• Manufacturing Execution System (MES)
• Access control platforms
• Custom software applications

A professional long range RFID scanner should provide easy integration options, such as:

• SDK support
• API interface
• Ethernet communication
• TCP/IP connection
• Serial communication

For RFID solution providers, this can save a lot of development time.

A cheaper reader without proper software support may create higher costs later.

---

5. Choose the Right RFID Scanner Supplier

For wholesalers and RFID distributors, supplier capability is often more important than the product specification sheet.

A reliable RFID manufacturer should provide:

• Stable hardware supply
• OEM customization
• Technical support
• Firmware updates
• Testing support
• Application recommendations

Different customers have different requirements.

A logistics company may need long-distance pallet tracking.

A hospital may need asset management.

A factory may need production line tracking.

A supplier who understands these differences can help distributors win more projects.

---

Common Mistakes When Buying a Long Range RFID Scanner

One common mistake is choosing the highest power reader without considering the application.

More power does not always mean better performance.

Sometimes the problem is not insufficient reading distance but uncontrolled reading range.

For example, an RFID gate system may accidentally read tags from nearby shelves. In this case, better antenna positioning or software filtering may solve the problem.

Another mistake is ignoring RFID tag selection.

The reader and tag work together as a system.

A high-performance scanner with a poor-quality tag may still provide disappointing results

---

Final Thoughts

Choosing a long range RFID scanner requires more than comparing reading distance specifications.

The right solution depends on your application, environment, antenna setup, integration requirements, and future expansion plans.

For RFID solution providers and wholesalers, selecting a flexible industrial RFID reader platform can make future projects easier.

A scanner that fits today’s project and supports tomorrow’s requirements is usually the better investment.

If you are planning a warehouse, manufacturing, retail, or asset tracking RFID project, working with an experienced RFID supplier can help avoid many problems during deployment.
