RFID scanning uses radio-frequency signals to identify tagged objects without requiring direct visual contact. The reader energizes passive tags, receives their backscattered responses, decodes their identifiers, and sends the captured data to software for inventory, asset, or process control.

That is the short answer. The interesting part happens inside the RF field.

In a warehouse, an operator can walk past a rack containing dozens of tagged cartons and capture multiple identifiers without stopping to locate every printed label. At a loading dock, fixed readers can perform the same task automatically as pallets pass through a defined reading zone.

This is why RFID scanning is fundamentally different from optical barcode scanning.

How RFID Scanning Actually Works

A practical RFID scanning system contains several pieces:

• RFID tag — stores the item’s identification data.
• RFID reader — generates the RF signal and processes tag responses.
• RFID antenna — transfers RF energy between the reader and tag.
• Communication interface — sends captured data to another system.
• Software — turns raw tag events into inventory or operational information.

GS1 explains that an RFID system consists of readers and transponders, with passive tags drawing energy from the reader’s electromagnetic field. The tag then modulates the reflected signal, or backscatters it, allowing the reader to convert the response into digital information.

The RFID Scanning Sequence

Stage	What happens
1	Reader transmits an RF signal
2	Passive tag receives energy
3	Reader sends an inventory command
4	Tag responds through backscatter
5	Reader receives and decodes the response
6	Reader filters or processes tag data
7	Software records the identification event

For passive UHF RFID, this exchange is governed by standardized air-interface rules. The current GS1 EPC Gen2 specification defines a passive-backscatter, interrogator-talks-first system operating in the 840–960 MHz range.

The important detail is that the tag does not need to behave like a miniature Wi-Fi device.

It reflects and modulates the reader’s signal.

That is what makes passive RFID tags practical for high-volume identification.

What Happens When an RFID Tag Enters the Scan Zone?

Imagine a pallet approaching a warehouse dock.

The pallet carries several RFID-tagged cartons.

As the tags enter the antenna’s RF field, compatible passive tags receive enough energy to activate their integrated circuits. The reader initiates communication, and the tags respond according to the RFID protocol.

The reader may capture:

• EPC or other identifier
• Tag memory data
• Reader identification
• Antenna or port information
• Read timestamp
• Read event information

The warehouse application can then associate the event with a business action.

For example:

EPC detected → Reader 02 → Dock 3 → 10:16:42 → Receiving

The RFID reader has not independently decided that the pallet has “arrived.” It has captured an identification event. The software determines what that event means.

That separation is important when designing an RFID scanning system.

Why RFID Can Scan Without Line of Sight

A barcode scanner relies on an optical relationship between scanner and printed symbol.

RFID does not.

NIST explains that RFID devices can communicate without requiring line of sight, enabling faster batch processing compared with conventional barcode approaches.

This does not mean an RFID tag can be read through every material.

Metal and liquid can substantially affect UHF performance. GS1 notes that liquids absorb electromagnetic energy and can detune RFID tags, while specialized on-metal tag designs can improve performance on conductive surfaces.

So the real advantage is non-line-of-sight identification within a suitable RF environment.

That wording is much more accurate than simply saying RFID “reads through objects.”

How Many Tags Can RFID Scan at Once?

RFID is designed for multi-tag environments.

A barcode workflow generally identifies one visible symbol at a time. A UHF RFID reader can inventory numerous tags within its field by using an anti-collision protocol.

NIST’s comparison of RFID and barcode technologies describes RFID as capable of very high throughput, with systems able to read several to hundreds of labels in seconds depending on the application and setup.

The actual number in a deployment should never be treated as a universal specification.

It depends on:

• Reader configuration
• Antenna design
• Tag density
• Tag orientation
• RF environment
• Reader sensitivity
• Required read reliability
• Product material
• Movement speed

In a real receiving operation, the objective is not to prove that the reader can see the maximum possible number of tags.

It is to capture the correct tags consistently while the pallet is moving.

How Far Does RFID Scanning Work?

There is no single RFID scanning distance.

GS1 reports that passive UHF/RAIN RFID generally provides a read range of several meters and can reach up to 15 meters in very special cases. Specialized phased-array readers with high sensitivity can reach up to 20 meters under suitable conditions.

But range is only half the story.

GS1 emphasizes that the shape of the readable volume depends strongly on antenna directivity, gain, polarization, and tag orientation.

That distinction matters on a factory floor.

A reader that can technically reach 12 meters may be completely unsuitable beside two neighboring warehouse lanes if its RF field spills into the wrong lane.

A shorter, carefully controlled reading zone can produce much better operational results.

What Controls RFID Scanning Performance?

Reader Power

Higher output power can increase available RF energy, but maximum power is not automatically better.

Excessive coverage can produce unwanted reads.

Antenna Design

The antenna determines how energy is distributed.

Directional antennas can help concentrate the reading area, while antenna polarization must be considered alongside tag orientation.

Tag Design

Not all RFID tags behave alike.

A thin label intended for cardboard may perform poorly when placed directly against steel. An on-metal RFID tag uses a different antenna and construction approach for conductive surfaces.

Environment

The physical environment can change the result dramatically.

Metal racks, machinery, liquids, cables, neighboring readers, and moving people all interact with the RF environment.

NIST research on RFID localization identifies multipath and interference as persistent challenges in RF environments, particularly indoors.

That is why a clean laboratory reading does not automatically predict warehouse performance.

RFID Scanning vs. Barcode Scanning

Factor	RFID Scanning	Barcode Scanning
Line of sight	Generally not required	Normally required
Multiple items	Possible	Usually one symbol at a time
Hidden labels	Can often be detected	Difficult
Automation	High	Often operator-driven
Reading mechanism	RF communication	Optical recognition
Typical UHF range	Several meters	Short optical working distance
Main challenge	RF environment	Visibility and positioning

Neither technology is universally superior.

Barcode remains inexpensive and highly effective where operators already have direct access to clearly printed labels.

RFID becomes particularly compelling when the process involves many items, rapid movement, limited visibility, or automatic identification.

A Field Lesson From RFID Scanning Projects

In practical deployments, I have found that the first question should not be:

“How powerful is the RFID reader?”

It should be:

“What exactly should the reader detect—and what must it ignore?”

That sounds like a small distinction. It is not.

A receiving portal that reads every nearby pallet may look impressive during a demonstration but create incorrect inventory events once two dock doors operate simultaneously.

A well-engineered RFID scanning zone is intentionally constrained.

Cykeo approaches UHF RFID development from this system perspective, combining reader hardware, antenna configuration, adjustable RF parameters, multi-tag processing, and software integration rather than treating the scanner as an isolated device.

Cykeo RFID Scanning Hardware

Depending on the model and application, Cykeo UHF RFID solutions support capabilities such as:

• ISO 18000-6C / EPC C1G2
• Adjustable RF output
• Multi-tag recognition
• Anti-collision processing
• Tag data filtering
• Fixed RFID reader configurations
• Desktop RFID scanning
• Ethernet and serial communication
• USB interfaces on applicable products
• SDK/API integration

A fixed reader is appropriate when the scanning point should operate continuously.

A handheld RFID reader makes more sense when an operator needs to search racks, verify inventory, or locate a specific tagged asset.

A compact desktop reader serves a different environment again—controlled tag registration, writing, encoding, and item processing.

The hardware follows the workflow.

Fixed vs. Handheld RFID Scanning

The physical form of an RFID scanner usually reflects the job it needs to perform.

A fixed RFID scanner stays in one location and continuously monitors a defined RF zone. A handheld RFID scanner moves with the operator and is used when the scanning area changes from one task to another.

GS1 identifies both fixed and mobile readers as common ways of capturing RFID data and explains that captured tag information can then be forwarded to a host system for storage and evaluation.

Scanner Type	Best Use	Typical Location
Fixed RFID reader	Automatic identification	Dock, conveyor, doorway
Handheld RFID reader	Mobile inventory/search	Warehouse aisles
Desktop RFID reader	Controlled tag processing	Office, lab, registration station
Embedded RFID module	OEM equipment integration	Machines, cabinets, terminals

Fixed RFID Scanning

Fixed readers are particularly useful when an organization wants RFID scanning to happen without an operator.

A pallet passes through a dock portal.

The reader detects its tags.

The software records the event.

No employee needs to stop and scan individual cartons.

This architecture is especially effective when the movement path is predictable.

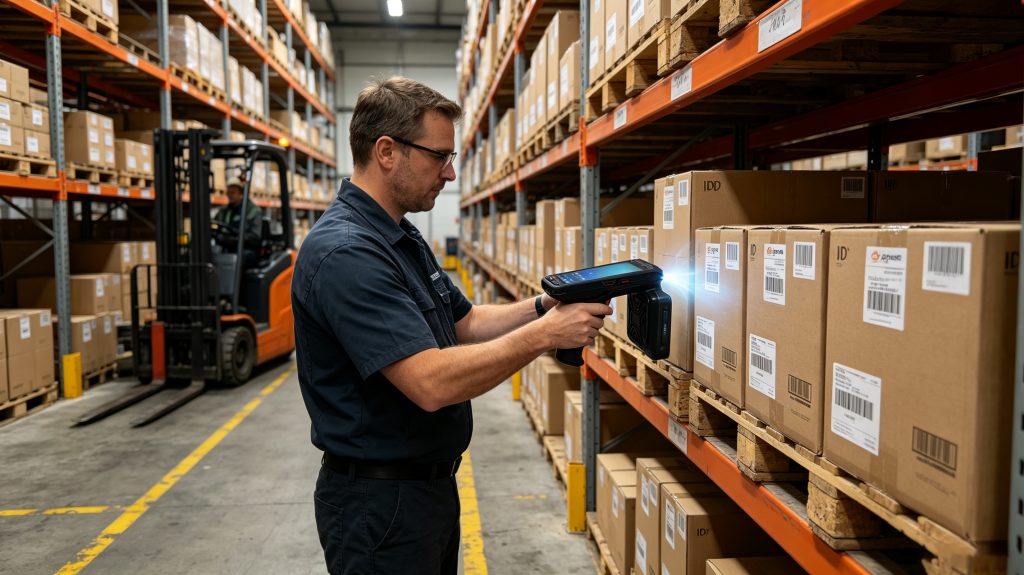

Handheld RFID Scanning

Handheld scanning is different.

An operator may be looking for one particular tool among hundreds of tagged tools. Instead of scanning every asset manually, the handheld reader can detect tags as the operator approaches the relevant area.

That makes handheld RFID useful for:

• Cycle counting
• Asset searches
• Tool management
• Stock verification
• Receiving
• Maintenance inventory
• Missing-item investigation

The operator becomes the moving antenna platform.

RFID Scanning in Warehouse Inventory

Warehouse inventory is one of the clearest examples of where RFID scanning changes the physical workflow.

With barcode inventory, an employee generally needs to locate and visually scan each barcode.

With passive UHF RFID, tagged items can be captured without optical line-of-sight. GS1 US specifically identifies high-speed, non-line-of-sight data capture as a major characteristic of RAIN RFID and notes its use in inventory, logistics, and manufacturing.

A receiving workflow might look like:

Truck → Receiving Dock → RFID Reading Zone → Inventory System → Put-Away

The reader creates the identification event.

The warehouse management system determines the operational status.

That distinction becomes valuable when thousands of events are generated every day.

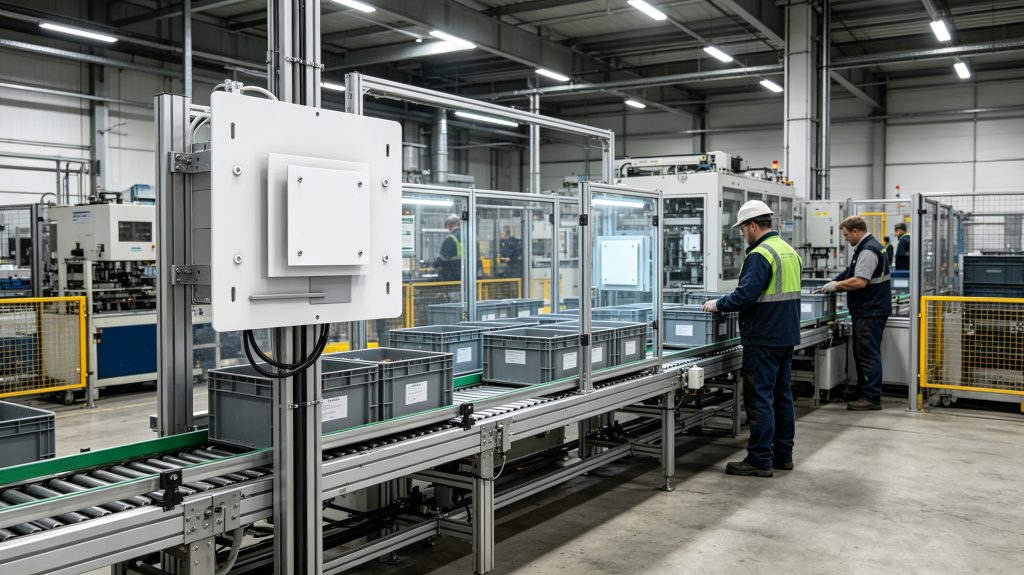

RFID Scanning in Manufacturing

Manufacturing environments introduce another layer of complexity.

Tools, fixtures, components, containers, and work-in-progress products may repeatedly move between stations.

A fixed RFID reader positioned at a production checkpoint can record those transitions automatically.

For example:

RFID Event	Production Meaning
Tag detected at Station A	Material entered processing
Tag detected at Station B	Assembly stage reached
Tag detected at Station C	Inspection started
Tag detected at Station D	Finished-goods area reached

The RFID scanner itself does not know what “assembly completed” means.

The application software maps the reader event to the manufacturing process.

This is where RFID becomes more than identification technology.

It becomes an event-capture mechanism.

Why RFID Scanning Sometimes Produces Unexpected Reads

This is one of the first issues I look for during commissioning.

Suppose a dock door should read only pallets crossing Door 2.

If the reader also captures pallets waiting 8 meters away near Door 3, the hardware may technically be working perfectly.

The system is still operationally wrong.

GS1 notes that readable volume depends on antenna directivity, gain, polarization, tag orientation, and environmental conditions. It also reports that passive UHF RFID typically operates over several meters, with up to 15 meters possible in special cases.

That means RF coverage needs to be designed like a physical boundary.

Practical Controls

Engineers can manage unwanted reads through:

• Antenna orientation
• Reader power adjustment
• Antenna selection
• Reader placement
• Read-zone geometry
• Tag positioning
• Software filtering
• Reader timing
• Environmental testing

The goal is not the largest possible read field.

It is the most useful read field.

Cykeo RFID Scanning Advantages

Cykeo UHF RFID solutions are designed around the same principle.

Depending on model and application, Cykeo readers can support:

• ISO 18000-6C / EPC C1G2
• Adjustable RF output power
• Multi-tag recognition
• Anti-collision algorithms
• Tag data filtering
• Fixed RFID reader architectures
• Desktop RFID platforms
• Ethernet and serial communication
• USB communication on applicable models
• SDK/API integration

For OEM applications, a reader module can be integrated directly into another machine or workstation.

That can be useful when RFID scanning should become part of an existing process rather than appear as a separate device.

For example, a manufacturer may integrate an RFID reader into:

• Automated cabinets
• Production equipment
• Tool-management stations
• Conveyor systems
• Smart storage equipment
• Industrial terminals

The RFID reader becomes part of the machine’s sensing layer.

RFID Scanner Performance: What Should Be Measured?

A serious RFID scanning test should measure more than maximum distance.

I normally look at:

Read Rate

How many expected tags are successfully captured?

False Reads

How many tags from outside the intended area appear in the data?

Read Stability

Does the result remain consistent as tag orientation or object position changes?

Movement Performance

Can the system capture tags while pallets, carts, or operators are moving?

Dense-Tag Performance

Can the system reliably inventory a large population of tags?

Environmental Performance

Does performance remain acceptable around:

• Metal
• Liquid
• Machinery
• Dense shelving
• Electrical equipment

This is where published reader specifications and field measurements need to meet.

GS1 itself cautions that RFID read range varies according to frequency, reader power, interference, antenna characteristics, polarization, and tag orientation.

A Better Way to Think About RFID Scanning

There are two different questions:

Can the reader detect the tag?

and

Can the system make a correct business decision from that detection?

The first is an RF engineering problem.

The second is a system integration problem.

A warehouse receiving application might receive the same EPC repeatedly while a pallet remains inside the antenna field. Software has to determine whether those repeated observations represent one movement event or multiple events.

GS1’s architecture explicitly describes reader data being passed to application-level software, where filtering and further processing can occur.

That is why RFID scanning projects should be evaluated as complete systems rather than isolated readers.

Frequently Asked Questions

1. How does RFID scanning work?

RFID scanning works by transmitting radio-frequency energy from a reader to an RFID tag, receiving the tag’s backscattered response, decoding its identifier, and forwarding the captured information to software.

2. Can RFID scan multiple tags simultaneously?

Yes. Passive UHF RFID is designed for multi-tag inventory operations. The reader uses the standardized air-interface protocol to manage tag responses rather than requiring every tag to be scanned individually. GS1’s EPC Gen2 standard forms the basis of most passive UHF RFID deployments.

3. Does RFID scanning require line of sight?

No. RFID does not require optical line-of-sight in the same way a barcode scanner does. However, objects such as metal and liquids can affect RF performance, so tag selection and placement remain important.

4. How far can RFID scanning reach?

For passive UHF RFID, the typical range is several meters. GS1 states that up to 15 meters can be achieved in very special cases, while some highly sensitive phased-array systems can reach up to 20 meters. Actual range depends on the environment and antenna configuration.

5. What is the difference between RFID scanning and barcode scanning?

Barcode scanning uses optical recognition and normally requires the scanner to see the printed code. RFID scanning uses radio communication and can identify multiple tagged objects without direct visual contact.

6. Can RFID scanning work around metal?

Yes, but the tag must be selected appropriately. Standard RFID labels may perform poorly directly against metal, while specially designed on-metal tags are engineered for conductive surfaces.

7. Can an RFID scanner automatically update inventory?

Yes. The reader can send captured tag data to inventory, WMS, ERP, MES, or asset-management software. The application can then interpret reader events and update inventory records or workflows. GS1 describes this separation between reader capture and application-level processing in its RFID architecture.

SEO Conclusion

How does RFID scanning work? It uses radio-frequency communication between a reader and RFID tag to capture identification data without requiring the optical line of sight used by conventional barcode scanning.

The real engineering challenge is not simply making a reader detect a tag. It is creating a controlled scanning environment where the system captures the right tags, at the right location, at the right moment.

For warehouses, factories, logistics operations, asset management, and OEM equipment, Cykeo RFID solutions provide the reader hardware and integration capabilities needed to turn RF identification into usable operational data.

The strongest deployment is rarely the one with the longest advertised range. It is the one where the RF field matches the workflow.

That is the practical answer to how does rfid scanning work.
