Long Range RFID Scanner for Parking: How RFID Automates Vehicle Identification

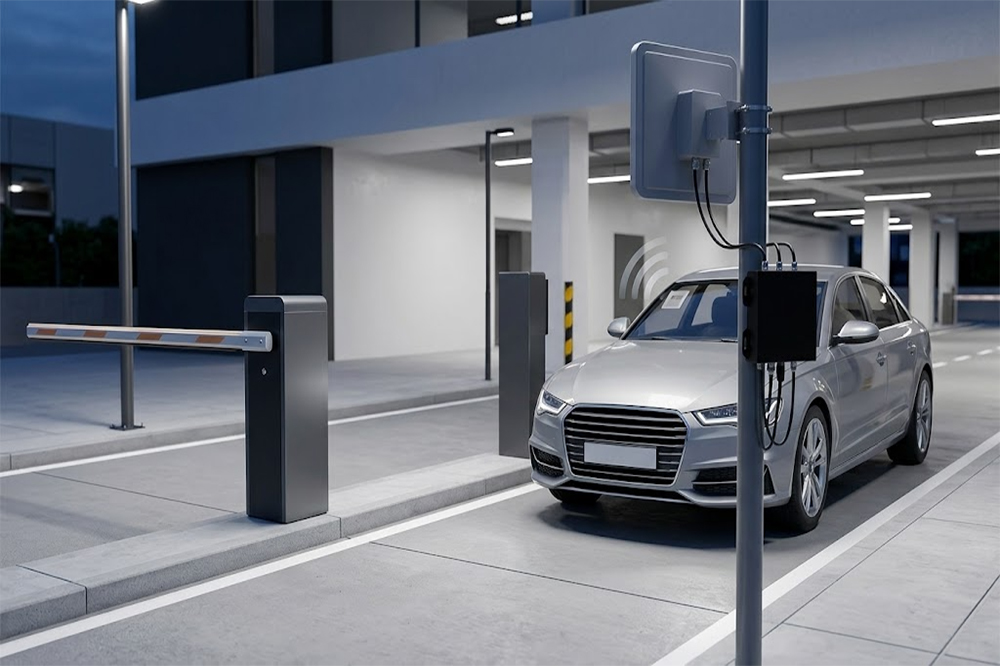

A long range RFID scanner can automatically identify vehicles entering or leaving a parking area by reading an RFID tag attached to the vehicle. The reader sends the tag ID to parking or access-control software, which can then decide whether to open a gate, record an entry, calculate parking time, or trigger an alarm.

The important part is not simply having a reader with a long reading distance. Antenna direction, tag position, vehicle speed, gate layout, and software logic all affect the actual performance.

---

Parking management looks simple from the outside. A vehicle arrives, the system identifies it, the barrier opens, and the vehicle drives through.

Behind that simple process, however, there are several things that have to work together.

The RFID reader needs to detect the correct vehicle tag. The antenna needs to create a useful reading zone. The vehicle has to pass through that zone at a reasonable speed. Then the software needs to match the RFID tag with the correct vehicle or parking account.

This is where a long range RFID scanner can become useful.

How RFID Vehicle Identification Works

A typical RFID parking system has four basic parts:

RFID tag → RFID antenna → RFID reader → parking software

An RFID tag is attached to a vehicle, windshield, access card, or another suitable location. When the vehicle approaches the parking entrance, the fixed UHF RFID reader detects the tag through its antenna.

The reader receives the tag’s EPC or identification number and sends that information to the parking management system.

The software can then check:

• Is this vehicle registered?
• Does it have permission to enter?
• Is the parking account active?
• When did the vehicle last enter?
• Which lane detected the vehicle?
• Should the barrier open?

The RFID reader itself does not make all of these decisions. It mainly provides reliable identification data.

That distinction becomes important when designing a real RFID parking solution.

---

RFID Parking Is About More Than Reading Distance

Many buyers initially ask one question:

“How far can the RFID reader read?”

It is a reasonable question, but it is not the only one that matters.

A parking lane usually has a relatively defined reading area. You may actually want the reader to detect a vehicle when it reaches a specific point, rather than detect vehicles 20 meters away from the gate.

A reading zone that is too large can create another problem.

For example, imagine two parking lanes next to each other. If an RFID antenna has a very wide coverage area, it could potentially detect a tag from the neighboring lane.

Now the system has a different problem: the reader can read the tag, but it may not know which lane the vehicle is using.

This is why antenna direction and installation position matter so much.

---

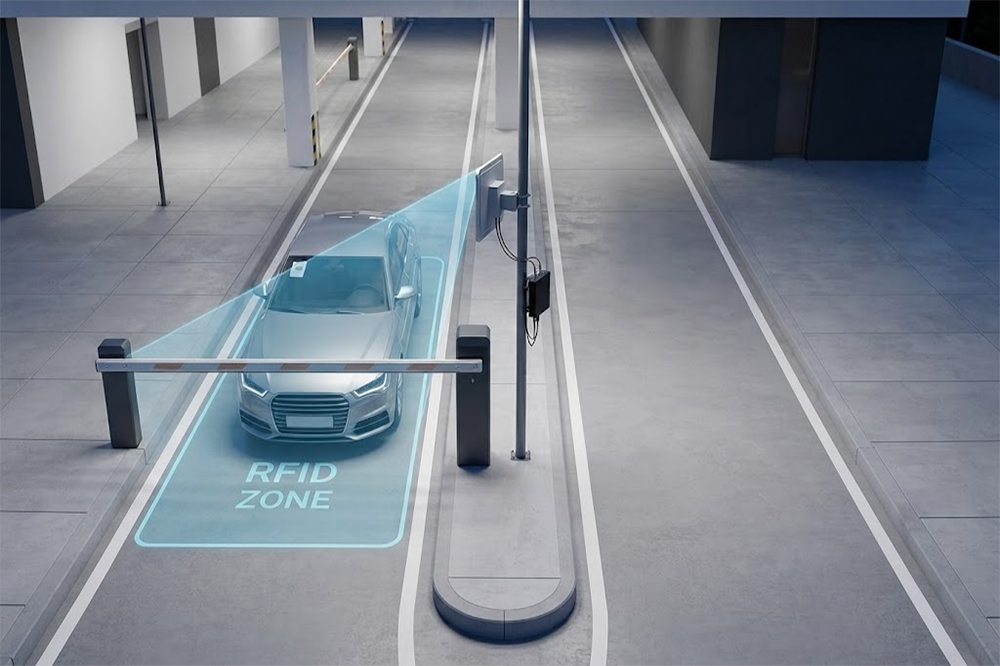

Creating a Controlled RFID Reading Zone

A good parking installation normally tries to create a controlled reading zone around the vehicle lane.

The antenna can be positioned beside the lane, above the lane, or at another suitable angle depending on the vehicle and tag location.

Several factors need to be considered:

• Antenna direction
• Antenna height
• Vehicle lane width
• Distance from the reader
• Tag position
• Reader power
• Vehicle speed
• Adjacent lanes
• Metal structures
• Gate and barrier position

The goal is not simply maximum range.

The goal is reliable identification at the correct location.

For system integrators, this is one reason a sample installation is often more useful than relying only on a reader specification sheet.

---

RFID Tags on Vehicles

The RFID tag can be one of the easiest parts of the project to overlook.

A UHF RFID reader may perform very well with one tag but behave differently when the tag is attached to a windshield, metal surface, dashboard, or another vehicle component.

The tag’s position also affects orientation.

If vehicles approach the gate at slightly different angles, the tag orientation may change. Rain, glass, metal structures, and nearby electronic equipment can also influence the RF environment.

For metal vehicle surfaces, a suitable RFID tag designed for the application may be required.

For windshield applications, another type of tag may be more appropriate.

This is why testing the actual vehicle + actual tag + actual antenna is much more useful than testing only a loose RFID tag on a desk.

---

Can RFID Identify Multiple Vehicles?

Yes, UHF RFID technology can identify multiple tags within its reading zone.

But parking applications usually need more than simply detecting several tags.

The system needs to associate the correct tag with the correct lane and vehicle event.

For example, two vehicles may arrive close together.

If both RFID tags are detected, the software may need additional information from:

• Vehicle sensors
• Loop detectors
• Cameras
• Barrier status
• Lane controllers
• Timing logic

This combination can make the system more reliable.

RFID provides the identification. Other devices can help determine the physical event.

---

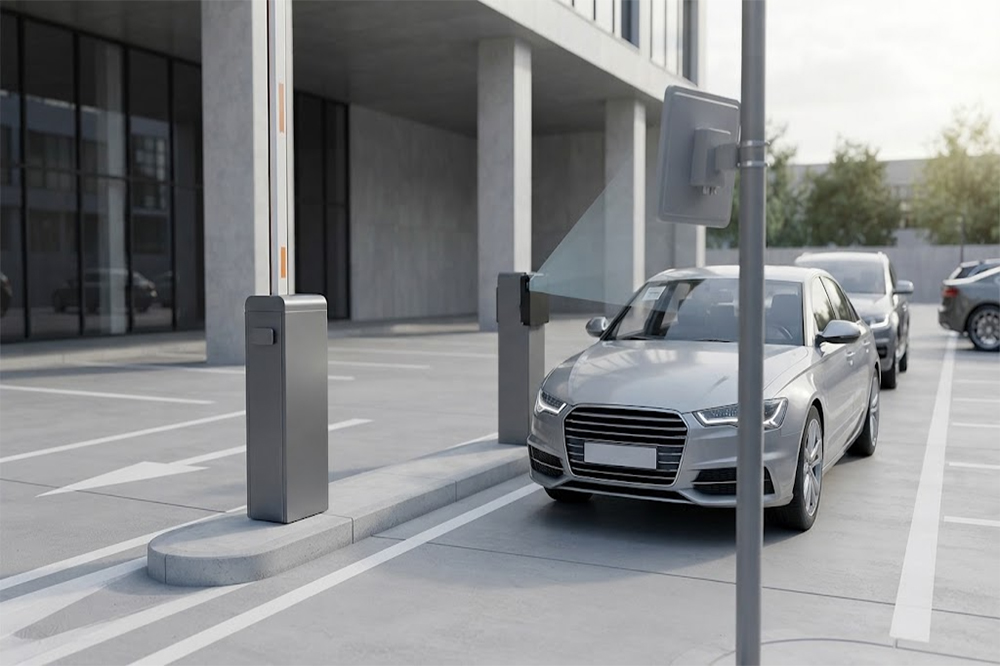

RFID Parking Gate and Access Control

One common application is automated parking access.

A vehicle approaches the entrance.

The RFID reader detects the vehicle tag. The software checks the tag against an authorized database. If the vehicle is allowed to enter, the system sends a command to the gate controller.

The entire process can happen without the driver stopping to scan a barcode or manually present a card.

The same approach can work at the exit.

The system records the vehicle’s exit time and can update the parking status.

For private parking areas, factories, residential communities, campuses, logistics facilities, and company parking lots, this can make vehicle access easier to manage.

---

RFID Vehicle Tracking at Parking Checkpoints

RFID does not automatically provide GPS-style continuous vehicle tracking.

Instead, it records detection events.

For example:

08:15 — Entrance Lane 1 — Vehicle Tag A1023

17:42 — Exit Lane 2 — Vehicle Tag A1023

From these events, the software can determine that the vehicle entered at 08:15 and left at 17:42.

For larger parking facilities, additional readers can be installed at selected checkpoints.

This creates a useful event history without requiring a reader to cover the entire parking area.

---

Long Range RFID Scanner for Large Parking Facilities

Large parking facilities can have different requirements from a small private parking lot.

A large site may include:

• Multiple entrance lanes
• Multiple exit lanes
• Staff parking
• Visitor parking
• Delivery areas
• Service entrances
• Restricted areas
• EV charging areas
• Loading zones

Trying to use one powerful reader to cover everything is usually not the best approach.

Instead, system integrators can install readers at strategic checkpoints and connect them to the same software platform.

This makes the system easier to manage and gives each detection point a clear purpose.

---

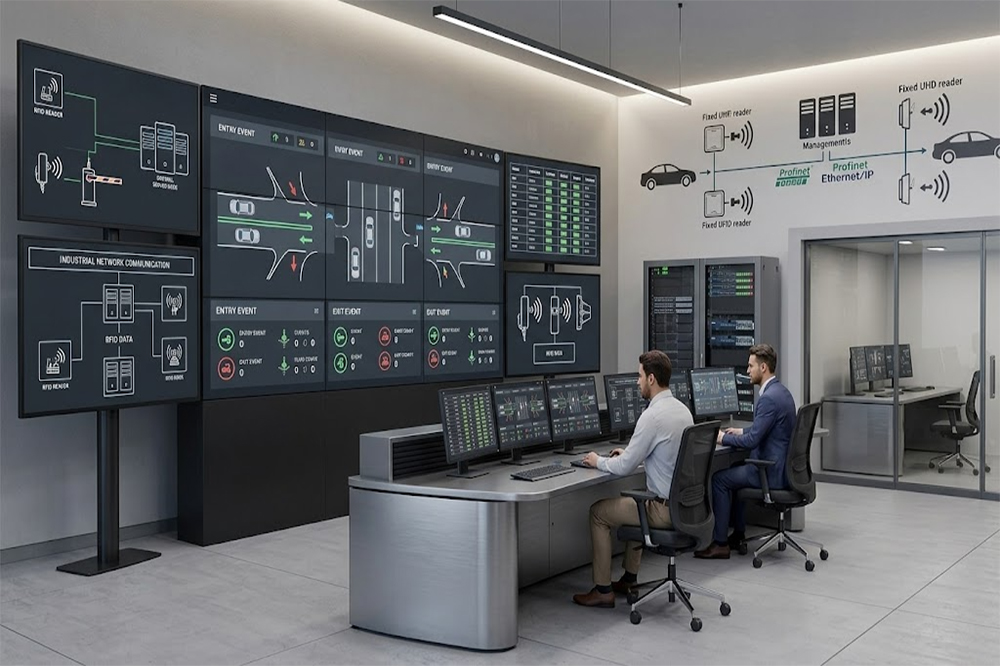

RFID Reader Integration

The RFID reader is normally only one component of the parking system.

Depending on the reader and project requirements, integration may involve:

• Ethernet
• TCP/IP
• Serial communication
• Digital input/output
• API
• SDK
• HTTP
• MQTT

The exact interfaces depend on the reader model and software architecture.

The parking system may also need to communicate with a barrier gate, vehicle sensor, camera, database, access-control platform, or parking management software.

For integrators, checking these interfaces before purchasing hardware can save a lot of trouble later.

---

A Simple Parking RFID Example

Imagine a company has 300 employees and wants to automate vehicle access.

Each authorized vehicle receives an RFID tag.

At the entrance, a fixed UHF RFID reader is installed beside the lane. A directional antenna creates a controlled reading area.

When a registered vehicle enters:

1. The RFID tag enters the reading zone.
2. The reader detects the tag.
3. The software checks the vehicle ID.
4. The system confirms access.
5. The barrier opens.
6. The entry event is stored.

At the exit, another RFID reader performs the same basic identification process.

The company can now see which vehicles entered and exited without requiring every driver to stop and scan a barcode.

The exact hardware configuration would still need field testing because lane width, vehicle types, tag placement, and surrounding metal structures can vary considerably.

---

Testing Is the Important Part

For an RFID parking project, testing should include real operating conditions.

A useful test can check:

• Actual vehicle models
• Actual RFID tags
• Tag installation position
• Vehicle approach speed
• Antenna angle
• Reader power
• Reading distance
• Adjacent lanes
• Multiple vehicles
• Metal structures
• Barrier timing
• Sensor triggering
• Software response

It is also worth testing unusual situations.

What happens when two cars arrive together?

What happens when a vehicle changes its position within the lane?

What happens when the tag is slightly rotated?

What happens when another vehicle passes in the neighboring lane?

These practical tests often reveal issues that are not obvious from laboratory specifications.

---

What Should Distributors and System Integrators Check?

For buyers sourcing RFID parking hardware in bulk, the reader specification should be only the beginning.

Check the following:

• Frequency range
• RFID protocols
• Reader chipset
• Reading sensitivity
• Output power
• Antenna ports
• Communication interfaces
• Digital I/O
• API or SDK availability
• Supported software integration
• Firmware
• Antenna options
• Vehicle tag compatibility
• Sample availability
• OEM customization
• MOQ
• Production lead time
• Technical support

For a distributor, another important question is whether the supplier can provide more than the reader.

A complete RFID parking project may require readers, antennas, tags, cables, software interfaces, and technical support.

A supplier that can support the complete hardware combination can be easier to work with when the same solution needs to be deployed at several customer sites.

---

Final Thoughts

A long range RFID scanner for parking can automate vehicle identification and make parking access faster, especially at controlled entry and exit points.

But long range alone does not guarantee a successful installation.

The reader, antenna, RFID tag, vehicle, lane layout, gate controller, sensors, and software all have to work together.

For a parking project, I would rather have a stable reading zone at the right location than a reader that simply claims an impressive maximum distance.

That is usually the difference between a specification that looks good on paper and an RFID parking system that works reliably every day.

---
