What Is the Range of RFID?

RFID read range varies by frequency, tag design, reader power, antenna configuration, and surrounding materials. Low-frequency (LF) and high-frequency (HF) systems typically operate over short distances, while passive ultra-high-frequency (UHF) systems can often read tags several metres away. The actual working distance depends on the complete RFID setup.

The range of RFID (Radio Frequency Identification) is the distance over which an RFID reader can reliably communicate with a tag and obtain its data. There is no single distance that applies to every RFID system. A contactless access card may need to work within a few centimetres, whereas a warehouse portal may need to identify tagged cartons moving through a doorway several metres wide.

For businesses selecting RFID equipment, the important question is not simply how far a tag can be detected. It is how far the system can read the correct tags consistently under actual operating conditions.

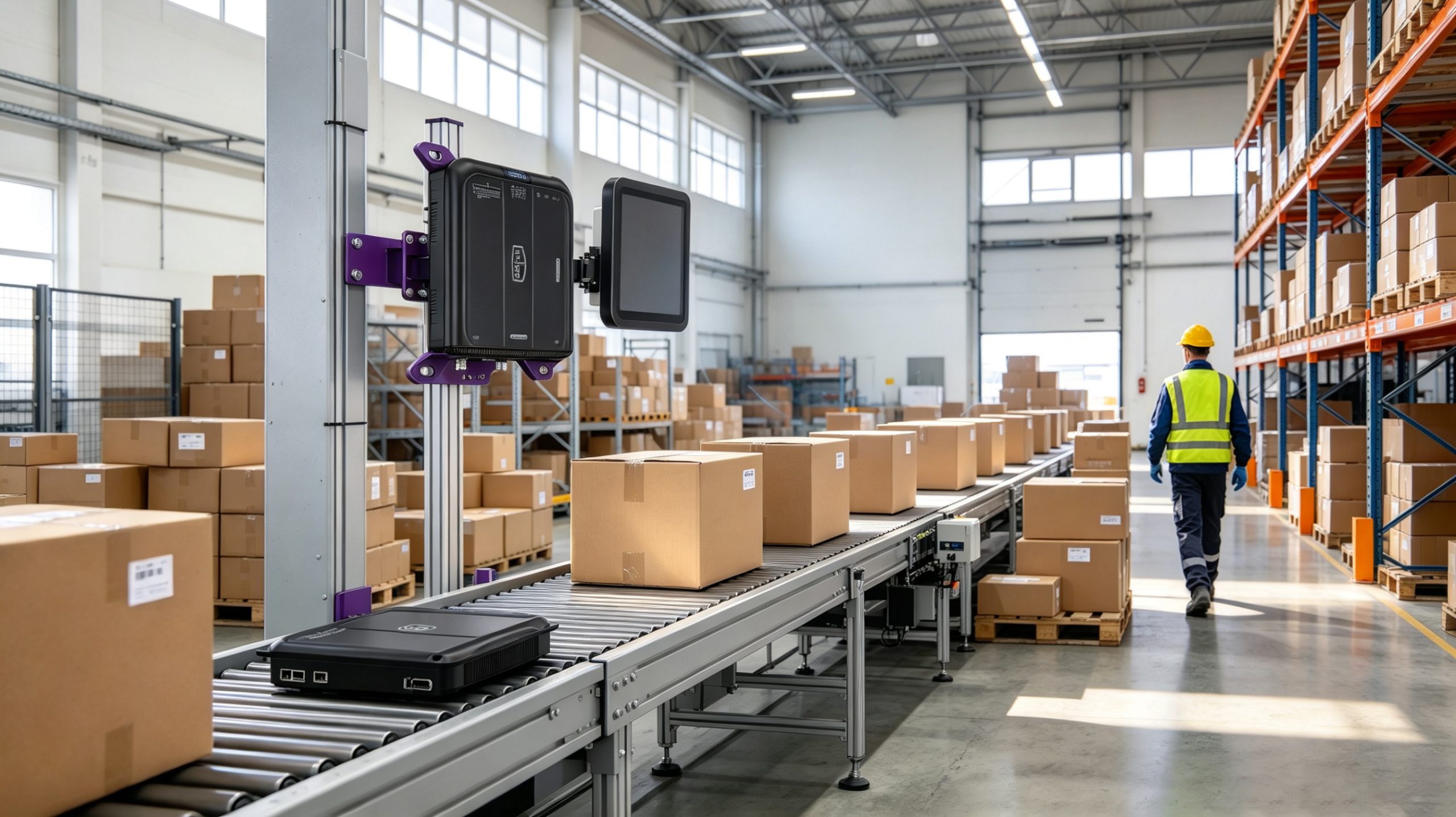

Consider a warehouse receiving area. A reader may detect a UHF tag on a carton approaching the loading bay, but the result depends on the tag’s orientation, the contents of the carton, antenna placement, and nearby metal structures. A longer nominal read distance does not automatically produce more reliable inventory data.

This distinction matters when choosing a reader, setting antenna power, and deciding where to install equipment.

How Far Can RFID Read? Typical Ranges by Frequency

RFID systems use different frequency bands for different applications. Frequency influences how the reader and tag communicate, but it does not determine the read distance by itself.

RFID frequency	Typical practical range	Common applications
LF (Low Frequency)	Usually a few centimetres to around 10 cm	Animal identification, industrial identification
HF (High Frequency)	Usually a few centimetres; some systems reach tens of centimetres	Access cards, NFC-related applications, library tags
UHF (Ultra-High Frequency)	From tens of centimetres to several metres; suitable systems can reach beyond 10 m in favourable conditions	Warehousing, logistics, retail inventory, asset tracking

These figures are indicative engineering ranges, not guaranteed specifications. Individual systems can perform outside them. For example, an HF reader designed for a particular application may have a different operating distance from a small desktop reader, even when both use the same frequency band.

Passive UHF RFID is often selected when businesses need to identify multiple tagged items without bringing each tag close to a reader. LF and HF are more appropriate for many applications where a shorter, more controlled interaction is sufficient.

When comparing equipment, check the supported frequency, tag compatibility, antenna characteristics, transmit power, and stated test conditions. A manufacturer’s maximum-distance figure should be treated as a reference point rather than a promise about every installation.

Reference for the range figures: GS1’s RFID guidance reports that LF and HF tags can reach up to 1 metre in some applications, while passive UHF RFID can reach up to 10 metres depending on the environment. GS1 also notes that exceptional UHF systems may operate farther. These figures help explain why frequency alone is not enough to predict performance.

What Affects RFID Read Range in Real Applications?

Several technical and environmental factors determine the usable distance between an RFID reader and a tag. A system that performs well on a workbench may behave differently after installation on a metal rack or beside a conveyor.

1. Reader Power and Antenna Design

Reader transmit power influences how much energy reaches a passive tag. However, increasing power is not always the best solution. Antenna gain, beam direction, polarization, cable loss, and local radio regulations also affect the result.

For example, a fixed UHF RFID reader connected to a directional antenna may be suitable for monitoring a warehouse doorway. A compact desktop reader is better suited to controlled, close-range tag encoding or item registration. Selecting the correct antenna arrangement is often more useful than simply choosing the highest-power reader.

2. Tag Orientation and Mounting Surface

The tag antenna must receive enough energy to respond to the reader. If a tag faces away from the reader or sits at an unfavourable angle, the reading distance may decrease.

The mounting surface matters too. Ordinary label tags generally work well on cardboard, wood, and plastic, but metal surfaces and liquid-filled products can interfere with RF performance. Specially designed on-metal or liquid-compatible tags may be needed for these applications.

3. Surrounding Objects and Installation Layout

Metal shelving, tightly packed cartons, neighbouring readers, and other radio-frequency sources can change the reading zone. A reader may capture tags outside the intended area while missing a tag located closer to the antenna.

This is why an RFID installation should be tested with representative products, packaging, and movement patterns. In a receiving area, test cartons at different heights and orientations. For a conveyor, test items at normal operating speed rather than holding them still in front of the antenna.

How to Choose an RFID Reader for the Required Distance

The best RFID reader is the one that covers the intended reading area reliably, not necessarily the one advertised with the longest range.

For warehouse inventory, pallet identification, or carton tracking, a fixed UHF reader may provide the distance and coverage required. For access cards, library transactions, or controlled item registration, a shorter-range reader can offer more predictable interaction.

Before choosing equipment, check these points:

• Required distance: Determine the farthest point at which a tag must be read reliably.
• Reading zone: Establish whether the system should read one item at a time or multiple items within a defined area.
• Tag and material compatibility: Test the intended tags on the actual products, including metal or liquid-containing items.
• Installation conditions: Account for antenna direction, tag orientation, nearby structures, and movement speed.
• Regional compliance: Confirm that the reader supports the RFID frequency and permitted transmit-power settings for the installation country.

GS1 identifies antenna characteristics and tag orientation as important influences on the volume in which RFID tags can be read. Its guidance also highlights that a controlled reading zone may be more valuable than simply maximising distance.

For Cykeo projects, this is a practical starting point when evaluating fixed UHF readers, integrated reader-and-antenna units, and OEM RFID modules. The final configuration should be validated against the intended tag type and operating environment rather than selected from a maximum-range figure alone.

Why Does an RFID Tag Sometimes Have a Shorter Read Range Than Expected?

A reader that works well in an open test area may deliver different results after installation. Before replacing the equipment, check the following common causes.

Symptom	Possible cause	Recommended check
Tags read only at close range	Low reader power, unsuitable antenna, or poor tag placement	Verify power settings, antenna connections, and tag compatibility
Some tags read while others are missed	Tag orientation, shielding, or inconsistent tag performance	Test several tags in different orientations
Tags are detected outside the intended area	Excessive power or an antenna pattern that is too broad	Reduce power and adjust antenna direction
Metal-mounted tags are unreliable	Standard tag antenna is unsuitable for the mounting surface	Test a purpose-built on-metal tag
Reading becomes inconsistent near machinery	Reflections or radio-frequency interference	Test the installation with nearby equipment operating
Moving products are missed	Insufficient time in the reading zone or unsuitable antenna placement	Test at normal conveyor or vehicle speed

These checks help separate a range problem from a configuration problem. They also prevent a common mistake: increasing transmit power before confirming that the tag itself is suitable for the application.

GS1’s technical guidance explains that metal objects can create unwanted radio-wave reflections and that the RFID solution should be tested in its intended environment

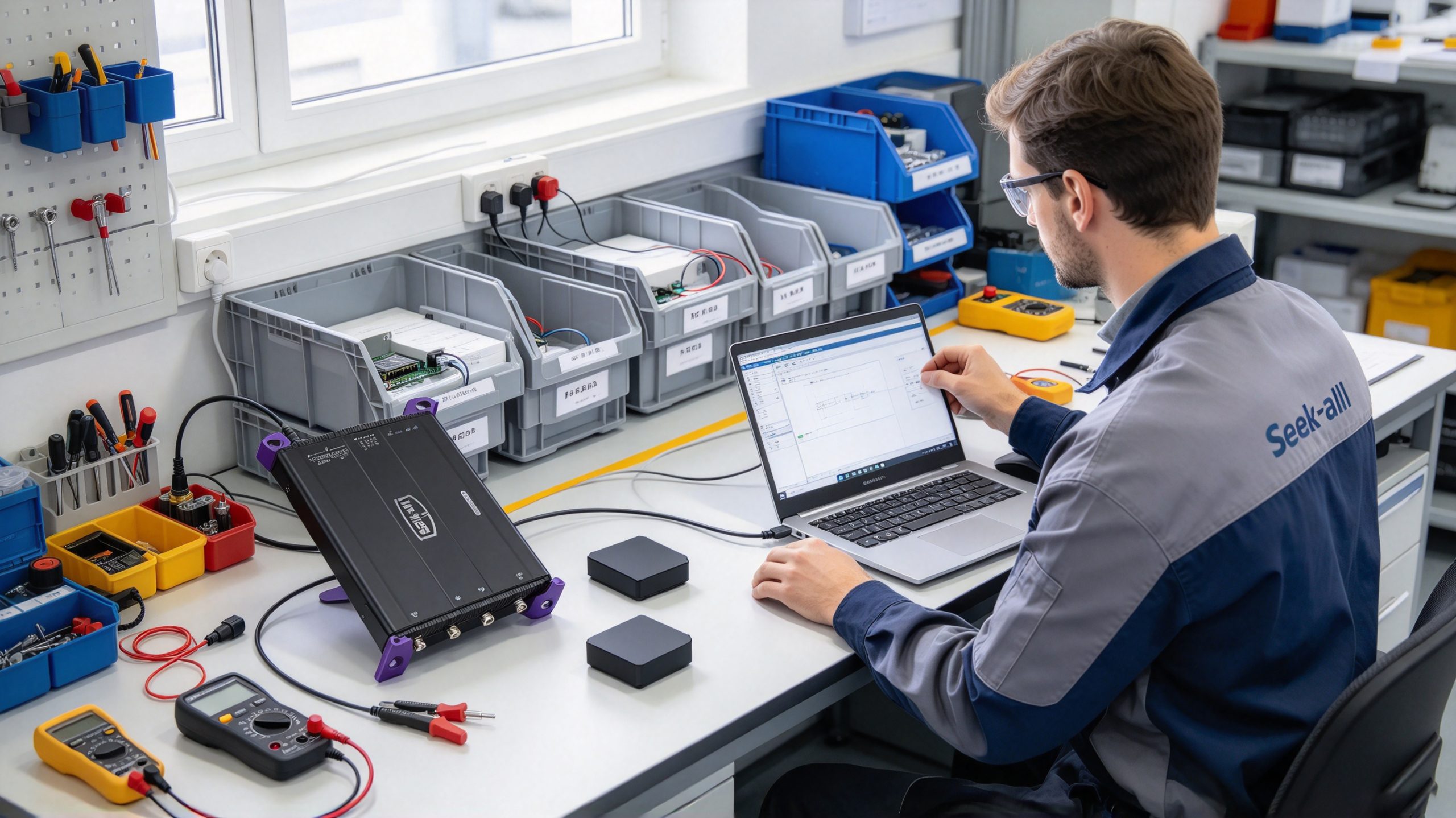

How to Measure RFID Read Range Correctly

A useful range test should reproduce the conditions in which the system will actually operate. Testing one tag in an empty room gives you a starting point, not a reliable deployment specification.

Use this procedure during an initial assessment:

1. Select the intended tag. Use the actual tag model and, where possible, the final mounting method.
2. Set up the reader and antenna. Configure the correct frequency region and permitted transmit power.
3. Measure from a known position. Move the tag away from the antenna in controlled increments, recording the farthest distance at which readings remain consistent.
4. Repeat with different orientations. Test the tag facing the antenna, turned sideways, and at realistic mounting angles.
5. Introduce real operating conditions. Add representative cartons, metal fixtures, liquids, or moving products as applicable.
6. Record reliability, not just distance. Repeat the test and note missed reads, unintended reads, and variations in performance.

For a warehouse portal, for example, a useful acceptance test measures whether tagged cartons are captured as they pass through the defined zone. A single successful read from across the room does not prove that every carton will be identified during normal operations.

The test report should include tag model, reader model, antenna position, power setting, distance, orientation, and environmental conditions. This information makes the results easier to reproduce when the installation changes.

Frequently Asked Questions About RFID Read Range

1. What is the maximum range of an RFID tag?

There is no universal maximum. GS1 states that passive UHF RFID tags typically operate over several metres, with ranges up to 15 metres in special cases. Active RFID tags can reach 100 metres or more because they have their own power source. Actual performance depends on the tag, reader, antenna, and environment.

2. How far can a passive RFID tag be read?

Passive RFID tags receive operating energy from the reader’s radio signal rather than an internal battery. LF and HF tags are generally used at shorter distances, while passive UHF tags can typically be read several metres away. The exact distance depends on reader power, antenna configuration, tag sensitivity, and surrounding materials.

3. Can an RFID reader detect tags through walls?

Sometimes, but reliable performance cannot be assumed. Radio waves may pass through certain non-metallic materials, while metal and other shielding materials can significantly reduce or block communication. If a reader must operate through a wall or partition, test the specific material, tag position, and installation conditions before deployment.

4. Does increasing RFID reader power increase range?

Increasing transmit power can extend the reading distance when insufficient energy is reaching the tag. However, it will not necessarily solve poor antenna alignment, an unsuitable tag, or interference. Excessive power can also cause unwanted reads outside the intended zone. Use the lowest permitted power that achieves reliable coverage.

5. Does metal affect RFID read range?

Yes. Metal can detune or shield a conventional tag antenna and create radio-wave reflections that affect reading performance. For tools, machinery, metal containers, and equipment, consider tags specifically designed for metal mounting and test them on the actual surface.

6. Which RFID frequency offers the longest read range?

Passive UHF RFID generally offers longer read distances than conventional LF and HF systems. It is widely used for warehouse inventory, logistics, and asset tracking because it can identify tagged items several metres away. Active RFID can reach farther still, but it uses battery-powered tags and operates differently from passive RFID.

7. How can I extend RFID read range in a warehouse?

Start by checking tag suitability, antenna positioning, orientation, reader power, and interference. Test the system with actual cartons or assets and adjust the reading zone to match the workflow. If the current configuration still falls short, evaluate a different antenna, a more suitable tag, or an alternative reader installation.

Final Considerations for Choosing RFID Range

An RFID system should be selected around the distance, coverage area, and reliability that an application requires. LF and HF are suited to many short-range identification tasks, while passive UHF RFID is often a strong choice for reading inventory, cartons, and assets across larger areas.

For industrial and commercial projects, the most useful specification is not simply the longest distance achieved in a test. It is the distance at which the system consistently identifies the intended tags without capturing unwanted items.

When evaluating RFID equipment from Cykeo, compare the reader, antenna, tag type, mounting conditions, and application requirements as one system. Confirm the final setup through practical testing before deployment.

Understanding what is the range of RFID means looking beyond a single metre figure and determining how reliably the technology will work in the real environment.
