what is rfid scanner

What is RFID scanner? An RFID scanner is a device used to identify and collect information from RFID tags through radio-frequency communication. It allows businesses to scan tagged items automatically for inventory management, asset tracking, logistics operations, manufacturing control, and retail applications without manually reading each barcode.

Unlike a traditional barcode scanner, an RFID scanner does not require direct visual contact with each item. It communicates wirelessly with RFID tags and can identify multiple tagged objects within its operating range, depending on the RFID technology, antenna design, environment, and system configuration.

In real-world projects, the term “RFID scanner” is often used interchangeably with “RFID reader” or “RFID handheld reader.” Technically, the device is performing RFID communication rather than optical scanning. The purpose remains the same: collecting reliable identification data from physical objects and connecting that information with digital systems.

From Cykeo’s experience designing and integrating RFID identification equipment, one of the most important factors is not simply how many tags a scanner can read in a demonstration. The real challenge is achieving stable performance in working environments where products overlap, materials vary, and operations continue at production speed.

How Does an RFID Scanner Work?

An RFID scanner works by sending radio-frequency signals through an integrated antenna to communicate with RFID tags.

A typical RFID scanning process includes:

1. The scanner sends an RF signal.
2. Nearby RFID tags receive the signal.
3. Tags respond with stored identification information.
4. The scanner collects and processes tag data.
5. Software updates inventory or operational records.

Passive RFID tags, which are widely used in logistics and supply chain applications, do not contain their own battery. They receive energy from the scanner’s RF field and respond by transmitting stored information.

According to GS1, UHF RFID systems generally operate between 860–960 MHz depending on regional frequency regulations. EPC Gen2 technology defines communication between UHF RFID readers and tags for global supply chain identification.

The actual scanning performance depends on several technical conditions:

• RFID frequency.
• Reader output power.
• Antenna configuration.
• Tag sensitivity.
• Product material.
• Reading environment.
• Software filtering.

A scanner working in an open warehouse aisle may perform differently from one installed near metal equipment or liquid products.

RFID Scanner vs Barcode Scanner: What Is the Difference?

Many companies compare RFID scanners with barcode scanners because both technologies identify products. However, they work in fundamentally different ways.

Feature	RFID Scanner	Barcode Scanner
Communication method	Radio frequency	Optical image scanning
Direct line of sight	Usually not required	Usually required
Multiple item reading	Possible with suitable RFID systems	Usually one barcode at a time
Works through packaging	Often possible depending on material	Limited
Data storage	RFID chip memory	Printed barcode information
Typical use	Automated identification and tracking	Product lookup and checkout

Barcode technology remains useful for many applications. RFID scanning becomes valuable when organizations need faster identification of many items or improved visibility of physical inventory.

For example, checking 5,000 warehouse items manually with barcode scanning requires employees to locate each barcode individually. An RFID scanner can collect information from multiple tagged items within a defined reading area.

However, RFID is not a replacement in every situation. The correct technology depends on the business process.

What Is an RFID Scanner Used For?

RFID scanners are used in industries where companies need to identify, count, monitor, or manage physical objects.

Common applications include:

RFID Scanner for Inventory Management

Inventory control is one of the most common RFID scanner applications.

Warehouses, retailers, and manufacturers use RFID scanners to:

• Count tagged products.
• Verify incoming shipments.
• Locate inventory records.
• Support cycle counting.
• Reduce manual recording tasks.

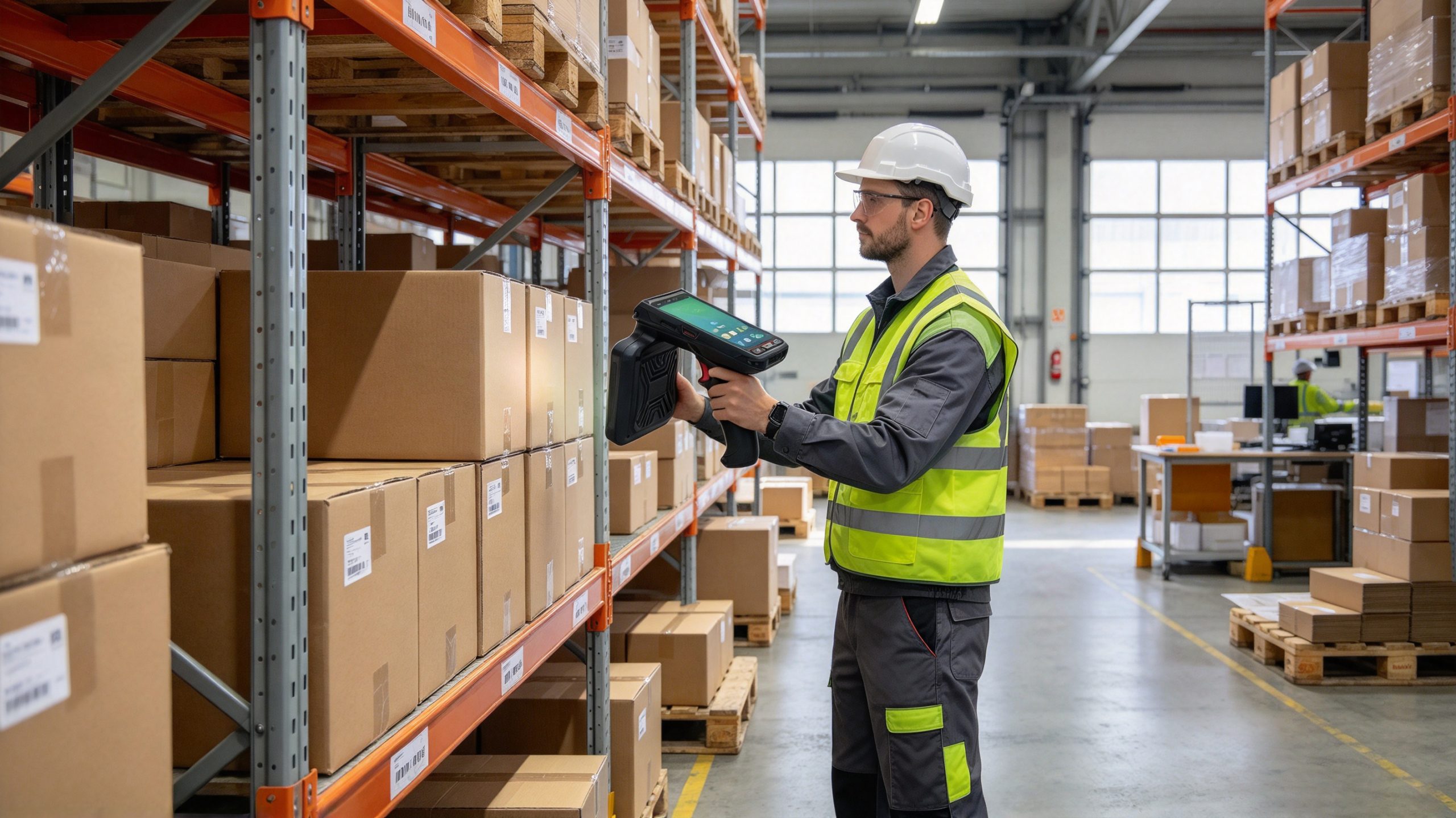

A handheld RFID scanner allows operators to move through storage areas and collect tag information quickly.

A fixed RFID scanner system can also be installed at specific points, such as:

• Warehouse entrances.
• Conveyor systems.
• Shipping areas.
• Production checkpoints.

The objective is to create accurate connections between physical goods and inventory software.

RFID Scanner in Supply Chain Tracking

Supply chains involve continuous movement of products between factories, warehouses, transportation networks, and stores.

RFID scanners help organizations capture product movement events.

Examples include:

• Pallet identification.
• Carton verification.
• Shipment confirmation.
• Returnable container tracking.

A logistics company can use RFID scanning to compare expected shipments with actual received items, helping reduce manual inspection work.

The scanner itself does not understand business information. It collects tag identifiers. The connected software determines whether an item is received, shipped, stored, or assigned to another process.

RFID Scanner Applications in Retail

Retail is another major RFID scanning environment.

Fashion retailers especially use RFID because stores manage large numbers of similar products with different:

• Sizes.
• Colors.
• Styles.
• Collections.

An employee using a handheld RFID scanner can check stock availability across shelves and storage areas.

Research from Auburn University’s RFID Lab has studied RFID adoption in retail environments and demonstrated that RFID-based inventory visibility can improve inventory accuracy when supported by appropriate processes.

One retail study published in Production and Operations Management examined RFID-enabled inventory visibility involving 13 stores over 23 weeks and reported approximately a 26% reduction in inventory record inaccuracy within the studied RFID-enabled environment.

The improvement is not created by the scanner alone. It comes from combining RFID tags, readers, software integration, and operational procedures.

Types of RFID Scanners

Different RFID scanners are designed for different working environments.

RFID Scanner Type	Typical Application
Handheld RFID scanner	Warehouse counting, asset inspection, field inventory
Fixed RFID scanner	Automated checkpoints, production lines, portals
Desktop RFID scanner	Tag registration, encoding, small-item management
Embedded RFID scanner module	OEM equipment integration

Handheld RFID Scanner

Handheld models provide mobility.

They are commonly used by:

• Warehouse employees.
• Maintenance teams.
• Retail staff.
• Field service workers.

The advantage is flexibility. Operators can move directly to the objects they need to identify.

Fixed RFID Scanner

Fixed scanners support automation.

They are often installed in:

• Warehouse doors.
• Conveyor lines.
• Smart cabinets.
• Production equipment.

A fixed system can automatically capture RFID events without requiring employees to manually scan products.

How to Select the Right RFID Scanner for Your Application

Understanding what is rfid scanner is not only about knowing the definition of the device. In an actual RFID project, selecting the correct scanner requires understanding the environment, workflow, tag type, and data requirements.

A warehouse counting system, for example, has completely different requirements from an RFID scanner installed on an automated production line.

Before choosing an RFID scanner, businesses should evaluate several practical factors.

Reading Environment and Application Requirements

The physical environment has a major influence on RFID performance.

During real RFID deployments, engineers usually examine:

• Distance between scanner and tagged items.
• Number of tags read simultaneously.
• Product material.
• Presence of metal or liquids.
• Movement speed of items.
• Required data transmission method.

For example, cardboard cartons usually provide a relatively friendly RFID environment. However, products containing metal parts or liquids may require specialized RFID tags and different antenna arrangements.

The scanner should be selected based on the actual application, not only laboratory performance.

RFID Scanner Reading Distance

Reading distance is often one of the first specifications companies ask about. However, maximum distance alone does not determine whether an RFID system will work effectively.

A controlled reading zone is often more important.

Examples:

Application	Preferred RFID Scanner Design
Warehouse inventory	Handheld scanner with flexible movement
Doorway tracking	Fixed scanner with controlled coverage
Production line	Integrated reader with stable positioning
Desktop registration	Short-range scanner for precise operation

In some applications, reading unwanted tags can create operational problems. A scanner that reads every nearby tag may not be suitable for a workstation where only one item should be processed.

RFID Scanner Integration with Software Systems

An RFID scanner collects identification data, but the business value comes from how that information is processed.

A complete RFID solution usually connects:

• RFID scanner.
• RFID tags.
• Antennas.
• Middleware.
• Inventory software.
• Enterprise systems.

For example, when a warehouse employee scans a pallet, the RFID scanner captures the electronic product identifier. The warehouse management system then determines:

• What product is involved.
• How many units are expected.
• Where the item should be stored.
• Whether the shipment is complete.

Without software integration, RFID data remains only a collection of tag reads.

Practical RFID Scanner Deployment Experience

In real projects, RFID installation rarely fails because the reader cannot communicate with a tag. More often, problems come from unexpected operating conditions.

Common examples include:

Too Many Unwanted Reads

A scanner installed near multiple inventory areas may capture tags outside the intended zone.

Solutions may include:

• Adjusting reader power.
• Changing antenna direction.
• Creating physical reading boundaries.
• Improving software filtering.

Missing Reads

Some tags may not respond because of:

• Poor tag placement.
• Incorrect tag selection.
• Product interference.
• Insufficient antenna coverage.

Testing with actual products is usually more valuable than testing with empty samples.

Inconsistent Performance

A system that works during a short demonstration may behave differently during daily operations.

A proper RFID deployment often requires testing during:

• Normal employee movement.
• Peak inventory periods.
• Different product arrangements.
• Real warehouse conditions.

This is where engineering experience becomes important. RFID is a radio technology, and the surrounding environment always affects performance.

RFID Scanner Applications in Asset Management

Asset tracking is another important use case.

Organizations use RFID scanners to manage:

• Tools.
• Equipment.
• Containers.
• Maintenance items.
• Reusable assets.

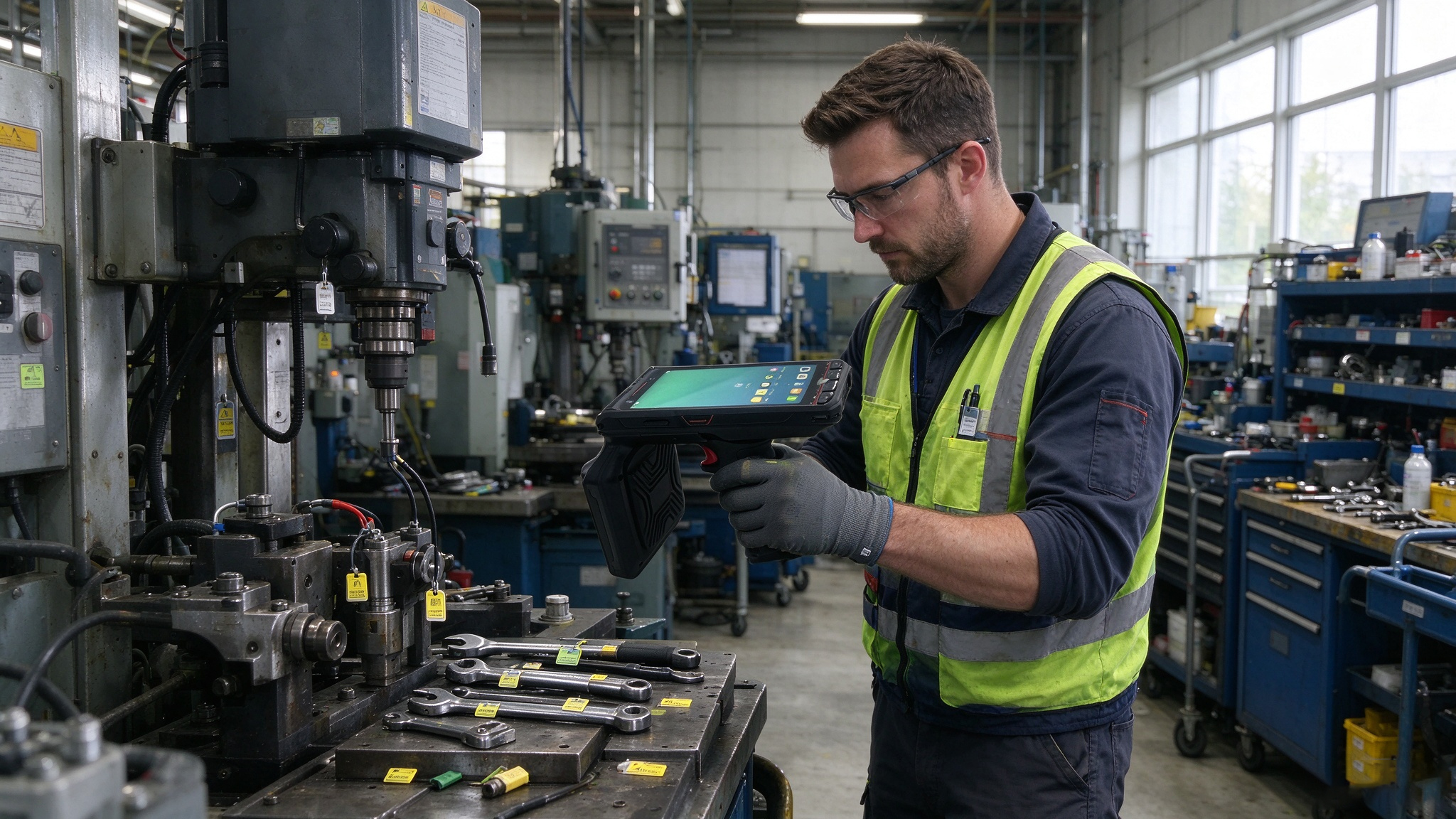

For example, an industrial maintenance department may attach RFID tags to tools. Employees can use handheld RFID scanners to confirm tool availability before and after maintenance activities.

This reduces reliance on manual spreadsheets and improves visibility of physical assets.

However, RFID should not be confused with GPS tracking.

An RFID scanner identifies a tagged object when communication occurs within the scanning range. It does not continuously transmit global location information.

Common Questions About RFID Scanners

1. What is RFID scanner used for?

An RFID scanner is used to identify RFID-tagged objects and collect their information through radio-frequency communication. Common applications include inventory management, warehouse tracking, asset identification, retail operations, manufacturing, and supply chain monitoring.

2. Is an RFID scanner the same as an RFID reader?

In many cases, the terms are used interchangeably. Technically, an RFID reader communicates with RFID tags, while “scanner” is a commonly used business term describing a device used for RFID identification tasks.

3. Can RFID scanners read multiple tags at the same time?

Yes, many RFID scanners, especially UHF RFID systems, can identify multiple compatible tags simultaneously. Actual performance depends on the scanner model, tag design, environment, and configuration.

4. How far can an RFID scanner read?

The reading distance depends on RFID frequency, antenna design, output power, tag sensitivity, and environmental conditions. UHF RFID scanners generally provide longer reading ranges than HF or LF RFID technologies.

5. Do RFID scanners need line of sight?

No. Unlike barcode scanners, RFID scanners usually do not require direct visual contact with each tag. However, materials, tag orientation, and environmental conditions can affect communication.

6. Can RFID scanners replace barcode scanners?

Not always. RFID scanners provide advantages for automated identification and large-scale inventory tracking, while barcode scanners remain practical for many simple identification tasks.

7. Are RFID scanners safe to use?

RFID scanners operate using radio-frequency communication within regulated frequency ranges. They are widely used in commercial environments including warehouses, retail stores, manufacturing facilities, and logistics operations.

Building an Effective RFID Scanning System

A successful RFID scanning project requires more than purchasing a scanner.

The complete solution should consider:

• Suitable RFID tags.
• Correct scanner selection.
• Antenna placement.
• Reading environment.
• Software integration.
• Operational workflow.

The most effective RFID systems are designed around the real problem being solved.

For example:

A warehouse may need handheld RFID scanners for flexible inventory checks.

A production facility may need fixed RFID scanners for automated material tracking.

A retail business may need compact RFID scanners for stock visibility.

The answer to what is rfid scanner becomes clearer when viewed from practical applications: it is a tool that connects physical objects with digital information.

RFID scanners help organizations move from manual identification toward automated data collection, improving visibility and efficiency across many industries.

Cykeo provides RFID reader and scanner solutions designed for industrial identification applications, including warehouse inventory, asset management, smart equipment, and automated tracking systems.
