What Is RFID Reader and How Does It Enable Smart Identification?

An RFID reader is a device that communicates with RFID tags through radio frequency signals to read, write, and manage stored data. It identifies tagged objects without direct contact, enabling faster tracking, inventory control, and automated management across libraries, healthcare, manufacturing, logistics, and enterprise environments.

What Is RFID Reader Technology and Why Is It Important?

An RFID reader is the core communication component in an RFID identification system. It sends radio frequency energy through an antenna, activates nearby RFID tags, receives the returned data, and transfers the information to management software.

Unlike traditional barcode scanners, RFID readers do not require optical alignment. A tagged item can be identified even when the label is hidden inside packaging, attached to equipment, or placed among multiple objects.

From my experience working with RFID deployment projects at Cykeo, the biggest misunderstanding about RFID readers is that companies often focus only on reading distance. In real projects, stability, interference resistance, writing accuracy, and software integration determine whether a system works reliably after installation.

During a library RFID conversion project, for example, hundreds of book tags were processed on a desktop RFID reading platform. The challenge was not simply recognizing tags; it was ensuring every EPC code was correctly associated with the right book record before entering the database. A stable RFID reader reduced repeated scanning and prevented incorrect data binding.

According to the RFID market analysis published by RAIN Alliance, billions of RAIN RFID tags are being used globally each year, showing the increasing adoption of RFID technology in supply chain, retail, healthcare, and asset management applications.

How Does an RFID Reader Work in Real Applications?

An RFID reader works through three primary communication steps:

Process	Description
Signal transmission	The RFID reader generates RF energy through its antenna
Tag activation	Passive RFID tags use received energy to respond with stored information
Data processing	The reader sends tag information to software platforms for identification and management

The process happens within milliseconds. In a professional RFID management environment, the reader is not operating alone. It works together with RFID tags, antennas, databases, and application software.

A typical Cykeo UHF RFID desktop reading platform demonstrates this workflow:

• RFID tag receives EPC programming information
• Reader captures EPC identification data
• Software links EPC with object information
• Database stores the relationship between tag ID and physical asset
• Operators can later search, borrow, return, or audit items

This approach is widely used in:

• Library book registration
• Hospital asset tracking
• Archive document management
• Tool management
• Laundry and textile tracking
• Banking document control
• Power equipment inspection

RFID Reader Types Used for Different Management Needs

Not every RFID reader is designed for the same environment. Selecting the correct type affects accuracy and operational efficiency.

Fixed RFID Reader

Fixed RFID readers are installed in locations such as warehouse gates, production lines, and smart cabinets. They continuously monitor tagged items passing through specific areas.

Typical advantages:

• Long reading distance
• Automatic inventory collection
• Suitable for high-volume operations
• Supports integration with enterprise software

Handheld RFID Reader

Handheld devices combine RFID reading modules with mobile terminals. They are commonly used for warehouse inventory, equipment inspection, and outdoor asset management.

Operators can move freely while collecting RFID data.

Desktop RFID Reader

Desktop RFID readers are designed for controlled reading and writing environments.

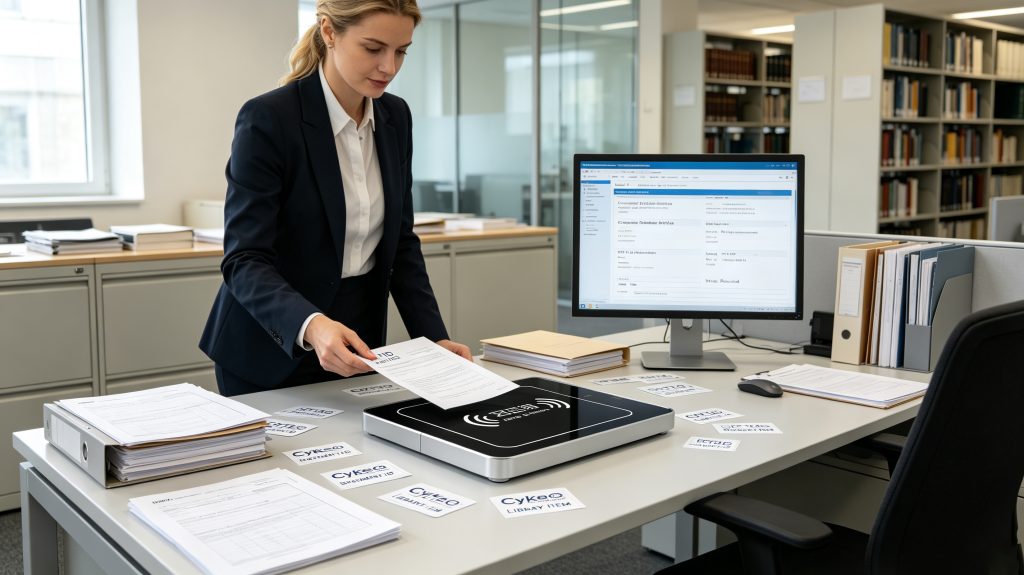

Cykeo’s UHF RFID desktop reading platform belongs to this category. It is mainly used by tag administrators for:

• RFID tag registration
• EPC code writing
• Item information binding
• Tag conversion
• Borrowing and returning management
• Registration statistics
• Operation log queries

The device uses a near-field antenna design, controlling the reading area within approximately 30 cm and writing distance within approximately 10 cm. This controlled reading zone helps prevent accidental reading or writing of surrounding tags.

Why RFID Reader Accuracy Matters More Than Just Reading Speed

In practical deployments, reading speed is only one part of performance.

A professional RFID reader must handle:

• Dense tag environments
• Multiple simultaneous responses
• Data filtering
• Communication stability
• Software compatibility
• Long-term operation reliability

The ISO/IEC 18000-63 standard defines communication requirements for UHF RFID systems, including EPC Class 1 Gen 2 technology used widely in supply chain and asset identification applications. International Organization for Standardization (ISO)

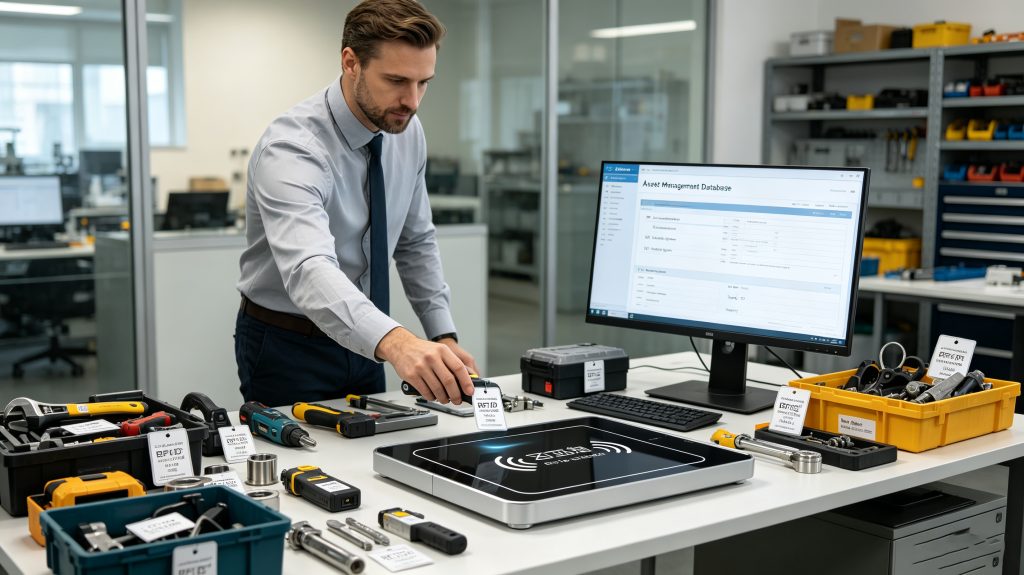

For example, in a tool management environment, a reader may need to identify dozens of tagged tools at once. If the reader writes incorrect information or misses a tag during registration, the database accuracy will gradually decline.

Cykeo RFID reader platforms integrate high-efficiency signal processing algorithms to improve tag recognition performance. The desktop platform supports multi-tag identification, tag data filtering, RSSI signal strength monitoring, and stable writing operations with maximum output power up to 33 dBm.

This makes the device suitable for organizations that require reliable tag initialization rather than simple tag detection.

Cykeo RFID Reader Application Experience in Real Management Environments

In many RFID projects, the reader becomes the connection point between physical assets and digital information. The installation environment often looks simple from the outside — a desk, a computer, a stack of labels — but the actual workflow behind it requires precision.

I have participated in RFID system evaluations where hundreds of tags needed to be registered before deployment. The most time-consuming part was not attaching the labels; it was ensuring every EPC number represented the correct object record. A single incorrect association could affect later inventory, borrowing records, or asset audits.

This is why Cykeo designs RFID readers around practical operational requirements.

The UHF RFID desktop reading platform is developed specifically for tag administrators who handle daily RFID initialization and management tasks. It combines RFID reading, writing, display interaction, and data transmission into one workstation.

Typical workflow:

1. Operator places an RFID tag inside the reading area.
2. The reader captures the EPC electronic product code.
3. The operator enters or scans related asset information.
4. The system links EPC data with the database record.
5. The registered item becomes searchable and traceable.

This workflow is especially valuable in environments where thousands of assets require accurate registration.

Examples include:

• University libraries processing new books
• Hospitals managing medical equipment
• Archives digitizing document collections
• Banks organizing important files
• Power companies tracking inspection tools
• Police departments managing controlled equipment

Key Technical Advantages of Cykeo RFID Reader Platform

1. Controlled Reading Area for Accurate Tag Operations

A common problem with RFID registration stations is unintended reading of nearby tags.

For example, when multiple tagged items are placed around a workstation, an overly large reading field may capture incorrect information.

The Cykeo desktop RFID reader uses a near-field antenna design:

Function	Performance
Reading range	Within 30 cm
Writing range	Within 10 cm
Operation mode	Controlled close-range identification

This design creates a more predictable working environment, especially for tag writing tasks.

During EPC programming, controlled distance is often more important than maximum distance. Registration environments require precision rather than long-range detection.

2. Stable Multi-Tag Recognition Capability

RFID systems frequently operate in situations where several tags respond simultaneously.

The reader needs effective anti-collision processing to separate multiple signals and maintain accurate identification.

Cykeo RFID readers use advanced tag collision processing algorithms to support:

• Multiple tag recognition
• Dense tag reading
• Data filtering
• RSSI signal strength monitoring

This allows operators to process groups of RFID labels efficiently while maintaining data accuracy.

3. Reliable RFID Tag Writing Performance

Writing RFID information is usually more sensitive than reading.

A failed write operation may require manual verification and repeat processing, increasing labor costs.

The Cykeo RFID desktop platform supports stable writing operations with:

• Maximum output power up to 33 dBm
• High writing success rate
• Consistent signal processing performance

For tag issuing centers, libraries, and enterprise asset departments, reliable writing directly affects later tracking accuracy.

4. Easy Software Integration for Enterprise Systems

An RFID reader should not become an isolated device.

Professional RFID projects require communication between hardware and software platforms.

Cykeo provides development resources including:

• C# development materials
• Java development materials
• API integration support

This allows companies to connect RFID readers with:

• Library management systems
• Asset management platforms
• Warehouse software
• Enterprise databases

Cykeo UHF RFID Desktop Reader Technical Specification

Feature	Specification
Product Type	UHF RFID Desktop Reading Platform
RFID Protocol	ISO18000-6C / EPC C1G2
Interface	USB
Display	Optional integrated operation display system
Reading Mode	Multi-tag identification
Reading Distance	≤30 cm
Writing Distance	≤10 cm
Output Power	Maximum 33 dBm
Functions	Tag registration, EPC writing, item binding, query, statistics
Supported Development	C#, Java
Application	Library, hospital, archive, tool, textile management

RFID Reader Applications Across Industries

Smart Library Management

Libraries were among the earliest large-scale adopters of RFID technology.

A desktop RFID reader helps librarians:

• Register new books
• Write RFID tags
• Convert old labels
• Verify item information
• Process borrowing and returns

Instead of scanning one barcode at a time, RFID allows multiple tagged items to be identified during a single operation.

Hospital Asset Management

Hospitals manage thousands of movable assets, including:

• Medical devices
• Emergency equipment
• Instruments
• Supplies

RFID readers help create accurate asset records and reduce manual inventory workload.

The World Health Organization has highlighted the importance of digital technologies in strengthening healthcare systems, including better information management and operational efficiency. World Health Organization Digital Health

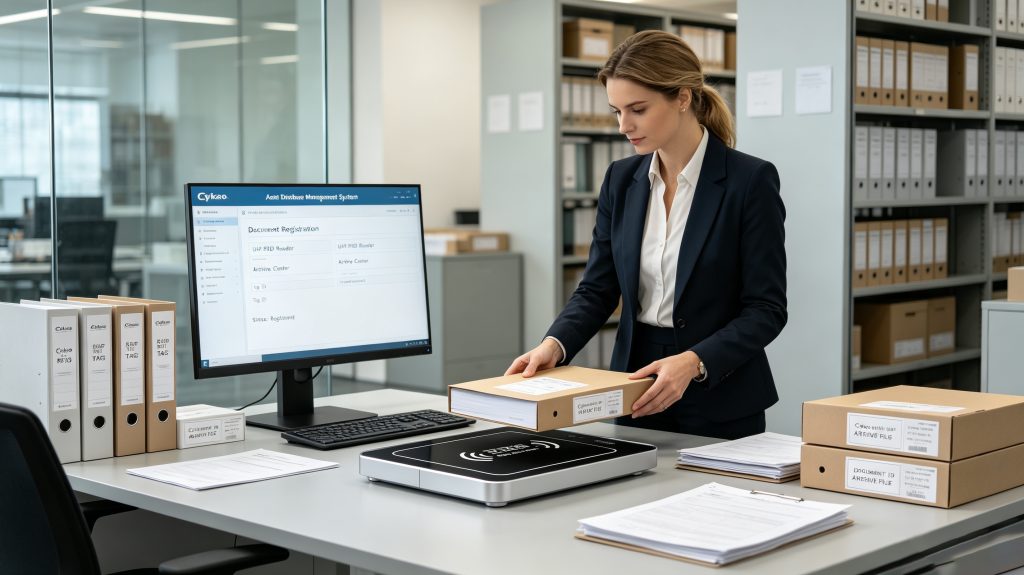

Archive and Document Tracking

For archives and financial institutions, document location accuracy is critical.

RFID readers allow organizations to associate each document folder with a unique RFID identity, creating a searchable digital record.

The physical file remains unchanged, but its management process becomes much more transparent.

Frequently Asked Questions About RFID Reader

1. What is RFID reader used for?

An RFID reader is used to identify, read, write, and manage information stored on RFID tags. It allows organizations to connect physical objects with digital records.

Common applications include:

• Inventory management
• Asset tracking
• Library automation
• Healthcare equipment management
• Warehouse operations
• Document tracking
• Tool management

Unlike barcode systems, RFID readers can communicate with multiple tags simultaneously without requiring direct visual contact.

For example, a library employee can place several books near an RFID desktop reader, register their EPC information, and automatically associate each book with the library database.

2. How far can an RFID reader scan?

The reading distance depends on the RFID frequency, antenna design, reader power, and operating environment.

Typical ranges:

RFID Type	Typical Reading Distance
HF RFID Reader	Several centimeters
UHF RFID Reader	Several meters
Desktop RFID Reader	Controlled short distance

Cykeo’s UHF RFID desktop reading platform is designed for controlled registration environments rather than long-distance monitoring. Its reading range is controlled within approximately 30 cm, while writing is controlled within approximately 10 cm.

This design helps operators avoid unintended tag operations when registering or modifying RFID information.

3. Can an RFID reader write data to RFID tags?

Yes. Many professional RFID readers support both reading and writing functions.

Writing operations are commonly used during:

• RFID tag initialization
• EPC code programming
• Asset registration
• Label conversion
• Product identification setup

During tag issuing, the RFID reader writes unique identification information into the RFID chip and links it with database records.

For enterprise applications, writing stability is critical because incorrect tag programming can affect the entire tracking process.

4. What protocol does an RFID reader use?

RFID readers support different communication standards depending on frequency and application.

The Cykeo UHF RFID desktop reader supports:

• ISO18000-6C
• EPC Class 1 Gen 2

EPCglobal Gen2 technology has become one of the most widely adopted UHF RFID communication standards for supply chain and asset identification.

The standard defines communication methods between RFID readers and tags, ensuring interoperability between devices from different manufacturers.

5. What is the difference between an RFID reader and a barcode scanner?

Although both technologies identify objects, their working methods are different.

Feature	RFID Reader	Barcode Scanner
Reading method	Radio frequency communication	Optical scanning
Line of sight	Not required	Required
Multiple reading	Supported	Usually one at a time
Data storage	RFID chip memory	Printed code
Writing ability	Supported by many readers	Usually unavailable

In real projects, RFID does not always replace barcode technology. Instead, companies often combine both technologies.

For example, a hospital may use barcode labels for quick identification while using RFID readers for automated equipment inventory.

Why Choose Cykeo RFID Reader Solutions?

At Cykeo, RFID reader development focuses on the operational details that determine whether a system works after deployment.

A successful RFID project requires more than a reader with strong output power. It requires:

• Reliable tag communication
• Accurate EPC data handling
• Stable writing performance
• Controlled reading areas
• Easy software integration

The Cykeo UHF RFID desktop reading platform combines these requirements into a practical workstation.

Key advantages include:

High Efficiency Tag Processing

The system supports multi-tag identification and advanced collision processing algorithms, allowing operators to process multiple RFID labels efficiently.

Professional Registration Workflow

The device supports:

• Tag registration
• Item binding
• EPC writing
• Information conversion
• Query management
• Statistical analysis
• Operation records

Flexible Enterprise Integration

With C# and Java development resources, companies can integrate the RFID reader into existing software platforms.

This is particularly valuable for organizations managing large numbers of assets where manual data entry creates unnecessary workload.

Final Thoughts: Understanding What Is RFID Reader Means Understanding Smart Identification

Understanding what is rfid reader requires looking beyond the hardware itself. An RFID reader is the communication bridge between digital systems and physical assets.

In practical environments, the value of an RFID reader comes from accuracy, stability, and integration capability.

Whether it is registering thousands of books in a library, managing hospital equipment, tracking industrial tools, or organizing enterprise archives, RFID readers create a reliable connection between objects and information.

Cykeo continues developing RFID identification solutions focused on real operational challenges, helping organizations improve visibility, reduce manual work, and build smarter management processes.

FAQ Schema Suggested Questions

Q1: What is RFID reader?
An RFID reader is a device that uses radio frequency signals to communicate with RFID tags, allowing organizations to identify, read, write, and manage tagged objects.

Q2: Can RFID readers write tags?
Yes. Many RFID readers support writing EPC information and storing identification data during tag registration.

Q3: Where are RFID readers used?
RFID readers are widely used in libraries, hospitals, warehouses, manufacturing, archives, logistics, and asset management systems.

Q4: What RFID protocol does Cykeo reader support?
Cykeo UHF RFID readers support ISO18000-6C and EPC Class 1 Gen 2 protocols for reliable tag communication.
