what is rfid asset tracking? RFID asset tracking is a technology that uses RFID tags, readers, and software platforms to automatically identify, locate, and manage physical assets without manual scanning. It enables organizations to monitor tools, equipment, inventory, and valuable items in real time.

During RFID deployment projects, I have seen that asset tracking success rarely depends only on the tag itself. A hospital instrument tray, an aviation maintenance tool, and a warehouse pallet may all require RFID identification, but their environments are completely different.

After years working with RFID identification systems, my engineering team at Cykeo has evaluated RFID deployments across manufacturing facilities, logistics warehouses, medical supply rooms, and retail environments. The biggest lesson from field testing is simple: asset tracking performance comes from the relationship between the RFID tag, reader installation, and operational workflow.

According to GS1, RFID technology provides automatic identification capabilities that improve supply chain visibility by enabling organizations to capture item-level data without direct line-of-sight scanning. This difference is what makes RFID asset tracking valuable compared with traditional manual inventory methods.

How RFID Asset Tracking Works in Real Operations

An RFID asset tracking system normally includes four essential components:

Component	Function
RFID Tag	Stores unique identification information attached to assets
RFID Reader	Captures tag data through radio frequency communication
Antenna System	Transfers RF signals between tags and readers
Software Platform	Converts collected data into inventory and management information

Unlike barcode systems that require workers to scan each item individually, RFID readers can identify multiple tagged assets simultaneously.

For example, during a warehouse project, we tested a fixed UHF RFID reader installed at an entrance point. A worker pushing a cart containing multiple tagged components did not need to stop or align every item with a scanner. The system automatically collected tag information as the cart passed through the reading zone.

This operational difference becomes important in environments where thousands of assets move every day.

RFID Asset Tracking Technology Behind the System

RFID asset tracking usually uses UHF RFID technology based on the EPC Class 1 Gen 2 / ISO 18000-63 standard. These systems operate in the UHF frequency range and are designed for longer-distance identification.

The core workflow is:

1. RFID tag receives energy from the reader signal.
2. The tag chip responds with stored identification data.
3. RFID reader captures the response.
4. Software updates asset status automatically.

A typical enterprise RFID deployment can include:

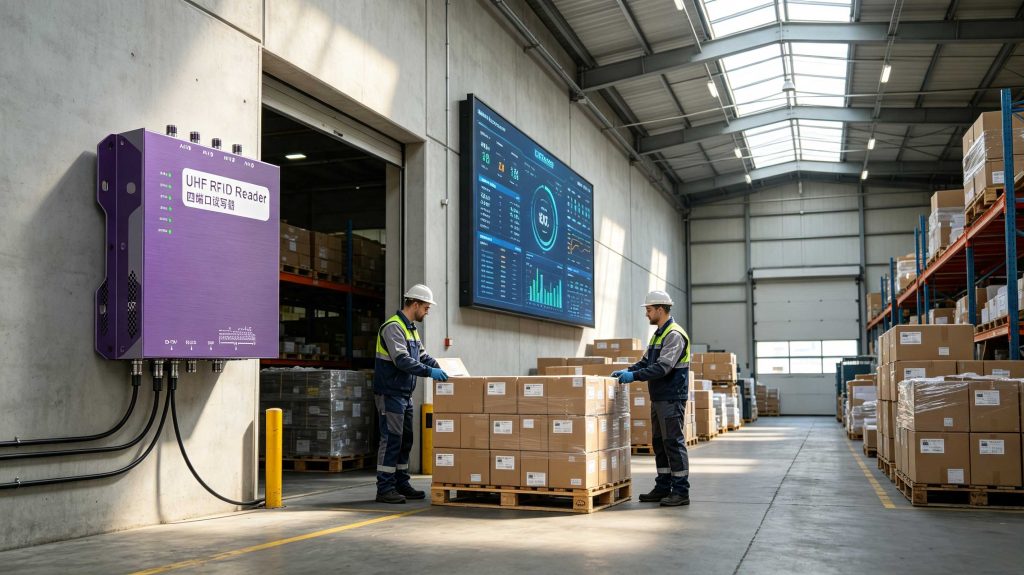

• Fixed RFID readers at warehouse entrances
• Handheld RFID scanners for field inventory
• RFID smart cabinets for controlled tools
• RFID shelves for medical supplies
• RFID portals for automated movement tracking

The challenge is not simply reading tags. The challenge is achieving reliable identification in real environments.

Metal surfaces, liquids, human bodies, electromagnetic interference, and tag orientation can influence RFID performance. This is why professional RFID system design requires practical testing before large-scale installation.

Field Experience: Why Asset Environment Matters

One mistake I frequently see in early RFID projects is selecting tags based only on price.

A low-cost RFID label may work perfectly on cardboard packaging but fail when attached to:

• Metal equipment
• Industrial machinery
• Medical devices
• Outdoor containers

During one industrial tool management project, standard RFID labels showed unstable performance when attached directly to metallic surfaces. After switching to specialized on-metal RFID tags and adjusting antenna placement, the reading consistency improved significantly.

The lesson was clear: RFID asset tracking is an engineering system, not just a labeling process.

Key Benefits of RFID Asset Tracking

1. Real-Time Asset Visibility

RFID allows companies to know:

• What assets exist
• Where assets are located
• When assets move
• Who manages them

This is especially important for industries where missing equipment creates operational delays.

2. Faster Inventory Operations

Manual inventory counting can require significant labor hours.

RFID automation reduces repetitive scanning tasks by allowing multiple tags to be captured simultaneously.

A study published by Auburn University RFID Lab has documented RFID improvements in retail inventory accuracy and operational efficiency, demonstrating the practical value of automated identification technologies.

3. Better Asset Security

RFID systems can create automatic alerts when:

• Equipment leaves authorized areas
• Tools are missing
• Inventory movement is abnormal

This makes RFID useful for:

• Aviation maintenance
• Healthcare equipment management
• Manufacturing tools
• Government assets

RFID Asset Tracking vs Traditional Tracking Methods

Feature	RFID Asset Tracking	Barcode Tracking
Reading Method	Wireless radio communication	Optical scanning
Line of Sight Required	No	Yes
Multiple Item Reading	Yes	Usually one by one
Data Automation	High	Medium
Suitable for Large Assets	Excellent	Limited

RFID does not replace every barcode application, but for high-value assets and frequent movement environments, RFID provides deeper visibility.

Cykeo RFID Asset Tracking Experience

At Cykeo, RFID projects are designed around actual operational requirements rather than simple hardware installation.

Our engineers focus on:

• Tag selection based on application environment
• Reader antenna positioning
• Communication architecture
• Software integration
• Testing before deployment

From warehouse inventory control to medical supply tracking, the goal is always the same: create an RFID system that performs consistently after installation.

what is rfid asset tracking is ultimately about transforming physical assets into connected, identifiable resources. The technology becomes valuable when RFID hardware, software, and workflow design work together.

Cykeo RFID Asset Tracking Technical Advantages

After years of RFID deployment experience, Cykeo focuses on solving the practical problems behind asset tracking: unstable reading environments, complex workflows, and integration difficulties. The RFID asset tracking solutions are designed around real industrial requirements rather than laboratory conditions.

In actual projects, the difference between a basic RFID installation and an enterprise-grade system usually appears after deployment. A system that performs well on day one must continue working when assets move, tags become dirty, environments change, and thousands of identification events happen daily.

Cykeo RFID asset tracking solutions combine UHF RFID readers, industrial-grade antennas, specialized tags, and software integration capabilities to support:

• High-speed multi-tag identification
• Long-range asset recognition
• Metal and harsh-environment applications
• Automated inventory management
• Real-time asset status updates

RFID systems are widely used for asset management because RFID technology can identify objects through radio communication without direct visual alignment between the tag and reader.

RFID Asset Tracking System Architecture Deep Dive

A reliable RFID asset tracking system is not only a reader and a tag. It is a complete information architecture connecting physical assets with digital management platforms.

1. RFID Tag Layer

The RFID tag is the identity carrier of each asset.

Depending on application requirements, Cykeo selects different RFID tag structures:

Asset Type	Recommended RFID Tag
Warehouse pallets	UHF RFID label tags
Metal tools	On-metal RFID tags
Medical equipment	Durable industrial RFID tags
IT equipment	Compact RFID tags
Outdoor assets	Waterproof rugged RFID tags

The tag stores a unique identification number, usually linked with enterprise software records.

For example:

A maintenance tool may contain:

• Tool ID
• Department ownership
• Maintenance history
• Inspection records
• Usage status

The RFID tag itself does not replace management software. It creates the connection between physical objects and digital information.

2. RFID Reader and Antenna Layer

The RFID reader is responsible for communicating with multiple tags simultaneously.

Cykeo RFID readers are designed for demanding applications requiring:

• High reading sensitivity
• Stable communication
• Multi-tag processing
• Flexible deployment

Typical reader deployment includes:

Fixed RFID Readers

Used at:

• Warehouse entrances
• Production lines
• Smart cabinets
• Inventory checkpoints

Handheld RFID Readers

Used for:

• Mobile inventory counting
• Equipment inspection
• Field asset verification

Integrated RFID Portals

Used for:

• Automatic movement tracking
• Cart and pallet identification
• Gate-based monitoring

Industrial RFID systems often require careful consideration of tag materials, environmental conditions, and read distance because assets may experience vibration, temperature changes, moisture, or metal interference.

Cykeo RFID Asset Tracking Performance Advantages

High-Speed Bulk Reading Capability

Traditional barcode inventory requires workers to locate and scan individual labels.

RFID changes this workflow.

A warehouse operator can walk through an area and capture multiple tagged assets automatically.

This is particularly valuable in:

• Distribution centers
• Tool rooms
• Hospital storage areas
• Manufacturing facilities

During field testing, we found that the biggest efficiency improvement was not only faster counting. It was reducing missing information between physical movement and digital records.

Stable Industrial Identification

Real environments are complicated.

A successful RFID system must handle:

• Metal shelves
• Dense storage
• Moving equipment
• Human interference
• Changing inventory layouts

Cykeo RFID solutions use optimized antenna design and reader configuration to improve identification stability.

The goal is not simply achieving maximum reading distance.

The goal is controlled and accurate reading.

A warehouse doorway that reads every passing pallet incorrectly creates operational problems. A properly designed RFID zone captures the correct assets at the correct moment.

RFID Asset Tracking vs Barcode Comparison

Feature	RFID Asset Tracking	Barcode
Reading Method	Radio frequency communication	Optical scanning
Line of Sight	Not required	Required
Multiple Item Reading	Yes	Usually one by one
Reading Speed	High	Medium
Data Automation	Excellent	Limited
Environmental Resistance	Depends on tag type	Label condition sensitive

GS1 explains that RFID enables automatic identification of products, cartons, and physical assets throughout their lifecycle, providing additional visibility for supply chain operations.

Barcode technology remains useful for low-cost applications. However, when companies manage thousands of moving assets, RFID provides a different operational model.

RFID Asset Tracking Industry Case Studies

1. Healthcare Asset Management

Hospitals manage thousands of valuable assets:

• Surgical instruments
• Medical devices
• Emergency equipment

RFID helps hospitals understand:

• Where equipment is located
• Whether equipment is available
• When maintenance is required

A missing medical device is not only an inventory problem. It can affect patient service efficiency.

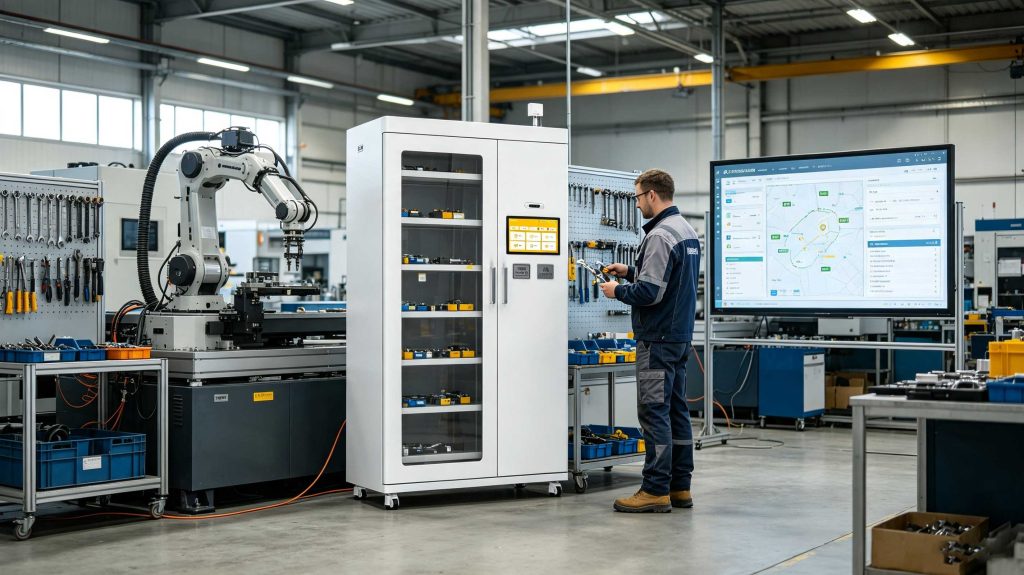

2. Manufacturing Tool Tracking

Manufacturing plants often struggle with:

• Tool loss
• Incorrect storage
• Manual inspection records

RFID smart tool management enables:

• Automatic check-in/check-out
• Tool usage history
• Missing tool alerts

In high-value manufacturing environments, knowing the exact status of tools reduces downtime.

3. Warehouse and Logistics

Modern warehouses require faster inventory visibility.

RFID asset tracking supports:

• Pallet monitoring
• Container tracking
• Shipment verification
• Automated inventory counting

Large logistics operators are increasingly adopting RFID to reduce dependence on manual scanning processes and improve shipment visibility.

RFID Asset Tracking Deployment Strategy

A successful RFID project should not begin with hardware purchasing.

The correct process is:

Evaluate:

Step 1: Analyze Asset Environment

• Asset material
• Movement frequency
• Reading distance
• Storage conditions

Step 2: Select Appropriate RFID Tags

Different assets require different tag solutions.

Examples:

• Plastic containers → standard UHF labels
• Metal tools → anti-metal tags
• Outdoor equipment → rugged tags

Step 3: Design Reader Locations

Reader placement determines system performance.

Important factors:

• Antenna direction
• Reading zone
• Interference sources
• Asset movement path

Step 4: Integrate Software

RFID data should connect with:

• ERP systems
• Warehouse management systems
• Maintenance platforms
• Inventory databases

A good RFID system does not create another isolated database. It improves existing workflows.

RFID Asset Tracking FAQ

1. What is RFID asset tracking used for?

RFID asset tracking is used to identify, monitor, and manage physical assets automatically. Common applications include warehouses, hospitals, manufacturing plants, logistics centers, and equipment management.

2. How far can RFID asset tracking read tags?

Reading distance depends on frequency, reader power, antenna design, and tag type. UHF RFID systems can achieve several meters of reading distance in suitable environments.

3. Does RFID require line of sight?

No. RFID does not require direct visual scanning like barcode systems. Radio communication allows readers to identify tags without physically aligning with each label.

4. Can RFID track metal assets?

Yes. However, standard RFID tags may perform poorly on metal surfaces. Specialized on-metal RFID tags are designed for equipment, tools, and industrial assets.

5. Is RFID asset tracking better than barcode?

RFID provides advantages for large-scale automation, bulk reading, and real-time visibility. Barcode remains suitable for simple and low-cost identification tasks.

6. How long do RFID tags last?

Passive RFID tags can operate for many years because they do not contain batteries. Actual lifespan depends on tag construction and environmental exposure.

Building Smarter Asset Visibility with RFID

what is rfid asset tracking is ultimately about creating a digital connection between physical assets and business operations.

The strongest RFID deployments are not defined only by reading distance or hardware specifications. They succeed because the entire system — tags, readers, antennas, software, and workflow — is designed around real operational challenges.

Cykeo continues developing RFID solutions for industrial asset management, warehouse automation, healthcare inventory control, and smart identification applications.

When assets become visible, decisions become faster.
