What Is Meant by RFID Tag?

What is meant by RFID tag refers to a small electronic identification device that uses radio frequency technology to store data and communicate with RFID readers wirelessly. An RFID tag usually contains a microchip and antenna, allowing objects to be identified, tracked, or managed automatically without direct contact or visual scanning.

Unlike a barcode, an RFID tag does not require a scanner to see a printed pattern. The tag can respond to radio signals from a compatible RFID reader and transmit stored information, such as an identification number or product data.

According to GS1, RFID technology uses radio waves to automatically identify and capture information stored on tags attached to objects. GS1 also defines RAIN RFID as a wireless technology based on EPC standards that enables item-level identification across supply chains.

In real RFID deployments, the tag itself is only one part of the system. The complete solution includes RFID tags, readers, antennas, software platforms, and databases. At Cykeo, we have seen that many early RFID projects focus too heavily on tag selection while overlooking the reading environment, tag placement, and data workflow.

A well-designed RFID tag system is not simply about “reading more tags.” It is about creating reliable identification between physical objects and digital records.

RFID Tag Meaning: Understanding the Basic Structure

What Components Make Up an RFID Tag?

An RFID tag may look like a simple sticker or small plastic device, but internally it contains several important components.

A typical RFID tag includes:

Component	Function
RFID Chip	Stores data and processes communication
RFID Antenna	Receives and sends radio signals
Substrate	Supports electronic components
Encapsulation	Protects the tag in harsh environments
Adhesive Layer	Allows attachment to products or assets

The RFID chip stores the identification information, while the antenna enables communication with an RFID reader.

For passive RFID tags, the chip does not contain its own battery. Instead, it receives energy from the reader’s radio frequency field and uses that energy to transmit information back.

This design allows passive tags to remain lightweight, inexpensive, and suitable for large-scale applications.

According to the RAIN Alliance, RAIN RFID systems are based on passive UHF RFID technology and are widely used for identifying items in supply chains, retail, and logistics environments.

How Do RFID Tags Work?

The Communication Process Between Tag and Reader

The operation of an RFID tag follows a simple but highly engineered communication process.

When an RFID reader sends out radio signals:

1. The RFID tag antenna receives energy from the signal.
2. The chip activates and processes stored information.
3. The tag sends identification data back through radio communication.
4. The reader captures the response.
5. Software interprets the information and connects it with a business record.

The important detail is that RFID tags do not usually “broadcast” information continuously.

They respond when activated by an RFID reader.

This difference matters in industrial environments. A warehouse containing thousands of tagged cartons does not require every tag to transmit constantly. The reader controls when and where identification occurs.

In Cykeo RFID system testing, controlling the read zone is often more important than simply increasing reading distance. A longer range is not always better. In a production line or warehouse portal, uncontrolled reads can create unnecessary data and reduce system accuracy.

Types of RFID Tags Explained

Passive, Active, and Semi-Passive RFID Tags

RFID tags are commonly divided according to their power source.

RFID Tag Type	Power Source	Typical Applications
Passive RFID Tag	Powered by reader signal	Inventory, retail, logistics
Active RFID Tag	Internal battery	Long-range tracking, asset monitoring
Semi-Passive RFID Tag	Battery-assisted chip	Sensor-based applications

Passive RFID Tags

Passive RFID tags are the most widely used type.

They are commonly found in:

• Product labels
• Warehouse cartons
• Library books
• Clothing items
• Industrial assets

Because they do not require batteries, passive tags can be produced in large quantities and attached to millions of items.

Active RFID Tags

Active RFID tags contain their own battery and can transmit signals over longer distances.

They are often used for:

• Vehicle tracking
• Large asset management
• Real-time location systems

Semi-Passive RFID Tags

Semi-passive tags use battery power for internal functions while still communicating through RFID reader signals.

They are often selected when applications require additional features such as sensing or monitoring.

What Information Can an RFID Tag Store?

RFID Tag Data and Memory

The amount and type of information stored on an RFID tag depends on the chip design and application requirements.

Common RFID tag data includes:

• Unique identification number
• Electronic Product Code (EPC)
• Product information
• Asset identification data
• Manufacturing information
• Tracking references

In many UHF RFID applications, the tag stores an EPC identifier rather than large amounts of product information.

The EPC acts as a digital key that connects the physical item to information stored in enterprise software.

For example:

RFID Tag Data	Business System Information
EPC number	Product record
Asset ID	Maintenance history
Serial number	Warranty information
Item code	Inventory status

This approach keeps RFID communication efficient while allowing companies to manage detailed information in their own systems.

GS1 explains that EPC provides unique identification for physical objects and supports item-level visibility through RFID-based systems.

RFID Tag Applications in Business

Where RFID Tags Are Used Today

RFID tags are used wherever organizations need faster identification and better visibility.

Common applications include:

Supply Chain and Logistics

RFID tags help identify:

• Shipping cartons
• Pallets
• Inventory items
• Returnable containers

Retail

Retailers use RFID tags for:

• Stock visibility
• Automated inventory counting
• Loss prevention processes

Manufacturing

Manufacturers apply RFID tags for:

• Work-in-progress tracking
• Tool management
• Component identification

Healthcare

Healthcare organizations use RFID tags for:

• Medical equipment management
• Asset tracking
• Supply identification

Libraries and Documents

RFID tags support:

• Book identification
• Automated borrowing systems
• Document management

The application determines the right RFID tag type. A laundry tag designed for repeated washing requires very different construction from a paper label used on a retail product.

Why RFID Tag Selection Matters

Choosing the Right Tag for Real Environments

Selecting an RFID tag is not only about frequency or read distance.

Professional RFID projects consider:

• Material being tagged
• Reading environment
• Required durability
• Operating temperature
• Reader configuration
• Mounting method
• Data requirements

For example, attaching a standard RFID label to a metal surface may create poor performance because metal affects RF behavior.

Industrial applications may require specialized on-metal tags, while retail applications often use lightweight paper labels.

During Cykeo RFID application testing, tag placement is usually evaluated together with reader antenna positioning. The same tag can perform differently on cardboard, plastic, glass, or metal surfaces.

The physical environment becomes part of the RFID design.

RFID Tag Frequency Standards

How Frequency Determines RFID Tag Performance

RFID tags operate at different frequency ranges, and the selected frequency affects reading distance, application environment, and system design.

The three main RFID frequency categories are:

Frequency	Range Category	Typical Applications
LF (Low Frequency)	Around 125–134 kHz	Animal identification, access systems
HF (High Frequency)	13.56 MHz	NFC, cards, libraries, smart labels
UHF (Ultra High Frequency)	Approximately 860–960 MHz	Supply chain, logistics, inventory

For modern enterprise identification, UHF RFID tags are widely used because they support longer reading distances and multi-tag identification.

The GS1 EPC Gen2 standard, also known as ISO/IEC 18000-63, defines communication protocols for UHF RAIN RFID systems. These systems are commonly used in logistics and supply-chain applications where hundreds or thousands of tagged items may need to be identified automatically.

However, frequency selection is not simply about choosing the longest possible range.

In warehouse environments, an uncontrolled long-range read can create inaccurate data. A well-designed RFID system focuses on controlling the read area and ensuring that only the intended tags are captured.

RFID Tag vs Barcode: What Is the Difference?

Why Companies Move Beyond Traditional Identification

RFID tags and barcodes both identify products, but they work differently.

Feature	RFID Tag	Barcode
Reading Method	Radio communication	Optical scanning
Line of Sight Required	No	Usually yes
Multiple Item Reading	Yes	Usually one at a time
Data Storage	Electronic memory	Printed information
Environmental Resistance	Available for harsh conditions	Depends on printing quality

A barcode requires a scanner to visually capture the printed code.

An RFID tag communicates through radio frequency signals, allowing readers to identify multiple objects without manually aiming at each label.

For example, a warehouse worker scanning 200 cartons with barcodes may need to handle each item individually. An RFID portal equipped with fixed readers can capture many EPC-tagged cartons as they pass through a controlled area.

The advantage is not that RFID replaces every barcode application. Many businesses continue using both technologies together.

The correct choice depends on the workflow.

EPC and RFID Tag Identification

How RFID Tags Become Unique Digital Objects

An RFID tag becomes especially valuable when it carries a unique identifier such as an Electronic Product Code (EPC).

The relationship is:

Element	Meaning
RFID Tag	Physical electronic device
RFID Chip	Stores and processes information
EPC	Digital identity assigned to the object
RFID Reader	Captures the identifier
Software	Converts data into business information

Without a unique identifier, RFID only provides detection.

With EPC-based identification, companies can answer more detailed questions:

• Which item arrived?
• Which item left the warehouse?
• Which asset requires maintenance?
• Which product was shipped to a customer?

GS1 describes EPC as a standardized method for identifying physical objects and enabling visibility across supply chains.

This is the foundation of item-level RFID tracking.

How Businesses Deploy RFID Tags Successfully

Practical Implementation Considerations

A successful RFID deployment usually begins before the first tag is attached.

Professional implementation considers:

1. Tag Selection

The tag must match the physical environment.

Examples:

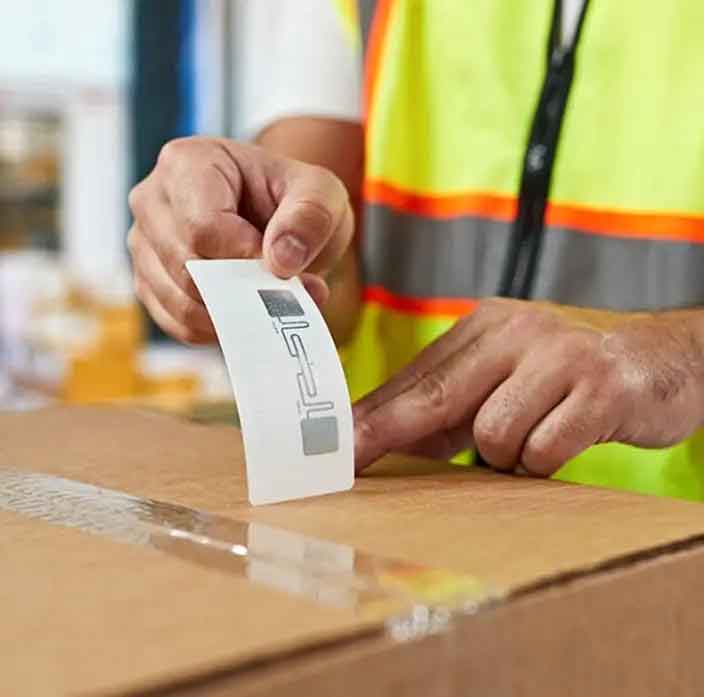

• Cardboard carton → paper RFID label
• Metal equipment → on-metal RFID tag
• Laundry textile → washable RFID tag
• Outdoor asset → weather-resistant RFID tag

2. Reader Placement

The reader environment determines performance.

Important factors include:

• Antenna angle
• Reading zone
• Tag orientation
• Material interference
• Movement speed

3. Data Management

RFID data must connect with business software.

A tag read alone is not enough.

The system needs to understand:

• What item was identified
• Where it was detected
• When it happened
• What action should follow

At Cykeo, RFID engineering projects often reveal that software integration and physical installation are equally important as hardware selection.

A powerful RFID reader cannot solve incorrect tag placement or poor data design.

Cykeo RFID Tag and Reader Integration Experience

Building Complete RFID Identification Systems

Cykeo develops RFID solutions designed around practical identification requirements, including UHF RFID readers, desktop RFID writing platforms, and OEM RFID modules.

Different applications require different approaches.

Warehouse Inventory

A warehouse may require:

• UHF RFID tags on cartons
• Fixed RFID readers
• Direction-controlled antennas
• Inventory management software

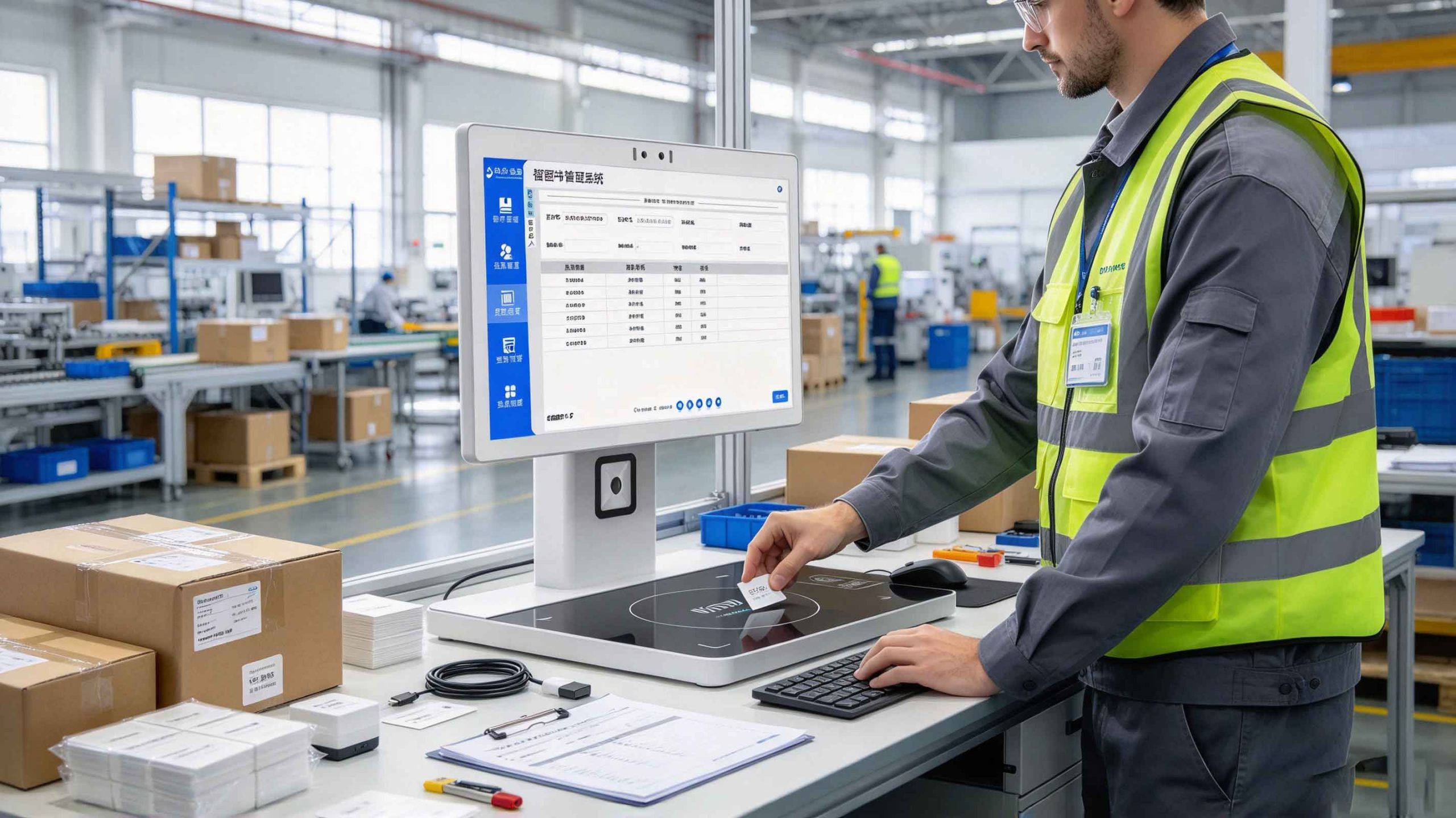

RFID Tag Writing Stations

Production environments may require:

• Desktop RFID writer
• Batch EPC encoding
• Verification functions
• Database connection

Industrial Asset Tracking

Industrial applications often require:

• Durable RFID tags
• Long-term attachment
• Reliable reading near challenging materials

For example, Cykeo desktop RFID platforms are designed for controlled tag registration and writing processes, while fixed UHF readers support automated identification points in larger environments.

The hardware is only one part of the solution. The final goal is reliable identification of physical objects.

Frequently Asked Questions About What Is Meant by RFID Tag

1. What is meant by RFID tag?

An RFID tag is a small electronic device containing a chip and antenna that stores identification information and communicates wirelessly with RFID readers.

2. What are the main parts of an RFID tag?

An RFID tag usually contains an RFID chip, antenna, substrate, and protective material. The chip stores data while the antenna enables radio communication.

3. Do RFID tags need batteries?

Not all RFID tags need batteries. Passive RFID tags receive energy from RFID readers, while active RFID tags use internal batteries.

4. How far can an RFID tag be read?

The reading distance depends on frequency, tag design, reader power, antenna configuration, and environment. UHF RFID tags can typically support longer ranges than HF or LF tags.

5. Can RFID tags store personal information?

RFID tags usually store identification data rather than large amounts of personal information. Businesses commonly link tag IDs with information stored in secure databases.

6. Are RFID tags reusable?

Some RFID tags can be rewritten and reused, depending on the chip type, memory protection settings, and application requirements.

7. What industries use RFID tags?

RFID tags are used in logistics, retail, manufacturing, healthcare, libraries, transportation, and asset management.

What Is Meant by RFID Tag in Modern Identification Systems?

What is meant by RFID tag? It means an electronic identification device that connects physical objects with digital information through radio frequency communication.

The value of an RFID tag is not only inside the small chip.

The real value appears when the tag works together with readers, antennas, and software systems.

A single RFID tag can represent:

• A product moving through a supply chain
• A tool used on a factory floor
• A medical asset in a hospital
• A document in a library
• A shipment entering a warehouse

For Cykeo, RFID tag projects are approached from the complete system perspective. The right tag must match the material, reader, environment, and business process.

Understanding what is meant by RFID tag is the first step toward designing an RFID system that provides accurate and useful identification.
