is rfid: Understanding UHF RFID Technology, Systems, and Real Applications

is rfid a wireless identification technology that uses radio waves to automatically identify and track objects through RFID tags and readers. Unlike barcode systems, RFID can capture information without direct line-of-sight scanning, making it widely used in warehouses, retail, manufacturing, healthcare, and asset management.

Is RFID a wireless identification technology?

When people search is rfid, they are usually trying to understand whether RFID is a replacement for barcode technology or how it works in real business environments.

The direct answer is:

RFID is a wireless automatic identification technology that uses electromagnetic fields to transfer data between an RFID tag and an RFID reader.

An RFID system normally contains three basic elements:

Component	Function
RFID Tag	Stores identification data and communicates wirelessly
RFID Reader	Sends RF signals and receives tag responses
Software Platform	Processes, stores, and uses collected information

Unlike traditional barcode scanning, RFID does not require the reader to visually capture each individual label.

A warehouse employee scanning hundreds of boxes manually may need to position each barcode in front of the scanner. A UHF RFID reader can identify multiple tagged items within its reading area when the environment and system configuration are suitable.

According to GS1, RAIN RFID is a passive UHF RFID technology that connects physical objects with digital information by using RFID tags and readers.

In my experience working with RFID deployments, the biggest misunderstanding is that companies often focus only on the reader range.

The real engineering challenge is not simply reading farther.

It is ensuring the system captures the right object, at the right location, at the right time.

How does RFID technology work?

To understand is rfid, it helps to look at the communication process.

A passive UHF RFID tag does not usually contain its own battery.

Instead, the reader creates an electromagnetic field.

The process works like this:

1. The RFID reader sends radio frequency energy.
2. The RFID tag receives energy through its antenna.
3. The RFID chip processes the received command.
4. The tag sends stored information back through backscatter communication.
5. The reader forwards the data to software.

The communication distance depends on several factors:

• RFID frequency
• Reader power
• Antenna design
• Tag sensitivity
• Environment
• Installation position

GS1 explains that RAIN RFID systems operate in the UHF frequency range and use radio communication between readers and tags to identify objects.

This is why two RFID projects using the same reader model can achieve different results.

A warehouse with open shelving is a different RF environment from a metal equipment room.

The technology is the same.

The deployment conditions are not.

Different RFID frequency types

RFID is not one single technology.

Different frequency bands serve different applications.

RFID Type	Frequency	Common Applications
LF RFID	125–134 kHz	Animal identification, access applications
HF RFID	13.56 MHz	NFC, smart cards, libraries
UHF RFID	860–960 MHz	Logistics, inventory, industrial tracking

For industrial tracking, supply chain management, and warehouse automation, UHF RFID is commonly selected because it supports longer reading distances and multi-tag identification.

GS1’s EPC Gen2 standard defines the air interface used by UHF RFID systems, including tag identification and communication commands.

Cykeo mainly focuses on UHF RFID solutions because many industrial applications require:

• Fast inventory operations
• Multiple tag reading
• Long-distance identification
• Integration with enterprise software
• Automated tracking processes

What are the main advantages of RFID?

The value of RFID is not only replacing manual scanning.

The technology changes how companies collect operational data.

Common advantages include:

1. Automatic identification

RFID readers can capture tag information automatically without requiring each item to be manually scanned.

2. Multiple tag reading

UHF RFID systems can identify multiple tags in one reading process, which is useful for inventory and warehouse operations.

3. Real-time visibility

RFID creates a connection between physical items and digital systems.

Companies can understand:

• Where an item is located
• When it moved
• Which process it passed through

4. Reduced manual operations

Automated identification can reduce repetitive scanning work and improve process consistency.

However, RFID is not automatically successful simply because tags and readers are installed.

The system design matters.

A poorly planned RFID installation can create duplicate reads, missed reads, or unnecessary data.

Where is RFID used in real-world applications?

RFID adoption has expanded across many industries.

Warehouse and supply chain

Warehouses use UHF RFID for:

• Inventory counting
• Pallet identification
• Shipment verification
• Location tracking

RFID allows companies to connect physical inventory movement with digital records.

Retail

Retail companies use RFID for:

• Product tracking
• Stock accuracy improvement
• Smart inventory management
• Self-checkout solutions

RFID helps retailers understand product availability without depending entirely on manual counting.

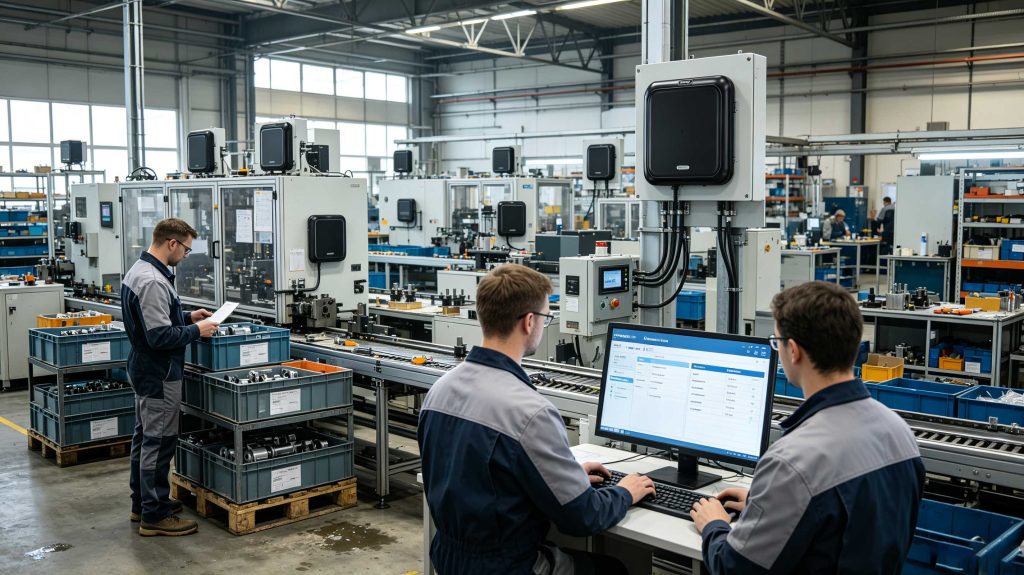

Manufacturing

Manufacturers use RFID for:

• Work-in-progress tracking
• Tool management
• Production monitoring
• Quality traceability

In factories, RFID tags can follow products through multiple production stages.

Healthcare

Healthcare applications include:

• Medical equipment tracking
• Consumable management
• Asset identification

The objective is usually improving visibility of critical resources.

Why UHF RFID is important for industrial tracking

For industrial applications, UHF RFID provides several technical advantages.

A typical UHF RFID system may include:

• Fixed RFID readers
• Handheld readers
• Desktop RFID writers
• Embedded RFID modules
• Industrial antennas
• Management software

Cykeo develops UHF RFID products designed for applications requiring reliable identification, including fixed readers, RFID reader modules, desktop writing devices, and customized solutions.

For example, the CYKEO-M4L module supports EPC C1G2 / ISO18000-6C communication, adjustable output power up to 33 dBm, dense multi-tag recognition, filtering functions, and API integration.

This type of hardware is designed for integration into larger RFID systems rather than functioning as an isolated device.

Is RFID better than barcode technology?

The answer depends on the application.

RFID and barcode systems solve different identification problems.

Feature	RFID	Barcode
Line of sight	Usually not required	Usually required
Multiple item reading	Possible	Usually one at a time
Data storage	RFID memory available	Limited
Environmental resistance	Depends on tag design	Depends on label
Automation capability	High	Medium

RFID is particularly valuable when companies need automatic identification of many objects without manual scanning.

However, barcode technology remains useful for many simple identification tasks.

A good system chooses technology according to operational requirements.

Practical RFID deployment experience

A successful RFID project usually begins before hardware installation.

The first questions should be:

• What objects need identification?
• How many items move daily?
• Where does tracking happen?
• What accuracy is required?
• Which software receives the RFID data?

During field implementation, I have found that the physical environment often creates more challenges than the RFID technology itself.

Metal surfaces, liquid products, tag placement, and reader positioning can influence performance.

A warehouse is not a laboratory.

Testing real products in the real environment is one of the most valuable steps before full deployment.

Is RFID secure enough for enterprise applications?

When companies ask is rfid suitable for professional applications, security is often one of the first concerns.

RFID security depends on the application, RFID chip capabilities, communication protocol, and system architecture.

A modern UHF RFID deployment does not rely only on the tag itself.

Security is usually built through multiple layers:

Security Layer	Function
RFID chip security	Protects stored memory and commands
Reader authentication	Controls authorized communication
Software permissions	Limits user operations
Database security	Protects connected business information

For example, a warehouse tracking system may not require the same security level as a pharmaceutical authentication system.

The engineering decision should match the risk.

GS1 EPC Gen2 standards include security improvements designed to support RFID deployments, including enhanced protection features introduced in Gen2v2.

In practical projects, I have found that companies sometimes focus too much on hiding RFID data.

The bigger risk is often poor system management.

An RFID tag with a correct identifier but disconnected from inventory software creates operational problems, even if the communication itself is secure.

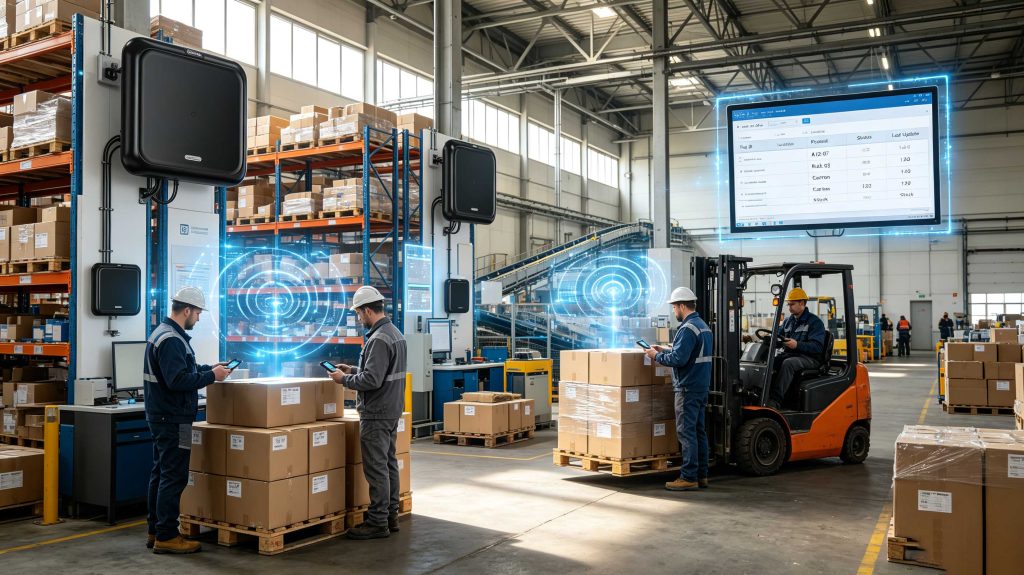

Is RFID suitable for warehouse inventory management?

Yes, RFID is widely used in warehouse environments because it can connect physical inventory with digital systems.

Traditional inventory processes often depend heavily on manual counting.

RFID changes the workflow.

Instead of asking:

“Where is this product?”

The system can answer:

“Where was this product last detected, and when?”

A warehouse RFID system may include:

• Fixed UHF RFID readers at entrances
• RFID-tagged cartons or pallets
• Handheld RFID scanners
• Inventory management software
• Cloud or local databases

A typical receiving process may look like this:

Operation	RFID Function
Goods arrival	Automatically identify tagged items
Verification	Compare received items with purchase records
Storage	Record movement into warehouse locations
Picking	Confirm selected products
Shipping	Verify outgoing shipments

The important part is system design.

A reader installed in the wrong location may capture unnecessary tags.

A tag attached incorrectly may reduce performance.

A successful RFID warehouse is designed around movement patterns, not only equipment specifications.

Why UHF RFID is commonly used in logistics

For logistics applications, UHF RFID provides several advantages:

• Longer reading distance compared with many short-range RFID applications
• Ability to identify multiple tags
• Compatibility with EPC standards
• Support for automated workflows

GS1 EPC Gen2 defines the communication protocol for passive UHF RFID systems operating in the UHF range and has become a widely used standard for RAIN RFID implementations.

For example, a distribution center may need to process hundreds of tagged cartons during receiving.

The objective is not simply reading more tags.

The objective is reading the correct tags during the correct operation.

Is RFID expensive to implement?

The answer depends on the project scale, environment, and required automation level.

A small RFID application may only require:

• RFID tags
• One reader
• Simple software

An industrial deployment may require:

• Multiple fixed readers
• Antenna networks
• Integration software
• Database connection
• Installation engineering
• Testing

The cost structure usually includes:

Cost Area	Description
RFID tags	Depends on quantity and tag type
Readers	Depends on fixed, handheld, or embedded requirements
Software	Depends on integration complexity
Installation	Depends on environment
Maintenance	Depends on system scale

One important lesson from RFID projects:

The cheapest hardware does not always create the lowest total cost.

A low-cost reader that produces unreliable data may increase labor costs through manual checking.

A properly designed system reduces repeated work.

Common RFID deployment mistakes

Choosing equipment before understanding the application

A frequent mistake is selecting RFID readers first.

The correct starting point is:

• What objects are tracked?
• Where are they located?
• How fast do they move?
• What information is required?

The hardware should follow the application.

Ignoring the physical environment

RFID is a radio technology.

The environment matters.

Challenges may include:

• Metal surfaces
• Liquid products
• Dense product stacking
• RF interference
• Incorrect antenna placement

A warehouse shelf filled with metal components behaves differently from a shelf containing cardboard boxes.

Testing actual products is essential.

Expecting RFID to replace all existing systems

RFID normally works together with existing software.

A complete solution may connect with:

• ERP systems
• Warehouse management systems
• Manufacturing systems
• Asset databases

RFID provides identification data.

The business system creates operational value.

Frequently Asked Questions about is rfid

1. Is RFID the same as GPS?

No. RFID and GPS are different technologies. RFID identifies objects through radio communication between tags and readers, while GPS determines location through satellite signals. RFID is commonly used for identification and tracking inside facilities.

2. Is RFID only used for inventory?

No. RFID is used in many industries, including manufacturing, retail, healthcare, logistics, transportation, and asset management.

3. Is RFID better than barcode?

RFID provides advantages such as non-line-of-sight identification and multi-tag reading. However, barcode systems may still be suitable for simple identification tasks. The best choice depends on the application requirements.

4. Does RFID need batteries?

Many UHF RFID tags are passive and receive energy from the reader’s RF field. However, some RFID systems use battery-assisted or active tags for specialized applications.

5. How far can RFID read tags?

Reading distance depends on RFID frequency, reader power, antenna design, tag type, and environment. UHF RFID systems are commonly selected for applications requiring longer reading distances.

6. Can RFID work through walls?

RFID performance depends on materials and frequency. Radio waves may be affected by metal, liquids, and construction materials, so installation testing is necessary.

How Cykeo applies RFID technology in real solutions

Cykeo develops UHF RFID products and systems for industrial identification requirements.

The solutions include:

• UHF fixed RFID readers
• Desktop RFID reader writers
• Embedded RFID modules
• Industrial RFID systems
• Customized RFID applications

The engineering focus is not only hardware performance.

A practical RFID solution must consider:

• Reading accuracy
• Communication stability
• Software integration
• Installation environment
• Long-term operation

For example, the CYKEO-RA9L and CK-D9L fixed RFID readers are designed for industrial applications requiring stable UHF identification with Ethernet and serial communication options.

The CYKEO-M4L module provides OEM integration possibilities for manufacturers building customized RFID equipment.

These products are designed around real deployment requirements rather than laboratory demonstrations.

Conclusion: understanding what RFID really provides

So, is rfid a useful technology?

RFID is a wireless identification system that connects physical objects with digital information.

Its value comes from creating visibility.

A well-designed RFID system helps organizations understand:

• What objects exist
• Where they move
• When events happen
• How operations can be improved

However, RFID success depends on more than installing tags and readers.

The strongest implementations combine suitable UHF RFID hardware, correct tag selection, practical testing, and software integration.

Cykeo approaches RFID as a complete identification solution, helping businesses build reliable tracking systems for warehouses, factories, retail environments, and industrial applications.
