How to Check If RFID Is Working: A Practical Guide Before Buying RFID Hardware in Bulk

When customers ask us, “How can I know whether my RFID system is actually working?” the answer is usually not as simple as scanning a tag once and seeing a number appear.

In a real RFID project, especially for warehouses, retail stores, libraries, medical equipment tracking, or industrial applications, there are several points that can fail. Sometimes the RFID tag is fine, but the reader power is not enough. Sometimes the reader works, but the antenna installation creates blind spots.

For companies purchasing RFID readers, tags, or complete solutions in bulk, testing before deployment can save a lot of trouble later.

This guide explains practical ways to check if RFID is working and what buyers should pay attention to before choosing RFID hardware.

---

Start With the Basic Question: What Part of RFID Are You Testing?

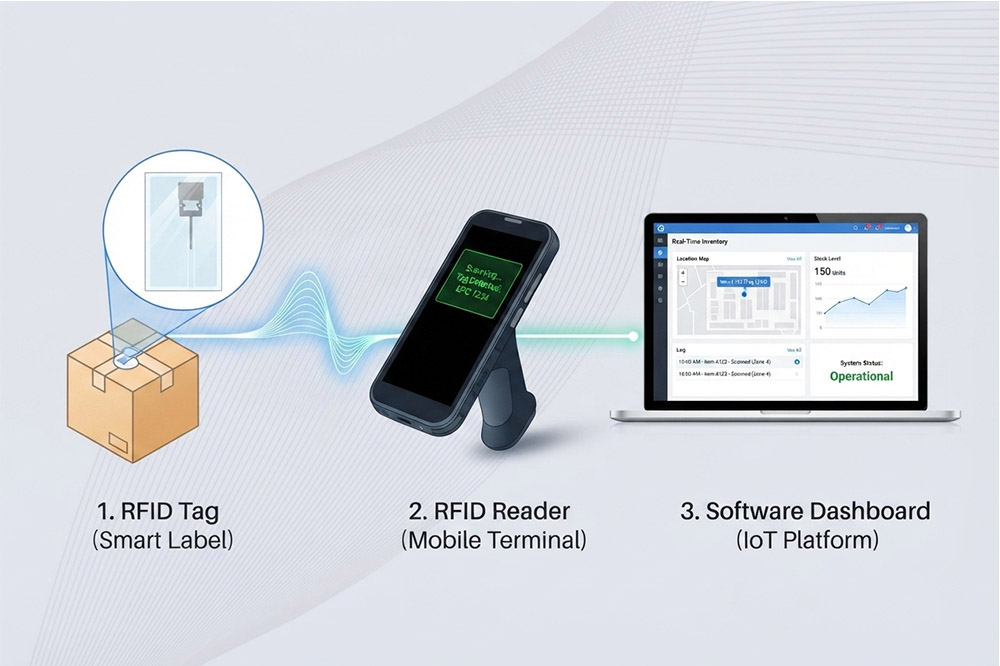

An RFID system normally has three main parts:

• RFID tag
• RFID reader
• Software or management system

A common mistake is assuming that “RFID is not working” means the tag is defective.

In many cases, the problem comes from the environment.

For example, warehouse customer may test an RFID tag on a wooden table and get perfect results. After installing the same tag on a metal shelf, the reading distance suddenly drops. The tag was never broken. The application environment changed.

So the first step is identifying which part needs testing.

---

Test an RFID Tag First

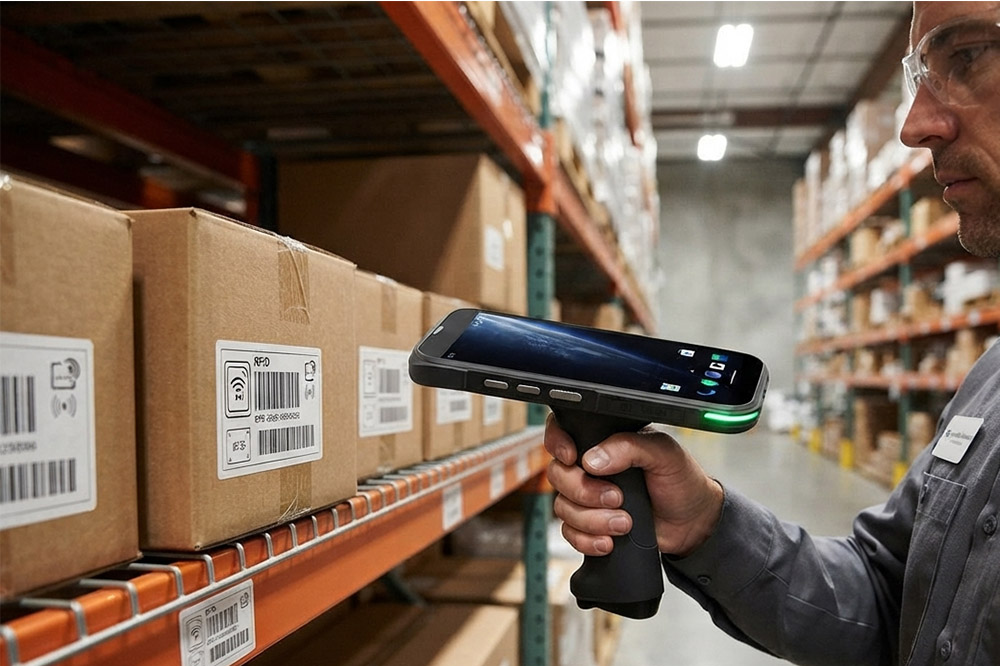

The easiest way to check if an RFID tag works is to use a compatible RFID reader.

For UHF RFID tags, place the tag within the reader’s range and check whether the reader can capture:

• EPC number
• Tag ID
• Signal strength
• Read frequency

If the reader detects the tag repeatedly, the tag is most likely working.

A simple test should not be done only once.

From our experience, a good RFID tag should be tested several times from different angles. RFID communication depends on antenna direction, distance, and surrounding materials.

A tag that reads 100 times out of 100 in a clean environment may perform differently when attached to products or equipment.

---

Check RFID Reader Performance

Sometimes customers receive RFID tags and think the tags are bad because they cannot read them.

The reader should also be checked.

A few things to verify:

1. Is the reader powered correctly?

Insufficient power can reduce reading distance.

For fixed RFID readers, check:

• Power supply stability
• Antenna connection
• Network connection
• Reader configuration settings

2. Is the antenna installed correctly?

A reader with a good antenna setup can significantly improve performance.

Incorrect antenna placement may cause:

• Missing reads
• Weak signal
• Reading outside the target area

This is especially important for RFID gates and warehouse portals.

---

Use a Smartphone to Check NFC RFID Compatibility

For NFC RFID tags, smartphones can be a convenient testing tool.

Most modern smartphones support NFC functions, allowing users to check whether an NFC tag responds.

However, smartphone testing only works for NFC frequency tags (13.56 MHz). It cannot test most UHF RFID tags used in logistics and inventory management.

If you want to understand more about checking NFC and RFID reader compatibility with smartphones, we also prepared a detailed guide here:

Related reading:
“How to Test NFC RFID Reader Compatibility With Your Smartphone: No Tech Degree Needed”
That article focuses more on smartphone-based NFC testing, while this guide looks at broader RFID system verification for industrial applications.

---

Common Signs That RFID Is Not Working Properly

In actual projects, RFID problems usually appear in several ways.

The tag cannot be detected at all

Possible reasons:

• Damaged RFID tag
• Wrong frequency
• Reader incompatibility
• Incorrect configuration

For example, an LF/HF reader cannot read a UHF tag. RFID frequency compatibility is always the first thing to confirm.

---

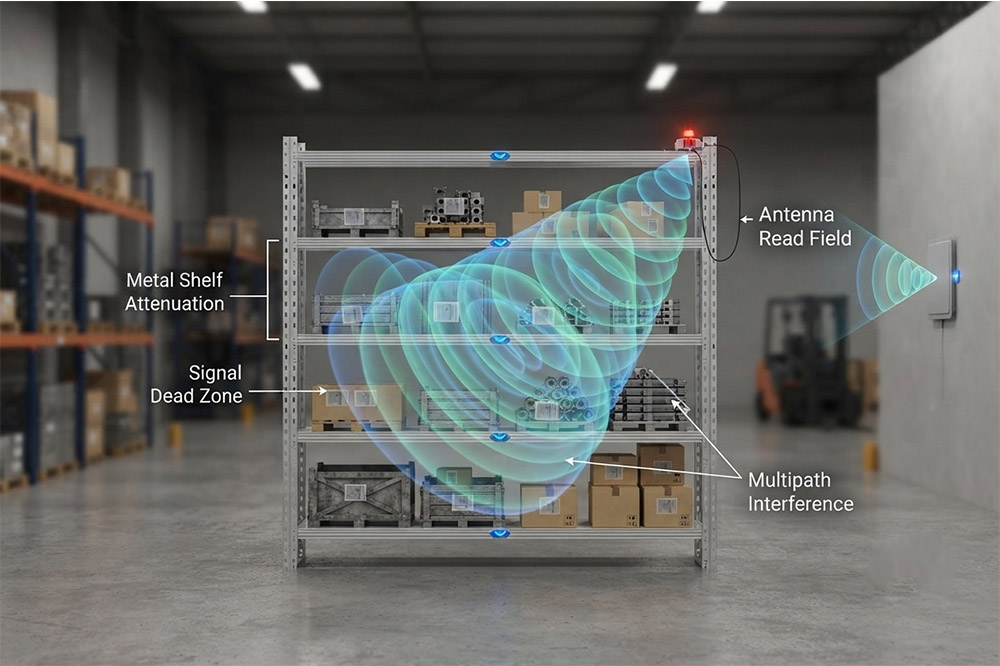

Reading distance is shorter than expected

A customer may expect a 10-meter reading range but only achieve 1 meter.

Possible causes:

• Metal interference
• Liquid products blocking signals
• Weak antenna installation
• Low-power reader settings

The environment matters more than many buyers expect.

---

Too many wrong reads

In warehouse projects, another common problem is excessive reading.

For example, a gate reader may detect products from nearby shelves instead of only items passing through the gate.

This usually requires:

• Antenna adjustment
• Power reduction
• Reader zone optimization
• Software filtering

RFID is not only about reading farther. Sometimes controlling where the reader reads is more important.

---

How RFID Buyers Should Test Before Bulk Purchase

For distributors, system integrators, and OEM customers, we recommend testing samples before placing large orders.

A practical testing process usually includes:

Sample testing

Test different tag materials:

• Paper tags
• Plastic tags
• Metal mount tags
• Waterproof tags

Environment testing

Test in the real application location:

• Warehouse shelves
• Production lines
• Medical equipment
• Retail displays

Long-term testing

Short tests can miss problems.

A system running for several weeks can reveal:

• Connection issues
• Heat problems
• Software compatibility problems

---

Choosing the Right RFID Supplier Matters

RFID performance depends on more than just hardware specifications.

A reliable RFID supplier should understand:

• Tag selection
• Reader configuration
• Antenna design
• Application environment
• Integration requirements

For example, a warehouse inventory project may need a completely different RFID solution compared with a hospital asset tracking system.

The “strongest” reader is not always the best choice. The right match between hardware and application usually creates better results.

---

Final Thoughts From Real RFID Testing Experience

Checking whether RFID works is not only about seeing if a tag can be read once.

A successful RFID system needs stable communication between tags, readers, antennas, and software.

For small tests, a smartphone or basic RFID reader may be enough. But for commercial projects, especially bulk purchases, testing under real conditions is the step that prevents expensive mistakes.

If you are selecting RFID readers, handheld scanners, fixed readers, or customized RFID solutions for your project, working with a supplier that can provide testing support and customization options can make the deployment much smoother.
