A UHF RFID reader can identify hundreds of tags in a short inventory cycle, but it does not literally communicate with every tag simultaneously. Anti-collision protocols identify tags in rapid succession, while actual capacity depends on tag density, reader speed, antenna design, RF conditions, and time inside the read field.
That distinction matters when someone asks for a maximum number.
A reader may be described as handling hundreds of tags, yet the useful question in a warehouse is slightly different:
How many unique tags can be captured reliably before the tagged items leave the reading zone?
That is the number worth engineering around.
RAIN RFID documentation states that RAIN systems can inventory hundreds of tags simultaneously over distances exceeding 10 meters in a short period. It also describes RAIN RFID as supporting reading at speeds of hundreds of items per second.
“Simultaneously” here is a practical description, not a literal radio transaction.
RFID Journal explains that a reader technically communicates with individual tags in rapid succession. When many tags are present, anti-collision technology separates their responses so the reader can work through the population efficiently.
For a website specification, I would therefore avoid writing:
“One reader can read 500 tags at exactly the same time.”
A technically safer statement is:
“A UHF RFID reader can rapidly inventory hundreds of tags within its reading zone.”
That wording reflects how the technology actually operates.
Several variables determine practical multi-tag capacity:
| Factor | Why it matters |
|---|---|
| Tag population | More tags require more inventory activity |
| Reader throughput | Determines how quickly tags can be identified |
| Dwell time | More time gives the reader more inventory opportunities |
| Antenna configuration | Determines coverage and RF geometry |
| Tag orientation | Poor orientation can reduce reliable responses |
| Tag spacing | Dense tags create a more demanding RF environment |
| Materials | Metal and liquids can affect UHF performance |
| Reader interference | Nearby readers can compete for RF resources |
| Read-zone design | Controls which tags should actually be detected |
| Software filtering | Prevents repeated observations becoming duplicate events |
This is why a laboratory number should not be copied directly into a warehouse specification.
A pallet sitting stationary in front of an antenna for five seconds is one problem.
The same pallet crossing a dock door in one second is another.
RFID Journal specifically notes that the time tags spend inside the read field is critical and gives the example that a population of 1,000 tags may require several seconds in a properly designed tunnel environment to achieve complete identification.
The underlying problem is simple.
Suppose 200 passive UHF tags are energized by the same reader.
If every tag transmitted its identification at precisely the same moment, the reader would receive overlapping signals.
The solution is the anti-collision process defined by the EPC Gen2 / ISO 18000-6C family.
EPC Gen2 uses the Q algorithm to organize tag responses. The reader adjusts the response population by controlling the number of available slots, allowing tags to be identified individually and efficiently.
A simplified inventory cycle looks like this:
The important engineering point is that anti-collision performance determines how efficiently a dense tag population can be processed.
RF power alone does not solve the problem.
For UHF RFID, rfid tags per second is usually a more useful specification than a theoretical maximum number of tags.
RAIN Alliance documentation describes RAIN RFID as capable of reading hundreds of items per second.
Cykeo’s published RFID module specifications provide a more concrete example. One Cykeo UHF RFID reader module specifies a tag identification speed of more than 600 tags per second, while its listed RF output can reach 33 dBm, with output power adjustable in 1 dB steps.
That is a device performance figure—not a universal guarantee for every installation.
This distinction is important.
A reader may achieve a high inventory rate with tags positioned favorably in a controlled RF environment. Put the same reader beside a metal rack, introduce several hundred densely packed tags, shorten the read window, and the practical result can change.
These two terms are often mixed together.
Read speed = how rapidly the reader can identify tags.
Read capacity = how many required tags can be reliably identified within the available reading window.
For example:
300 tags × 2 seconds of dwell time
is a very different application from:
300 tags × 0.5 seconds of dwell time.
The same reader is not necessarily going to produce the same capture completeness.
This is one of the first things I check during an RFID site test.

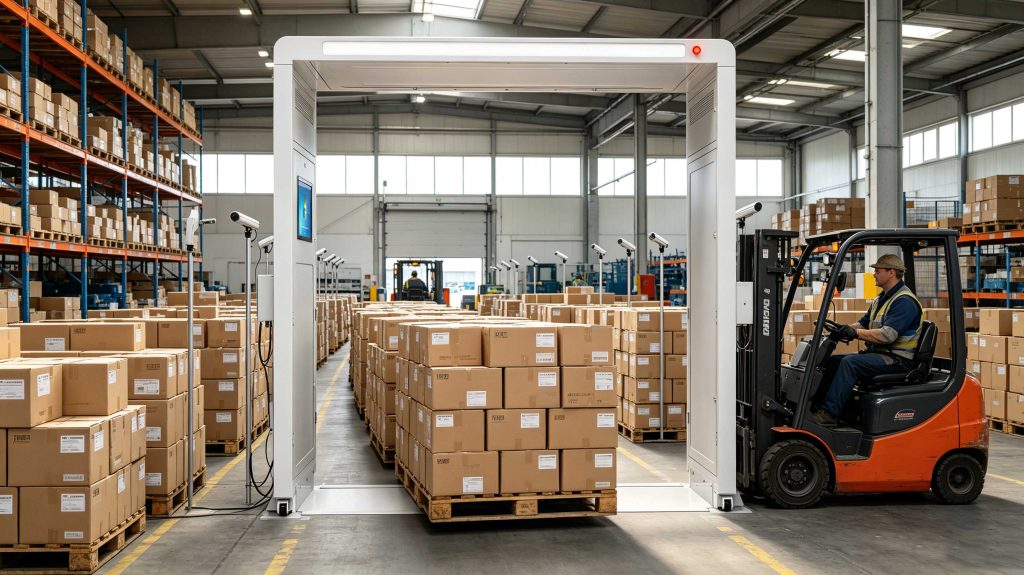

Imagine a pallet carrying 250 tagged cartons.
If it remains in the antenna field for several seconds, the reader can perform repeated inventory rounds. Tags missed in one round may be captured in another.
Now move the same pallet quickly through a narrow portal.
The available interrogation time falls sharply.
RFID Journal’s guidance on dense tag populations makes the same practical point: the number of tags that can be reliably captured depends heavily on how long they remain in the read field and how the antennas surround that population.
That is why a tunnel can outperform a simple doorway for dense tag populations.
It gives the RF system more chances.
For a real deployment, I prefer to record:
Total tags present
Unique tags detected
Time inside the read zone
Missed tags
Duplicate observations
False reads
For example:
| Field test | Result |
|---|---|
| Tags physically present | 250 |
| Unique tags captured | 248 |
| Missed tags | 2 |
| Read-zone dwell time | 3 seconds |
| False reads | 0 |
| Test condition | Moving pallet |
That tells the integrator far more than simply writing “supports 250 tags.”
High tag density increases the workload of the anti-collision process.
EPC Gen2’s Q algorithm dynamically manages the response population. When too many tags compete for the same response opportunity, the reader can adjust the Q value; when too few respond, it can reduce it.
This is one reason modern UHF RFID can handle populations that would otherwise be impractical.
But dense populations still require RF discipline.
RAIN Alliance field guidance recommends designing the reading zone rather than simply trying to maximize read range. It specifically warns that stretching the read zone can introduce unwanted interference and recommends using shorter ranges where the application allows.
That field observation is particularly relevant to warehouse installations.
A larger RF footprint is not automatically a better RF footprint.
Two identical tags can behave very differently when one faces the antenna directly and another is rotated.
This is especially important on cartons stacked in different orientations.
Metal can alter the RF behavior around the tag and antenna.
For metal products, specialized on-metal tags may be necessary rather than standard labels.
Liquids can absorb or alter UHF RF energy, making tag selection and placement important.
Multiple readers operating close together can interfere with one another.
EPC Gen2 includes dense-reader operating mechanisms, while RFID industry guidance emphasizes careful reader coordination in dense installations.
If an antenna detects tags outside the intended area, the system may appear to have excellent range while actually producing poor business data.
This is where I would reduce power before increasing it.
The target is not:
maximum distance.
The target is:
controlled identification.
| Application | Tag population | Main capacity concern |
|---|---|---|
| Retail shelf | Dozens to hundreds | Dense inventory |
| Warehouse pallet | Hundreds | Tag density + dwell time |
| Dock door | Hundreds | Movement speed + boundary control |
| Conveyor | Variable | Very short read window |
| Tool cabinet | Tens to hundreds | Controlled read zone |
| Manufacturing line | Dozens to hundreds | Repeatable capture |
| Library inventory | Hundreds or more | Rapid bulk identification |
There is no universal “maximum tag count.”
The correct reader depends on what those tags are doing.
A stationary inventory application can tolerate a longer inventory cycle.
A conveyor cannot.
A pallet portal may need multiple antennas.
A desktop reader usually needs a deliberately limited near-field zone.
After years of working with RFID readers and integration projects, I would not approve a high-density application from a datasheet alone.
I use a simple sequence.
Start with a known number of tags.
For example:
100 tags → 100 expected.
Then increase the population:
200 → 300 → 500.
Replace laboratory tags with the customer’s actual tags and products.
Move the tagged items at the actual conveyor, forklift, or worker speed.
Rotate or rearrange tags.
Introduce the adjacent pallet or shelf.
Run the same scenario repeatedly.
The goal is not to achieve one impressive read count.
The goal is to produce a result that remains stable.
Cykeo’s UHF RFID products are designed around multi-tag identification rather than single-tag scanning.
The published specifications for Cykeo RFID reader modules include:
One Cykeo module specification lists >600 tags/second, with 33 dBm maximum RF output and 1 dB power adjustment.
That combination is useful for applications where the reader must process a large tag population without simply flooding the entire surrounding area with RF.
For an OEM project, this becomes particularly relevant because the RFID engine can be integrated into a larger machine rather than treated as a standalone scanner.
The reader handles the RF inventory.
The application decides what the inventory means.
That separation is often cleaner in automated logistics and manufacturing systems.
Instead of writing:
“Reader supports 500 RFID tags.”
I recommend a specification such as:
“Reader supports high-density multi-tag inventory; performance depends on tag type, antenna configuration, RF environment, tag orientation, and dwell time.”
Then document the actual test:
500 tags present / 493 unique tags captured / 3 seconds dwell time / defined antenna configuration / specified tag model.
That is much more defensible technically.
It also gives the customer something they can reproduce.
The practical answer to how many RFID tags can be read at once is best expressed as a tested operating capacity rather than a single maximum number.
Modern UHF/RAIN RFID readers can process hundreds of tags per second. For example, Impinj lists up to 1,300+ tags/s for its R700 reader under specified conditions, while Cykeo publishes 600+ tags/s for several UHF RFID modules and fixed readers.
Those figures are useful benchmarks, but they do not mean a warehouse pallet containing 600 tags will automatically produce 600 unique reads every second.
The site matters.
The tag matters.
The antenna geometry matters.
And the time available inside the read zone matters most when goods are moving.
A published speed such as 600 tags/s describes the reader’s identification throughput under specified test conditions. It should not be interpreted as a fixed maximum number of tags physically present in the RF field.
Cykeo’s CK-M2 specification, for example, lists more than 600 tag identifications per second, 33 dBm maximum output power, 1 dB power adjustment, and a continuous EPC reading success rate above 95% in its stated interference-free test configuration.
The CK-M4 specification similarly lists more than 600 tags/s and a continuous EPC reading success rate above 95% under its specified test conditions.
That distinction is worth preserving on a technical website:
600 tags/s is throughput—not a promise that 600 tags will always be captured in every physical environment.
A dense pallet beside steel shelving is not the same test as a controlled reader bench.
For practical RFID deployment, I use a simpler way to think about capacity:
Usable RFID capacity = tag population × required read reliability × available dwell time
Consider a pallet containing 400 tagged cartons.
If it remains in the reader field for four seconds, the system has multiple opportunities to inventory the population.
If the forklift crosses the portal in less than one second, the available inventory time is dramatically smaller.
RAIN RFID field guidance makes this point directly: when all tags do not respond reliably to one query, multiple inventory loops may be needed to achieve better visibility. It also notes that reading additional tag data takes additional time.
That is why I would test the actual movement speed, not just the reader sitting on a workbench.
A pallet containing hundreds of tags is one of the more demanding UHF RFID scenarios.
The tags may be:
A practical pallet test should therefore record more than a read-rate number.
| Test item | Example |
|---|---|
| Tags physically loaded | 400 |
| Unique tags captured | 396 |
| Missed tags | 4 |
| Transit time | 3 seconds |
| Reader output | 30 dBm |
| Antennas | 4 |
| Product material | Corrugated cartons |
| False reads | 0 |
This is a much stronger engineering record than simply saying:
“Reader supports 400 tags.”
The actual question is whether 396 of the required 400 tags were captured before the pallet left the zone.
That is what the warehouse operator cares about.
One mistake I have seen repeatedly during RFID installation is treating maximum read distance as the same thing as maximum usefulness.
It is not.
Suppose an antenna can detect a tag 15 meters away.
If the intended business event is:
“Pallet crossed Door 3.”
then detecting a pallet 10 meters away near Door 2 may be a problem.
For high-density RFID, I prefer a controlled read zone.
RAIN RFID field guidance recommends reconsidering requirements when speed demands exceed 200 tags/second, particularly when large amounts of data are also being read. It also recommends multiple inventory loops in real RF environments rather than assuming a single query will reliably capture every tag.
This is a useful reminder: more data and more tags consume reading time.
Reading EPC identifiers is not the same workload as reading EPC + TID + user memory from every tag.

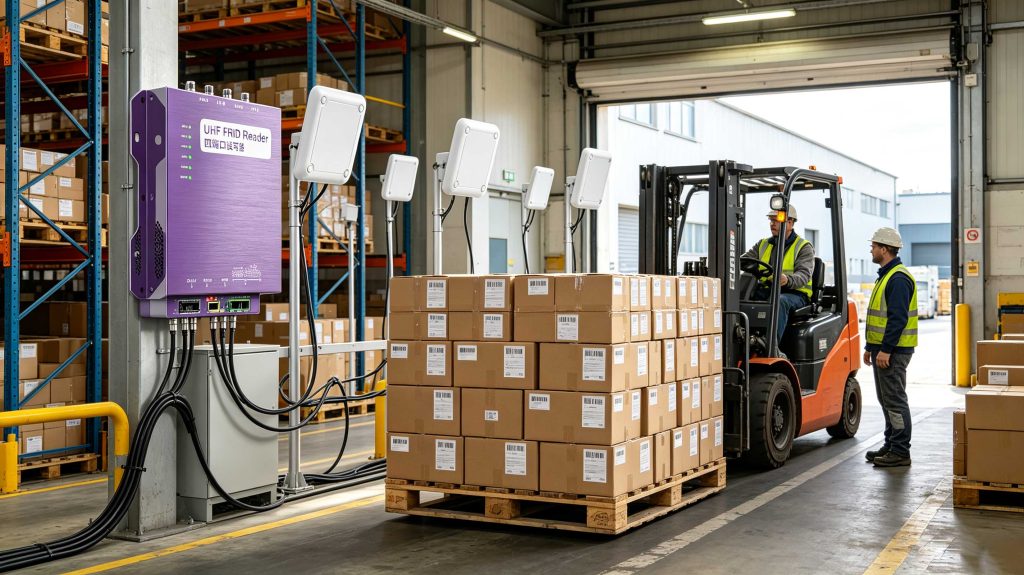

A single antenna may work well for a controlled shelf.
A pallet portal is different.
Multiple antennas can approach the tag population from different directions, improving coverage where tag orientation varies.
Cykeo’s current SSD-R16L fixed reader, for example, provides 16 SMA antenna ports and is designed for multi-antenna, multi-zone RFID deployment. It specifies up to 33 dBm output and recognition above 600 tags/s.
This type of architecture is useful for:
The antennas should not simply be added until everything reads.
Their job is to create a predictable reading geometry.
During a controlled demonstration, RFID tags are often placed neatly.
Real products are not.
One carton may have its label facing the antenna. Another may be turned sideways. A third may have the tag partially covered by another package.
The result can be a significant difference in capture performance.
For that reason, a proper validation should include:
Tags positioned in the expected production orientation.
Tags rotated naturally within cartons or on pallets.
Tags deliberately positioned in the least favorable realistic direction.
If a system performs well only in the first test, it is not production-ready.
The question how many RFID tags can be read at once cannot be separated from the question of what those tags are attached to.
Cardboard cartons are relatively straightforward.
Metal containers are not.
Liquid-filled products can also change UHF behavior.
For industrial applications, tag selection is therefore part of the reader-capacity calculation.
A reader can have excellent sensitivity and still produce disappointing results if the selected RFID tag is unsuitable for the product surface.
That is why I recommend testing the final tag on the final product, not a generic sample tag.
A warehouse may have:
These systems may operate close to one another.
In that environment, the question is no longer simply whether one reader can read hundreds of tags.
It becomes:
Can several readers operate without creating unwanted interference or cross-zone reads?
Cykeo’s RFID modules support adjustable output power and fixed-frequency or frequency-hopping operation, giving integrators options for managing different RF environments. Its CK-M16, for example, supports 16 channels, 33 dBm maximum output, 1 dB power adjustment, tag filtering, anti-collision functions, and more than 600 tags/s identification.
That flexibility is more valuable in a large installation than simply pushing every reader to maximum power.
Cykeo’s UHF RFID portfolio includes embedded modules and fixed readers designed for dense multi-tag environments.
The CYKEO-M16 is positioned for high-density applications and specifies:
The combination is relevant when one RFID system needs multiple antenna positions rather than a single reader zone.
Cykeo’s SSD-R4L fixed reader specifies recognition above 600 tags/s, 33 dBm maximum output, four rfid antenna ports, and EPC C1G2 / ISO 18000-6B/C compatibility.
That type of configuration fits applications such as:
The hardware should be selected according to the physical layout, not simply the advertised tag count.
A serious RFID capacity test should be repeatable.
Start with 50, 100, 200, 500 tags.
Count them physically.
Do not substitute a convenient laboratory tag.
The final carton, garment, container, tool, or asset should be present.
Use the actual forklift, conveyor, worker movement, or portal transit speed.
Do not count repeated observations of the same EPC as additional tags.
Place another tagged pallet outside the intended read zone.
A single successful run is not enough.
The useful result is something like:
500 tags present → 497 unique tags captured → 3 seconds dwell time → 20 repeated trials → 0 false reads.
Now the capacity statement has context.
There are three very different claims:
The physical population contains 500 tags.
The reader successfully identifies 500 different EPCs.
The reader processes 500 tag-identification events per second.
These should never be treated as interchangeable.
A reader could repeatedly detect the same 100 tags and generate a high raw read count without discovering the remaining 400 tags.
For inventory and tracking applications, unique-tag capture is the metric that deserves attention.
| Application | Typical RFID challenge | Important capacity factor |
|---|---|---|
| Retail inventory | Dense shelf population | Tag orientation |
| Warehouse pallet | Hundreds of tags | Dwell time |
| Dock door | Moving pallets | Read-zone control |
| Conveyor | Short exposure | Reader speed |
| Manufacturing | Changing product positions | Antenna coverage |
| Asset tracking | Wide-area movement | Read-zone definition |
| Tool cabinet | Confined population | Filtering and accuracy |
The hardware number alone cannot answer the application question.
A conveyor may need extremely fast inventory.
A cabinet may need only a few dozen tags but excellent selectivity.
A warehouse portal may require multiple antennas and careful power tuning.
Yes. UHF/RAIN RFID readers are designed for bulk tag inventory and can process hundreds of tags rapidly. Technically, tags are identified through an organized anti-collision process rather than literally transmitting every response at the same instant.
A 1,000-tag population can be inventoried by suitable UHF RFID systems, but successful capture depends on tag density, antenna configuration, RF conditions, tag orientation, and dwell time. It should be validated in the actual application.
Cykeo publishes 600+ tags/s for several UHF RFID modules and fixed readers. For example, its CYKEO-M16 specifies more than 600 tags/s, while the SSD-R4L fixed reader also specifies recognition above 600 tags/s.
No. A tags-per-second specification describes identification throughput under defined conditions. It does not establish a universal maximum population.
Multiple antennas can improve coverage and help address different tag orientations, but they do not automatically multiply reader throughput. Antenna arrangement should be designed around the physical reading zone.
Not necessarily. More power can increase coverage, but excessive RF can also create unwanted reads or interference. Controlled read-zone design is often more important than maximum output
For a real deployment, use unique tags successfully captured within the required time, together with false-read rate and repeatability. That measurement is more useful than an isolated maximum tags-per-second figure.
How many RFID tags can be read at once depends on what “read” means.
A modern UHF RFID reader can process hundreds of tags rapidly. Commercial systems publish figures ranging from hundreds of tags per second to more than 1,300 tags/s under specified conditions, while Cykeo publishes 600+ tags/s for several of its UHF RFID products.
But the real deployment number is determined by the physical environment.
A pallet containing 500 tags does not automatically require a reader rated at 500 tags/s.
The system needs enough inventory time to capture the required tags, sufficient antenna coverage to reach different tag orientations, suitable RFID labels for the product material, and enough RF control to prevent unwanted reads.
That is the distinction I would keep in every RFID specification:
maximum reader throughput is a hardware characteristic; reliable unique-tag capture is a system-performance characteristic.
For Cykeo, dense multi-tag reading is supported through adjustable RF output, anti-collision processing, tag-data filtering, multi-channel configurations, and UHF readers capable of hundreds of tag identifications per second.
The final answer to how many RFID tags can be read at once should therefore come from a field test—not a single number printed on a datasheet.
SSD-R16L Multi-Channel RFID Infrastructure for Automated Inventory Management ✔️ 16-Port High-Density RFID Reading Equipped with 16 SMA antenna ports, SSD-R16L supports multi-antenna deployment for warehouses, retail stores, logistics, production lines, and large-area RFID identification. ✔️ High-Speed & Long-Range Performance With up to 33…
SSD-R8L 8-port UHF RFID reader with 33dBm output, up to 20m reading range and 600+ tags/s recognition. Ideal for warehouse, logistics, retail and asset tracking.
SSD-R4L is a 4-port UHF RFID fixed reader with 33dBm output power, up to 20m reading range, EPC C1G2 support and 600+ tags/s reading speed.
CYKEO CYKEO-D1LA USB RFID Reader is a compact desktop solution with near-field control for precise tag reading and encoding. Powered by USB, supporting ISO 18000-6C, and built for stable batch writing, this usb rfid tag reader fits retail, libraries, offices, and controlled RFID encoding tasks.
CYKEO CYKEO-D1L RFID scanner USB is a compact desktop UHF RFID scanner designed for short-range tag writing and verification. This usb rfid scanner supports batch encoding, stable 0–26 dBm output, and works across Windows, Linux, and Android systems.
CYKEO CYKEO-D1C USB RFID Card Reader is a near-field UHF desktop writer designed for secure, short-range tag encoding. With USB-C connectivity and stable 26 dBm output, this rfid reader usb c is ideal for badge issuance, label encoding, and controlled desktop RFID workflows.
CYKEO CYKEO-D2L RFID Reader USB is a compact desktop encoder built on the Impinj R500 chip. With near-field control and stable USB power, this usb rfid card reader delivers precise tag writing for offices, retail counters, and small-scale logistics encoding tasks.
CYKEO CYKEO-D3L USB RFID Tag Reader delivers stable UHF tag reading and writing for daily desktop and light industrial tasks. Designed for controlled short-range operation, this USB RFID Tag Reader works reliably with rfid tag and reader systems in libraries, tool tracking, and inventory registration.
The CYKEO CYKEO-D4L UHF RFID Tag Reader is a stable Desktop RFID Reader designed for accurate tag registration, borrowing, and return workflows. Built with the Impinj R2000 chip, this UHF RFID Tag Reader delivers controlled short-range reads for libraries, asset tracking, and inventory management environments.
The CYKEO CYKEO-D5L Desktop RFID Card Reader is a stable UHF RFID Card Reader designed for controlled short-range reading and writing. Built for libraries, tool rooms, and asset desks, this UHF RFID Card Reader supports dense tag handling, secure data processing, and easy USB integration.
The CYKEO CYKEO-D6L RFID Reader Writer is a heavy-duty Desktop RFID Reader designed for short-range, high-accuracy tag programming. Built for libraries, labs, and asset desks, this RFID Reader Writer supports batch processing, stable 33dBm output, and seamless integration with existing management systems.
Cykeo CYKEO-D8B UHF RFID tunnel and RFID Desktop Reader features 30+ items batch reading,
Cykeo CYKEO-D8A embedded RFID badge reader offers 30+ tags/sec scanning, 20cm anti-crosstalk precision, and DC 12V power for unmanned stores, warehouses, and smart inventory systems.
Cykeo’s CYKEO-D8C UHF RFID gate reader achieves 200-tag/batch scanning with adjustable power control, ideal for retail inventory and smart warehouse management.
CYKEO Embedded RFID Modules are designed for compact industrial and IoT devices that require stable UHF performance. These UHF RFID Modules support global protocols, flexible power control, and reliable multi-tag reading for smart cabinets, production lines, and asset tracking systems.
CYKEO Embedded RFID Module is built for compact IoT and industrial devices that need stable UHF performance. This UHF module supports global protocols, low power operation, and reliable multi-tag reading for smart lockers, production lines, and always-on RFID systems.
CYKEO CYKEO-M1 drone rfid module is a compact UHF RFID reader module designed for drones and UAV platforms. It supports long-range aerial scanning, fast multi-tag reading, and stable performance in wind, vibration, and outdoor environments.
CYKEO CYKEO-M4 RC522 RFID Module is an industrial-grade UHF RFID reader with 4 ports, supporting ISO, EPC, and GB protocols. High-speed, accurate reading for IoT, automation, and warehouse applications.
CYKEO CYKEO-M8 Module RFID is an 8-port UHF R2000 RFID Module designed for high-density, multi-tag environments. Stable 33dBm output, ISO & GB protocol support, ideal for warehouses, factories, and automated systems.
CYKEO CYKEO-M16 RFID Module is a 16-port UHF RFID reader module based on the R2000 chipset. Designed for dense tag environments, it supports ISO and GB standards and delivers stable multi-antenna control for industrial automation.
The CYKEO CYKEO-M16L RFID Reader Module is a 16-channel UHF RFID core designed for dense tag environments. With adjustable 33dBm output, multi-protocol support, and stable multi-antenna control, this RFID Tag Reader Module fits industrial automation, warehouse systems, and large-scale IoT deployments.
CYKEO CYKEO-M8L module RFID is a compact industrial UHF module built for dense tag and multi-antenna environments. With 8 RF ports, adjustable 33 dBm output, and ISO & GB protocol support, it is widely used in factories, warehouses, and automated tracking systems.
CYKEOCYKEO-M4L UHF RFID Module is a compact 4-channel RFID tag reader module designed for dense tag environments. Supporting ISO and GB protocols, it delivers stable reads up to 10 meters for industrial and IoT systems.
Cykeo CYKEO-A11 UHF RFID reader antenna delivers 11dBi gain, 840-960MHz frequency range, and IP65 ruggedness for retail, logistics, and industrial RFID systems. Features low VSWR and easy installation.
CYKEO Antenna RFID Reader delivers stable long-range UHF performance with a 10.5dBi directional design, built for warehouses, conveyor portals, and industrial RFID systems. This rfid reader antenna provides 20m+ read distance and rugged IP67 protection.
Cykeo CYKEO-PHF3 industrial HF RFID Antenna offers 24-point dynamic tracking, ISO 14443A/15693 protocols, metal-environment stability for archives/libraries/manufacturing.
Cykeo CYKEO-A5B industrial Linear RFID Antenna delivers 5dBi gain, ≤1.5:1 VSWR, and IP65 rugged design for warehouse, production line, and logistics UHF systems.
Cykeo’s CYKEO-B12 Long Range RFID Antenna delivers 15m+ read range with 12dBi gain, IP65 rugged design, and global 840-960MHz UHF support. Ideal for warehouse/logistics asset tracking.
Cykeo CYKEO-B10 Long Distance RFID Antenna offers 10dBi gain, 840-960MHz frequency range, IP65 rating, and 20m+ coverage for logistics/warehousing/ETC systems. Low VSWR ensures stable signal transmission.
Cykeo CYKEO-A6 UHF RFID panel antenna features 6dBi gain, 840-960MHz broadband, IP65 metal-ready housing for logistics/smart retail. 18mm ultra-thin design with tool-free mounting.
Cykeo CK-A3 industrial antenna RFID UHF offers 5m+ tag detection, ≤1.3:1 VSWR, IP65 rugged design, and global UHF spectrum compatibility (840-960MHz) for warehouses, factories, and retail.
Cykeo CYKEO-B5 directional RFID antenna provides 5dBi gain with 60° narrow beamwidth for precise inventory tracking. IP65-rated, global UHF frequency support, and low VSWR.
Create your own high-performance DIY RFID antenna! 5dBi gain, 840-960MHz tunable, step-by-step guides. Compatible with Arduino, Raspberry Pi, and commercial UHF readers.
Cykeo CYKEO-A7 Flexible RFID Antenna features 840-960MHz wideband tuning, 7dBi gain, and IP68 rating for medical/retail/industrial curved surface deployments. 98% read accuracy with peel-and-stick installation.
Cykeo CYKEO-B5A industrial Passive RFID Antenna delivers 5dBi gain, 70° beamwidth, and -40°C~55°C operation for warehouses/smart cabinets. Compatible with Zebra/Impinj readers.
Cykeo’s CYKEO-A9B High Gain RFID Antenna delivers 15m+ read range with 9dBi amplification. Features IP54 rugged design, 840-960MHz bandwidth, and 80° beamwidth for warehouse/manufacturing RFID systems.
Cykeo’s enterprise-grade 8dbi Impinj RFID Antenna 10m+ read range with 840-960MHz tuning. Features IP65 housing, 1.4 VSWR, 35° beamwidth for retail/warehouse RFID systems.
Cykeo CYKEO-A9 industrial UHF RFID antenna delivers 9dBi gain, 840-960MHz frequency range, and IP65 protection for warehouse/logistics/retail RFID systems. Features N-type connector and ≤1.3:1 VSWR.
CYKEO UHF RFID Antenna built for long-distance and industrial applications. This antenna rfid uhf delivers strong gain, outdoor durability, and reliable tag performance in warehouses, yards, and vehicle ID systems.
CYKEO Antenna RFID delivers reliable long-range UHF performance in warehouses, retail shelves, and cold-chain environments. This compact uhf rfid antenna provides stable reads with circular polarization and ultra-wide 840–960 MHz support, ideal for industrial tracking, smart shelves, and asset monitoring.
Cykeo’s CYKEO-C8 UHF RFID antennas delivers 8dBi gain, 840-960MHz full-band coverage, and IP65 ruggedness for manufacturing/warehouse RFID systems. Industrial RFID Antennas Features
Cykeo’s 8dBi UHF RFID antenna and reader kit delivers 10m+ range, 840-960MHz broadband, and IP65 ruggedness for factories, warehouses, and logistics. ISO 18000-6C & EPC Gen2 certified.
Cykeo CYKEO-A9A industrial UHF RFID reader and antenna kit delivers 10m range, 500 tags/sec, IP65 ruggedness for manufacturing/logistics. Supports EPC Gen2, ISO18000-6C.
Cykeo’s CYKEO-A12C UHF Large RFID Antenna delivers 12dBi gain, 840-960MHz global frequency, IP65 ruggedness for logistics/warehousing/automotive. 40° beamwidth ensures stable 15m+ tag reads.
CYKEO Near Field RFID Antenna provides precise 5–30 cm reading for shelves, cabinets, and workstations. This compact rfid shelf antenna delivers stable short-range performance around metal and clutter, ideal for pharmacies, libraries, and electronics sorting.
Cykeo CYKEO-C1 industrial Forklift RFID Reader features 20m read range, 600 tags/sec scanning, Impinj R2000 chipset, and IP67 rugged design. Ideal for warehouse logistics and manufacturing. Supports ISO 18000-6C/6B protocols.
Cykeo CYKEO-R4 industrial UHF RFID Fixed Reader features 4 TNC ports, 400+ tags/sec speed, IP67 housing, and global frequency compliance for vehicle inspection, smart warehouse, and asset management systems.
Cykeo’s CYKEO-R4L 4-port Fixed UHF RFID Reader delivers 400 tags/sec scanning, ISO 18000-6C compliance, and IP65 protection. Ideal for warehouse automation, manufacturing WIP tracking, and logistics management.
CYKEO CYKEO-R8L Fixed RFID Reader with 8-port UHF design, Impinj-based RF core and up to 20m read range. An industrial Fixed RFID Reader for vehicle inspection, warehouse portals, smart manufacturing lines and secure access checkpoints.
RFID Fixed Reader from CYKEO – the CYKEO-R16L 16-port UHF fixed reader for warehouses, smart cabinets, and production lines. Long-range, multi-tag reading, stable performance for 24/7 industrial use.
Discover how to integrate long-range RFID readers into industrial systems. Learn about automated asset tracking, WMS/MES integration, and deployment strategies for warehouses, production lines, and gate management.
More
Discover waterproof handheld RFID scanners built for rugged outdoor environments. Learn how Cykeo’s durable devices enhance accuracy in harsh weather and dust.
More
Efficient RFID smart library cabinet for 24/7 pickup, secure access, automated circulation, and mixed-material management. Ideal for libraries and archives.
More
Discover the maximum scanning range of handheld RFID devices, factors affecting performance, and how Cykeo’s technology extends coverage for industrial use.
More
Cykeo RFID IoT Solution Products R&D Manufacturer
