RFID tags work by using radio frequency signals to exchange stored identification data between an RFID tag and a reader. The reader sends energy and commands, while the tag responds with encoded information through its antenna and chip.

I have spent years evaluating RFID deployments across warehouses, manufacturing facilities, and asset management environments, and one detail remains consistent: successful RFID projects depend less on the tag itself and more on understanding how the tag interacts with readers, antennas, materials, and operating conditions.

An RFID tag is not a battery-powered tracking device in most industrial applications. It is a compact electronic identification component designed to communicate through radio waves.

According to GS1, RFID tags typically contain an integrated circuit connected to an antenna. The antenna receives energy from the reader and enables communication, while the chip stores identification information such as an EPC (Electronic Product Code).

That simple architecture allows thousands of tagged items to be identified without direct line-of-sight scanning.

How RFID Tags Communicate With Readers

The basic communication process happens in several milliseconds.

Unlike barcode systems, RFID does not require the reader to visually locate each item.

The process looks like this:

1. The RFID reader sends a radio frequency signal
2. The RFID tag antenna captures energy from the signal
3. The RFID chip activates and processes stored information
4. The tag sends encoded data back to the reader
5. The reader transfers information to software systems

For passive RFID tags, the energy comes from the reader field rather than an internal battery.

This is why passive tags can remain functional for years.

The tag is essentially waiting for the correct electromagnetic environment.

When a pallet enters an RFID portal at a warehouse dock, the tag does not “broadcast” continuously. It wakes up when the reader field reaches it.

That small difference is often misunderstood.

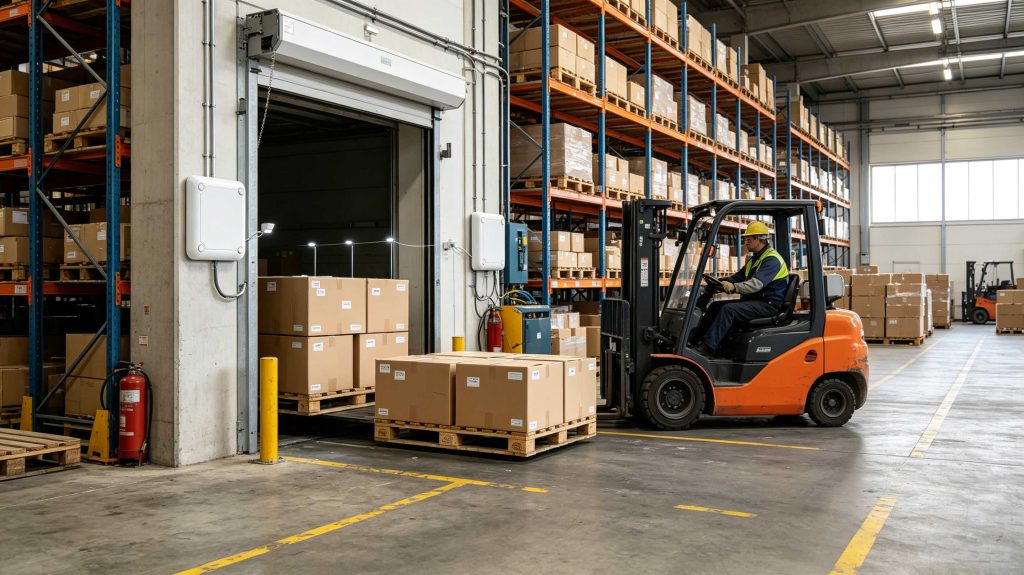

how rfid tags communicate with readers

Inside every RFID tag are several key components:

Component	Function
RFID Chip	Stores identification data and controls communication
RFID Antenna	Receives and transmits radio frequency signals
Substrate	Supports antenna structure
Housing or Label Material	Protects the internal components
Memory	Stores EPC numbers or additional information

The physical design changes depending on the application.

A retail RFID label may be thinner than a paper sticker.

An industrial RFID tag used on steel machinery may include a rigid enclosure.

The electronics principle remains similar.

The environment changes the engineering.

Passive RFID Tags

Passive RFID tags are the most common type used in inventory and supply chain operations.

They do not contain their own battery.

Instead, they receive energy from the reader signal.

Typical applications include:

• Warehouse inventory
• Retail apparel tracking
• Pallet identification
• Tool management
• Asset tracking

RAIN RFID, based on the UHF EPC Gen2 standard, is widely used for supply-chain identification because it enables fast identification of many tagged items simultaneously. GS1 describes RAIN RFID as a technology that connects physical objects to digital information through RFID communication.

Active RFID Tags

Active RFID tags contain a battery.

They can transmit signals over longer distances and are often used when continuous location monitoring is required.

Common examples:

• Vehicle tracking
• Large asset monitoring
• Industrial equipment tracking

However, active RFID systems involve higher cost, battery maintenance, and different infrastructure requirements.

The right choice depends on the tracking objective.

Practical Example: What Happens When an RFID Tag Enters a Warehouse?

During an RFID warehouse deployment, the process is easy to observe.

A pallet loaded with tagged cartons moves through a dock door.

The fixed RFID reader detects multiple tags within its antenna field.

The system captures:

• Tag identification number
• Time of detection
• Reader location
• Movement direction
• Associated inventory record

The operator does not stop the pallet.

No barcode alignment is required.

No manual scanning sequence is needed.

This is where RFID creates operational value.

The technology does not replace inventory systems.

It improves the speed and accuracy of data collection.

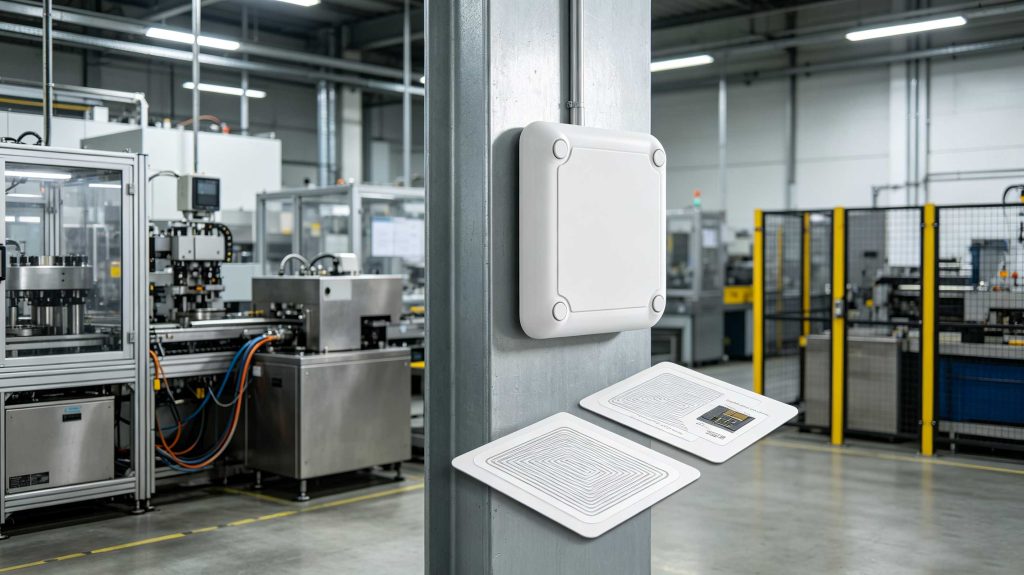

how passive rfid tags work without batteries

One of the most interesting parts of RFID technology is that many tags operate without a power source.

A passive UHF RFID tag uses a process called backscatter communication.

The reader sends electromagnetic energy.

The tag antenna captures part of that energy and powers the chip.

The chip changes the electrical characteristics of the antenna, reflecting the signal back in a controlled pattern.

The reader interprets these changes as digital information.

This happens extremely quickly.

Modern RFID systems can identify hundreds of tags per second when properly configured.

Cykeo UHF RFID solutions, for example, support multi-tag recognition algorithms designed for high-density reading environments where many tags appear within the reader field simultaneously.

RFID Tag Frequency Determines How It Works

RFID tags operate at different frequency ranges.

Frequency	Typical Applications	Characteristics
LF RFID	Animal identification, access systems	Short range, slower communication
HF RFID	Cards, NFC applications, documents	Moderate range
UHF RFID	Logistics, inventory, asset tracking	Longer range and fast bulk reading

UHF RFID is commonly selected for warehouse and industrial applications because it supports longer reading distances and multiple-tag identification.

GS1 identifies UHF RFID as a key technology for supply-chain applications using EPC standards.

Why RFID Tags Sometimes Fail to Read

A common mistake during RFID deployment is assuming that every tag performs the same way everywhere.

It does not.

During testing, I always check the actual installation environment.

Important factors include:

• Metal surfaces
• Liquid products
• Tag orientation
• Reader antenna placement
• Reader power settings
• Interference from surrounding equipment

A tag that reads perfectly on a cardboard box may behave differently when attached to a steel cabinet.

GS1 specifically notes that metal and water can affect RFID performance because they interact with electromagnetic fields. Specialized tag designs are often required for these environments.

RFID Tags vs Barcodes: Why RFID Works Differently

Feature	RFID Tags	Barcodes
Reading Method	Radio frequency	Optical scanning
Line of Sight Required	No	Usually yes
Multiple Item Reading	Yes	Usually one-by-one
Data Storage	Chip memory	Printed information
Environmental Resistance	Higher with industrial tags	Depends on print quality

The biggest operational difference is automation.

A barcode scanner reads what it can see.

An RFID reader communicates with tags within its RF field.

Cykeo RFID Expertise in Tag-Based Identification

Cykeo RFID systems are designed for industrial identification scenarios where reliable tag communication is essential.

Applications include:

• Warehouse inventory
• Manufacturing tracking
• Tool management
• Logistics operations
• Asset identification

Compatible UHF RFID solutions support standards such as:

• ISO 18000-6C
• EPC C1G2

The important engineering decision is not simply choosing a tag.

It is matching:

RFID tag + reader + antenna + software + physical environment

A warehouse pallet, maintenance tool, medical asset, and outdoor machine all require different tag considerations.

Author Experience: What Matters in Real RFID Projects

In laboratory demonstrations, RFID appears simple.

A reader detects a tag.

Data appears on a screen.

Real deployments are different.

A successful RFID system requires understanding:

• Where tags are attached
• How objects move
• How readers are positioned
• What materials surround the tag
• How many tags appear together

The strongest RFID projects are designed around operational reality, not just technical specifications.

Key Takeaways

RFID tags work by using radio frequency communication between a tag and a reader.

The tag stores information inside its chip.

The antenna enables communication.

The reader provides energy and collects data.

The software turns that identification event into useful business information.

Understanding this interaction is the foundation for designing reliable RFID inventory, logistics, and asset tracking systems.

RFID Tag Technical Architecture: What Happens Inside the Tag?

Understanding how does rfid tags work requires looking beyond the visible label or plastic housing.

An RFID tag is a small communication device built around three essential elements:

RFID Component	Technical Function
Integrated Circuit (IC)	Stores identification data and controls communication
Antenna	Receives energy and sends data back to the reader
Substrate / Housing	Supports, protects, and adapts the tag to the application

GS1 explains that an RFID tag inlay consists of a microchip and antenna attached to a substrate. The antenna collects energy from the reader field, powers the chip, and allows the stored information to be returned to the reader.

This structure explains why two RFID tags with identical chips may look completely different.

A warehouse label prioritizes flexibility.

A tool-management tag prioritizes durability.

A medical asset tag may prioritize chemical resistance.

The electronics are similar.

The engineering decisions around them are not.

how passive rfid tags work step by step

Passive RFID technology is the foundation of many inventory systems because it does not require a battery inside each tag.

The communication sequence is:

Step 1: Reader Creates an RF Field

The RFID reader antenna transmits radio frequency energy.

For UHF RFID systems, EPC Gen2 standards define communication between readers and passive tags operating in the 860–930 MHz range.

Step 2: Tag Receives Energy

The tag antenna captures energy from the reader signal.

The RFID chip wakes up and prepares stored information.

Step 3: Chip Processes Data

The RFID IC accesses stored information, such as:

• EPC identifier
• Tag memory data
• Product reference information
• Asset identification number

GS1’s EPC Tag Data Standard defines how EPC data is encoded and stored on RFID tags.

Step 4: Tag Sends Information Back

The tag does not normally transmit like a Wi-Fi device.

Instead, passive UHF RFID tags use backscatter communication.

The tag changes how its antenna reflects the incoming signal.

The reader detects these changes and converts them into digital data.

This happens extremely quickly.

To an operator, it feels instant.

RFID Tag Memory: What Information Can Be Stored?

A common misunderstanding is that RFID tags only store a serial number.

In reality, many RFID systems support multiple memory areas.

Typical UHF RFID memory includes:

Memory Area	Purpose
EPC Memory	Main identification number
TID Memory	Identifies tag chip information
User Memory	Optional application data
Reserved Memory	Security-related information

GS1 explains that EPC RFID tags can carry EPC identifiers, user memory data, control information, and manufacturing-related information depending on the tag configuration.

For example, a manufacturing company may associate an RFID tag with:

• Tool ID
• Maintenance history
• Inspection status
• Production batch
• Calibration date

The tag does not replace the database.

It becomes the physical link between an object and its digital record.

RFID Tags in Real Industrial Applications

Warehouse Inventory Tracking

Warehouses are one of the strongest examples of RFID value.

A barcode workflow usually requires:

• Human positioning
• Scanner alignment
• Individual item handling

RFID changes the process.

A reader installed at a dock door can automatically capture tagged cartons as they move through the area.

GS1 US notes that RFID-tagged cartons and cases can be automatically captured when moving through warehouse read points, improving visibility of inventory movement.

Typical applications include:

• Receiving
• Put-away
• Cycle counting
• Shipping verification
• Inventory reconciliation

The tag itself is simple.

The operational impact comes from automation.

Tool and Equipment Management

Industrial tools create a different RFID challenge.

A warehouse carton may use a paper label.

A maintenance tool may experience:

• Impact
• Oil exposure
• Metal interference
• Repeated handling

This is where rugged RFID tags are used.

Common designs include:

• ABS plastic housing
• On-metal construction
• Screw mounting
• Industrial adhesive
• Encapsulated electronics

The tag becomes part of the asset.

Manufacturing Traceability

Manufacturers often use RFID tags to connect physical production steps with digital records.

Examples:

• Work-in-progress tracking
• Assembly verification
• Component identification
• Quality inspection records

The advantage is not just knowing where something is.

It is knowing:

• What happened
• When it happened
• Which process was completed
• Which asset was involved

RFID Tags and Cykeo Deployment Experience

Cykeo RFID solutions are designed around practical industrial identification requirements.

In real deployments, the selection process usually starts with three questions:

1. What Object Needs Identification?

Examples:

• Inventory carton
• Tool
• Equipment
• Medical supply
• Pallet
• Vehicle component

2. Where Will the Tag Operate?

Consider:

• Indoor warehouse
• Outdoor environment
• Metal surface
• Liquid environment
• High-temperature area

3. How Will Data Be Captured?

The system may use:

• Fixed UHF RFID readers
• Desktop RFID readers
• Handheld readers
• Integrated RFID modules

Cykeo UHF RFID systems support standards such as ISO 18000-6C / EPC C1G2 for industrial RFID applications.

The reader, antenna, tag, and software must work together.

A high-performance reader cannot compensate for the wrong tag selection.

A premium tag cannot fix poor antenna placement.

RFID performance comes from the complete system.

Common RFID Tag Design Mistakes

Choosing Only by Price

The cheapest tag is not always the lowest-cost solution.

A low-cost tag that fails in the field creates:

• Manual recovery work
• Additional labor
• Data errors
• Deployment delays

Testing on the Wrong Material

A tag tested on cardboard may fail on:

• Steel cabinets
• Engines
• Liquid containers

Always test on the final object.

Ignoring Orientation

RFID communication depends on:

• Tag direction
• Reader antenna position
• Movement pattern

A tag that reads perfectly in one direction may perform differently when rotated.

Assuming Maximum Range Is Always Better

Long-range RFID is not automatically ideal.

Some applications require controlled reading zones.

For example:

• A tool cabinet may need precise identification.
• A warehouse gate may need wide coverage.

The correct design depends on the workflow.

RFID Tags vs Active RFID Tags

Feature	Passive RFID Tags	Active RFID Tags
Power Source	Reader energy	Internal battery
Cost	Lower	Higher
Maintenance	Minimal	Battery replacement
Typical Range	Short to long depending on system	Longer communication range
Common Use	Inventory, logistics, assets	Real-time tracking

GS1 explains that active RFID tags contain their own power source, while passive RFID tags obtain energy from the reader field.

FAQ: How Does RFID Tags Work?

1. How does rfid tags work without batteries?

Passive RFID tags work without batteries because they receive energy from the reader’s electromagnetic field. The tag antenna captures energy, activates the chip, and sends information back using backscatter communication.

2. Do RFID tags send signals all the time?

No. Passive RFID tags remain inactive until they receive energy from a compatible reader. They do not continuously broadcast like cellular or Wi-Fi devices.

3. How far can RFID tags be read?

Reading distance depends on tag type, frequency, antenna design, reader power, and environment. UHF RFID systems can support long-range identification in suitable conditions. GS1 notes that RAIN RFID can capture identifiers at distances beyond 10 meters in appropriate applications.

4. Can RFID tags store product information?

Yes. RFID tags can store identification data and, depending on the tag memory structure, additional information. Many systems store the primary identifier while detailed information remains in enterprise software.

5. Why does RFID tag performance change on metal?

Metal affects electromagnetic behavior and can interfere with conventional RFID tag operation. Specialized on-metal RFID tags use different antenna designs and structures for metallic surfaces.

6. Are RFID tags reusable?

Some RFID tags can be rewritten or reused depending on memory type, application requirements, and physical condition. Disposable labels and permanent asset tags are designed differently.

7. What is required for an RFID system to work?

A complete RFID system requires:

• RFID tags
• RFID readers
• Antennas
• Software platform
• Correct deployment design

GS1 identifies readers, tags, antennas, and host systems as key RFID system components.
