what is an rfid reader used for

An RFID reader is used to wirelessly identify RFID tags, capture their stored data, and send that information to software for inventory, identification, tracking, or management. In UHF RFID systems, the reader can communicate with multiple passive tags without requiring direct line-of-sight scanning.

For someone working around RFID equipment, this distinction matters. A reader is not simply a faster barcode scanner. The antenna, RF output, tag orientation, reader protocol, filtering logic, and surrounding materials all affect what the system actually sees.

What is a UHF RFID reader used for?

A UHF RFID reader is primarily used for fast, contactless identification of tagged items. UHF passive RFID, also known as RAIN RFID, operates in the 860–930 MHz range under GS1’s description and is commonly used for inventory, asset identification, and tracking applications. Depending on the environment and system design, GS1 notes that read ranges can reach up to about 10 meters.

That range should not be treated as a guaranteed working distance.

During reader testing, I pay more attention to the shape and control of the read zone than the largest distance shown on a specification sheet. A reader that sees a tag from 8 meters away may be unsuitable if the application requires only the items placed on a workbench to be detected.

Typical UHF RFID reader uses include:

• Inventory counting
• Asset identification
• Warehouse receiving and dispatch
• Product tracking
• Library and document management
• Tool management
• Laundry and linen identification
• Retail item-level inventory
• Tag registration and encoding
• Automated movement or status records

How does an RFID reader identify a tagged item?

The reader communicates with an RFID tag through radio frequency signals. In a passive UHF RFID system, the tag does not need its own battery. The reader sends RF energy through its antenna, and the tag responds with its stored identification data.

GS1 describes RAIN RFID as a system in which a reader can read and write tagged items, manage the data, and trigger actions.

For many UHF applications, the EPC is the important identifier. GS1 explains that EPC can encode GS1 identifiers on RAIN RFID tags, supporting serialization, visibility, and traceability applications.

This is where RFID becomes useful operationally. The reader does not merely return a number. Its output can become an event inside a larger software system:

Tag detected → EPC captured → item identified → software record updated

The actual implementation may be more complicated, particularly when hundreds of tags are inside the antenna field.

RFID reader vs. barcode scanner

Feature	RFID Reader	Barcode Scanner
Communication	Radio frequency	Optical
Line of sight	Usually not required	Normally required
Multiple-item reading	Possible	Usually one item at a time
Reading through packaging	Possible depending on material and tag	Generally not
Tag orientation	Still matters	Usually requires visible code
Data source	RFID chip memory	Printed barcode

The practical difference becomes obvious during inventory work. A barcode process often means finding the label, aiming the scanner, and reading it. An RFID system can detect several tagged items in the reader field at the same time.

That does not mean RFID automatically solves every inventory problem. Metal, liquids, tag placement, antenna polarization, reader settings, and unwanted tags can change the result.

What information does an RFID reader capture?

In a typical UHF deployment, the reader captures an identifier such as the EPC stored in the tag’s EPC memory bank. Additional tag memory may also be available.

GS1 states that RAIN RFID tags use different logical memory banks, including Reserved, EPC, TID, and User memory.

A useful working distinction is:

• EPC: identifies the tagged object.
• TID: contains tag/chip-related information.
• User memory: can hold additional application data when supported.
• Reserved memory: contains security-related information.

Not every application needs all four.

In many inventory projects, the EPC is enough. The business system can associate that identifier with a product record, serial number, location, status, or transaction without placing a large amount of business information directly onto the RFID chip.

Why RFID reader performance depends on the application

A reader’s maximum read distance is only one part of system performance.

GS1 specifically notes that passive UHF RFID read range depends on factors such as reader power, interference, antenna characteristics, polarization, tag orientation, and operating environment.

This is why two installations using the same reader can behave differently.

For a controlled desktop application, a short read zone can actually be desirable. It reduces accidental reads from nearby tagged objects. In a warehouse portal, the requirement changes: the system may need a defined zone wide enough to capture cartons moving through the portal.

At Cykeo, this application-first approach is particularly relevant when selecting UHF RFID equipment. The reader should be configured around the physical workflow, not simply around the highest number in a product specification.

A useful field check

Before judging an RFID reader, test:

1. How many tags must be identified at one time?
2. How close or far should the tags be?
3. Are metal or liquid products present?
4. Can tags face different directions?
5. Are unwanted tags located near the read zone?
6. Does the application require reading only, or reading and writing?
7. How will reader data reach the host software?

These questions usually reveal more about the required reader than a simple “How far can it read?” test.

RFID reader applications in real operations

Auburn University RFID research provides a useful example of why readers matter beyond the hardware itself. In one field experiment involving 13 stores over 23 weeks, RFID-enabled inventory adjustment reduced inventory record inaccuracy by about 26%. The research demonstrates the operational value of automatically capturing item information rather than treating RFID as a standalone scanning device.

The number is from a specific historical retail field study, not a universal performance guarantee. The important point is the workflow: better automatic identification can improve the quality of inventory records when the surrounding process is designed correctly.

That is the part often missed when evaluating an RFID reader from a product page alone.

What is an RFID reader used for in a UHF RFID system?

The reader sits between the physical tag and the application software. It generates the RF signal, receives tag responses, applies the reader’s processing logic, and transfers usable tag data to the host system.

In a working installation, that connection may be USB, RS-232, Ethernet, or another supported communication interface. The choice depends on where the reader is installed and how the application needs to exchange data.

For a desktop registration station, the requirement is usually different from a warehouse gate. A desktop unit may need a tightly controlled near-field zone. A fixed reader at a loading dock needs a larger, carefully shaped interrogation area.

That difference is not cosmetic. It changes antenna selection, power settings, mounting position, filtering, and software configuration.

UHF RFID reader applications by workflow

Application	Typical reader task	Important consideration

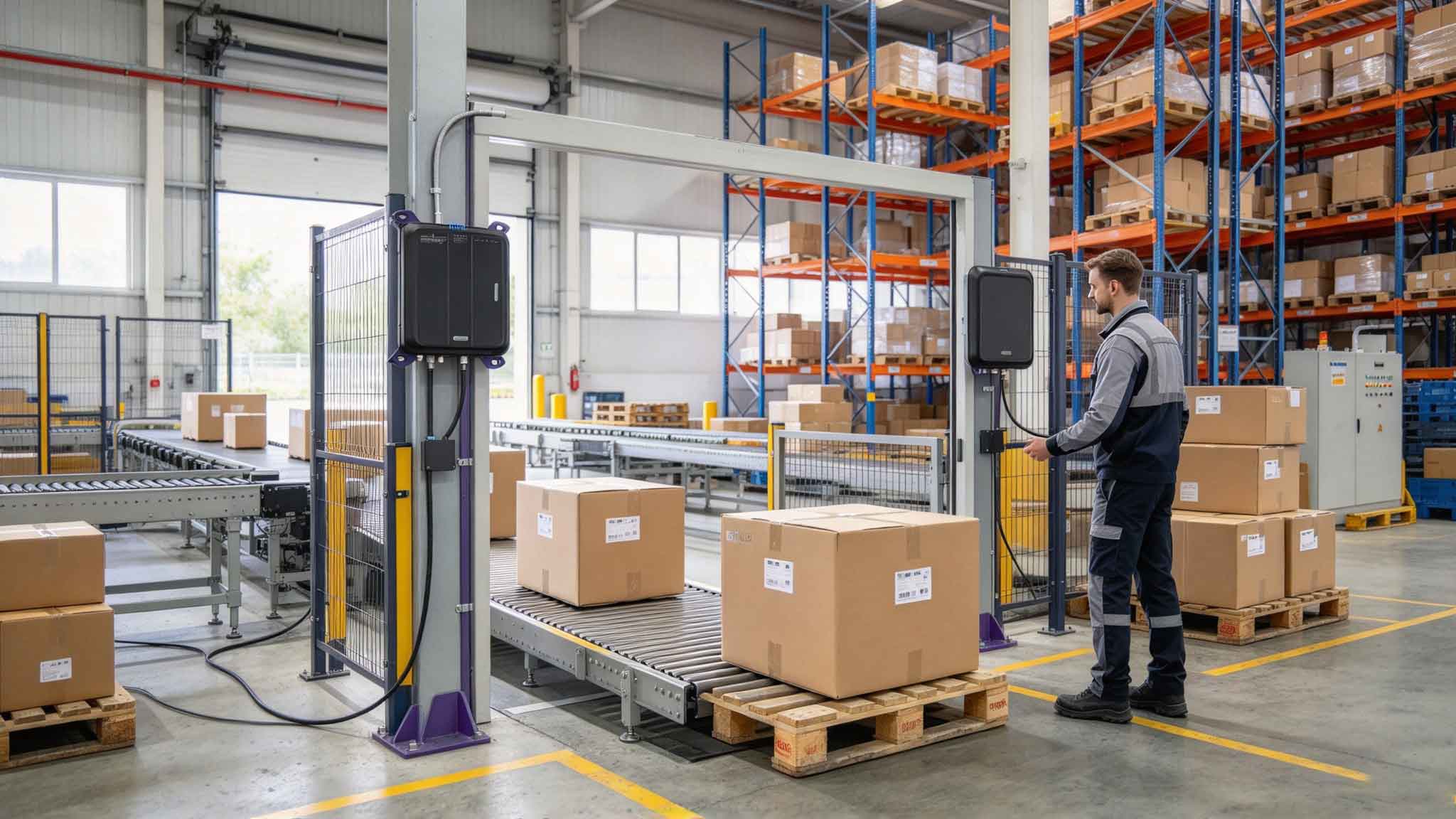

Warehouse	Identify cartons, pallets, or assets	Read-zone control
Retail	Capture item-level inventory	Dense tag reading
Library	Register and identify tagged items	Short controlled range
Tool management	Identify tools during entry/exit	Avoiding nearby tag reads
Laundry	Register and identify linen	Tag durability and placement
Manufacturing	Record tagged components	Metal and RF interference
Document management	Register or locate tagged items	Reliable close-range reading

The reader is therefore part of a larger identification system rather than an isolated device.

What does a UHF RFID reader actually do with multiple tags?

A UHF RFID reader can communicate with multiple tags within its RF field using anti-collision mechanisms. Instead of waiting for one physical label to be positioned directly in front of the scanner, the reader manages tag responses and collects identifiers from the population in its read zone.

This is particularly useful in inventory work.

A shelf, carton, workbench, or receiving area may contain many tagged objects. The reader’s job is not simply to “hear everything.” It needs to distinguish legitimate tag responses, reduce duplicate reporting, and deliver useful information to the host application.

That is why multi-tag performance and filtering can matter more than theoretical maximum distance in a real installation.

How to choose a UHF RFID reader

A practical selection starts with the application rather than the reader model.

1. Define the read zone

Decide exactly where a tag should be detected.

For a desktop station, reading beyond the working surface may create false inventory events. For a warehouse portal, the opposite problem occurs: a narrow read zone can cause missed tags.

2. Check the required tag population

If ten, fifty, or several hundred tags may appear together, the reader needs reliable anti-collision and dense-reader performance.

Do not evaluate this only with a single tag on an empty table. A single-tag demonstration says very little about a busy operating environment.

3. Consider the material around the tag

Metal and liquid can affect UHF RFID performance. Tag construction and placement become particularly important when identifying metal tools, liquid containers, or products containing substantial moisture.

The same reader can therefore produce different results with different tag constructions.

4. Match the communication interface

The reader must be able to communicate with the application that will consume the RFID data.

Common options include:

• USB
• RS-232
• Ethernet
• TCP/IP
• Wireless interfaces on supported equipment

For a compact registration workstation, USB can simplify installation. For fixed industrial equipment, Ethernet may make more sense when the reader needs to communicate with a remote application.

Cykeo UHF RFID readers and application development

Cykeo develops UHF RFID equipment around practical identification workflows, including fixed-reader, desktop, and embedded-reader applications.

For example, Cykeo’s RFID hardware portfolio includes devices designed around ISO/IEC 18000-6C / EPC C1G2 operation, with options for interfaces such as RS-232 and Ethernet depending on the model.

The development side matters too. An RFID reader is useful only when its tag data can be integrated into the customer’s software.

For application developers, Cykeo provides development resources such as SDK/API materials and, for applicable products, C# and Java development documentation.

A typical integration may look like:

RFID tag → UHF antenna → RFID reader → communication interface → application software → database

The reader handles the RF communication. The application determines what the captured identifier means operationally.

Reading distance is not the only performance metric

One of the more common mistakes in RFID projects is choosing equipment primarily from the advertised maximum read distance.

A better evaluation includes:

• Read rate
• Tag population
• Missed-read rate
• Duplicate reads
• Read-zone boundaries
• Write performance when required
• Antenna coverage
• RF interference
• Communication stability
• Software integration
• Environmental conditions

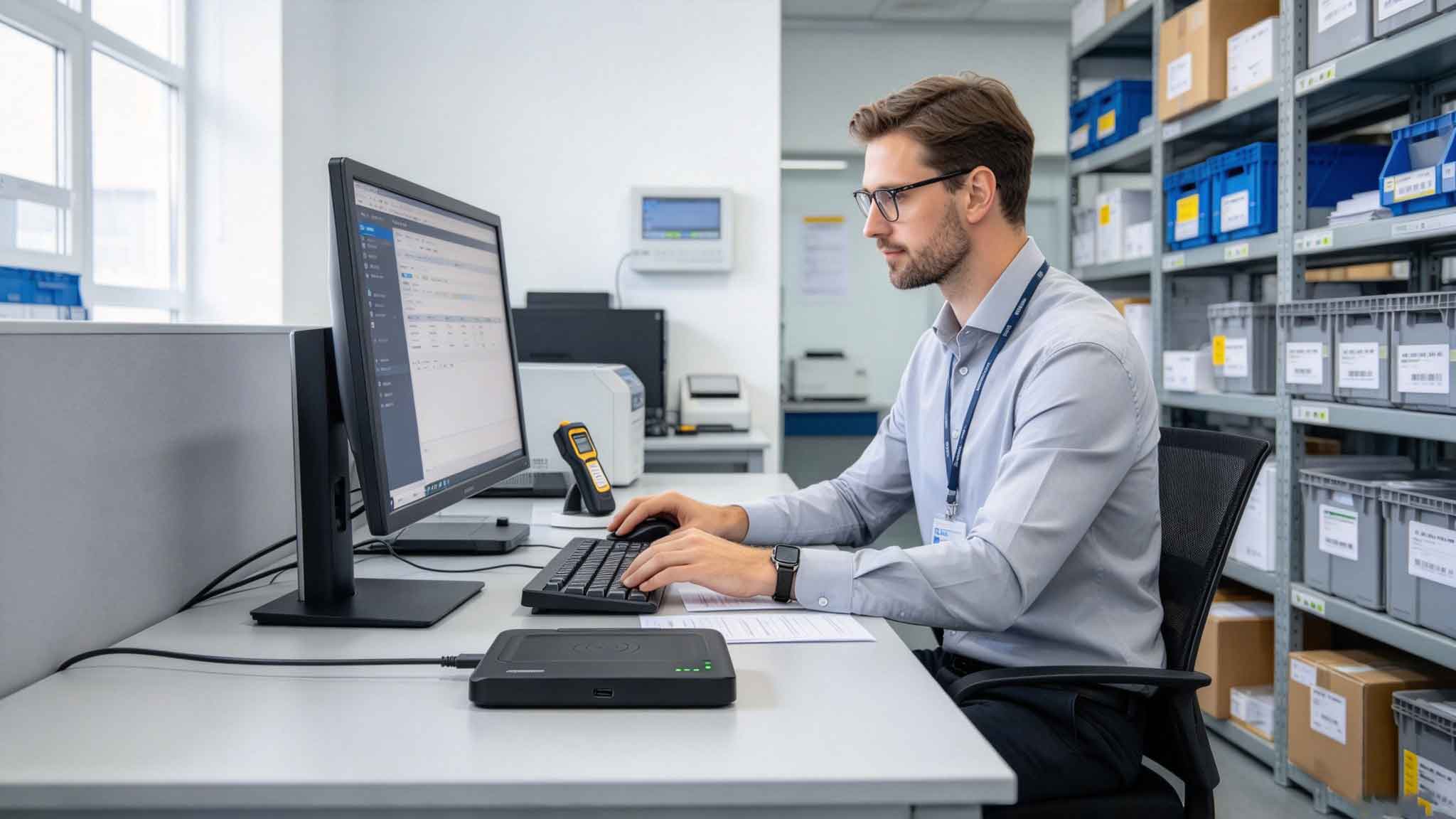

For example, a desktop RFID platform intended for tag registration may deliberately use a near-field antenna and a controlled working area. Cykeo’s desktop platform specifies an effective reading range within about 30 cm and a writing range within about 10 cm.

That shorter range is useful when the operator needs to register one item without accidentally capturing every tagged object on the surrounding desk.

What is an RFID reader used for in tag registration?

Tag registration is a good example of a task where controlled RFID reading is more valuable than extreme range.

A registration operator may associate a tag with:

• A product
• A tool
• A library item
• A document
• A shelf location
• A garment or linen item
• An internal asset number

Cykeo’s desktop RFID platform is designed for this type of management work. It supports functions including tag registration, item registration, document registration, shelf-label registration, item queries, borrowing and return records, statistics, log queries, and tag conversion.

Its near-field design keeps the working area deliberately compact. The operator places the tagged object within the intended zone, performs the registration or rewrite operation, and the application records the result.

The difference is subtle but important: RFID performance is often about controlling where the reader does not read.

RFID reader troubleshooting in the field

When a UHF RFID reader does not behave as expected, I would not immediately increase RF power.

First check the physical setup.

Tags are missing

Look at:

• Tag orientation
• Tag placement
• Antenna position
• Reader power
• Nearby metal
• Liquid products
• Tag quality

Too many tags appear

The read zone may be wider than the process requires. Lowering power, changing antenna positioning, adjusting filtering, or changing the physical layout can be more effective than simply replacing the reader.

The same tag appears repeatedly

Repeated reads are not necessarily a hardware failure. RFID software often receives repeated observations of the same EPC while the tag remains in the field. The application may need deduplication or event logic.

Tags read correctly but software receives nothing

Check the communication interface and application protocol. A successful RF exchange does not automatically mean the host application has correctly received or interpreted the data.

What is an RFID reader used for? FAQ

1. What is an RFID reader used for?

An RFID reader is used to wirelessly identify RFID tags and transfer their data to an application. UHF RFID readers are widely used for inventory, asset identification, logistics, retail, libraries, tool management, laundry, and other item-level identification tasks.

2. Can a UHF RFID reader read multiple tags at once?

Yes. UHF RFID readers use anti-collision techniques to communicate with multiple tags in the same RF field. Actual performance depends on reader configuration, antenna design, tag density, tag orientation, and the surrounding environment.

3. Does an RFID reader need to see the tag?

No. Unlike optical barcode scanning, UHF RFID does not normally require direct visual line of sight. However, materials, tag orientation, antenna polarization, metal, liquids, and RF interference can still affect successful reading.

4. How far can a UHF RFID reader read?

There is no single guaranteed distance. GS1 notes that passive UHF RFID read range depends on factors including reader power, antenna characteristics, tag design, orientation, interference, and the operating environment.

5. Can an RFID reader write data to an RFID tag?

Some RFID readers support both reading and writing. The exact capability depends on the reader, tag type, software, and memory area being accessed. Cykeo’s desktop RFID platform is designed for applications that require tag registration and rewriting.

6. What interface can an RFID reader use?

The interface depends on the device. USB, RS-232, Ethernet, and other communication methods are used across different RFID products. The appropriate interface depends on installation location, software architecture, and communication requirements.

7. Is a longer RFID reading distance always better?

No. A longer range can be useful for portals and larger identification zones, but it can also increase unintended reads. In controlled registration or workstation applications, a shorter, defined read zone can be more appropriate.

Final answer: what is an RFID reader used for?

An RFID reader is used to turn radio communication with tagged objects into usable identification data. In UHF RFID applications, that can mean counting inventory, registering assets, recording movement, identifying tools, managing textiles, or connecting tagged items with a business application.

The right reader is therefore the one that fits the physical workflow: the required read zone, tag population, materials, communication interface, and software environment.

For Cykeo, that application-first view is central to UHF RFID deployment. what is an rfid reader used for is ultimately answered by what the reader needs to accomplish at the point where people, tags, hardware, and software meet.
