Short Answer：A long range RFID scanner for warehouse applications is a UHF RFID device that automatically identifies tagged products, pallets, and assets from several meters away. It helps warehouses improve inventory accuracy, reduce manual scanning work, and track goods during receiving, storage, and shipping. The actual performance depends on RFID reader power, antenna design, tag type, and warehouse environment.
Many warehouse managers first discover RFID because they have an inventory problem.
The situation is usually familiar:
A company has thousands of products stored in different locations.
Workers know the products are somewhere in the warehouse, but finding accurate information takes time.
Manual counting, barcode scanning, and spreadsheet updates may work when the business is small. But once the warehouse grows, these methods become slower and more difficult to manage.
This is where a long range RFID scanner for warehouse applications becomes useful.
It allows companies to identify tagged products automatically without scanning each item one by one.
However, from what we have seen in industrial projects, RFID is not a magic replacement for every process. The success of a warehouse RFID system depends on choosing the right hardware and designing the reading area properly.
Barcode systems require direct visibility.
A worker needs to:
For a small warehouse, this may be completely acceptable.
But imagine a distribution center receiving hundreds of pallets every day.
The operation becomes repetitive and time-consuming.

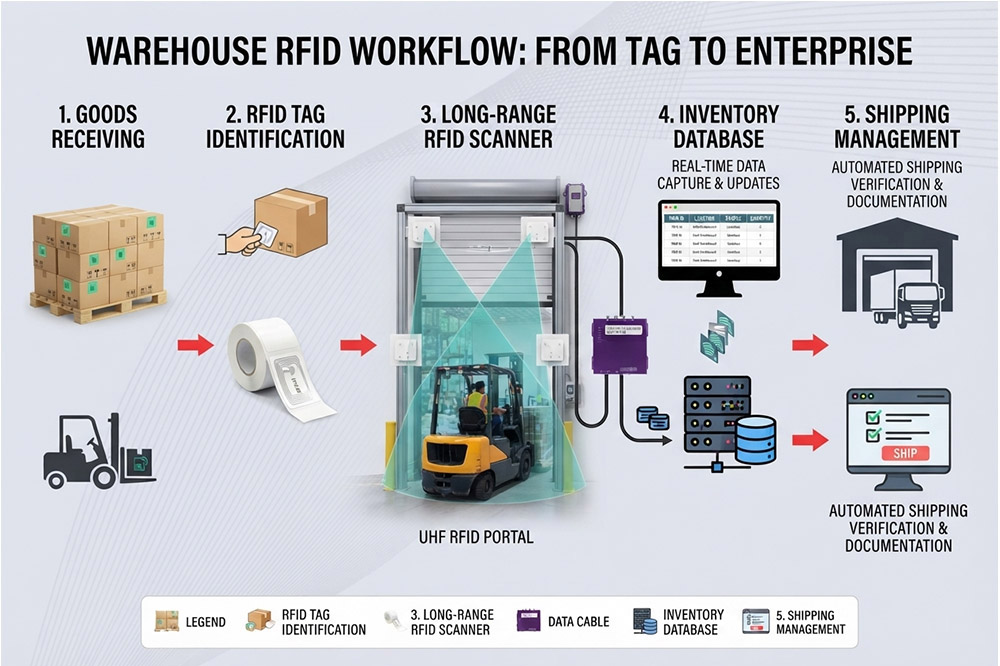

A long range RFID scanner changes the workflow.
Products equipped with RFID tags can be detected when they move through a specific area.
For example:
A truck arrives.
Pallets enter the warehouse.
The RFID gate automatically identifies the goods.
The inventory system updates the records.
Workers spend less time scanning and more time managing operations.
A typical warehouse RFID system includes:
The scanner sends radio signals through antennas.
When RFID tags enter the reading zone, the tags respond with stored information.
The reader collects this data and sends it to the warehouse management system.
The process happens quickly, often without any action from operators.
This is especially useful in areas where goods are constantly moving.
When new products arrive, companies need to record incoming inventory.

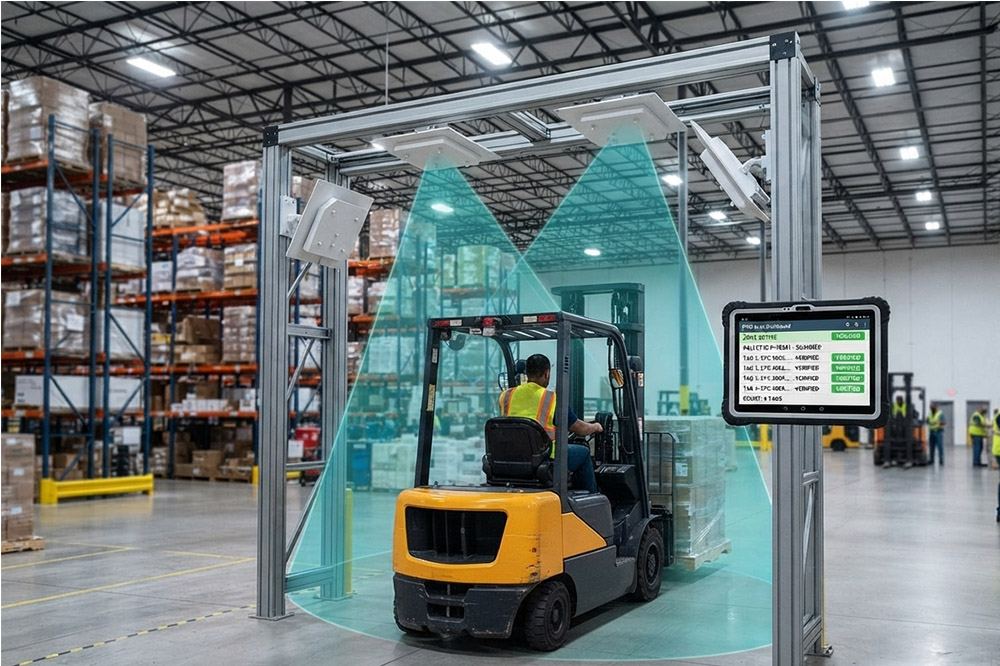

An RFID scanning gate can automatically capture information as pallets enter.
This reduces manual checking.
Before products leave the warehouse, RFID scanners can verify outgoing goods.
This helps reduce shipping mistakes.
Large warehouses often need frequent stock checks.
RFID allows faster inventory visibility compared with manual counting.
Some warehouses also use RFID to manage:
A common mistake is focusing only on maximum reading range.
A customer may request:
“We need a 20-meter RFID scanner.”
But after checking the warehouse layout, the real requirement may be a controlled 5-meter reading zone.
Why?
Because warehouses contain many products.
If the scanner reads tags from the wrong area, the system may collect incorrect data.
For example:
A loading door is next to storage racks.
A very powerful RFID scanner may detect products on nearby shelves.
The result is more data, but not necessarily better data.
In warehouse projects, accuracy is usually more valuable than extreme distance.
Every warehouse is different.
Consider:
The scanner location should match the actual workflow.
The antenna affects:
A warehouse entrance may need a different antenna compared with a production line.
The tag must match the product.
Different materials require different RFID tags.
For example:
may need different tag designs.
A warehouse RFID system usually connects with:
Without smooth integration, even good hardware cannot provide maximum value.

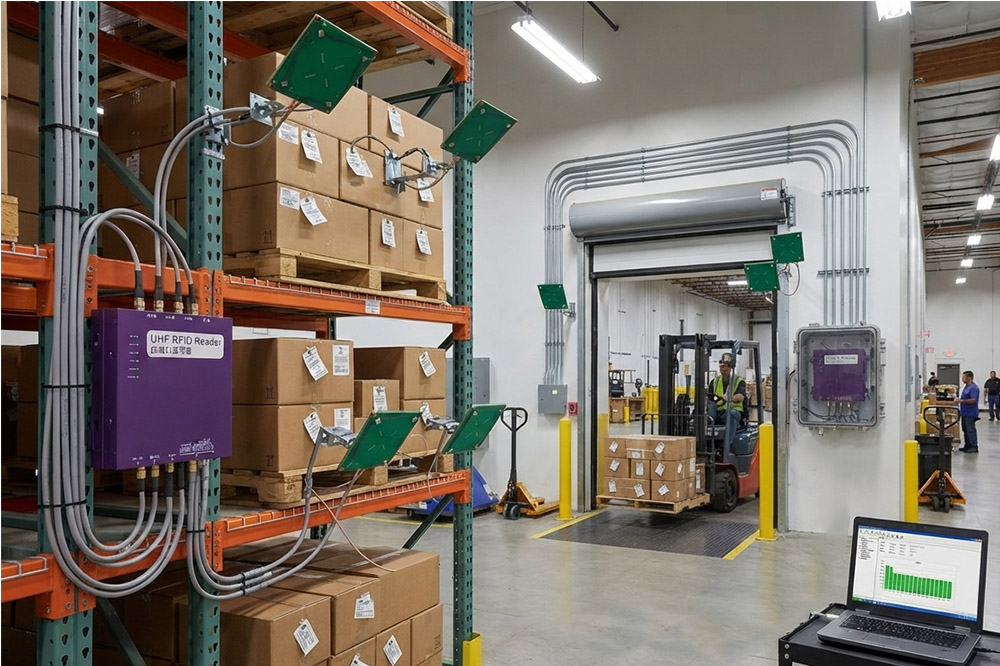

For warehouse automation, fixed RFID readers are commonly installed at:
They work continuously without requiring workers to operate them.
Compared with handheld RFID scanners, fixed systems are better for automatic identification points.
However, many warehouses combine both solutions.
Fixed readers handle automatic tracking, while handheld devices help employees search and verify items.
RFID technology works well, but installation experience matters.
Some common issues include:
Metal racks and equipment can affect signal performance.
Even good RFID readers may perform poorly if antennas are installed incorrectly.
A wider signal is not always better.
The system needs controlled coverage.
Low-quality tags can reduce reliability.
Field testing before mass deployment is usually worth the effort.
For RFID solution providers, selling a scanner is only part of the business.
Customers usually need a complete solution.
They may ask about:
A supplier who only provides hardware may not be enough for complex projects.
Long-term cooperation often depends on technical support and product consistency.
As warehouses become more automated, companies need faster and more accurate ways to manage inventory.
Long range RFID scanners are becoming an important part of:
The value is not simply reading tags from far away.
The real benefit is creating better visibility of where products are and how they move.
We provide UHF RFID readers, rfid antennas, and customized RFID solutions for warehouse automation, inventory tracking, and industrial applications.
Contact us for bulk pricing, OEM cooperation, and technical support for your RFID projects.
