How to Scan RFID Tags

how to scan rfid tags: Quick Answer

How to scan rfid tags? RFID tags are scanned by using a compatible RFID reader that sends radio frequency signals to activate the tag and capture stored information. The reader, antenna, frequency, and software must work together for accurate identification and reliable data collection.

Understanding How to Scan RFID Tags in Real Applications

RFID tag scanning is not simply placing a reader close to a tag and receiving data. In actual deployments, successful scanning depends on several technical factors, including RFID frequency, tag material, reader performance, antenna configuration, and environmental conditions.

During years of working with RFID deployment projects, Cykeo engineers have tested RFID systems in warehouses, manufacturing facilities, retail stores, and asset management environments. One common field issue is not the RFID tag itself, but the mismatch between the tag type and the selected reader.

For example, a warehouse using UHF RFID tags for pallet tracking requires a reader designed for long-range identification, while a desktop workstation for card or label registration needs controlled near-field reading. The same RFID technology behaves differently depending on the application.

According to GS1, RFID systems are commonly built around three core elements: RFID tags, readers, and software platforms. The reader captures tag information and transfers the data into business systems for tracking and decision-making.

From practical experience, reliable RFID scanning requires attention to details that are often overlooked:

• Matching the RFID reader frequency with the RFID tag frequency
• Selecting suitable antennas for the reading environment
• Adjusting reader power output according to application requirements
• Filtering unwanted tag reads in dense environments
• Integrating RFID data with existing software systems

How RFID Tag Scanning Works Step by Step

When scanning RFID tags, the reader and tag communicate through electromagnetic waves. Passive RFID tags do not contain their own power source. Instead, they receive energy from the reader signal and return stored information.

The basic scanning process includes:

Process	Technical Function
RFID reader activation	Sends RF energy through antenna
Tag response	RFID chip transmits stored identification data
Signal processing	Reader filters and decodes received information
Data transmission	Information moves to software or database
Application action	System updates inventory, access, or tracking records

1. Select the Correct RFID Reader

The first step in scanning RFID tags is choosing a reader that matches the tag technology.

Common RFID frequencies include:

RFID Frequency	Typical Application
LF 125–134 kHz	Animal identification, simple access applications
HF 13.56 MHz	RFID cards, library systems, NFC-related applications
UHF 860–960 MHz	Warehouse inventory, logistics, asset tracking

For enterprise applications, UHF RFID is widely adopted because it supports fast identification of multiple tags over longer distances.

Auburn University’s RFID Lab has conducted extensive RFID research in retail environments, including studies showing RFID can significantly improve inventory accuracy when properly implemented. Their research has been widely referenced in retail RFID adoption.

2. Position the RFID Tag Within the Reader Range

The scanning distance depends on:

• Reader output power
• Antenna gain
• Tag antenna design
• Surrounding materials
• Installation environment

In a controlled workstation, a short reading distance may be preferred because operators need to scan one specific tag.

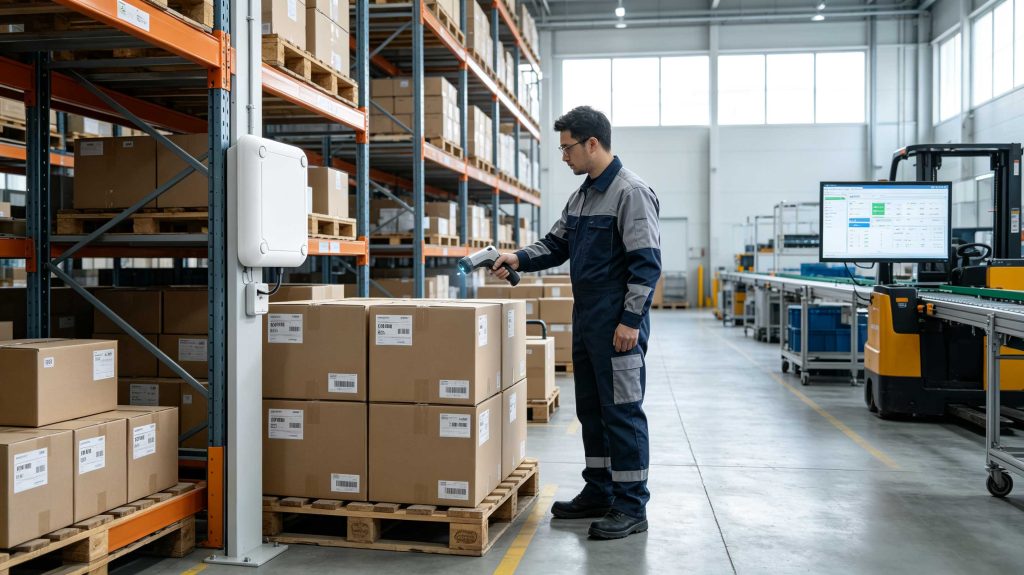

In a warehouse, however, fixed RFID readers with external antennas may be installed at gateways, shelves, or production lines to automatically capture multiple tagged items.

Cykeo RFID readers support professional deployment scenarios with features such as:

• ISO18000-6C / EPC C1G2 compatibility
• Multi-tag identification capability
• Adjustable output power
• Anti-collision algorithms
• SDK/API integration support

Common Problems When Scanning RFID Tags

In real projects, RFID scanning problems usually come from environmental conditions rather than the basic RFID principle.

Common issues include:

Incorrect RFID Frequency

A UHF reader cannot properly scan an HF RFID card because the operating frequencies are different.

Metal and Liquid Interference

Metal surfaces and liquids can affect RF performance. Special RFID tags or installation adjustments may be required.

Too Many Tags in the Reading Area

Dense tag environments require anti-collision technology and filtering algorithms to prevent missed or unnecessary reads.

Poor Reader Installation

A technically strong RFID reader can still perform poorly if antennas are positioned incorrectly.

Cykeo Experience: Improving RFID Tag Scanning Reliability

In RFID deployment projects, engineers often focus on reading distance first. However, stable identification is usually more valuable than maximum range.

A warehouse does not always need a reader that detects every tag 15 meters away. It needs predictable reads at the correct location.

Cykeo RFID solutions are designed around this practical requirement.

Key advantages include:

• Professional UHF RFID hardware development experience
• High-speed multi-tag recognition
• Adjustable RF output control
• Industrial communication interfaces
• DEMO software and SDK support
• Flexible integration with customer systems

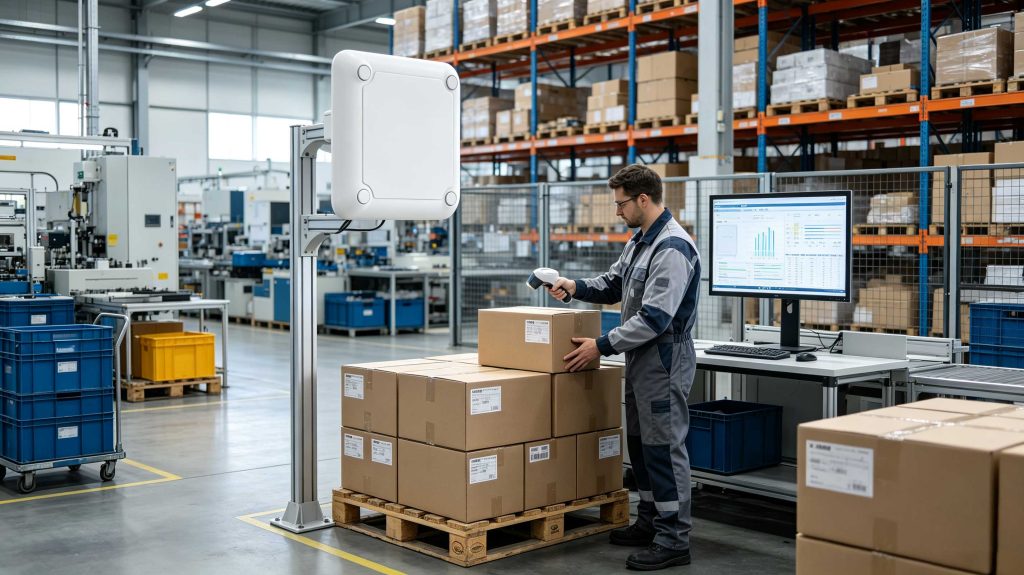

For example, Cykeo fixed RFID readers can be deployed at warehouse entrances, production stations, and inventory checkpoints to automatically capture RFID tag information without manual scanning.

How to Scan RFID Tags in Industrial Environments

In small applications, scanning an RFID tag may only require a desktop reader and simple software. Industrial environments are different. A warehouse, factory, or logistics center usually contains thousands of tags, moving objects, metal structures, and multiple reading points.

A successful RFID scanning system needs a complete architecture:

System Layer	Function	Example
RFID Tag	Stores identification data	Product label, pallet tag, asset tag
RFID Reader	Sends and receives RF signals	Fixed reader, handheld reader, desktop reader
Antenna System	Controls reading area	Circular or directional antenna
Middleware	Filters and processes data	Tag filtering, event management
Business Software	Uses collected information	WMS, ERP, inventory platform

The practical goal is not only to read more tags. It is to read the correct tags at the correct location.

In warehouse deployments, engineers often adjust reader power and antenna direction after installation because the first configuration rarely represents the final operating environment. Shelves, forklifts, packaging materials, and human movement can influence RF performance.

How Cykeo RFID Readers Improve Tag Scanning Performance

Cykeo develops RFID hardware for applications where stable identification matters. Instead of focusing only on maximum reading distance, Cykeo solutions emphasize controlled performance, reliable communication, and flexible integration.

Key technical capabilities include:

High-Speed Multi-Tag Identification

Modern RFID applications often require reading multiple tagged items simultaneously.

Cykeo UHF RFID solutions support:

• ISO18000-6C / EPC C1G2 protocol compatibility
• Anti-collision algorithms
• Multi-tag identification
• Tag filtering functions
• Adjustable RF output power

These functions help maintain reliable scanning performance in dense environments such as warehouses and production areas.

Flexible RFID Reader Communication

Different projects require different communication methods.

Cykeo RFID readers support common industrial interfaces:

• Ethernet communication
• RS-232 communication
• USB connection for desktop devices
• SDK/API integration

This allows RFID scanning systems to connect with customer-developed software platforms.

Controlled RFID Reading Distance

One of the most overlooked aspects of RFID deployment is excessive reading distance.

For example:

• A warehouse gate may require several-meter detection.
• A desktop registration station may require only several centimeters.
• A retail checkout station needs accurate item recognition without interference.

Cykeo desktop RFID readers use near-field antenna design to control the reading area. This makes them suitable for RFID card issuing, label programming, and controlled scanning applications.

RFID Tag Scanning Applications

RFID scanning technology is used across industries because it allows organizations to identify items automatically without manual barcode scanning.

Warehouse and Logistics

RFID readers can scan tagged products, pallets, and containers during:

• Receiving
• Storage
• Picking
• Shipping verification
• Inventory counting

Retail

Retailers use RFID scanning for:

• Product identification
• Inventory accuracy improvement
• Smart checkout systems
• Loss prevention applications

Manufacturing

Factories use RFID tags for:

• Work-in-progress tracking
• Tool management
• Production process monitoring

Healthcare

Medical organizations apply RFID scanning for:

• Equipment tracking
• Medical supply management
• Asset identification

Frequently Asked Questions About How to Scan RFID Tags

1. What equipment is needed to scan RFID tags?

You need an RFID tag, a compatible RFID reader, antenna system, and software platform. The reader frequency must match the RFID tag type.

2. Can RFID tags be scanned without touching them?

Yes. RFID technology uses radio frequency communication, allowing readers to identify tags without direct contact.

3. How far can an RFID reader scan tags?

The distance depends on frequency, reader power, antenna design, and tag type. UHF RFID systems generally provide longer ranges than HF systems.

4. Why is my RFID tag not being detected?

Possible causes include wrong frequency, damaged tags, interference from metal or liquids, incorrect antenna placement, or software configuration problems.

5. Can one RFID reader scan many tags at once?

Yes. Many UHF RFID readers support multi-tag reading through anti-collision technology.

6. Do RFID tags need batteries to be scanned?

Most passive RFID tags do not require batteries. They receive energy from the RFID reader signal and respond with stored information.

7. Can RFID scanning data be integrated into existing software?

Yes. Professional RFID readers usually provide SDKs, APIs, or communication interfaces for integration with ERP, WMS, and customized applications.
