How RFIDs Works: Complete Guide to RFID Technology, Communication Process, and Industrial Applications

How RFIDs Works?

RFIDs work by using radio frequency signals to exchange data between RFID tags and readers. The reader sends electromagnetic energy, activates the tag chip, and receives stored information for automatic identification and tracking.

RFID technology allows physical objects to connect with digital systems without direct contact. Unlike barcodes that require visual scanning, RFID systems can identify multiple objects automatically, even when tags are hidden inside packaging or attached to equipment.

Understanding How RFIDs Works in Real Environments

The Basic RFID Communication Process

After years of developing and testing RFID solutions at Cykeo, one thing becomes clear during field deployment: RFID performance is not determined only by the tag. The complete system — antenna design, reader configuration, software processing, and installation environment — decides whether RFID works reliably.

An RFID system normally contains four major elements:

Component	Function
RFID Tag	Stores identification information and communicates wirelessly
RFID Reader	Sends signals and receives tag responses
RFID Antenna System	Controls radio frequency transmission and reception
Software Platform	Processes data and connects information with business systems

The communication process happens through several technical steps:

1. The RFID reader generates a radio frequency field.
2. The RFID tag antenna captures energy from the signal.
3. The RFID chip activates and processes stored data.
4. The tag sends encoded information back to the reader.
5. The software system identifies and records the object.

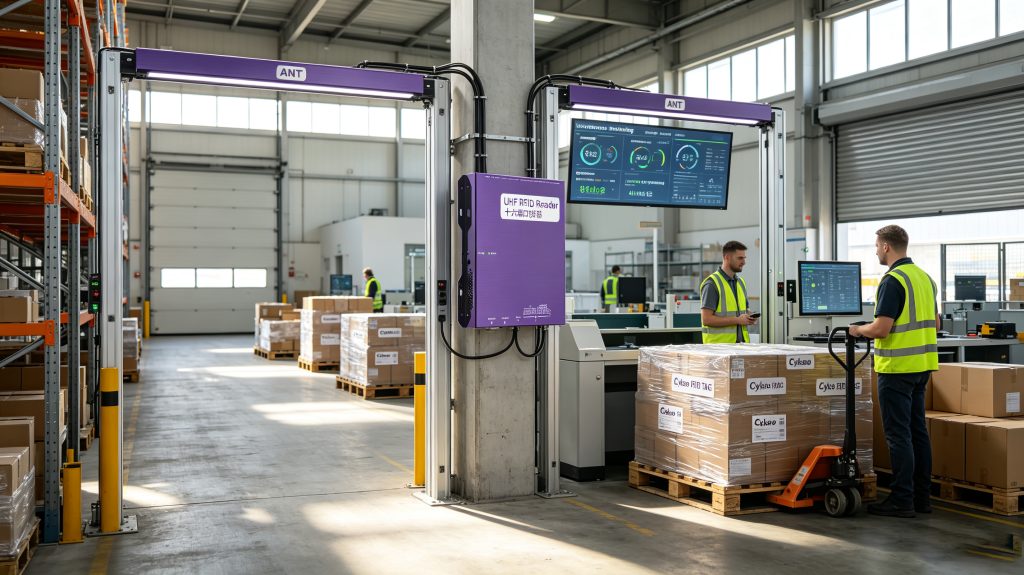

In a practical installation, these actions happen almost instantly. A warehouse worker moving a pallet through an RFID gate does not need to stop, scan each item, or align a barcode. The system automatically collects the required information.

How RFID Tags and Readers Exchange Information

RFID Does Not Require Physical Contact

The main reason RFID technology is widely adopted is its ability to identify objects without direct contact.

When an RFID reader creates a radio frequency field, the tag responds based on the energy it receives.

There are two common RFID tag categories:

RFID Type	Power Source	Typical Applications
Passive RFID	Powered by reader signal	Inventory, access cards, libraries
Active RFID	Internal battery	Long-distance tracking

Most commercial RFID applications use passive RFID because of its durability and low maintenance requirements.

For example, Cykeo RFID workstations used in libraries and archives often rely on controlled reading zones. The goal is not simply reading farther; it is reading accurately.

A powerful reader that captures every nearby tag can create operational problems. In document management, manufacturing, or healthcare environments, unwanted reads may affect database accuracy.

RFID Frequency Determines How RFIDs Works

Different Frequencies for Different Applications

RFID systems operate at different frequency ranges. The frequency choice affects reading distance, speed, and application suitability.

Frequency	Range	Common Uses
LF (125 kHz)	Short distance	Animal identification, simple access
HF (13.56 MHz)	Several centimeters	Smart cards, libraries, payment
UHF (860–960 MHz)	Several meters	Logistics, industrial tracking

According to GS1 EPC standards, RFID-based identification enables unique electronic identification of physical objects through standardized coding systems.

This standardization is one reason RFID has expanded from simple identification projects into enterprise-level asset management.

Real Experience: How RFIDs Works in Cykeo Applications

RFID Smart Workstations for Data Registration

In many RFID projects, the first challenge is not reading tags — it is connecting physical objects with correct digital records.

A typical RFID registration workflow includes:

• Assigning a unique EPC code
• Writing tag information
• Associating objects with database records
• Verifying identification accuracy

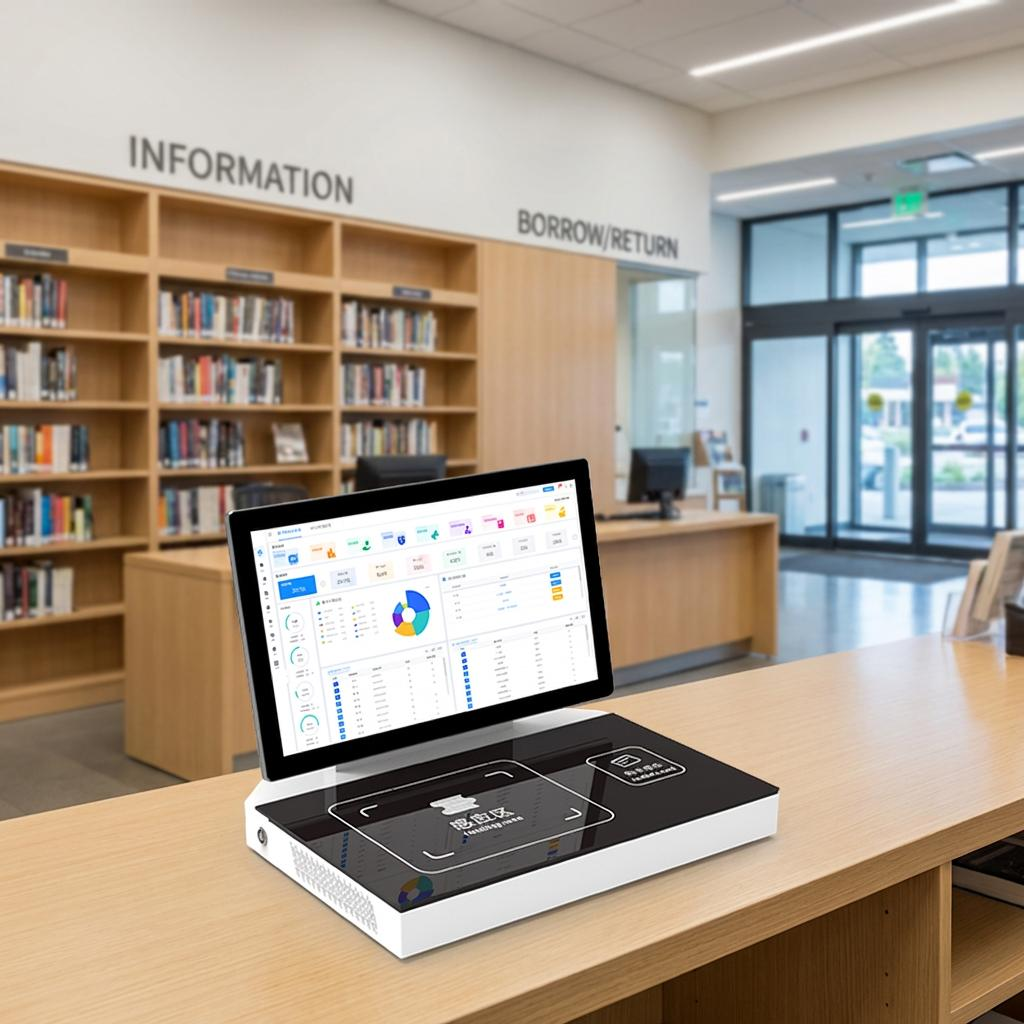

Cykeo RFID smart workstations are designed for these operations.

They support:

• RFID tag registration
• EPC writing
• Batch tag reading
• Database association
• Optional barcode and image capture integration

A common scene is an archive center. Staff place files on the workstation, RFID information is captured, document images can be recorded, and the system creates a digital relationship between the physical file and database entry.

The difference is noticeable after thousands of records. Manual entry creates small errors that accumulate. RFID automation reduces repetitive steps.

Why Businesses Use RFID Technology

RFID Advantages Compared With Traditional Identification

Feature	Barcode	RFID
Contactless Reading	No	Yes
Multiple Item Detection	No	Yes
Requires Visual Alignment	Yes	No
Automation Capability	Limited	High
Data Integration	Basic	Advanced

RFID is used across many industries:

Manufacturing

RFID helps track:

• Production materials
• Tools
• Work-in-progress products
• Equipment movement

Healthcare

RFID supports:

• Medical equipment tracking
• Document management
• Inventory control

Libraries and Archives

RFID enables:

• Automated borrowing
• Inventory checking
• File management

Logistics

RFID improves:

• Warehouse visibility
• Shipment tracking
• Asset identification

Technical Factors That Influence RFID Performance

Why Some RFID Systems Work Better Than Others

During RFID deployment, several technical details affect results:

Antenna Design

The antenna determines:

• Reading coverage
• Signal stability
• Interference resistance

Reader Power

Higher power does not always mean better performance.

A professional system needs:

• Correct power adjustment
• Controlled reading area
• Stable communication

Software Integration

The RFID reader only collects data. The real business value appears when information connects with:

• ERP systems
• Warehouse management systems
• Asset databases

Cykeo RFID Technology Experience and Engineering Approach

Cykeo develops RFID identification equipment for industrial and commercial environments.

Our solutions focus on:

Technology Feature	Practical Value
Stable RFID modules	Reliable operation
Controlled reading area	Prevents incorrect identification
Development resources	Faster integration
Professional software tools	Easier deployment

For RFID applications requiring writing and registration, Cykeo RFID equipment supports automatic writing, batch processing, tag filtering, and software development interfaces.

The objective is simple: make RFID technology easier to operate in real working environments.

Frequently Asked Questions About How RFIDs Works

Can RFID work without internet?

Yes. RFID readers can collect tag information locally. Internet connectivity is mainly needed for cloud systems, remote management, or database synchronization.

How many RFID tags can be read at once?

The number depends on reader performance, tag type, antenna configuration, and environment. Industrial RFID systems can identify hundreds of tags in suitable conditions.

Does RFID need direct line of sight?

No. RFID uses radio waves, so tags do not need to be visually visible like barcodes.

Is RFID technology secure?

RFID security depends on chip type, encryption method, reader authentication, and software design.

What industries benefit most from RFID?

RFID is widely used in:

• Manufacturing
• Logistics
• Healthcare
• Retail
• Libraries
• Government asset management

Conclusion: How RFIDs Works in Modern Digital Management

Understanding how rfids works means understanding the connection between physical objects and digital information.

RFID is not only a wireless identification technology. It is a complete system combining tags, readers, antennas, software, and databases.

From smart libraries to industrial production lines, RFID helps organizations reduce manual work, improve accuracy, and create real-time visibility.

At Cykeo, practical engineering experience shows that successful RFID deployment depends on precise system design, stable hardware performance, and solutions built around real operational needs.
