How Does RFID Antenna Work? A Practical Guide for RFID System Buyers and Integrators

When people talk about an RFID system, they usually focus on the reader. The reader’s scanning speed, output power, and communication interface often become the first things buyers check.

But after working with RFID projects, you will notice something interesting: many performance problems are not caused by the reader itself. A large number of issues come from the antenna selection.

A warehouse customer may expect a 10-meter reading distance but only get half of that. A smart cabinet project may accidentally read tools from the next door compartment. A production line may miss tags when products move quickly.

In many cases, the RFID antenna is the part that decides whether the system works smoothly or not.

So, how does an RFID antenna actually work? And why does it matter so much when choosing an RFID solution?

---

What Is RFID Antenna?

An RFID antenna is the component that sends and receives radio frequency signals between an RFID reader and RFID tags.

A complete RFID identification process usually includes:

RFID Reader → RFID Antenna → RFID Tag

The reader generates the RF signal, but the antenna is responsible for turning that electrical signal into electromagnetic waves that travel through space.

When an RFID tag enters the antenna’s reading area, the tag receives energy from the RF field, activates its chip, and sends stored information back.

The antenna then captures this returned signal and transfers it back to the reader for processing.

Simply speaking, the antenna works like a bridge between the digital system and the physical world.

---

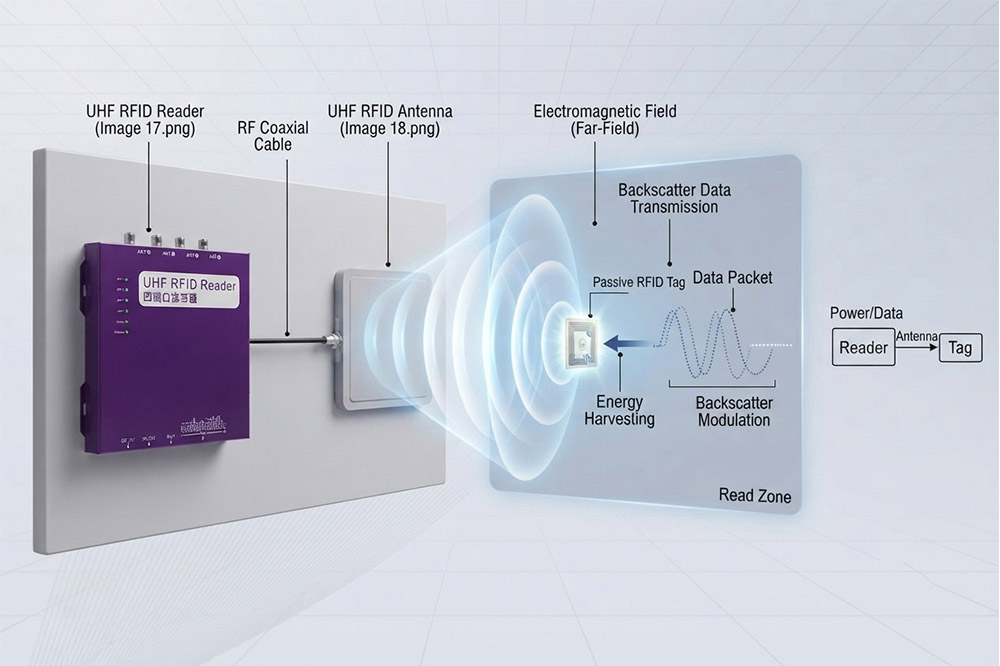

How Does RFID Antenna Work Step by Step?

1. RFID Reader Sends Energy to the Antenna

The RFID reader creates a high-frequency electrical signal.

This signal travels through a cable to the antenna.

The antenna does not simply “boost” the signal. Its main job is to convert electrical energy into electromagnetic waves.

The antenna design determines how these waves spread.

This is why two antennas connected to the same RFID reader can deliver completely different results.

One antenna may cover a wide warehouse entrance, while another may create a focused reading zone for a smart cabinet.

---

2. The Antenna Creates an RF Field

Once powered, the RFID antenna creates an electromagnetic field around it.

When a passive RFID tag enters this field, it receives enough energy to activate the internal chip.

Unlike active devices, passive RFID tags usually do not have their own battery. They depend on the energy provided by the antenna.

For example:

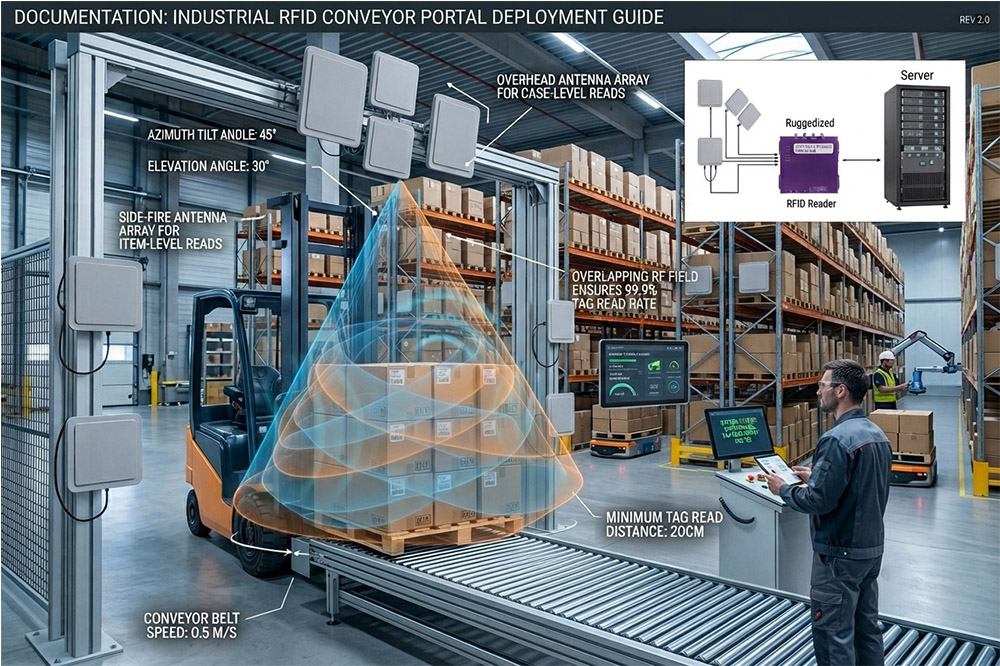

A pallet moving through a warehouse gate may pass an RFID antenna installed on both sides. The antenna creates enough RF coverage to identify multiple tags within seconds.

However, if the antenna installation angle is wrong, some tags may enter a weak signal area and become difficult to read.

---

3. RFID Tag Sends Data Back Through Signal Reflection

After receiving energy, the RFID tag responds by changing the way it reflects the incoming RF signal.

This technology is called backscatter communication.

The RFID tag does not create a strong radio signal like a mobile phone. Instead, it modifies the reflected signal and sends information back.

The antenna receives this signal and sends it to the RFID reader.

The reader then identifies:

• Tag ID
• Product information
• Asset information
• Tracking data

This entire process happens very quickly, usually within milliseconds.

---

Why RFID Antenna Performance Matters in Real Applications

A common misunderstanding is that a more powerful RFID reader will always solve reading problems.

It usually does not.

The antenna design, installation position, environment, and tag type all influence performance.

Reading Distance

Reading distance is one of the first concerns from customers.

A warehouse automation company may ask:

“Can this RFID system read tags from 10 meters?”

The answer depends on several factors:

• Antenna gain
• Reader power
• Tag sensitivity
• Cable quality
• Installation environment

A high-gain antenna may provide longer reading distance, but it usually creates a more concentrated signal area.

Sometimes a wider coverage antenna is actually the better choice.

---

Reading Direction and Coverage Area

RFID antennas are not all designed the same way.

Some antennas focus energy in one direction.

Others provide wider coverage.

For example:

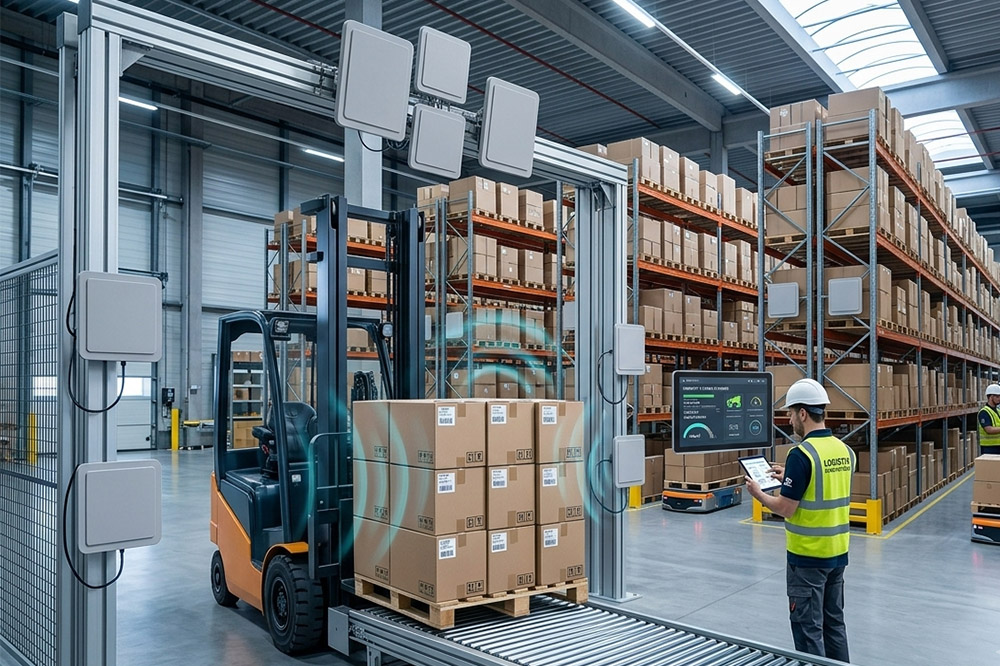

A warehouse entrance normally needs wide coverage because products may move through different positions.

A smart tool cabinet needs controlled coverage because the system should only identify tools inside a specific area.

Choosing the wrong antenna type can create problems like:

• Missing reads
• Reading unwanted tags
• Signal interference

---

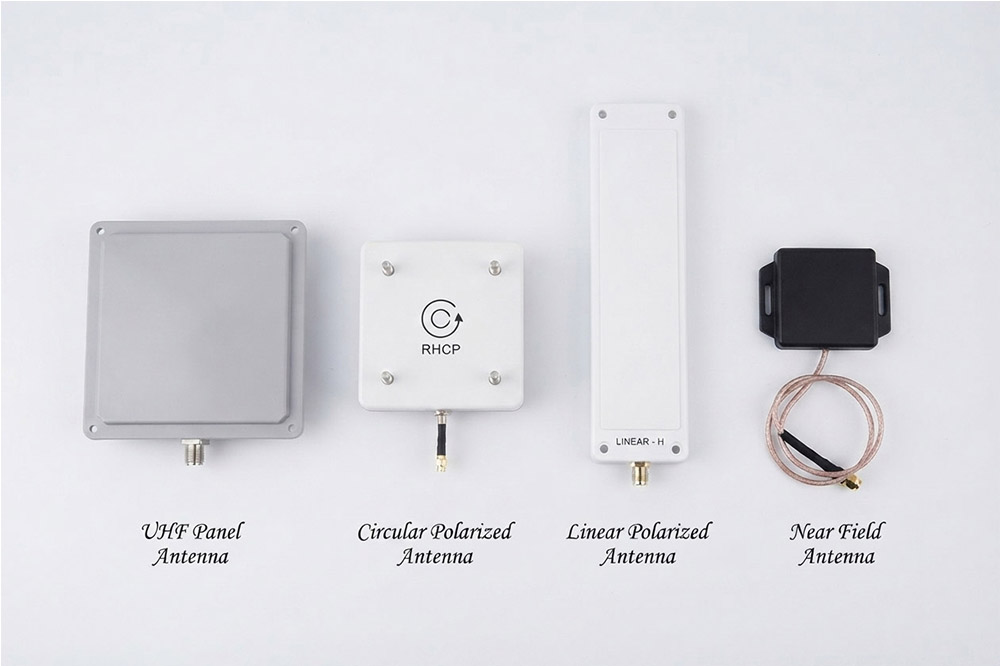

Different Types of RFID Antennas

UHF RFID Antenna

UHF RFID antennas are widely used for long-distance identification.

Common applications include:

• Warehouse inventory
• Logistics tracking
• Vehicle identification
• Production management

They are popular because they can read multiple tags quickly over a longer distance.

---

Near Field RFID Antenna

Near field antennas are designed for short-distance reading.

They are commonly used in:

• Smart cabinets
• Medical equipment management
• Jewelry tracking
• Small item identification

In these applications, accuracy is often more important than distance.

---

Circular Polarized RFID Antenna

Circular polarized antennas are useful when tag directions are unpredictable.

For example, products moving through a warehouse gate may not always face the same direction.

Circular polarization helps improve reading reliability in these situations.

---

Linear Polarized RFID Antenna

Linear polarized antennas provide strong signal concentration.

They work well when the tag orientation is controlled.

Typical applications:

• Conveyor tracking
• Fixed-position identification
• Industrial automation

---

Important Factors When Buying RFID Antennas in Bulk

For RFID distributors and system integrators, price is not the only consideration.

A cheaper antenna that causes installation problems can increase project costs later.

Before purchasing, buyers usually need to check:

Frequency Range

Most UHF RFID antennas operate around:

• 860-960 MHz

However, regional frequency requirements can be different.

---

Antenna Gain

Gain affects how concentrated the RF energy is.

Higher gain:

• Longer reading distance
• Narrower signal coverage

Lower gain:

• Wider coverage area
• Shorter distance

---

Polarization

Choose according to the application:

Circular polarization:

Better for changing tag directions.

Linear polarization:

Better for fixed tag positions.

---

Connector and Cable Design

The antenna must match the RFID reader.

Common connector types include:

• SMA
• TNC
• N connector

Cable length also affects signal loss, especially in large installations.

---

Choosing the Right RFID Antenna for Your Project

There is no single “best” RFID antenna.

The correct choice depends on the actual environment.

For warehouse inventory:

Choose:

• UHF long-range antenna
• Wide coverage design

For RFID smart cabinets:

Choose:

• Near field antenna
• Controlled reading area

For industrial production lines:

Choose:

• Stable signal performance
• Anti-interference design

A good RFID supplier should understand the application before recommending a product.

---

Why Work With an RFID Antenna Manufacturer?

For bulk buyers, the antenna is not just a standard accessory.

Many projects require adjustments:

• Different sizes
• Custom frequency
• Special housing
• Different connectors
• OEM branding

A professional RFID antenna supplier can help test antenna performance according to the real application environment.

This is especially important for RFID solution companies that deploy systems in warehouses, factories, hospitals, and retail environments.

---

FAQ About RFID Antenna

Can RFID antennas increase reading distance?

Yes, but distance depends on the complete system, including reader power, tag performance, antenna gain, and environment.

---

Can one RFID antenna work with all RFID tags?

No.

The antenna must match the RFID frequency and application requirements.

---

Does higher gain RFID antenna always work better?

Not always.

A higher gain antenna provides stronger directional performance, but some applications need wider coverage instead.

---

Can RFID antennas be customized?

Yes.

Many manufacturers provide OEM and custom RFID antenna solutions for different projects.

---
