HID vs SDK: Which USB RFID Reader Interface Is Better?

Choosing USB RFID reader is not just about reading a card or tag. The way the reader sends data to your software can affect installation, development time, troubleshooting, and the way the entire system operates.

Some projects only need to enter an employee ID into a form. Others require RFID data to move directly into inventory software, trigger a database operation, or become part of an automated workflow. These applications may use the same type of reader, but their integration requirements can be quite different.

Two common options are HID keyboard emulation and an SDK-based interface. HID is often easier to set up when an application accepts keyboard input. An SDK provides a software interface for working with the reader’s supported functions and can be a better fit for applications that need more control.

Neither option is automatically better for every project. The right choice depends on what the software needs to do after a tag is read.

What Is HID Mode in USB RFID Reader?

HID stands for Human Interface Device. In the context of USB RFID readers, HID keyboard emulation allows a compatible reader to send decoded RFID data to a computer as if someone had typed it using a keyboard.

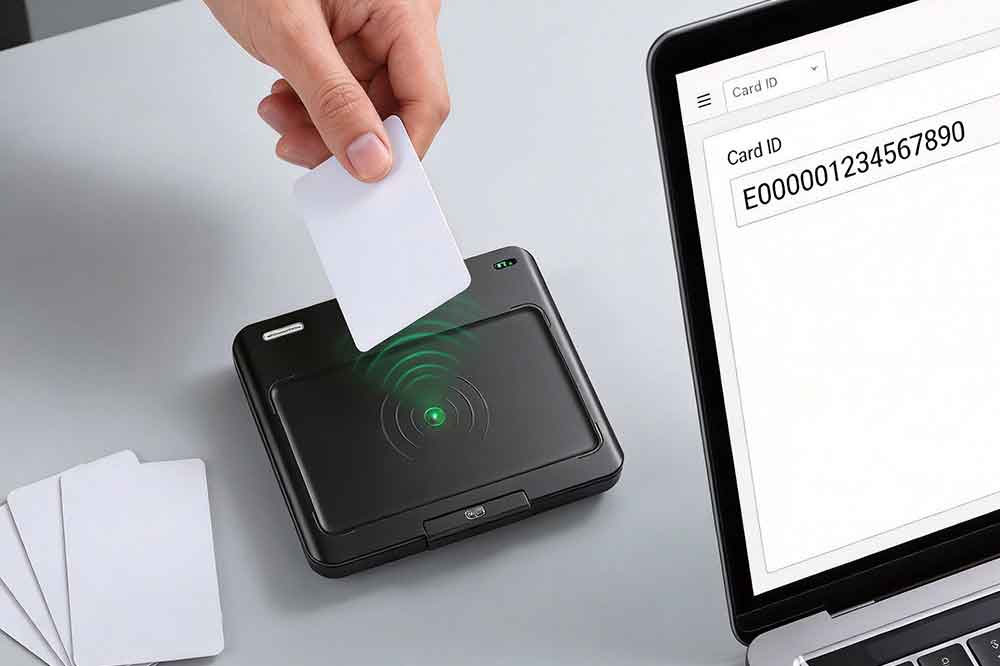

For example, an employee presents an RFID card to a desktop reader. The reader obtains the card’s data and sends the configured output to the active input field. If the cursor is positioned in an employee registration form, the ID can appear in that field without requiring a custom RFID application.

This is why HID mode is popular in straightforward data-entry tasks. It can fit into existing software without requiring a developer to build a separate connection between the reader and the application.

How HID Keyboard Emulation Works

A typical workflow looks like this:

1. Connect a compatible USB RFID reader to the computer.
2. Open the application that will receive the tag data.
3. Place the cursor in the correct input field.
4. Present an RFID card or tag to the reader.
5. The reader sends the configured data to the active field.

Depending on the model, the reader may also append a carriage return, line feed, tab, or another configured delimiter. These options can help move the cursor or submit a form, but they must be tested with the actual application.

HID keyboard emulation does not necessarily send every piece of information stored on a tag. The output depends on the reader, tag technology, configuration, and data format.

Where HID Mode Works Well

HID is a practical choice when RFID data is mainly used to fill in an existing field.

Common applications include:

• Employee ID registration
• Membership card registration
• Basic check-in and attendance workflows
• Simple product identification
• Form-based data entry
• Applications that accept keyboard input

Consider a company that registers employee cards through an existing desktop application. The application already has an employee ID field and a database behind it. If the reader outputs the correct ID format, HID may be enough to complete the workflow without developing a dedicated RFID integration.

The same approach can work for a small warehouse where staff scan tags into an existing form. The important point is that the software must be ready to receive the data in the format the reader sends.

Limitations of HID Keyboard Emulation

HID is convenient, but it does not give an application unrestricted control over the reader.

The active input field matters. If the cursor is in the wrong place, the tag data may appear in an unrelated field or application. A user may also accidentally type into the field while the reader is being used.

HID keyboard emulation may be unsuitable when the application needs to manage reader connection status, issue specific reader commands, handle detailed tag events, or distinguish multiple types of device responses.

There is another consideration: keyboard input alone does not guarantee a complete transaction. The application still needs to validate the received ID, check permissions where necessary, and save the data correctly.

For more complex projects, these limitations may become noticeable during testing.

What Is SDK-Based USB RFID Reader Interface?

SDK stands for Software Development Kit. An RFID reader SDK typically provides libraries, documentation, sample programs, or APIs that help developers communicate with a compatible reader.

Instead of relying on keyboard input, an application uses the supported software interface to work with the reader. Depending on the product, the SDK may provide access to functions such as reading tag information, configuring reader parameters, managing device connections, or receiving events.

The exact capabilities vary by model and SDK. A basic SDK may offer only a limited set of commands, while another may provide a broader range of controls.

How SDK Integration Works

A typical SDK-based project follows a different workflow:

1. Confirm that the reader supports the required SDK and operating system.
2. Install the appropriate library or development package.
3. Connect the reader using its supported communication method.
4. Initialize the device through the SDK.
5. Read tag data and process the returned information.
6. Pass validated data to the application’s business logic or database.

For example, a developer may build an inventory application that reads an RFID tag, checks the tag ID against a product database, updates the item’s location, and records the operation in an audit log.

The SDK provides the communication layer if those functions are supported. The developer remains responsible for designing the business rules, handling failures, and ensuring that database updates are correct.

When an SDK Makes More Sense

An SDK is worth considering when a project needs more than inserting a tag ID into a text field.

Typical requirements include:

• Custom inventory management
• Automated asset tracking
• Reader configuration through software
• Connection and error handling
• Application-specific event processing
• Integration with databases or enterprise systems
• Custom workflows involving several devices

Suppose a warehouse application must record which employee handled an item, where the item was stored, and when the transaction occurred. The system may need to combine RFID data with user permissions, database records, and transaction status.

An SDK-based approach can make that integration easier to structure, provided the reader exposes the necessary functions.

It is important not to assume that every SDK supports every feature. Before development begins, confirm the available commands, API documentation, communication protocol, and supported operating systems.

RFID HID vs SDK: What Are the Main Differences?

The practical difference is how the reader communicates with the application and how much control the application needs.

Feature	HID keyboard emulation	SDK-based integration
Initial setup	Often straightforward	Requires software setup
Programming	Often little or none	Usually requires development
Data delivery	Keyboard-style input	Software interface or API
Active input field	Usually required	Depends on the application
Reader configuration	Depends on exposed settings	Depends on SDK functions
Custom event handling	Limited through keyboard input alone	Possible if supported
Error handling	Often managed by the application	Can use SDK responses and events
Application changes	Often minimal	May require code changes
Long-term maintenance	Simple for basic workflows	Requires maintaining integration code
Best fit	Basic data entry	Custom application workflows

These differences should be considered in the context of the complete project. An SDK can offer more flexibility, but that flexibility comes with development and maintenance work. HID may be all that is needed when the existing application already handles the required workflow.

Software Compatibility

HID keyboard emulation can work with many applications that accept keyboard input. However, the reader’s USB mode, operating system, keyboard layout, output format, and application behavior still need to be checked.

SDK integration depends on the specific library, API, operating system, runtime, and communication method supported by the manufacturer. A reader that works with one SDK package is not necessarily compatible with every programming language or platform.

For a project involving Windows, Linux, or Android, verify the exact combination rather than relying on the general statement that the reader supports USB.

For Android devices, for example, USB host support and the reader’s supported communication mode can affect compatibility. See our guide on how to connect a USB RFID reader to Android for more information.

Data Handling and Reader Control

HID is designed around keyboard-style output. This is useful when the reader only needs to deliver a tag ID to a field, but it does not inherently provide the structured device communication that a custom application may need.

An SDK may expose additional reader functions, such as configuration commands or event notifications. Whether these functions are available depends on the hardware and the manufacturer’s implementation.

If your application needs direct communication with the device, read our guide to USB RFID reader SDK and API integration before deciding on the interface.

When Should You Choose HID?

HID is often the sensible starting point when the application already accepts text and the reader only needs to deliver a defined value.

Employee Registration and Check-In

A staff member presents an RFID card, and the reader enters the card ID into an employee registration form. The existing software validates the entry and saves the record.

If no additional reader commands are required, a custom SDK integration may add unnecessary development work.

Basic Inventory Data Entry

A small business may use an existing application to enter product identifiers during stock checks. If the application accepts keyboard input and the tag data format is suitable, HID can simplify deployment.

However, if the business needs automatic stock adjustments, multi-reader coordination, or detailed transaction handling, the application may require a more sophisticated integration.

Projects With Limited Development Resources

HID can reduce the initial software work because it may not require a custom reader communication layer. This can be useful for pilot projects, small deployments, or teams that want to test the workflow before investing in more extensive software development.

Before selecting HID, test the complete process, including where the cursor is positioned, whether the reader adds an ending character, how duplicate scans are handled, and what happens when the application is not ready to receive input.

When Is an SDK the Better Choice?

An SDK is worth evaluating when RFID reading is part of a larger software process rather than a standalone data-entry operation.

Custom Inventory and Asset Management

In an asset tracking system, reading a tag may trigger a database lookup, update an asset’s location, and record who performed the operation.

An SDK can help the application communicate with the reader directly, where supported, rather than depending on keyboard focus. The software can then manage the business workflow and handle the returned data according to its own rules.

Reader Configuration and Device Status

Some projects need to configure reader parameters, monitor connection status, or respond to device events. These tasks may require functions that are not available through basic HID keyboard emulation.

If such controls are essential, check the SDK documentation before choosing the reader. Do not assume that the presence of an SDK means all configuration options are available programmatically.

Integration With Existing Business Systems

A custom RFID application may need to connect tag reads with an ERP system, a warehouse database, an access control platform, or a company-specific API.

The SDK can provide the reader communication layer, while the application connects the result to the wider system. This separation can make the workflow easier to maintain as requirements change.

For developers planning a new integration, our guide on how to integrate a USB RFID reader into existing software covers the compatibility checks and implementation steps involved.

How to Choose the Right USB RFID Reader Interface

Before placing a bulk order or beginning software development, review the following points with your engineering team and reader supplier.

1. Define What Happens After a Tag Is Read

Is the tag ID simply entered into a field, or does reading the tag need to trigger a database operation, device command, or business process?

This is the first question to settle. It helps determine whether keyboard-style input is sufficient.

2. Check the Existing Application

Confirm whether the software accepts keyboard input, offers a supported API, or requires a dedicated hardware integration.

If the application is already in use, test it with a physical reader. A demonstration that works in a text editor does not necessarily prove that the complete business application will behave correctly.

3. Verify the Reader’s Supported Modes

Ask the supplier which interfaces are available on the exact model. Confirm whether HID keyboard emulation and SDK-based communication are both supported, whether they can be switched, and whether the required functions work on the intended operating system.

Some readers support multiple interfaces; others do not. Do not assume that every USB reader offers both options.

4. Confirm Tag Data and Output Format

Check the tag technology, data format, character encoding, byte order where relevant, and any prefix or suffix characters.

A reader may successfully read a tag while the application still rejects the output because the data format differs from what the software expects.

5. Test Failure Conditions

Test more than a successful read. Check disconnected devices, invalid or duplicate IDs, repeated scans, incomplete input, application restarts, and database errors.

For HID projects, pay particular attention to keyboard focus and unexpected input. For SDK projects, test connection handling, return values, timeouts, and error recovery where the SDK exposes them.

6. Consider Deployment and Maintenance

For a small registration station, HID may be easier to deploy across several computers. For a larger software platform, an SDK may justify the additional development effort if it provides the required controls and a maintainable integration.

Consider the cost of development, testing, updates, technical support, and future changes rather than comparing setup time alone.

Frequently Asked Questions

Is HID or SDK better for a USB RFID reader?

HID is often better for straightforward data entry because it may require little custom code. An SDK is often more suitable when the application needs reader control, structured event handling, or custom workflows. The reader’s actual capabilities determine the final choice.

Does an HID RFID reader need special software?

Many USB RFID readers using standard HID keyboard emulation can work without a separate application or vendor-specific driver for basic input. However, configuration tools or additional functions may require manufacturer software.

Can an RFID SDK work with different programming languages?

That depends on the SDK. Some provide libraries for specific languages, while others expose interfaces that can be accessed through supported bindings or communication methods. Check the documentation for your target development environment.

Can one USB RFID reader support both HID and SDK?

Some models support multiple interfaces or operating modes, while others are designed for a particular integration method. Ask the manufacturer to confirm the available modes and whether switching between them is supported.

Is SDK integration more reliable than HID?

Not automatically. An SDK may allow more structured error handling and device management when those functions are provided. HID can be reliable for simple data entry when the input workflow is controlled and properly tested. Reliability depends on the complete hardware and software implementation.

Find the Right USB RFID Reader for Your Project

The choice between HID and SDK should follow the application’s requirements, not the assumption that one interface is always more advanced.

If your project mainly enters RFID card numbers into an existing form, HID keyboard emulation may be enough. If the application needs direct reader communication, configurable behavior, or integration with a custom inventory or asset management system, an SDK may be the more appropriate route.

Before selecting a device, confirm the supported tag technology, USB interface, operating system, SDK documentation, and required functions with the manufacturer.
