USB RFID Reader Integration with Business Software

Why Business Software Needs RFID Reader Integration

A USB RFID reader can identify tagged items quickly, but reading a tag is only one part of a complete business process. The information also needs to reach the software where employees manage inventory, register assets, issue tools, or record production activities.

Consider a warehouse employee receiving a box of tagged components. With a basic manual process, the employee may need to find the product code, enter it into the inventory system, and update the quantity. When an RFID reader is connected to suitable software, tag identification can become part of that workflow.

This does not mean that every RFID reader automatically updates a database. The reader, application, and business rules must work together.

For companies developing RFID solutions, the integration method can affect installation time, software maintenance, and the amount of customization required. It is worth deciding how the data will be used before selecting the hardware.

For a more detailed comparison of communication methods, see our guide to HID vs. serial communication for USB RFID readers

Common Ways to Connect a USB RFID Reader to Software

USB RFID readers do not all communicate with computers in the same way. The appropriate method depends on the reader model, supported interfaces, operating system, and requirements of the application.

Keyboard Emulation for Simple Data Entry

Some USB RFID readers operate as keyboard-emulation devices, often described as HID keyboard mode. After a tag is read, the reader sends its identifier to the active input field as if someone had typed it.

This approach is useful when employees already work with desktop applications, spreadsheets, web-based forms, or inventory software that accepts keyboard input.

For example, an employee can place a tagged asset near the reader, and its identifier appears in the asset search field. The application can then locate the corresponding record.

The main advantage is simplicity. In many cases, developers do not need to create a dedicated hardware communication layer.

However, keyboard emulation has limitations. Data may be entered into the wrong field if the application does not have focus. Some readers can append a configured Enter or Tab character, but the available settings vary by model. Keyboard emulation also provides less direct control over advanced reader functions.

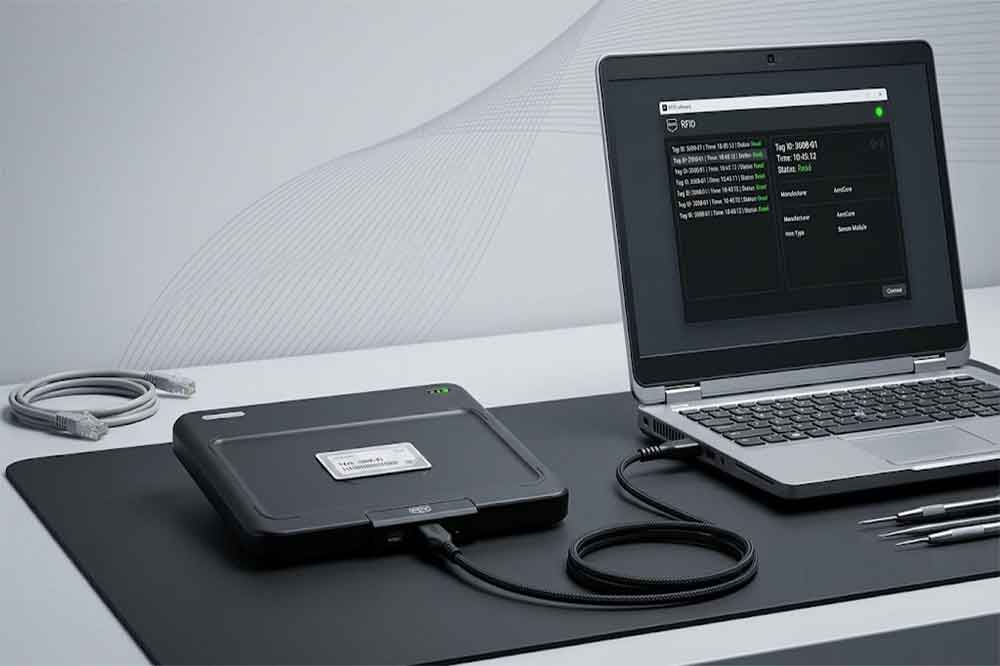

Virtual COM Port for Application Control

A reader that supports virtual COM communication appears to the computer as a serial port. An application can communicate with it through a serial interface, using the protocol documented by the manufacturer.

This method can be more suitable when the software needs to control reading operations, process responses, or manage device communication directly.

A developer might build a desktop application that opens the appropriate COM port, sends a supported command, receives tag data, and displays the result. The application can then validate the identifier before updating the inventory database.

The important point is that a virtual COM port does not guarantee a universal command set. Developers need the correct protocol documentation, serial settings, and command definitions for the specific device.

SDK and API Integration for Custom Systems

For more advanced projects, a software development kit (SDK), documented command protocol, or application programming interface (API) may provide a more practical integration path.

These tools can help developers access supported features such as tag reading, reader configuration, status reporting, and event handling. The actual feature set depends on the hardware and software package.

A custom RFID workstation, for instance, might need to read an identifier, verify that the employee is authorized, check the item’s status, and record a transaction. An SDK or device protocol can provide the communication layer, while the business application handles permissions and transaction rules.

It is important to distinguish between a reader SDK and a business system API. The reader SDK or protocol communicates with the hardware; the business API connects the application to an ERP, WMS, or other software platform. A project may need both.

Integrating USB RFID Readers with Different Business Applications

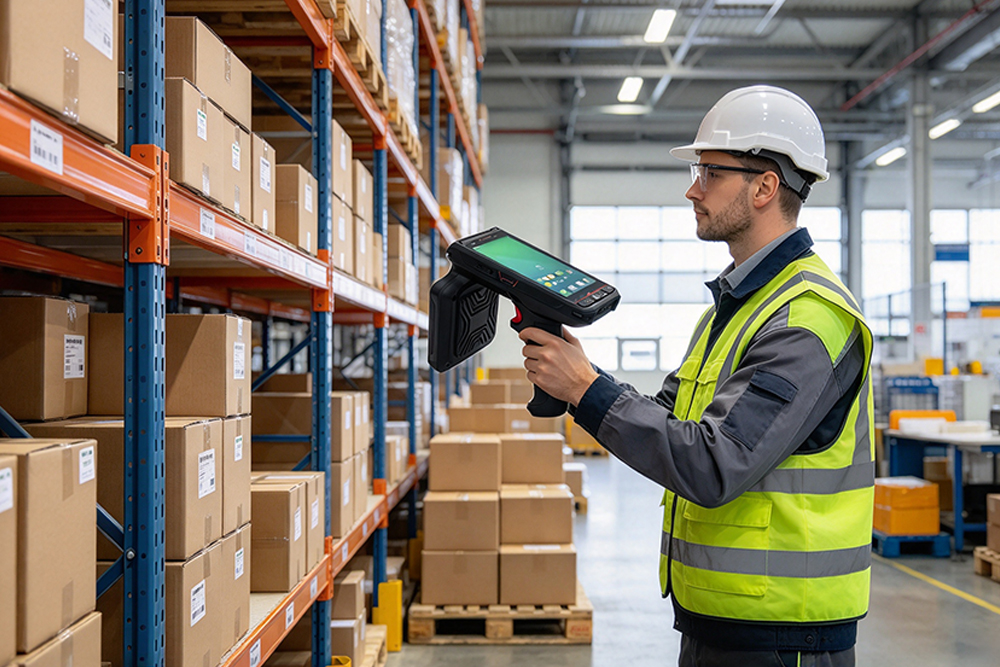

Inventory and Warehouse Management

Inventory applications often use RFID data to identify products, components, containers, or storage locations.

A typical workflow includes reading the tag, checking the identifier against the product database, confirming the item’s location, and recording the inventory transaction.

For example, a warehouse receiving application could display the product name and expected quantity after an employee scans a tagged item. The employee may then confirm receipt, report a discrepancy, or assign the item to a storage location.

The software should not assume that every successful tag read represents a completed transaction. A tag may belong to an item already recorded, an unexpected delivery, or a product that requires inspection.

Developers should therefore separate tag identification from business validation and transaction confirmation.

If tag data is missing or appears incorrectly in the application, consult our [USB RFID reader troubleshooting guide] for common causes and solutions.

ERP and Production Systems

Manufacturers may integrate USB RFID readers with ERP software, production records, work orders, or quality management applications.

At a workstation, an operator could read a component tag before starting an assembly step. The software can check whether the component belongs to the correct order and record the operation against the relevant production record.

This workflow can reduce manual entry, but integration depends on how the ERP system exposes its data. Some systems provide REST APIs, while others rely on middleware, database services, or vendor-specific connectors.

Direct database access should not be assumed to be supported or appropriate. A documented integration interface generally makes the solution easier to maintain when the business software changes.

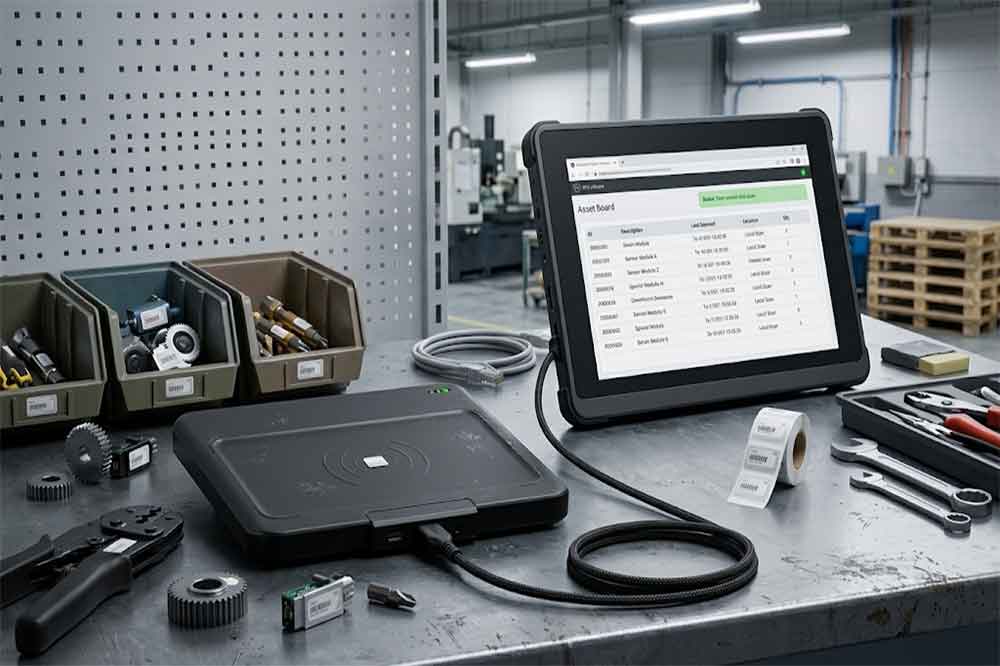

Tool Tracking and Asset Management

USB RFID readers can also be used at tool counters, maintenance desks, laboratories, and equipment checkout stations.

When a tagged tool is presented to the reader, the application can display its identity and current status. After verifying the employee and transaction, the software can record an issue, return, inspection, or maintenance event.

A useful asset record may include:

• Unique tag identifier and asset number
• Item description and current location
• Assigned employee or department
• Issue and return history
• Maintenance or inspection status

For applications involving multiple tagged items, confirm whether the reader supports the required tag frequency, read mode, and multiple-tag operation. A reader designed for one-at-a-time identification may not meet a project’s requirements for bulk reading.

Important Factors Before Starting Integration

Before selecting a USB RFID reader, the project team should review several technical and operational details.

1. Tag frequency and compatibility. Confirm whether the application uses LF, HF, or UHF tags. These technologies are not interchangeable, and the reader must support the tags used in the project.

2. Communication mode. Determine whether keyboard emulation is sufficient or whether the software needs serial communication, a command protocol, or an SDK.

3. Operating system and software environment. Verify compatibility with the target Windows, Linux, or other supported environment, along with the programming language and runtime used by the application.

4. Data format. Check how the reader returns tag identifiers, including character encoding, byte order where applicable, separators, prefixes, suffixes, and any formatting options.

5. Transaction logic. Decide how the application will handle duplicate reads, invalid tags, repeated scans, missing records, and interrupted connections.

6. Deployment requirements. Consider USB cable length, port availability, workstation layout, driver installation, device identification, and the process for replacing a failed reader.

A small proof of concept is often more useful than relying on a feature list alone. Test the actual reader, representative tags, business software, and operating environment together before committing to a large deployment.

Common Integration Problems and How to Avoid Them

One frequent problem is that the reader identifies a tag, but the application does not receive the expected data. The cause may be an incorrect communication mode, a missing driver, an occupied COM port, or an application that is listening to the wrong device.

Another problem occurs when the identifier arrives in a different format than the database expects. For example, the reader may return hexadecimal data while the application stores a formatted identifier. The conversion rules must be consistent on both sides.

Duplicate reads also require attention. Some reader configurations may return the same tag more than once during a reading session. Software can use a suitable session window, event rule, or transaction check to prevent accidental duplicate operations. The correct approach depends on whether repeated reads represent noise or legitimate separate transactions.

Finally, a successful test on one development computer does not guarantee a reliable rollout. Test with the intended operating system, user permissions, USB ports, and software version. Document device configuration and recovery procedures so that support staff can diagnose problems after deployment.

For related troubleshooting advice, see the article “USB RFID Reader Troubleshooting: Common Problems and Solutions.”

Choosing a USB RFID Reader for a Business Project

Hardware selection should begin with the business workflow rather than the interface name alone.

A basic reader with keyboard emulation may be sufficient for a simple lookup station. A reader with documented serial communication may be more appropriate for an application that needs to control reading operations. Projects requiring customized workflows may benefit from a model with an SDK, detailed protocol documentation, or vendor integration support.

For B2B projects, purchasing teams should also confirm sample availability, integration documentation, operating-system compatibility, and the supplier’s ability to support the intended deployment.

If the reader will be embedded into a larger solution, check whether the manufacturer can support the required reader configuration, housing, cable arrangement, communication interface, and OEM or ODM requirements.

A practical evaluation should include three questions:

• Can the reader identify the tags used in the application?
• Can the software receive and process the returned data reliably?
• Can the complete workflow be maintained and supported after deployment?

A device that passes all three checks is a stronger candidate than one selected solely by reading distance or unit price.

Explore our [USB RFID readers for business and system integration] to evaluate hardware options for your next RFID project.”

Conclusion

Integrating a USB RFID reader with business software involves more than connecting a cable. The communication method, data format, application logic, and business system interface all affect the final result.

Keyboard emulation is often a simple starting point, while virtual COM communication and SDK-based integration can provide more control for custom applications. By testing the full workflow early and confirming hardware capabilities with the supplier, businesses can make more informed decisions for inventory, ERP, production, and asset management projects.

For system integrators and OEM solution providers, choosing a reader with clear technical documentation and suitable integration support can help reduce development uncertainty and simplify future maintenance.

FAQs

Q1: Can a USB RFID reader connect to inventory software?

Yes. It can work with inventory software through keyboard emulation, serial communication, or a supported SDK, depending on the reader and application.

Q2: Does every USB RFID reader support an SDK?

No. SDK availability varies by manufacturer and model. Some readers offer keyboard emulation or documented communication protocols instead.

Q3: Can a USB RFID reader integrate with an ERP system?

Yes, if the reader data can be passed to an application that connects to the ERP through a supported API, middleware, or other approved interface.

Q4: What causes duplicate RFID records?

Repeated tag reads, application event handling, or missing transaction validation can create duplicates. Software should apply appropriate filtering and business rules.

Q5: What should businesses confirm before purchasing?

Confirm tag compatibility, communication modes, SDK or protocol documentation, operating-system support, and integration testing options.
