how to scan rfid

how to scan rfid is achieved by using an RFID reader to send radio signals, activate compatible tags, and capture returned identification data. The process requires matching tag frequency, reader type, antenna setup, and software system for reliable scanning performance.

RFID scanning is widely used in warehouses, hospitals, retail stores, manufacturing facilities, and asset management systems. Unlike barcode scanning, RFID does not require direct visual contact, allowing multiple tagged items to be identified automatically.

From years of RFID deployment experience at Cykeo, engineers have found that successful RFID scanning is rarely determined by reader power alone. During actual installation projects, factors such as tag orientation, shelf materials, liquid products, metal structures, and antenna positioning often decide whether a system performs consistently.

A warehouse test may look simple: place tagged cartons near a reader and collect IDs. In reality, moving the antenna only a few centimeters or changing the tag position can affect reading stability. This is why professional RFID implementation focuses on the complete interaction between hardware, environment, and software.

Understanding How RFID Scanning Works

RFID scanning uses wireless communication between RFID reader and RFID tag. The reader generates an electromagnetic field through its antenna, and the tag responds by sending stored information back to the reader.

The basic scanning process includes:

Step	RFID Scanning Process	Technical Description
1	Reader sends signal	RFID reader transmits radio frequency energy through antenna
2	Tag receives energy	Passive RFID tags use received energy to activate communication
3	Tag returns information	Tag sends stored identification data back to reader
4	Reader processes data	Software receives, filters, and manages RFID information

The communication method depends on RFID frequency.

RFID Frequency	Typical Range	Common Applications
LF 125–134 kHz	Short distance	Animal tracking, access control
HF 13.56 MHz	Several centimeters	NFC cards, smart cards, library systems
UHF 860–960 MHz	Several meters	Warehouse, logistics, retail inventory

According to GS1, UHF RFID systems commonly follow the EPC Gen2 / ISO 18000-63 air interface standard, which defines communication between RFID readers and tags. This standard is widely used in supply chain and inventory applications.

How to Scan RFID Tags with Different RFID Readers

Choosing the correct RFID reader is the first practical decision when building an RFID scanning system.

Different applications require different hardware:

RFID Reader Type	Application Scenario	Advantages
Desktop RFID Reader	Tag registration and writing	Controlled reading area, easy operation
Fixed RFID Reader	Warehouse gates and production lines	Continuous automatic scanning
Handheld RFID Reader	Field inventory and maintenance	Mobile operation
Embedded RFID Module	OEM equipment integration	Flexible customization

For example, desktop RFID readers are commonly used when operators need controlled tag scanning and writing. A near-field antenna design helps limit the scanning area, reducing unwanted reads from nearby RFID tags.

Cykeo RFID desktop readers are designed for practical tag management applications, including:

• RFID tag registration
• Batch tag writing
• Tag information verification
• Fast tag filtering
• Demo software operation
• USB communication

In engineering environments, controlling the scanning field is often more valuable than simply increasing reading distance. A longer range does not always mean better performance, especially in offices, laboratories, or compact workstations where accidental tag detection can create operational problems.

Key Factors That Affect RFID Scanning Performance

Many RFID projects fail not because of incorrect software, but because the physical environment was not evaluated properly.

1. RFID Tag Compatibility

The reader and tag must operate at the same frequency. A UHF RFID reader cannot scan an LF tag, and an HF card reader cannot communicate with a UHF inventory label.

Before deployment, engineers should confirm:

• Tag frequency
• RFID protocol
• Memory requirements
• Application environment

2. Antenna Placement

Antenna position directly affects the RF field.

During warehouse deployment, engineers normally test:

• Reading angle
• Tag movement direction
• Distance between reader and tags
• Multiple tag collision situations

A small change in antenna direction can improve stability significantly.

3. Material Interference

Different materials affect RFID signals differently.

Common challenges include:

Material	Potential Impact
Metal	Signal reflection and interference
Liquid	Signal absorption
Dense packaging	Reduced communication efficiency

Special RFID tags and optimized antenna layouts are often required for these environments.

Professional RFID Scanning Experience from Cykeo

Cykeo focuses on RFID systems designed for real business environments. Through warehouse, medical, retail, and industrial applications, the engineering team has developed practical experience in solving common RFID deployment problems.

Cykeo RFID solutions provide:

• Multi-tag identification capability
• Adjustable RF output control
• Stable USB, Ethernet, and serial communication
• SDK and API support
• Flexible integration with enterprise software

For example, when implementing RFID inventory systems, engineers typically test actual products instead of relying only on laboratory measurements. A plastic package, a metal tool, and a liquid container can create completely different scanning results.

This practical approach helps companies build RFID systems that work reliably after installation, not only during demonstrations.

RFID Scanning Deployment: From Reader Installation to Data Management

A reliable RFID scanning system is not created by installing a reader and connecting software only. In commercial environments, RFID scanning works as a complete architecture that combines tags, readers, antennas, middleware, and business applications.

A typical RFID scanning architecture includes:

System Layer	Main Component	Function
Tag Layer	RFID labels, cards, asset tags	Stores identification information
Reader Layer	Fixed reader, desktop reader, handheld reader	Captures RFID signals
Communication Layer	USB, Ethernet, RS-232, wireless connection	Transfers collected data
Software Layer	Middleware, ERP, WMS, database	Processes and manages information

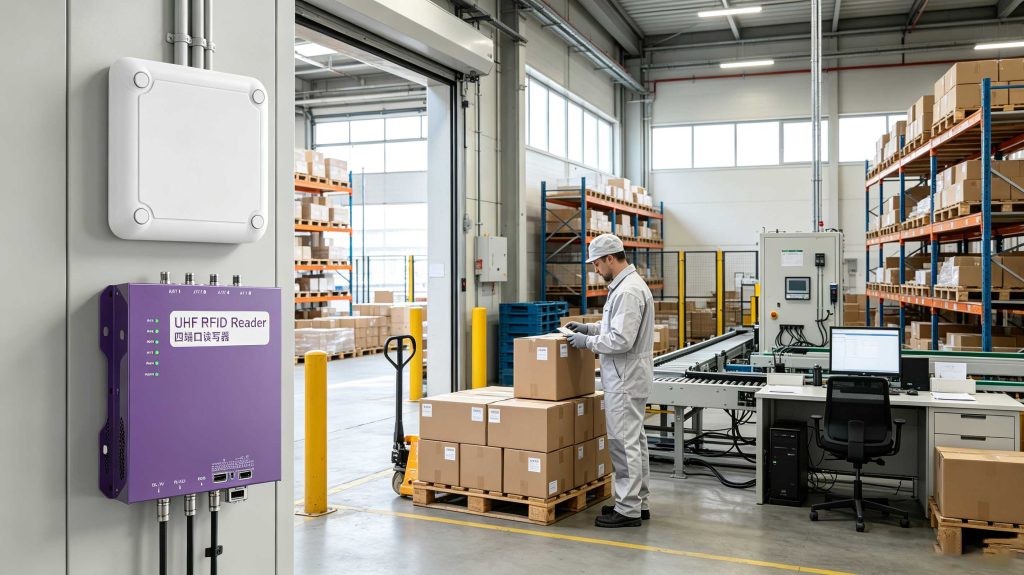

In warehouse applications, fixed RFID readers are usually installed at key points such as receiving areas, shipping doors, production stations, and inventory zones. When tagged items pass through the reading area, the system automatically collects item information and updates inventory records.

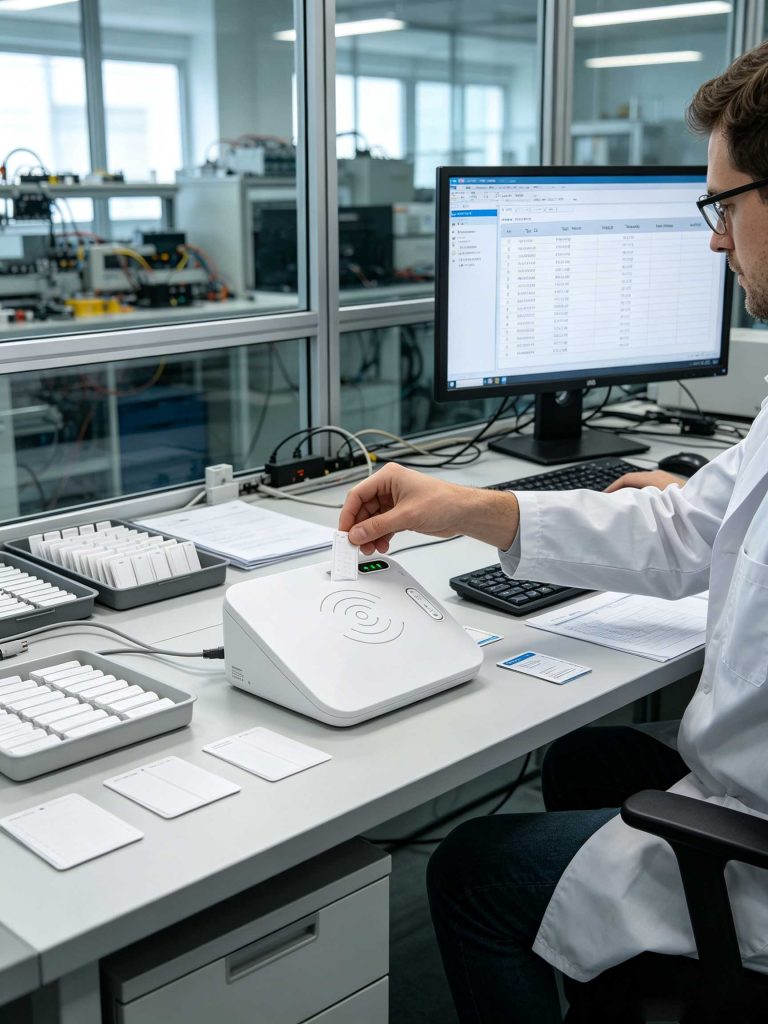

For smaller operations, desktop RFID readers provide a more controlled scanning environment. They are commonly used for RFID tag registration, writing, verification, and small-item management.

How to Improve RFID Scanning Accuracy in Real Applications

Many companies initially focus on RFID reading distance, but practical accuracy depends on several combined factors.

Optimize Reader and Tag Matching

The first step is selecting compatible hardware.

Before deployment, engineers should confirm:

• RFID frequency compatibility
• Tag material requirements
• Reading distance requirements
• Data storage needs
• Communication interface

For example, UHF RFID tags used in warehouses require UHF readers supporting the same communication protocol. EPC Class 1 Gen 2 / ISO 18000-63 compatibility is commonly used for supply chain applications.

Adjust RFID Reader Power Settings

Higher output power does not always improve results.

In a small workstation, excessive RF power may cause unwanted tag detection. In a large warehouse, insufficient power may create missed reads.

Professional RFID systems often use adjustable output power to balance:

• Reading coverage
• Interference control
• Energy efficiency
• Detection stability

Cykeo RFID readers support adjustable RF output settings, allowing engineers to configure performance according to application conditions.

Cykeo RFID Solutions for Reliable Tag Scanning

Cykeo develops RFID hardware and system solutions for industrial identification requirements. The product portfolio covers desktop RFID readers, fixed RFID readers, RFID modules, and customized RFID management equipment.

Key advantages include:

1. Stable Multi-Tag Reading

In inventory environments, hundreds or thousands of tagged items may appear within the same area.

Cykeo RFID readers use anti-collision technology to support efficient multi-tag identification, helping systems process multiple RFID responses without manual scanning.

2. Controlled Reading and Writing Range

For RFID tag programming applications, uncontrolled reading distance can create operational problems.

Cykeo desktop RFID readers use near-field antenna designs to provide:

• Reading distance control
• Writing distance control
• Reduced accidental reads
• Better workstation usability

This design is especially useful for:

• RFID tag issuing stations
• Library management
• Asset registration
• Retail product labeling

3. Developer-Friendly Integration

Modern RFID projects require connection with existing business systems.

Cykeo provides:

• C# development resources
• Java development resources
• SDK support
• API integration options

This allows companies to connect RFID functions with:

• Warehouse management systems
• Inventory platforms
• Enterprise databases
• Custom software applications

Common RFID Scanning Applications

Warehouse Inventory Tracking

Warehouses use RFID scanning to identify products, pallets, and assets throughout receiving, storage, and shipping processes.

Compared with manual counting methods, RFID helps reduce repetitive scanning work and improves inventory visibility. <h3>Retail Product Management</h3>

Retail stores use RFID readers to track products, support inventory counting, and improve checkout efficiency.

Desktop RFID readers are often used for:

• Product registration
• Label writing
• Inventory updates

Healthcare Equipment Tracking

Hospitals use RFID scanning technology to manage medical assets, supplies, and controlled inventory.

RFID systems can help staff quickly identify equipment location and maintain accurate records.

Manufacturing Production Tracking

Factories apply RFID scanning to monitor components, work orders, and production processes.

Tags attached to materials can provide real-time identification during manufacturing operations.

FAQ About How to Scan RFID

1. What device is needed to scan RFID?

An RFID reader compatible with the RFID tag frequency is required. UHF tags need UHF RFID readers, while HF and LF tags require corresponding readers.

2. Can RFID be scanned without touching the tag?

Yes. RFID uses radio communication instead of optical scanning, allowing compatible readers to detect tags without direct physical contact.

3. Can one RFID reader scan many tags at once?

Yes. Modern RFID readers support anti-collision technology, allowing multiple tags to be identified within the reader field.

4. Why is my RFID tag not scanning?

Common causes include incorrect frequency matching, damaged tags, antenna positioning problems, insufficient reader configuration, or environmental interference.

5. How far can RFID be scanned?

The scanning distance depends on tag type, frequency, antenna design, reader power, and surrounding materials. UHF RFID systems generally provide longer ranges than LF or HF systems.

6. Can RFID scan through packaging?

In many applications, yes. RFID does not require line-of-sight like barcode scanning, but packaging materials and contents may affect performance.

Final Conclusion

Understanding how to scan rfid requires more than choosing an RFID reader. Reliable scanning comes from correctly matching RFID tags, readers, antennas, and software systems according to the real operating environment.

From warehouse inventory and retail management to industrial automation and desktop tag programming, RFID performance depends on practical engineering decisions. Cykeo focuses on providing stable RFID hardware, flexible integration options, and application-oriented solutions that help companies build dependable RFID identification systems.

A successful RFID project is not measured only by reading distance. It is measured by whether the system can consistently capture accurate data when people, products, and environments change.
