What is rfid module and integration applications

A high-performance rfid module can identify more than 400 UHF RFID tags per second while supporting long-range, anti-collision, and dense tag environments for industrial automation.

That sounds like a brochure sentence until you actually stand beside a conveyor at 11:40 PM listening to relays clicking non-stop while pallets move through a tunnel reader. We tested the Cykeo CYKEO-M4L UHF RFID module in a compact warehouse sorting line last winter. Metal carts, overlapping cartons, workers walking through the RF zone — exactly the kind of messy environment where weak modules start missing tags.

The interesting part was not the peak speed. It was stability after several continuous hours of operation.

Most low-cost modules can read tags in a lab. Industrial environments are different.

Why Modern rfid module Designs Matter in UHF Systems

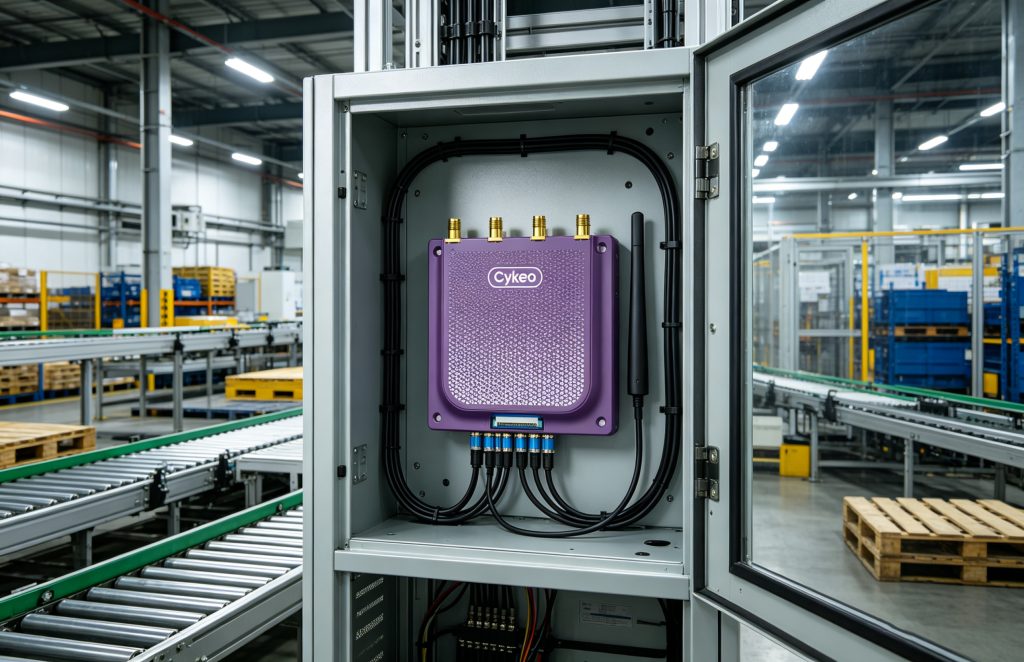

A modern rfid module is not simply a reading chip. It is the RF processing core behind fixed readers, smart cabinets, tunnel systems, handheld terminals, and industrial automation equipment.

The CYKEO-M4L integrates:

• UHF RFID analog RF front-end
• Digital signal processing
• Multi-tag anti-collision algorithms
• Adjustable output power
• Firmware upgrade capability
• EPC C1G2 protocol support

It supports:

Feature	Specification
Protocol	ISO 18000-6C / EPC C1G2
Max Output Power	33 dBm
Tag Reading Speed	400+ tags/sec
Frequency Mode	Fixed frequency / FHSS
Power Adjustment	1 dBm step
Multi-Tag Reading	Supported
Tag Filtering	Supported

In dense environments, the anti-collision capability matters more than raw advertised range.

According to GS1 EPCglobal Standards, EPC Gen2 protocols were specifically developed to improve reliability and simultaneous tag communication in supply chain environments.

Real Problems We Saw in Dense RFID Deployments

Metal Reflection Was the Biggest Challenge

One automotive tools customer mounted antennas too close to a painted steel enclosure. Signal reflection caused unstable reads around the cabinet edge.

We adjusted:

• Antenna angle
• Reader power output
• Tag spacing
• Frequency hopping settings

The read rate improved from roughly 91% to over 99%.

That is the detail many generic RFID articles skip. The module alone is not magic. RF deployment still matters.

Continuous Reading Stability

The CYKEO-M4L module was left running for nearly 72 hours during a pressure test. Temperature drift stayed controlled and no reboot occurred.

That matters for:

• Smart tool cabinets
• Conveyor systems
• Automated warehouse gates
• RFID healthcare cabinets
• Manufacturing traceability

Downtime inside industrial RFID systems is expensive very quickly.

UHF rfid module Applications Growing Fast

The RFID market is expanding well beyond retail.

According to RAIN Alliance, billions of UHF RFID tags are now deployed annually across logistics, healthcare, aviation, manufacturing, and retail environments.

Typical applications include:

Smart Manufacturing

Factories use embedded UHF RFID modules to track:

• WIP materials
• Production trays
• Returnable containers
• Maintenance tools
• Finished goods

Healthcare Asset Tracking

Hospitals increasingly deploy RFID systems for:

• Surgical instrument tracking
• Medical consumables
• Drug inventory
• Laboratory sample management

A 2024 healthcare inventory report from Deloitte Insights highlighted automation and real-time visibility as major priorities for hospital supply chain modernization.

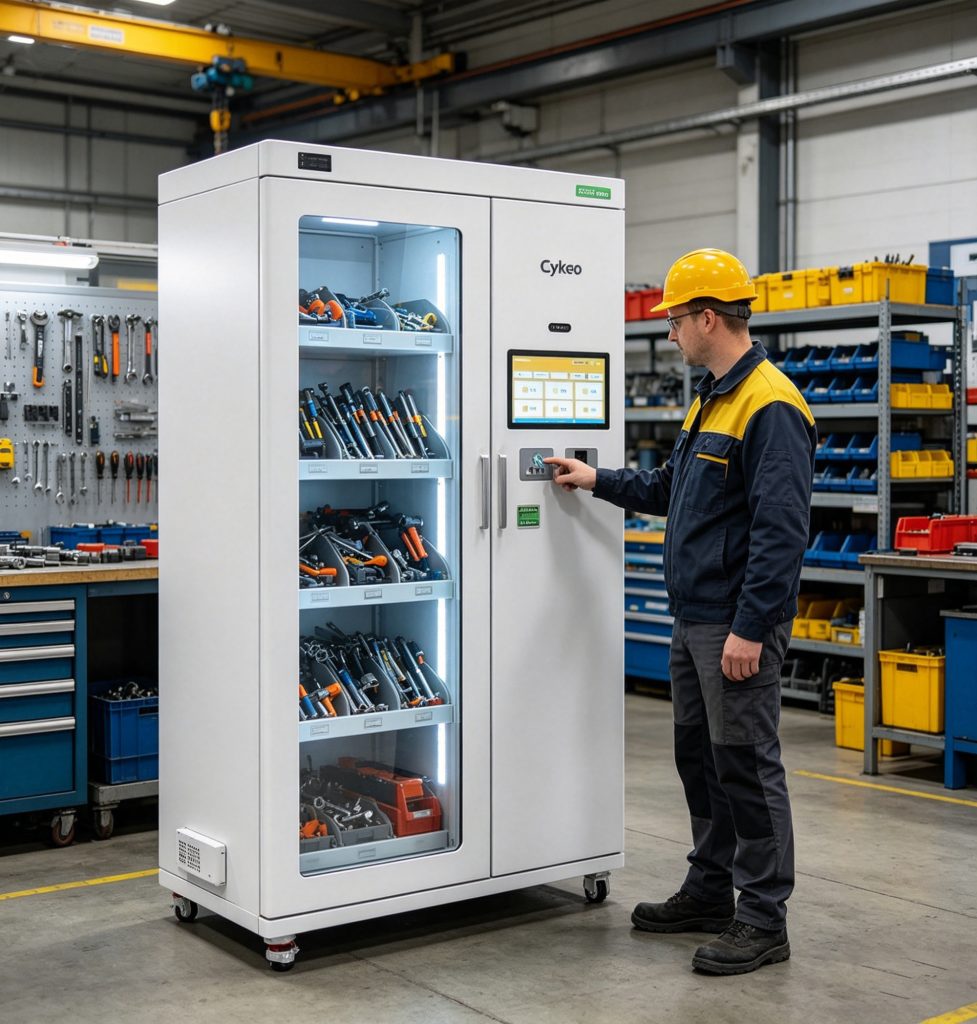

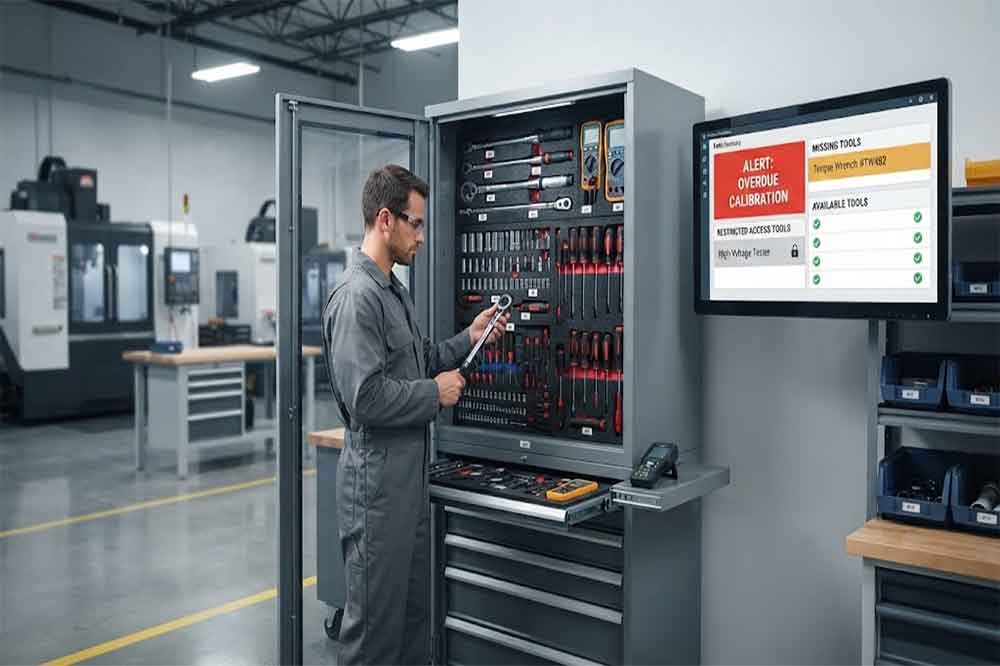

Smart Cabinets and Tool Management

The most practical deployment we handled involved a semi-open industrial tool room.

Workers authenticated themselves, opened the cabinet, removed tools, and the system automatically logged:

• User identity
• Borrowed tool ID
• Time
• Return status

No barcode scanning. No paperwork.

The inventory audit that once took 45 minutes dropped to under 10 seconds.

What Makes a Good UHF rfid module?

Not every module survives industrial environments.

Here is what experienced integrators usually care about:

Key Factor	Why It Matters
RF Stability	Prevents missed reads
Anti-Collision	Critical for dense tags
Firmware Upgrades	Extends lifecycle
SDK Support	Faster integration
Adjustable Power	Controls RF coverage
Protocol Compatibility	Easier deployment
Thermal Stability	Important for 24/7 systems

The CYKEO-M4L supports API integration and development libraries, which reduces deployment time for integrators building custom systems.

Installation Lessons Most Teams Learn Late

Higher Power Is Not Always Better

Many installers immediately push output to maximum 33 dBm.

That can actually increase stray reads.

In one warehouse deployment, reducing power by 4 dBm improved directional accuracy because nearby static tags stopped interfering.

Antenna Position Beats Spec Sheets

A properly positioned 9 dBi antenna often outperforms poorly installed higher-gain setups.

RFID performance is heavily influenced by:

• Environment
• Material type
• Tag orientation
• Antenna polarization
• Reflection zones

This is why real deployment testing matters more than theoretical lab range.

FAQ About rfid module

What is an rfid module used for?

An rfid module acts as the reading and communication core inside RFID systems. It enables automatic identification, tracking, and data collection from RFID tags.

Does the CYKEO-M4L support UHF RFID?

Yes. The CYKEO-M4L is a UHF RFID module supporting ISO 18000-6C / EPC C1G2 protocols with multi-tag recognition capability.

How many RFID tags can it read simultaneously?

The module supports dense multi-tag environments and can identify more than 400 tags per second under optimized conditions.

Can the module work in industrial environments?

Yes. It is designed for manufacturing, logistics, healthcare, smart cabinets, and automated equipment integration.

Is firmware upgrade supported?

Yes. The module supports firmware upgrades for protocol expansion and future function updates.

A reliable rfid module is less about theoretical maximum distance and more about consistent performance in noisy, real-world environments. In dense UHF deployments, stability, anti-collision efficiency, and RF tuning usually separate successful projects from expensive failures.

For industrial automation, healthcare traceability, and smart inventory systems, the CYKEO-M4L demonstrates why embedded UHF RFID technology continues expanding across modern IoT infrastructure.
