Top 5 RFID Antenna Placement Mistakes (and How to Avoid Them)​

Even the most advanced RFID system fails if RFID antennas are placed incorrectly. From ghost reads in warehouses to dead zones in retail stores, poor antenna placement costs businesses thousands in lost efficiency. Let’s dissect the most common pitfalls—and how to dodge them.

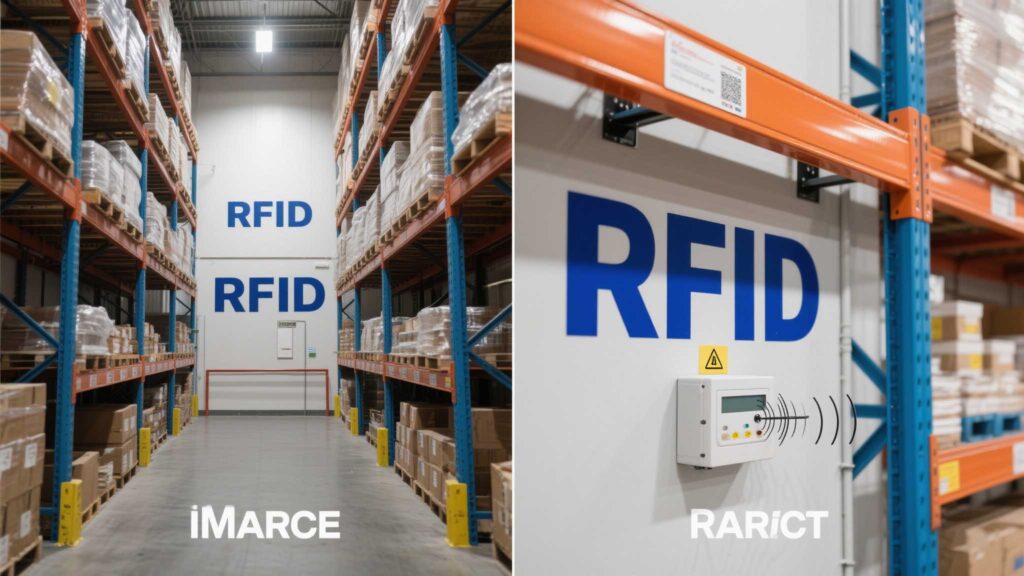

Split-screen showing incorrect vs. correct RFID antenna placement in a warehouse.

​1. Ignoring Antenna Height and Angle​

​The Mistake​​: Mounting antennas too high, too low, or at the wrong tilt.
​Why It Fails​​:

  • High-mounted antennas (e.g., 10m ceilings) create narrow beams that miss floor-level tags.
  • Flat angles scatter energy, reducing read consistency.

​Fix​​:

  • ​Follow the 1:4 Rule​​: For every meter of read range, position antennas 0.25m above the target zone.
  • ​Tilt Strategically​​: Angle antennas 10–30° downward to focus energy on tagged items.

​Case Study​​: A Cykeo client reduced missed reads by 55% by lowering antennas from 8m to 4m in a distribution center.

​2. Overlooking Polarization Mismatches​

​The Mistake​​: Pairing linear-polarized antennas with randomly oriented tags.
​Why It Fails​​: Linear antennas only read tags aligned with their polarization plane. Rotated tags become invisible.

​Fix​​:

  • Use ​​circular-polarized antennas​​ in dynamic environments (e.g., handheld scanners, moving conveyors).
  • Reserve linear antennas for fixed tag orientations (e.g., pallets on a straight conveyor).

​Pro Tip​​: Test polarization by rotating a sample tag 90°—if reads drop, switch to circular antennas.

​3. Clustering Antennas Too Close​

​The Mistake​​: Installing multiple antennas <3m apart without isolation.
​Why It Fails​​: Overlapping signals cause reader collisions, creating false negatives.

​Fix​​:

  • ​Space Antennas​​: Maintain ≥3m between omnidirectional antennas.
  • ​Use Directional Antennas​​: Focus beams away from neighboring zones in tight spaces.
  • ​Channel Hopping​​: Configure readers to non-overlapping frequencies (e.g., 902–928 MHz sub-bands).

​4. Neglecting Metal and Liquid Interference​

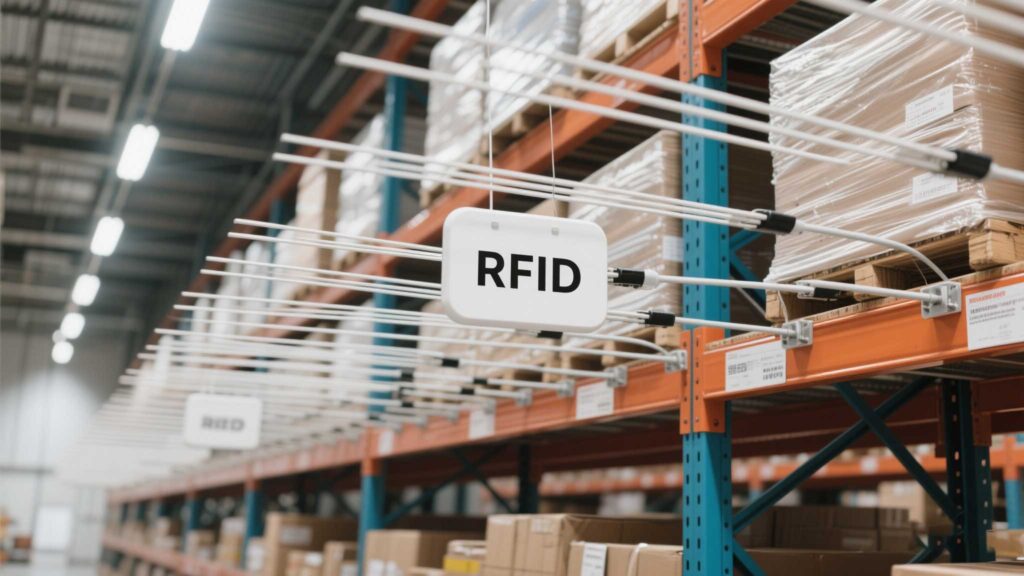

Correctly spaced directional rfid antennas in a retail stockroom.

​The Mistake​​: Assuming RFID works seamlessly near metal shelves or water-filled containers.
​Why It Fails​​: Metal reflects signals (causing ghost reads), while liquids absorb UHF waves.

​Fix​​:

  • ​Relocate Antennas​​: Position them 1–2m away from metal obstructions.
  • ​Use Ground-Plane Antennas​​: These minimize reflections in metal-rich areas.
  • ​Switch to LF/HF​​: For liquid-heavy environments (e.g., beverage cases), lower frequencies penetrate better.

​Visual Aid​​: [Image 1] Heatmap showing signal distortion near metal racks vs. corrected coverage.

​5. Failing to Test Real-World Scenarios​

​The Mistake​​: Validating antenna placement in empty labs, not operational environments.
​Why It Fails​​: Forklifts, human traffic, and stacked pallets block signals unpredictably.

​Fix​​:

  • ​Simulate Chaos​​: Test with moving assets, stacked items, and active machinery.
  • ​Iterate​​: Adjust power (ERP) by 0.5W increments to balance range and compliance.
  • ​Monitor Long-Term​​: Use software like Cykeo’s SignalTrack to log performance amid daily operations.

​Bonus: Quick Checklist for Antenna Placement​

  1. ✅ Matched polarization to tag orientation variability.
  2. ✅ Spaced antennas ≥3m apart (or used directional models).
  3. ✅ Tested with moving obstacles and interference sources.
  4. ✅ Adjusted height/angle using the 1:4 rule.

​Final Takeaway​​: RFID antenna placement isn’t set-and-forget—it’s a science of adaptation. By sidestepping these five mistakes, businesses transform “spotty” systems into reliability workhorses. Remember: A well-placed 200antennaoftenoutperformsapoorlyplaced2,000 one.
