Long Range RFID Reader for Warehouse: What Actually Matters in Real Operations

A warehouse RFID project usually starts with a simple goal:

“Know where our inventory is.”

But after talking with warehouse operators and system integrators, the real requirement is usually more specific.

They want to know:

• Which pallet entered the warehouse?
• When did this shipment leave?
• Where is the missing item?
• Did the picker take the correct product?
• Did the forklift move the right pallet?

The long range RFID reader is not just a scanning device.

It becomes part of the warehouse workflow.

And this is where many projects become complicated.

A reader that works well in a testing area may behave differently when installed between metal racks, moving forklifts, and hundreds of tagged items.

---

Why warehouses choose long range RFID readers

Traditional barcode systems depend heavily on manual scanning.

Workers need to:

• Find the label
• Point the scanner
• Scan each item
• Confirm the result

This works for many warehouses.

But when the operation becomes larger, problems start appearing.

For example:

A forklift moves 20 pallets through a warehouse gate.

With barcode:

Someone needs to scan each pallet.

With RFID:

The system can automatically capture multiple tags while the forklift passes through.

This is where long range RFID readers become valuable.

---

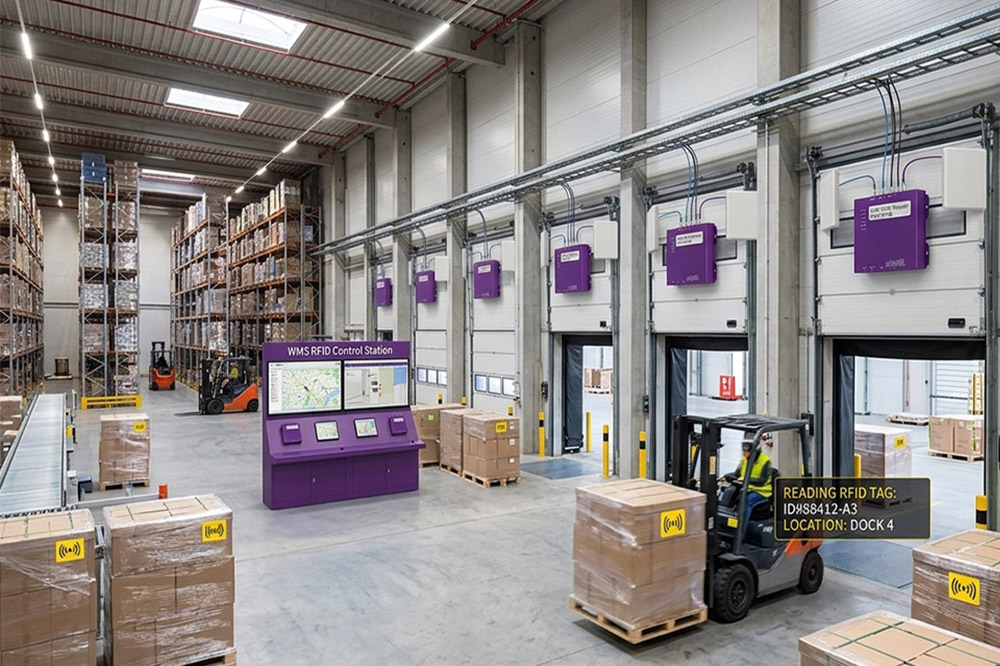

Warehouse Inventory Tracking

Inventory accuracy is one of the biggest reasons companies move toward RFID.

In a traditional warehouse, inventory checks often happen periodically.

That creates a common problem:

The system says one thing.

The shelf shows another.

RFID changes this by creating more frequent visibility.

A typical setup includes:

• RFID tags attached to products or pallets
• Fixed RFID readers
• RFID Antennas installed at key locations
• Warehouse management software

The system can record:

• Item movement
• Location changes
• Time records

But there is something worth mentioning:

RFID does not automatically understand the warehouse.

The layout and reading zones still need to be designed properly.

---

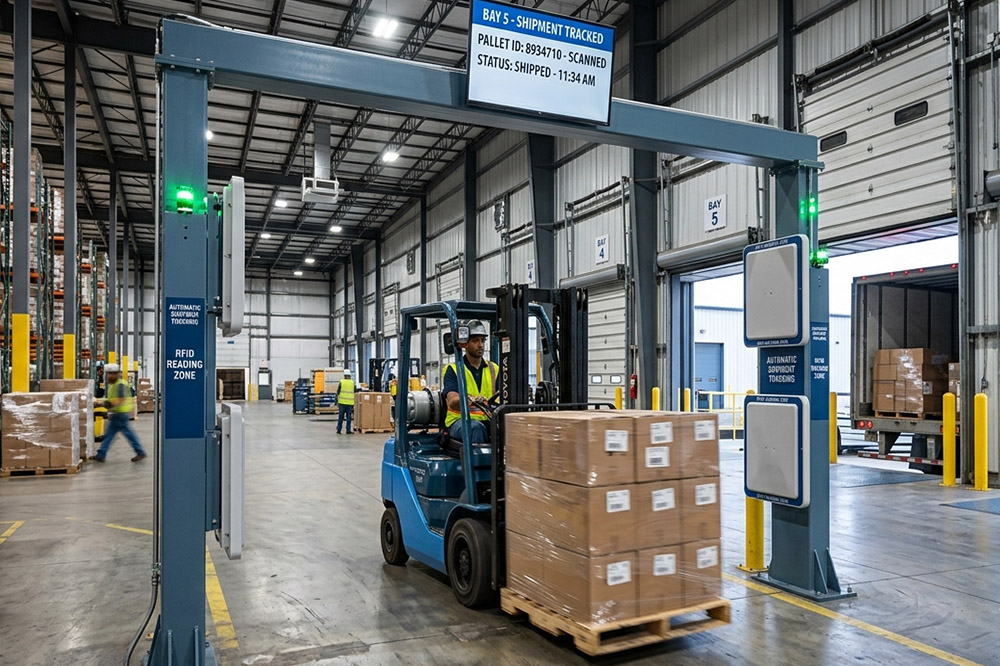

RFID Dock Door Tracking

Dock doors are one of the most common applications for long range RFID readers.

Every day, thousands of pallets move through:

• Receiving doors
• Shipping doors
• Transfer points

This creates a natural RFID checkpoint.

A typical dock door installation includes:

• Fixed RFID reader
• Multiple antennas
• Controlled reading zone
• Software integration

When a forklift passes through:

1. RFID captures pallet tags
2. System records movement
3. Inventory status updates

The challenge is avoiding unwanted reads.

For example:

A pallet waiting near the dock should not be recorded as shipped.

This is why antenna direction and installation angle matter.

---

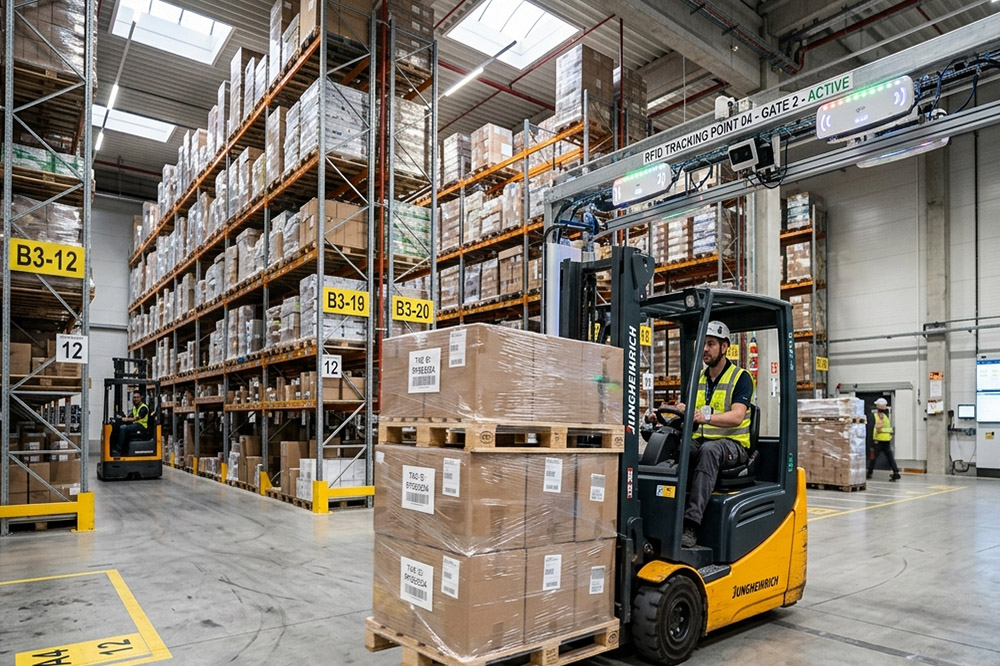

Forklift RFID Tracking

Forklifts are moving targets.

That makes them interesting for RFID projects.

Some warehouses use RFID to track:

• Forklift movement
• Pallet transportation
• Loading activities
• Operator workflows

A common approach:

RFID readers are installed at fixed points.

As forklifts move through these areas, the system captures related tag information.

In some projects, RFID tags are installed on:

• Pallets
• Containers
• Tools

The forklift itself may also carry identification tags.

The goal is not always real-time location.

Sometimes companies simply need reliable movement records.

---

Pallet Tracking with RFID

Pallet tracking is probably one of the strongest warehouse RFID use cases.

A pallet can pass through multiple stages:

Receiving → Storage → Picking → Shipping

Without RFID, these movements often depend on manual updates.

With RFID:

Each movement can create an automatic record.

For example:

A pallet arrives at receiving.

The dock door reader detects:

• Pallet ID
• Time
• Direction

Later, the same pallet moves to shipping.

The system knows the history.

This is especially useful for:

• Manufacturing warehouses
• Distribution centers
• Third-party logistics companies

---

RFID for Picking Operations

Picking accuracy directly affects customer satisfaction.

A wrong item shipment can create:

• Return costs
• Delays
• Customer complaints

RFID can support picking by confirming:

• Correct item
• Correct quantity
• Correct location

Some warehouses combine:

• RFID readers
• Smart shelves
• Handheld RFID devices

The fixed readers handle automatic movement tracking.

Handheld devices help workers verify exceptions.

---

Receiving and Shipping Automation

Receiving and shipping are where many warehouses lose visibility.

The problem is timing.

A truck arrives.

Products move quickly.

Workers are busy.

Manual records may not happen immediately.

RFID creates automatic checkpoints.

At receiving:

• Confirm incoming goods
• Update inventory

At shipping:

• Verify outgoing pallets
• Reduce shipping mistakes

For high-volume warehouses, this can reduce manual steps significantly.

---

Warehouse Layout and RFID Reader Installation

The warehouse layout has a direct impact on RFID performance.

Before installation, integrators usually check:

Dock Door Area

Questions:

• How wide is the door?
• How fast do forklifts move?
• Where are pallets positioned?

---

Storage Area

Challenges:

• Metal racks
• Dense inventory
• Tag blocking

---

Conveyor Area

Consider:

• Product speed
• Tag position
• Reading timing

---

A typical warehouse RFID layout:

Receiving Area

      ↓

RFID Gate Reader

      ↓

Storage Zone

      ↓

Picking Area

      ↓

Shipping Door

The goal is not to cover every square meter.

It is to place readers where important events happen.

---

Common Warehouse RFID Problems

1. Reading pallets from nearby areas

Cause:

• Antenna coverage too wide
• Power too high
• Poor placement

Solution:

• Adjust antenna angle
• Control reading zone

---

2. Missing tags during forklift movement

Cause:

• Tag position
• Metal interference
• Wrong antenna selection

Solution:

• Test tag placement
• Optimize antenna configuration

---

3. Too many duplicate reads

Cause:

• Reader continuously detecting the same tag

Solution:

• Configure filtering rules
• Adjust software logic

---

Case Study: Warehouse Dock Door RFID Tracking

A logistics company wanted to automate pallet receiving and shipping.

The original process:

Workers scanned pallet labels manually.

Problems:

• Slow receiving
• Missing records
• Difficult inventory checking

The RFID solution included:

• Long range UHF RFID readers
• Directional antennas
• Pallet RFID tags
• Warehouse software integration

During initial testing, the system detected pallets successfully.

However, nearby pallets were also being captured.

The adjustment focused on:

• Antenna angle
• Reading power
• Gate layout

After optimization, the system created a more controlled reading zone.

The important change was not simply increasing range.

It was making the reading area match the workflow.

---

FAQ

How far can a warehouse RFID reader read?

Depending on the antenna, tag type, and environment, long range UHF RFID readers commonly achieve several meters to more than 10 meters.

Where are RFID readers installed in warehouses?

Common locations include dock doors, receiving areas, shipping points, conveyor lines, and key movement zones.

Can RFID track pallets automatically?

Yes. RFID can record pallet movement when tags pass through installed reading points.

Do warehouses still need handheld RFID readers?

Many warehouses use both fixed and handheld readers. Fixed readers automate movement tracking, while handheld devices support inventory checks.
