How to Choose UHF RFID Long Range Reader for Warehouse Systems

Warehouse RFID projects are often described as “low-hanging fruit” in automation. The logic seems simple: install a long range RFID reader at the warehouse gate, attach tags to goods or pallets, and let the system automatically track inventory movement.

But in reality, warehouse deployments are where many RFID projects fail.

Not because the technology doesn’t work — but because the system is designed incorrectly from the beginning.

If you are a developer or system integrator, choosing the right RFID long range reader is not just about hardware specs. It’s about building a system that can deliver stable, predictable performance in a real operational environment.

1. What Warehouse RFID Systems Actually Need

Before selecting any device, you need to clearly define the real requirement.

Most warehouse managers don’t care about maximum reading distance. They care about:

• Accurate bulk reading
• No missed tags
• No duplicate or false reads
• Real-time data integration

That means your system must be designed for consistency, not peak performance.

A system that reads 10 meters once but fails unpredictably is useless in daily operations.

2. Why “Long Range” Can Be Misleading

Many suppliers highlight long-distance performance:

• “Up to 10 meters”
• “Up to 15 meters”

But these numbers are typically measured in ideal lab conditions.

In real warehouses:

• Metal racks reflect signals
• Goods block or absorb signals
• Tag orientation changes constantly

As a result, actual stable reading distance is usually shorter — and more importantly, less consistent.

The goal is not maximum distance.
The goal is controlled and repeatable reading behavior.

3. Key Factors When Choosing an RFID Long Range Reader

3.1 Multi-Tag Reading Capability

Warehouse environments rarely involve a single tag.

A typical gate might need to read:

• Dozens of cartons
• Multiple pallets
• Mixed tag orientations

Your reader must support high-speed anti-collision processing, allowing it to identify many rfid tags simultaneously without delay.

If the reader struggles with tag density, you will see:

• Missed reads
• Delayed data
• System bottlenecks

3.2 Antenna Port Capacity

One of the most important — and often overlooked — factors is how many antennas the reader supports.

Typical configurations:

• 2 antennas → small entry points
• 4 antennas → standard warehouse gate
• 6–8 antennas → complex or high-volume areas

More antennas allow you to:

• Control coverage zones
• Eliminate blind spots
• Improve read accuracy

Choosing a reader with insufficient antenna ports often forces redesign later.

3.3 Read Zone Control

This is the defining factor of a successful system.

A good RFID system does not read everything — it reads only what it should read.

Poor read zone control leads to:

• Reading items still inside the warehouse
• Reading items outside the gate
• Duplicate records

Read zone control is achieved through:

• Antenna positioning
• Power adjustment
• Physical layout

3.4 Stability and Continuous Operation

Warehouse systems typically run:

• 24 hours a day
• In changing environmental conditions

Your reader must maintain stable performance over time.

Unstable systems lead to:

• Data inconsistencies
• Operational delays
• Loss of trust from users

3.5 Integration Capability

RFID is not a standalone solution.

It must integrate with:

• WMS (Warehouse Management System)
• ERP systems
• Inventory databases

This requires:

• Reliable APIs
• Real-time data transmission
• Easy SDK integration

Without this, even a perfectly functioning reader provides little value.

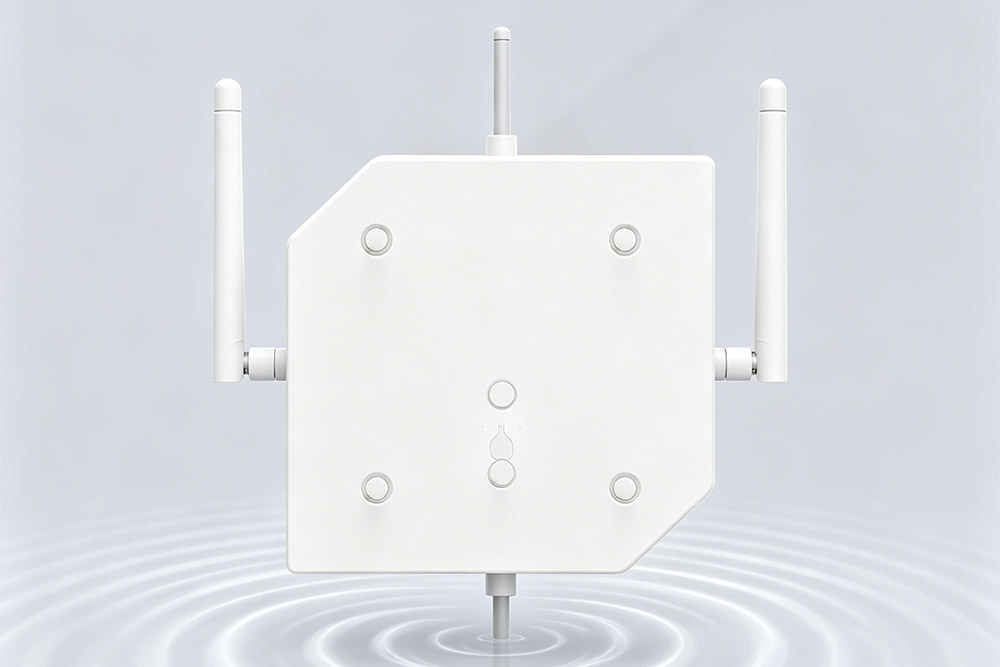

4. Antenna Layout: Where Most Projects Fail

In many cases, the reader is not the problem — the antenna design is.

Common mistakes include:

• Using too few antennas
• Poor placement angles
• Ignoring vertical coverage

A typical warehouse gate should include:

• Side antennas (left and right)
• Top antenna (to cover stacked goods)

This creates a controlled “tunnel” where all tagged items are reliably detected.

5. Tag Selection and Testing

Even with the best reader, poor tag selection will ruin system performance.

Tags behave differently depending on:

• Surface material (metal vs plastic)
• Placement
• Orientation

Always test tags in real conditions before full deployment.

6. Real Deployment Challenges

Warehouse environments are dynamic.

You will encounter:

• Signal reflections from metal
• Tag collisions
• Inconsistent tag positioning

These issues are normal — and must be addressed through system tuning.

7. Practical Workflow for System Integrators

A proven approach:

1. Define operational flow (how goods move)
2. Identify reading points (gates, conveyors)
3. Design antenna layout
4. Select reader based on requirements
5. Test and optimize

Notice that hardware selection comes after system design.

8. Common Mistakes to Avoid

• Choosing reader based on distance alone
• Ignoring antenna layout
• Skipping real-world testing
• Underestimating integration complexity

Each of these can delay or even derail a project.

Conclusion

Choosing RFID long range reader for warehouse systems is not about picking the most powerful device.

It’s about building a system that:

• Reads accurately
• Operates consistently
• Integrates seamlessly

When these three elements are in place, the project succeeds — and delivers real operational value.
