Technical Breakdown & Implementation:

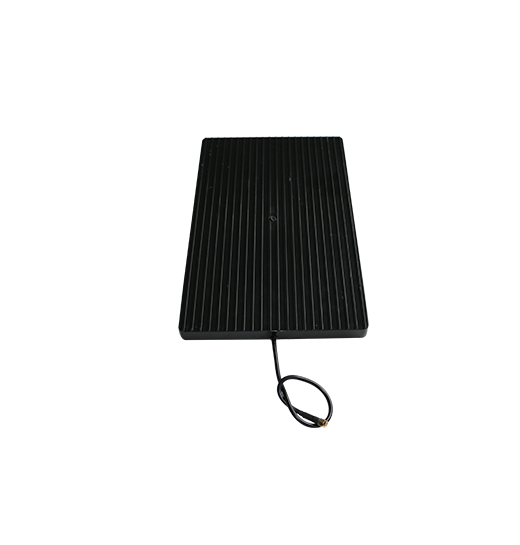

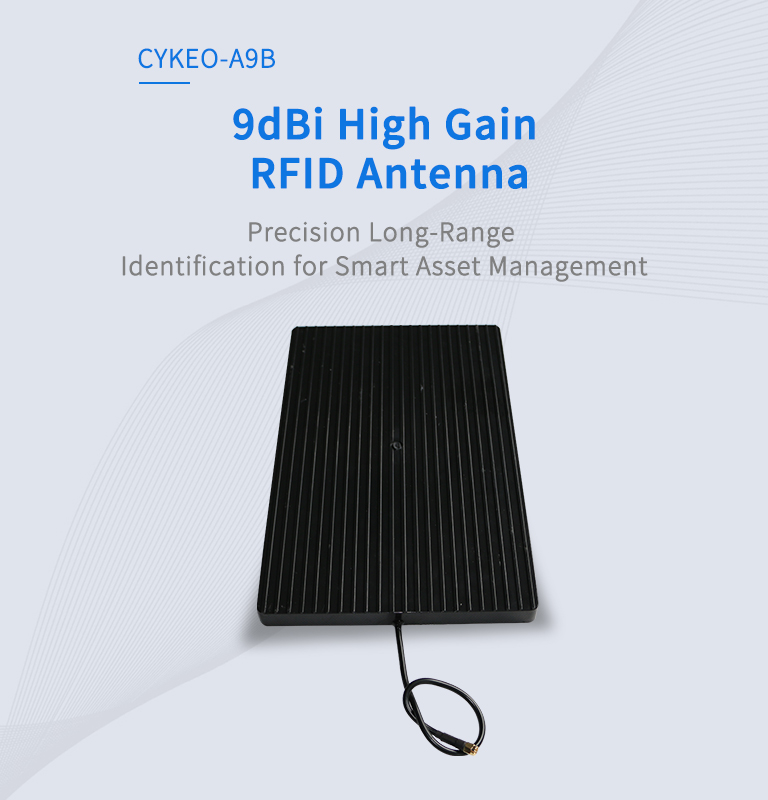

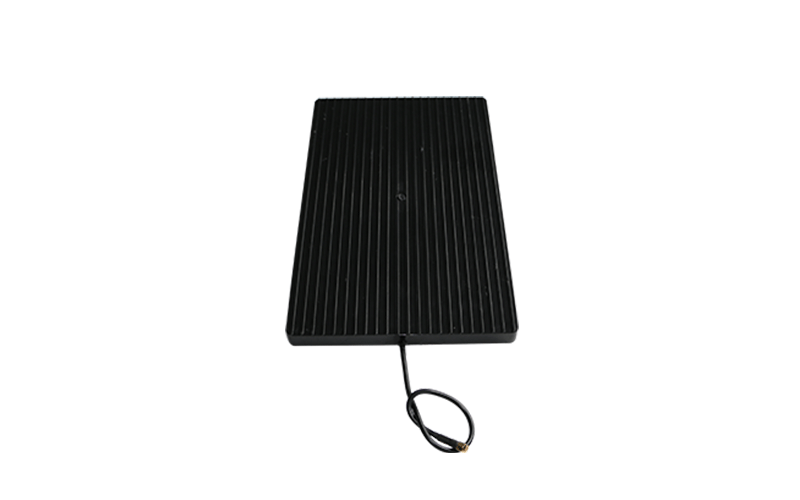

The ​​CK-A9B High Gain RFID Antenna​​ addresses common warehouse challenges like missed reads on high shelves or dense pallet stacks. With its ​​9dBi directional gain​​ and ​​80° horizontal beamwidth​​, it creates a focused “signal cone” that:

• ​​Extends read range to 15m+​​ (vs. 5-8m with standard 6dBi antennas)
• ​​Reduces interference​​ from adjacent aisles via ​​40° vertical beam control​​
• ​​Maintains <1.5 VSWR​​ even when mounted on metal frameworks (tested per ETSI EN 302 208)

Real-World Application:
In a 3PL logistics center, installing two CK-A9B antennas at 8m height achieved ​​99.7% read accuracy​​ across 12m-tall racking – critical for same-day shipping operations. Pair with Cykeo’s ​​CK-R800 Industrial RFID Reader​​ for full system optimization.

Environmental Performance Validation:
Engineered for demanding environments, the CK-A9B combines:

• ​​IP54-rated aluminum housing​​ resisting rain/dust ingress (tested at 1m depth for 30 mins)
• ​​-20°C to 60°C operational stability​​ via thermal-regulated baseplate
• ​​UV-resistant ABS radome​​ preventing yellowing in direct sunlight

Field Test Data:
In a frozen food warehouse (-18°C), the antenna maintained ​​consistent 12m read range​​ over 6 months, outperforming competitors’ models that suffered signal degradation below -10°C. For coastal facilities, optional ​​316L stainless steel brackets​​ combat salt corrosion.

System Integration Strategy:
When covering large areas like airport baggage halls or auto parts yards, use the CK-A9B’s ​​daisy-chain compatibility​​:

1. ​​Height & Angle​​: Mount at 6-10m with ​​±15° tilt adjustment​​ (included bracket allows 0-90° positioning)
2. ​​Signal Overlap​​: Space antennas 18-22m apart for ​​20% beam overlap​​ (prevents dead zones)
3. ​​Interference Mitigation​​: Set adjacent antennas to ​​alternating frequencies​​ (e.g., 865MHz vs 915MHz)

Case Study:
A European automotive plant achieved ​​100% WIP tracking​​ across 15,000㎡ by deploying 12 CK-A9B antennas in a hexagonal grid pattern, synchronized with ​​Cykeo’s ZoneFocus™ software​​ to auto-adjust power levels during crane movements.
