CYKEO CK-A9 UHF RFID Antenna for Long-Range and High-Accuracy RFID Systems

1. Overview: A Practical UHF RFID Antenna Built for Real Deployments

When selecting an RFID antenna for industrial, commercial, or outdoor deployments, the main concerns usually revolve around read consistency, long-range performance, and whether the hardware can hold up in daily use. The CYKEO CK-A9 UHF RFID Antenna was developed around these practical needs.

It isn’t designed just to showcase a specification sheet—it is built to withstand real-life conditions in warehouses, access control points, retail checkpoints, and logistics yards. With its 9dBi circular polarized design, the CK-A9 provides stable tag reading even when tag orientation varies, which is one of the most common issues in field deployments.

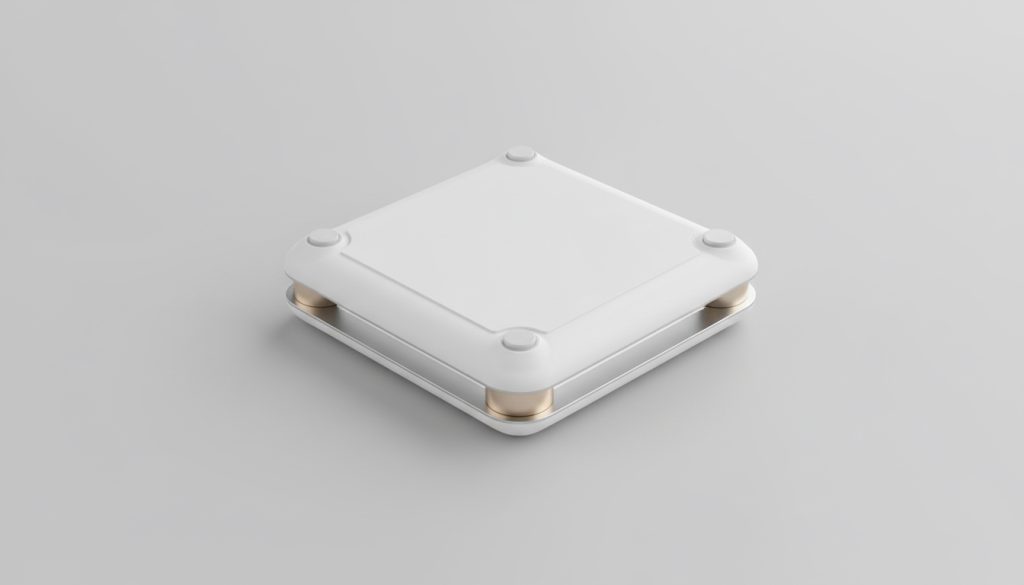

The antenna’s ABS + aluminum structure provides reliability without unnecessary weight, so integrators can mount it on poles, gates, or portals without overengineering the support hardware.

2. Why Circular Polarization Matters in Real RFID Projects

Many antennas work well on paper but fall short once installed because tags do not align perfectly during daily operations. The CK-A9 addresses this with a circular polarized field, reducing blind angles and improving consistency in mixed environments such as:

• cartons stored at uneven orientations

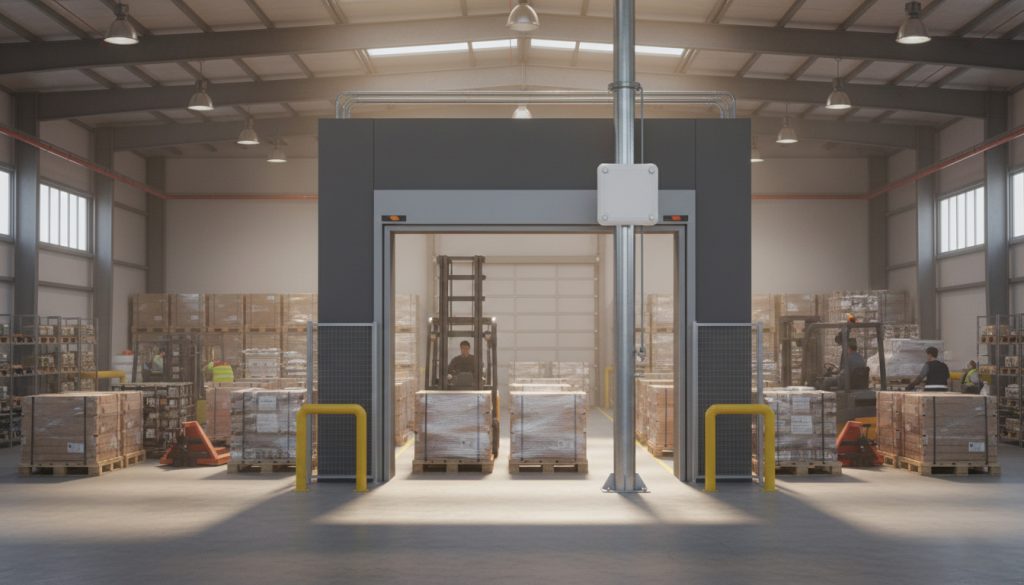

• warehouse pallets entering through gates
• handheld tags being scanned from inconsistent positions
• shopping carts passing through retail exits

It isn’t simply about reaching long distances; it’s about reading reliably across a range of tag angles. The <3dB axial ratio ensures a clean circular polarization pattern without unwanted signal distortion.

3. High Gain and Low VSWR for Better Efficiency

The CK-A9 performs well not just because of gain, but because gain and VSWR are balanced properly.

A high-gain antenna with poor VSWR often results in wasted power, unstable reading fields, or unpredictable blind spots. The CK-A9 keeps its VSWR ≤1.3, which means it transfers energy efficiently and maintains field stability. This is especially noticeable when:

• tags are far away (5–10 meters)
• multiple antennas operate close to each other
• the environment includes metal racks or vehicles
• the reader needs stable performance for long shifts

The 9dBi gain strikes a good middle ground—suitable for portals, storage racks, retail self-checkout lanes, and mid-distance monitoring without overpowering nearby devices.

4. Rugged Exterior for Harsh or Outdoor Environments

The antenna’s IP65 rating allows it to remain operational even in dusty yards, semi-outdoor loading areas, or retail backdoors where humidity and temperature vary.

Its ABS housing resists UV, surface scratches, and general handling wear. During integration tests, installers appreciated the straightforward mount design—the pole mount supports up to 50mm diameter, giving flexibility for gates, posts, and portal frames.

Operating temperature ranges from -40°C to +85°C, making the antenna usable in cold-chain storage as well as hot summer outdoor environments.

5. Built for System Integrators and RFID Solution Providers

The CK-A9 fits seamlessly into UHF RFID systems for:

• warehouse inventory counting
• access control gate systems
• library or document tracking
• retail self-checkout and anti-theft portals

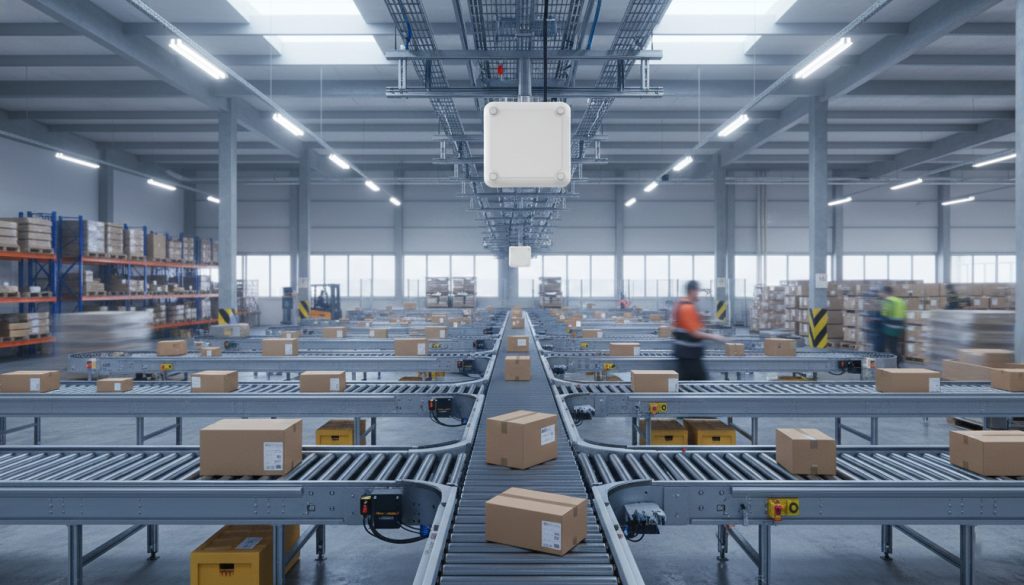

• logistics parcel tracking
• manufacturing line automation

Because the antenna supports 840–960 MHz, it adapts globally without requiring variant models. Integrators can pair it with most reader brands that support standard 50Ω N-type connectors.

The combination of stable beamwidth (70° × 70°), robust construction, and consistent reading field makes it a dependable component for long-term projects.
