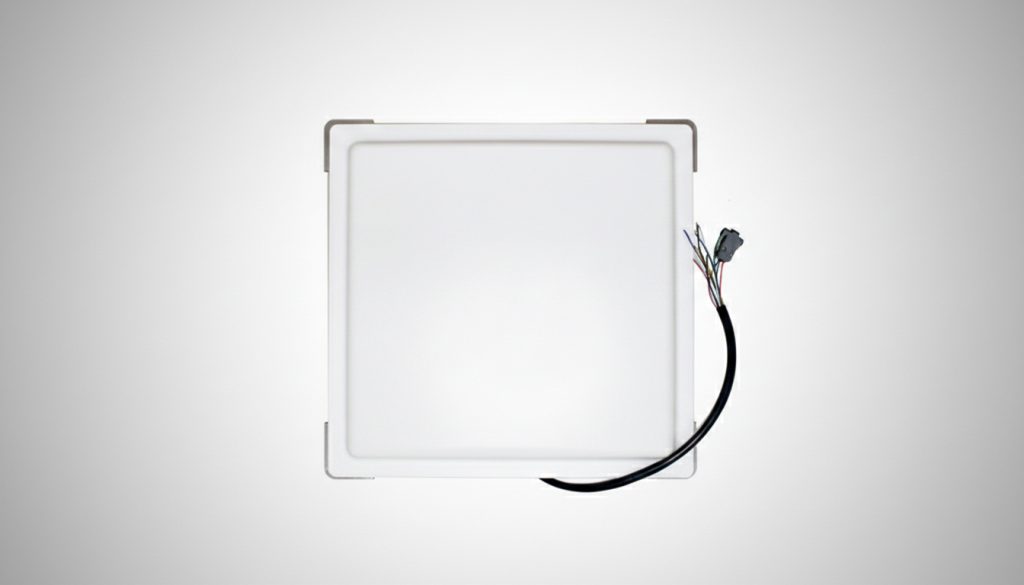

CYKEO CK-A12 12dBi RFID Antenna for Long-Range Industrial Applications

1. Introduction: Why a 12dBi Antenna Still Matters in Modern RFID Deployments

In many RFID projects today, the antenna often ends up being the hidden element that determines whether the entire system performs smoothly or struggles with blind spots. The CYKEO CK-A12 12dBi RFID Antenna, designed for UHF long-range deployments, focuses on solving those real-world issues—tag orientation, inconsistent distances, outdoor weather exposure, and fluctuating reading angles.

Unlike compact mid-gain antennas, a 12dBi panel antenna offers a stronger, more directional beam, making it suitable for applications where the target area or vehicle lane needs precise coverage. Intelligent parking, access control gates, logistics yards, and long-distance tracking zones benefit from a cleaner and more predictable reading field. The CK-A12 keeps this field steady through its circular polarization, ensuring fewer drops when tags rotate or move unpredictably.

2. The Role of High Gain in Targeted RFID Zones

Higher gain does not simply mean “more distance.” In RFID environments such as gates or lane-based traffic flows, you often want a tight, controlled beam. The CK-A12’s 40° × 40° beamwidth helps reduce unintended side reading, making it suitable for:

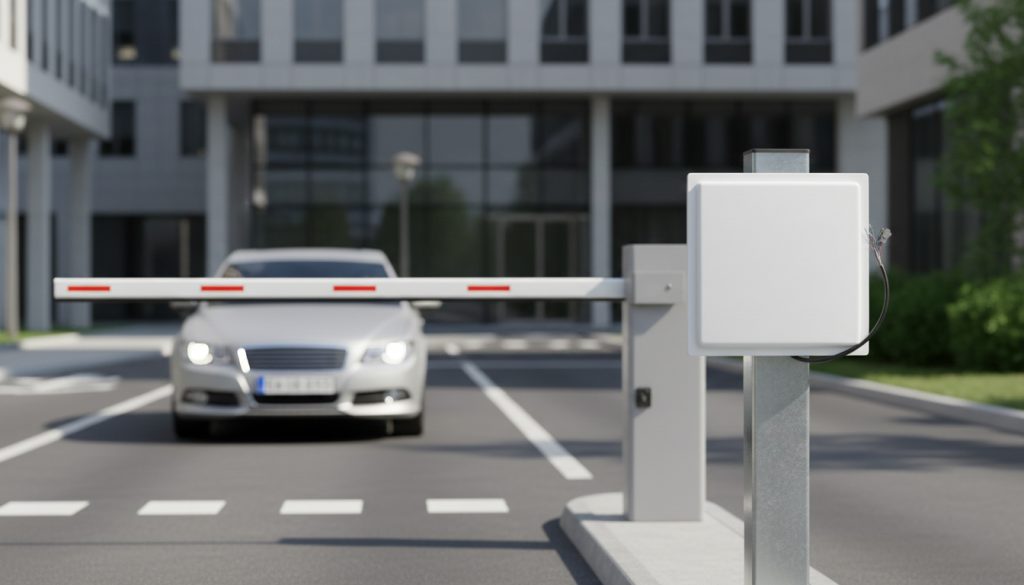

• vehicle lanes in parking systems
• tolling gates

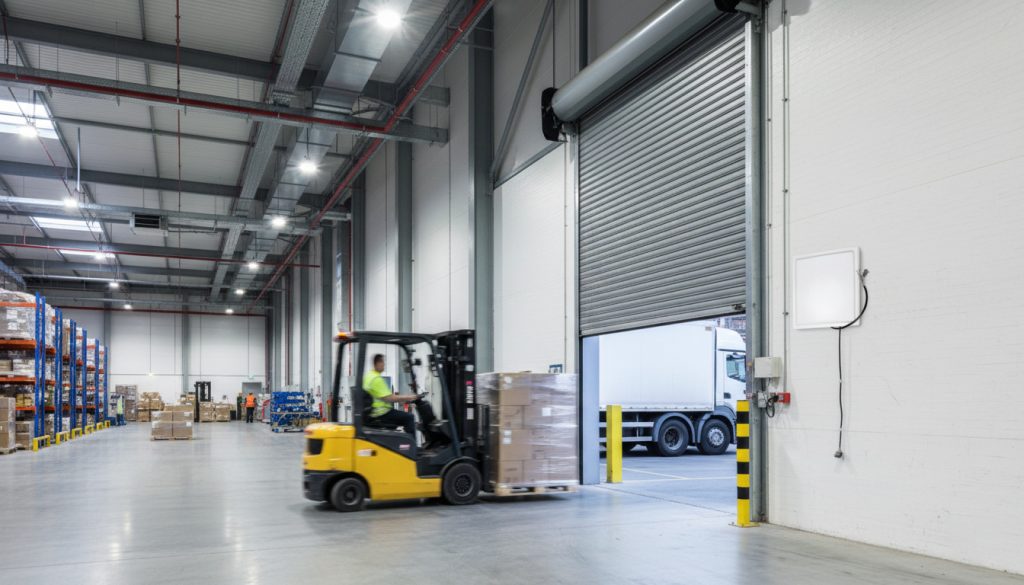

• dock doors in warehouses
• pedestrian access corridors
• item-level portals that require precise scanning

With >12dBi of gain, the antenna provides the punch needed for 10–15 meter read zones without bleeding into neighboring lanes or spaces. And because the VSWR stays at ≤1.3, the antenna maintains efficient energy transfer, something integrators can actually feel in field tests.

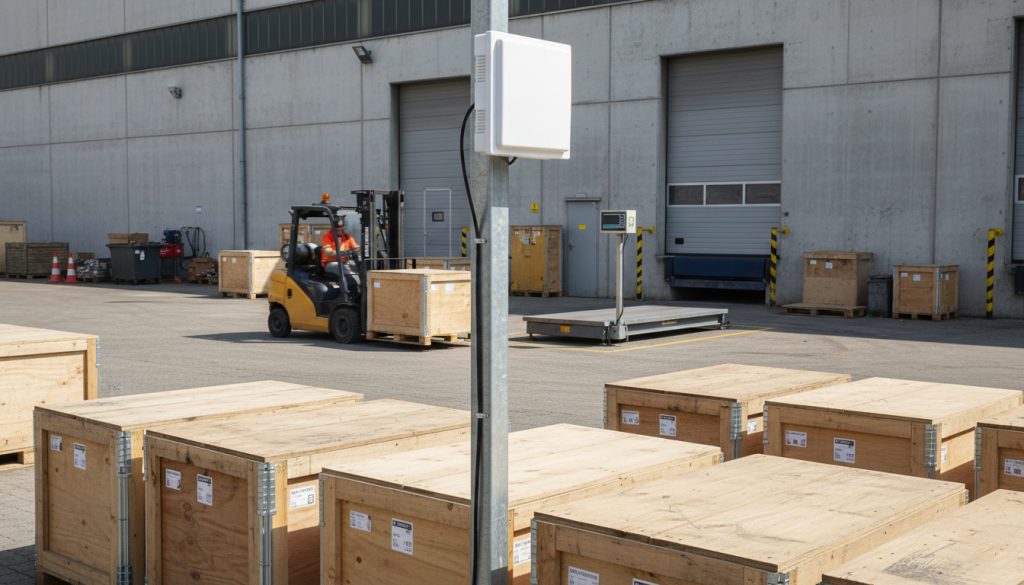

3. Designed for Outdoor Reliability and Long-Term Stability

RFID deployments outdoors face rain, dust, temperature swings, and long daily operating hours. The CK-A12 is built around a robust enclosure combining ABS engineering plastic and an aluminum back structure. Whether mounted in a logistics yard or near a parking gate, the antenna retains structural rigidity and stable performance.

Its IP65 rating helps protect against dust and water exposure. Because the operating range spans -40°C to +85°C, the antenna works reliably from northern cold storage sites to hot summer loading zones.

The pole-mount system supports up to 50mm diameter, giving installers room to work in varied environments—from steel posts to portal frames.

4. How Circular Polarization Reduces Tag Orientation Failures

One of the overlooked challenges of long-range RFID is tag orientation. With linear antennas, tags often “blink” in and out as vehicles or items rotate. Circular polarization in the CK-A12 helps maintain more stable reading performance across:

• tilted or rotated vehicle windshield tags
• cartons on uneven pallets
• pedestrians carrying access cards at inconsistent angles
• products sliding on conveyor belts

The <3dB axial ratio ensures the circular field remains clean and predictable, especially important in outdoor or reflective environments.

5. For Integrators Who Need Predictable, Repeatable Performance

The CK-A12 antenna works across 840–960 MHz, supporting global UHF RFID allocations. With a standard N-type female connector, it pairs easily with mainstream fixed RFID readers.

Integrators who work on long-term parking, access control, or automation projects often prefer hardware that behaves consistently year after year. The CK-A12’s blend of gain, beamwidth, and outdoor durability makes it a dependable choice in system designs where reliability matters more than lab numbers.

Its lightweight yet sturdy 1.95kg body makes installation easier than older metal-heavy panels, especially when mounted overhead or on extended arms.
