All RFID Product

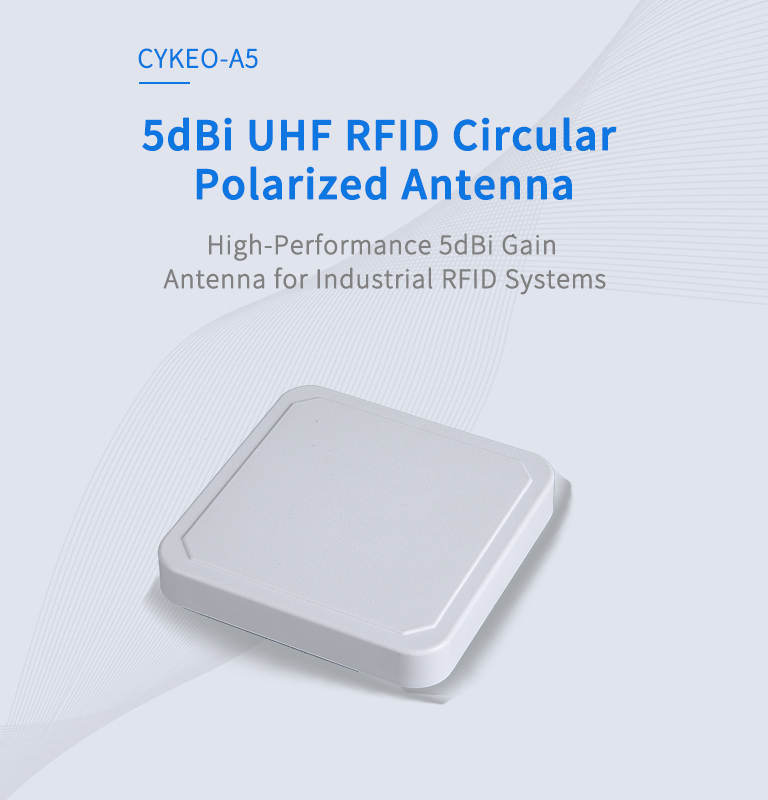

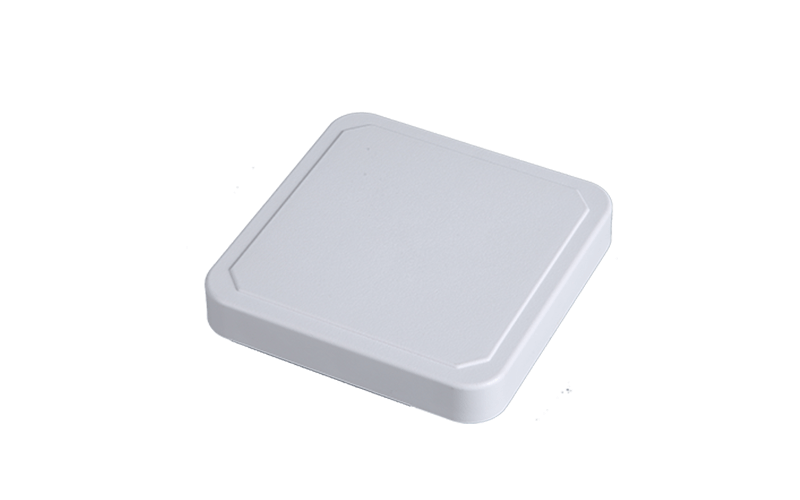

CK-A5
Industrial-Grade Circular Polarized UHF RFID Antenna with Extended Range
✔️ Rugged ABS + aluminum build made for rough industrial sites (-40°C to +85°C)
✔️ Ultra-wide 840–960 MHz UHF band with stable VSWR ≤1.3
✔️ High-performance antenna rfid design with >5 dBi gain and <3 dB axial ratio
The CYKEO CK-A5 is an Antenna RFID built for setups where space is tight but you still need dependable tag reads. It isn’t oversized, yet the circular polarization and the broader beam pattern help it maintain good accuracy even when tags aren’t lined up neatly. Warehouses, cold-chain corridors, retail shelves, dock doors—it usually fits in without much adjustment. With its IP65 protection and compact housing, it handles daily bumps, temperature swings, and the kind of dust that’s everywhere in logistics or light manufacturing.
If you’re trying to lift the scanning quality around smart shelves, short-range gates, or asset points that move around often, this uhf rfid antenna tends to simplify things rather than complicate them.
Main Specifications
Physical Parameters
Developer Support
Performance Parameters
Operating Environment
NEED A CUSTOM SOLUTION?
Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.
Tags shift, tilt, rotate—nobody really has them aligned perfectly in real operations. A circular-polarized Antenna RFID like the CK-A5 deals with that unpredictability. It keeps reads steady even when orientation varies, which is common on conveyor edges, forklift forks, or retail racks. The wide 840–960 MHz range also helps when deployments use mixed-origin tags. Some factories use it above fast conveyor lanes and still get consistent reads because the antenna doesn’t depend heavily on angle.
Most installers place it a few meters off the ground and tilt it slightly downward to widen the usable zone. When racks or metal surroundings are unavoidable, just give it a little spacing so the pattern isn’t squeezed. A short 50-ohm cable run keeps things clean, and many technicians use LMR-400 when the reader cabinet is farther away. The antenna’s size makes it easier to fit between beams or around corners where bigger antennas wouldn’t sit properly.
Yes. The CK-A5 doesn’t require exotic setups to coexist with barcode scanners or earlier WMS systems. As long as the reader supports EPC Gen2 data, the antenna delivers clean reads. Many companies tie it into small IoT boards to push data into dashboards or cloud logs, and legacy ERP systems can map the EPC data with basic middleware. It’s commonly used to bring RFID insights to warehouses still halfway between barcodes and full automation.
