How UHF RFID Antenna Layout Affects System Performance

A layout problem can silently ruin your RFID deployment. I once walked into a client’s warehouse where every antenna was perfectly aligned on paper—but boxes kept slipping through unread. That was a classic case of ignoring the layout. It’s easy to assume that one or two antennas will cover a large area, but real-world physics rarely cooperates.

Dead Zones Are Real
Every system has them. Even a high-gain rfid antenna will have spots where the signal is weak or reflected. In my experience, walking through the warehouse with a handheld reader and mapping where tags get missed is invaluable. Once you know the trouble spots, adding a small low-gain antenna can fix what seemed like a “system problem.”

Multiple Antennas Aren’t Always Better—But They Can Be

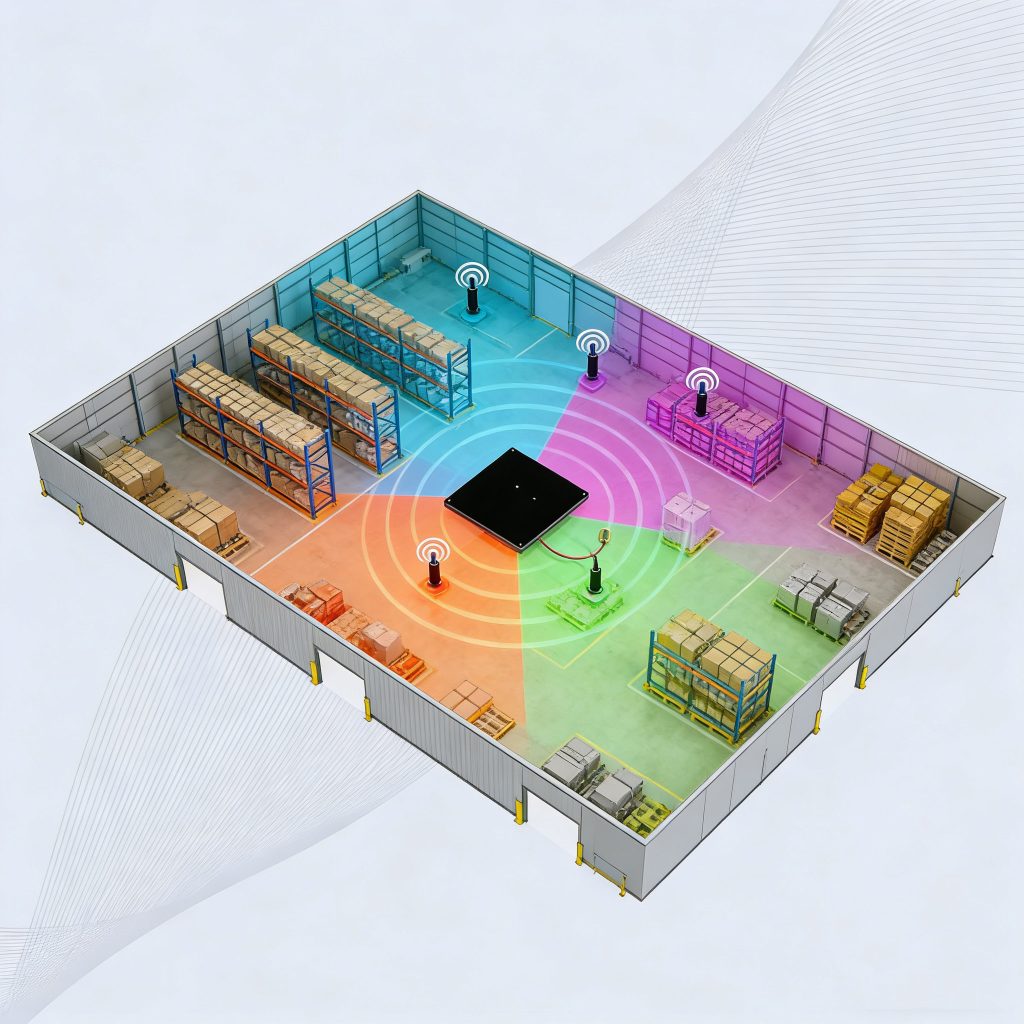

More antennas can help, yes, but I’ve seen cases where extra antennas created interference and made read rates worse. It’s about strategic placement. Pairing antennas with complementary coverage patterns, rather than just “more is better,” keeps the system stable. Many integrators overlook this nuance, but it’s crucial for high-density tag environments.

Think Beyond the Hardware
A layout isn’t just about antennas—it’s about the software too. Filtering reads, handling overlapping signals, and prioritizing certain zones can dramatically improve system behavior. Antennas like those from Cykeo UHF RFID come with specifications that make software calibration easier, which is a real time-saver during integration.

Takeaway
Don’t underestimate the impact of layout. Testing, mapping dead zones, and strategically placing antennas—even a few degrees off from the obvious—can make or break your deployment. And always keep software and hardware working together; one without the other will leave gaps.
