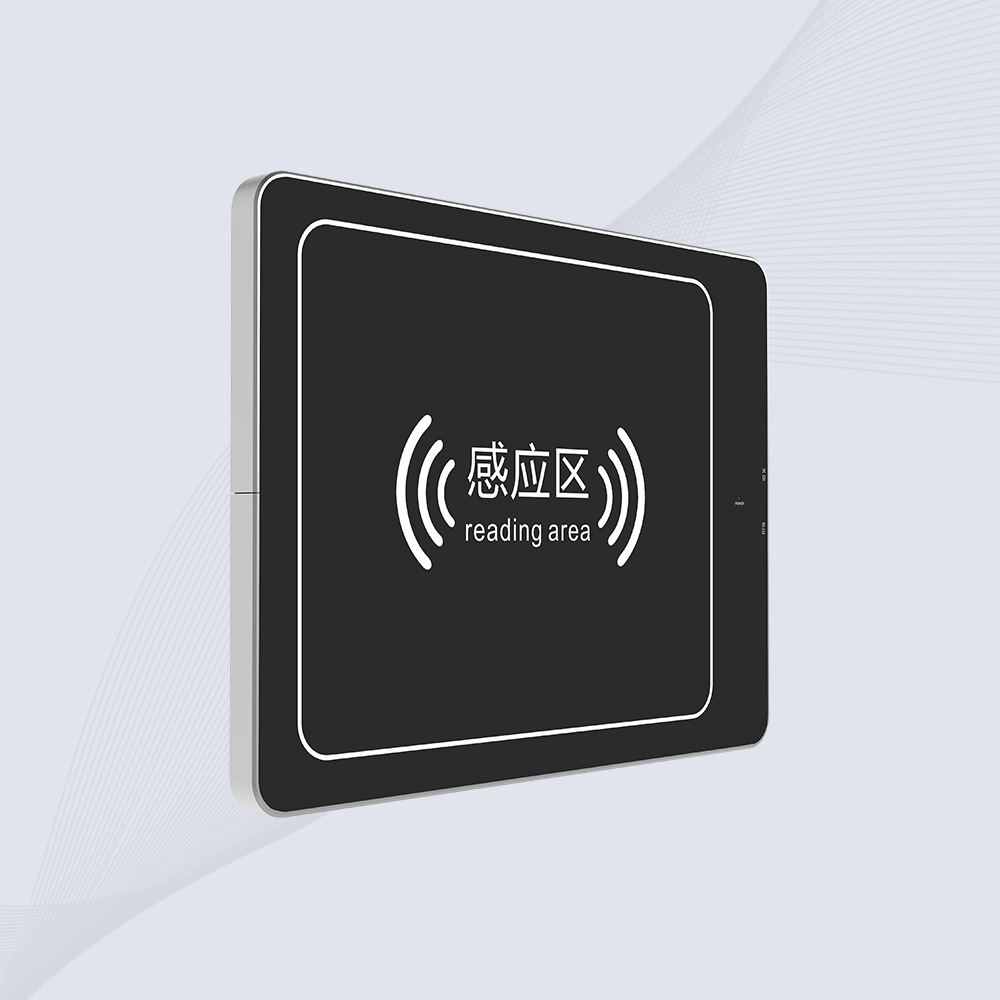

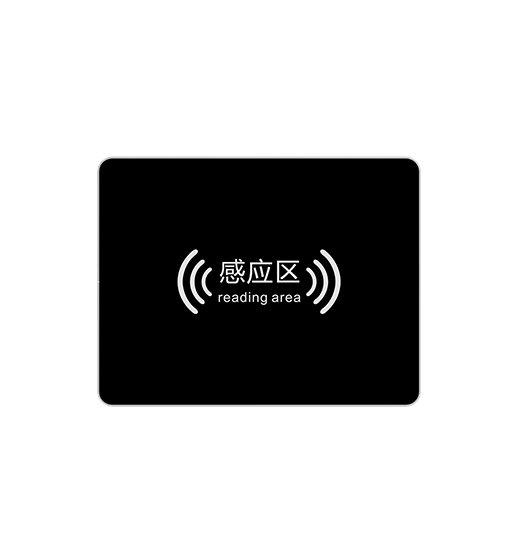

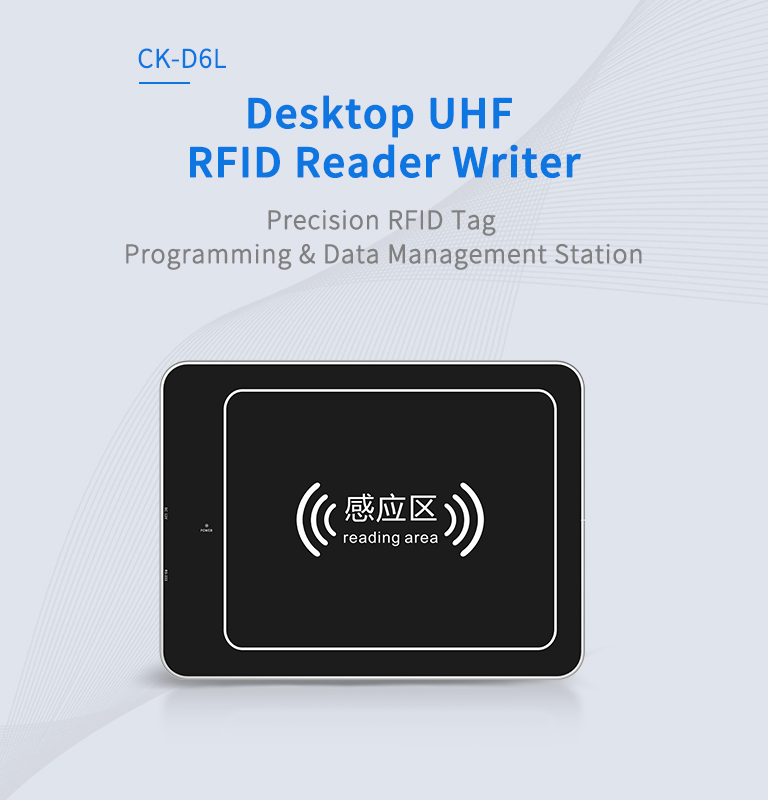

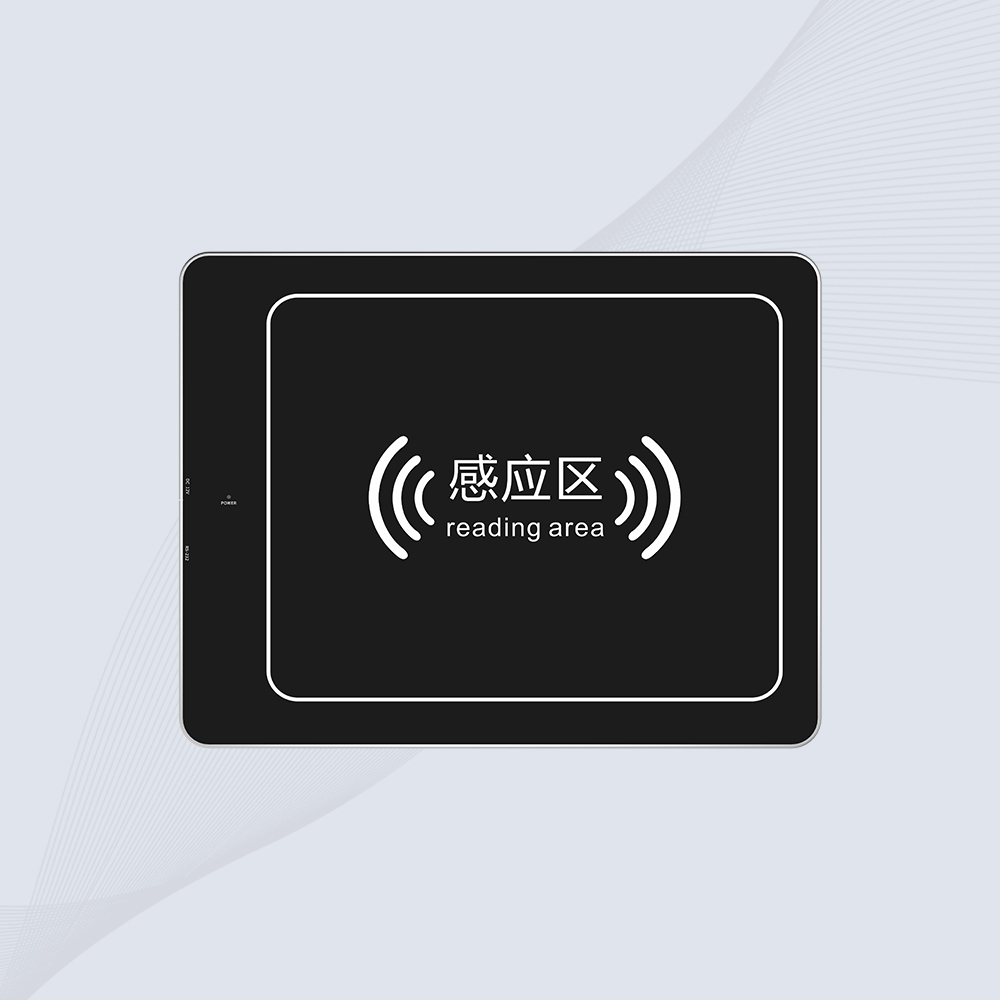

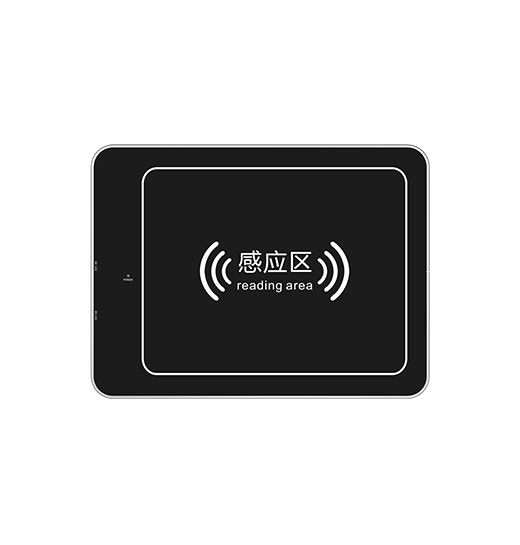

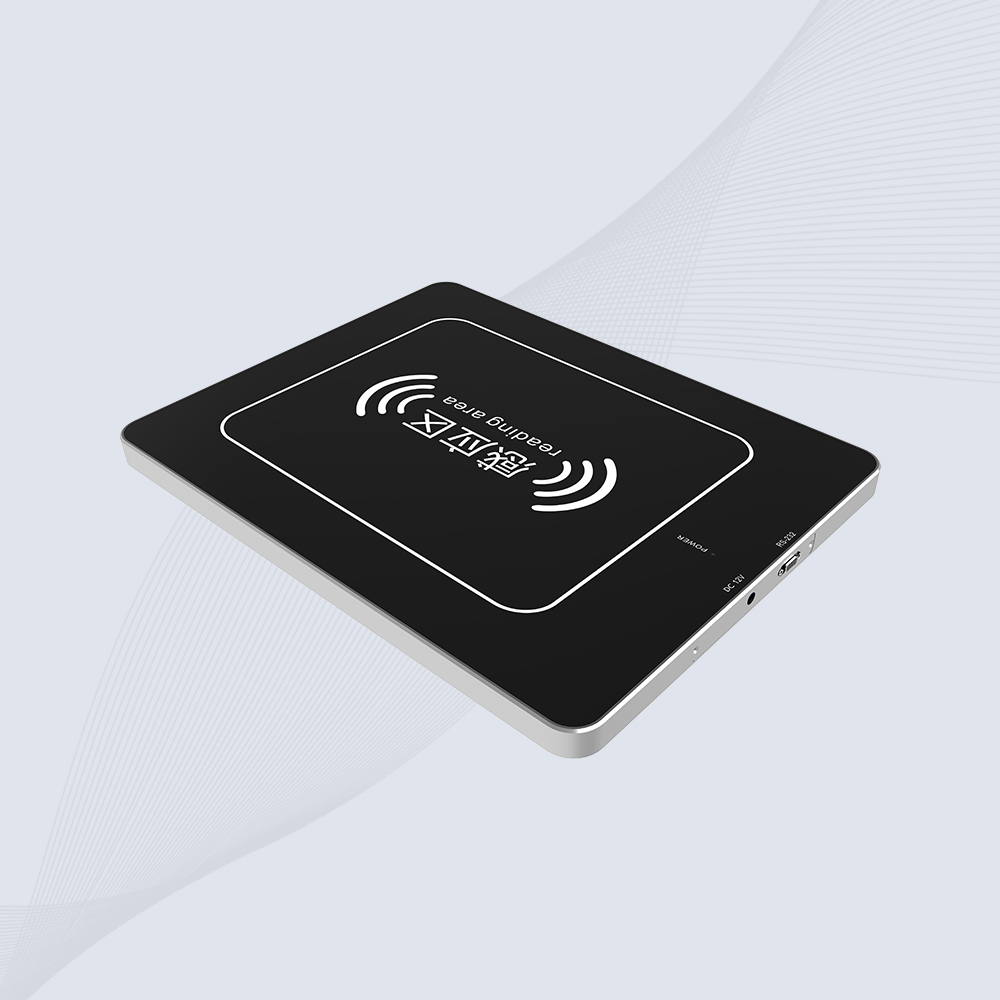

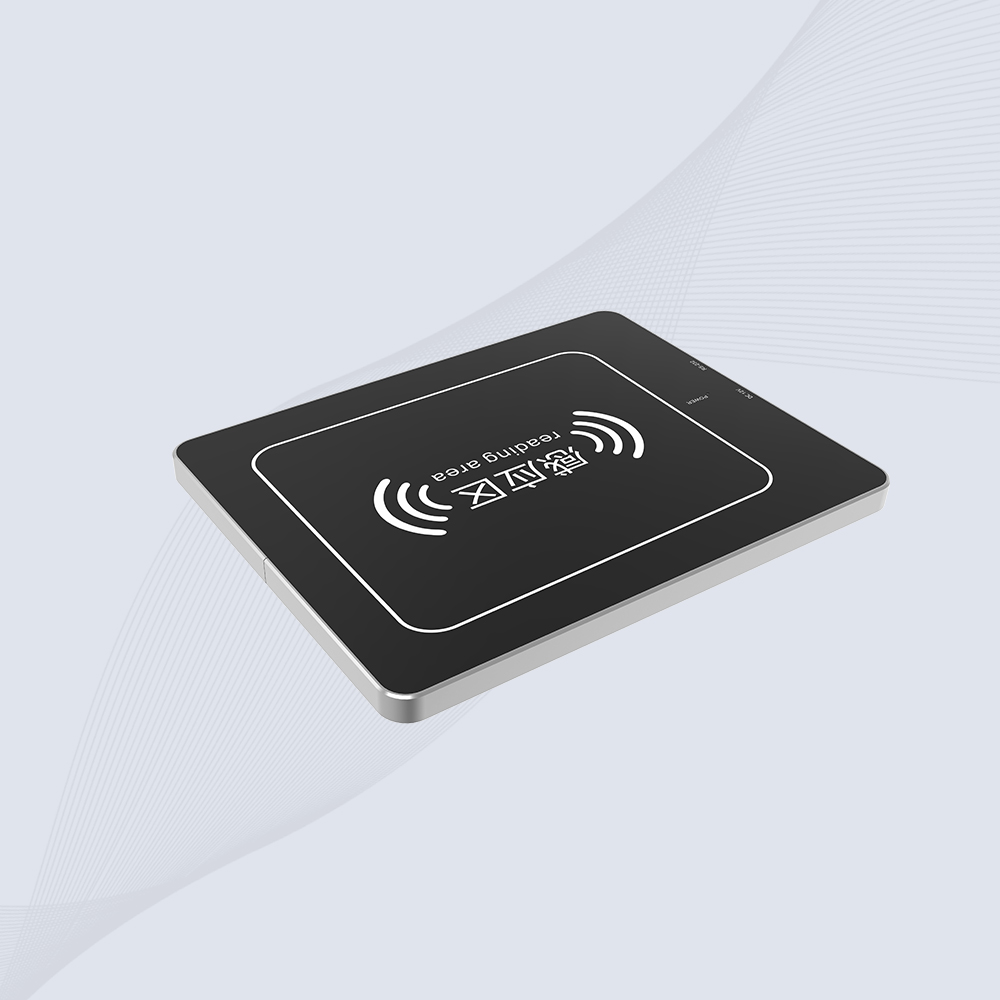

CK-D6L

Desktop UHF RFID Reader Writer

Precision RFID Tag Programming & Data Management Station

✔️ 33dBm High-Power Tag Writing

✔️ 40+ Tags/Sec Rapid Batch Processing

✔️ Seamless Library/Logistics System Integration

Talk to an Expert

Email Our Team

NEARFIELD POWER, INDUSTRIAL SPEED

The CK-D6 Desktop UHF RFID Reader Writer is engineered for high-accuracy tag programming and asset registration. Equipped with Impinj R2000 chipset and near-field circular polarization technology, it achieves 99.9% write success rates within 10cm. Ideal for libraries, tool rooms, and medical asset management requiring secure data encoding.

Critical for RFID tag initialization in libraries, industrial tool tracking, and high-security pharmaceutical asset labeling.

Library Book Labeling

Energy Facility Management

Warehouse Logistics

Retail Item Registration

Health Care

Hotel facility management

Cykeo CK-D6L Specification

Download

Online Procurement

CORE ADVANTAGES OF CK-D6 DESKTOP RFID READER WRITER

99.9% first-pass

tag recognition Zero-Collision Algorithm

Impinj R2000

Industrial-Grade RFID Chip

40 Tags/Sec

Batch Registration Accuracy

RSSI Sorting

Auto-prioritizes nearest tagged assets

Carbon-Steel Shield

10kg armored frame resists 50kg impacts

ISO 18000-6B/6C

Dual Protocol Engine – Reads EPC C1G2 labels

USB 3.0

High-Speed Data Interface

Developer Suite Prebuilt

C#/Java/Android APIs & sample codes

CK-D6 Desktop UHF RFID Reader Writer Specifications

Main Specifications

ModelCK-D6
BrandCykeo
Product NameDesktop UHF RFID Reader Writer

Physical Parameters

Dimensions600×800×26.8mm
Power Input USB 5V
Weight10kg

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO 18000-6B/6C, EPC C1G2
Reading Range0-30cm (EPC Reading), 0-10cm (Writing)
RF Power (Port)33dBm±1dBm (Adjustable)
Power Adjustment1 dB step
Interfaces15-Pin Terminal (UART/USB/GPIO)

Operating Environment

Operating Temperature-20°C to +70°C
Humidity10%RH–95%RH (Non-Condensing)
Storage Temperature-40°C to +85°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

DESKTOP RFID READER WRITER FAQS

Why Choose the CK-D6 DESKTOP RFID READER WRITER for Asset Management?

The CK-D6 UHF RFID Desktop Reader is engineered to streamline high-precision asset tracking and data management. Here’s why it stands out:

Superior Tag Handling: Leverages Impinj R2000 RFID chips and advanced anti-collision algorithms to read 40+ tags per second with a 99% success rate, even in dense environments.
Multi-Protocol Compatibility: Supports ISO 18000-6C (EPC C1G2) and ISO 18000-6B standards, making it ideal for global asset tagging systems.
Controlled Read/Write Ranges: Near-field antenna design ensures precise operations (read up to 30cm, write within 10cm), minimizing accidental cross-tag interference.
Robust Build: High-strength aluminum frame and carbon steel casing ensure durability in industrial settings (-20℃ to +70℃ operational range).

Ideal for libraries, tool cribs, and healthcare linen management where accuracy and reliability are critical.

How Does the CK-D6 Ensure Stable Tag Writing and Integration with Existing Software?

The CK-D6 prioritizes seamless integration and error-free tag programming:

High-Power Output (33dBm): Delivers stable signal penetration for consistent tag writing, even on metallic surfaces or liquid-containing assets.
Developer-Friendly Tools:
- Pre-built SDKs for C#, Java, and Android reduce coding effort.
- API documentation includes sample codes for core functions like tag filtering, RSSI-based sorting, and batch registration.
Serial Port Simplicity: Uses RS-232/485 interfaces for plug-and-play connectivity with Windows/Linux-based systems, avoiding driver compatibility issues.

Tip: Use the RSSI signal strength feature to prioritize frequently accessed assets in your database.

What Makes the CK-D6 Ideal for Small-Scale RFID Tagging Workstations?

Designed for efficiency in compact environments:

Space-Saving Design: Compact 600x800mm footprint fits comfortably on desks or countertops without sacrificing performance.
Step-by-Step Workflow Optimization:
- Step 1: Place items on the reader’s glass surface (optimized for 30cm read range).
- Step 2: Use bundled software to batch-register tags, apply filters (e.g., by asset type), or update records.
- Step 3: Export logs (borrow/return stats, registration history) via CSV/Excel for auditing.
Low Maintenance: Requires no calibration, with a humidity-resistant build (<95% at 25°C) for long-term use.

Perfect for museums, labs, or retail back offices needing daily tag updates without complex setups.
