Boost RFID Antenna Range Without New Hardware: Software Hacks & Setup Tricks

2025-05-17Cykeo News RFID Industry Information 8610

You installed RFID antennas, but tags at the back of your warehouse still won’t scan. Buying more gear isn’t an option, and moving antennas feels like playing musical chairs. Good news: you can squeeze 30–50% more range from your existing setup with a few software tweaks and physics hacks. Let’s turn those dead zones into reliable scans—no credit card required.

1. Why Your Antenna’s Range is Underperforming

RFID range isn’t just about power—it’s about how signals travel. Common killers include:

Signal Reflection: Metal shelves bouncing waves away from tags.
Reader Misconfiguration: Default settings often ignore environmental quirks.
Antenna Blind Spots: Even a 5° tilt can create coverage gaps.

Pro Tip: Before tweaking, test your current max range with tags placed at intervals (e.g., every 5 ft).

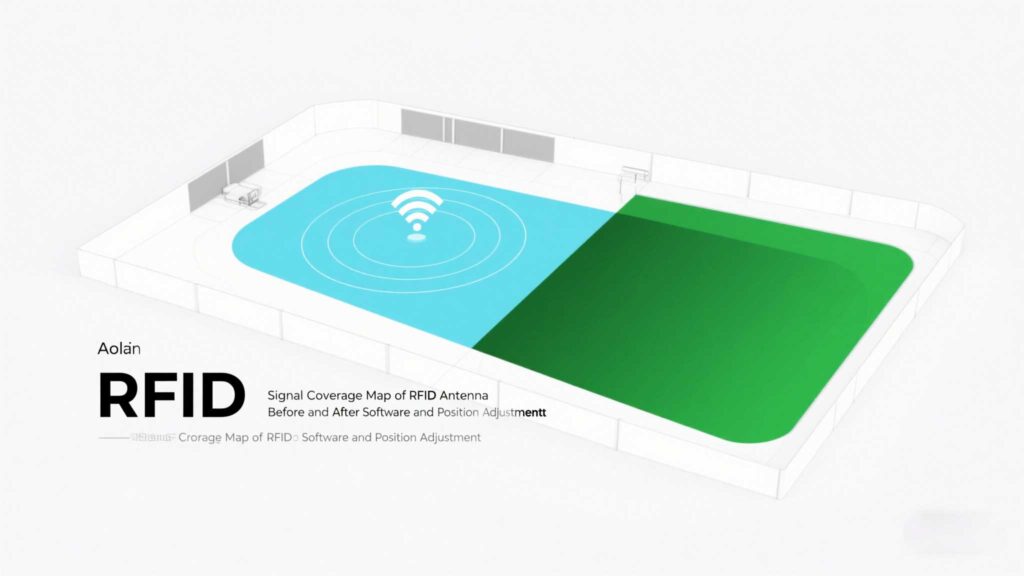

The signal coverage map of the rfid antenna before and after software and position adjustment.

2. Software Fixes to Unlock Hidden Range

a. Crank Up the Power (Wisely)

Default: Most readers run at 50–70% power to save energy.
Boost: Gradually increase to 85–90% (if local regulations allow).
Risk: Over 90% can cause noise—test incrementally!

b. Tune Frequency Channels

Avoid Crowded Bands: Use a spectrum analyzer app (e.g., RF Signal Tracker) to find less noisy frequencies.
Regional Settings: Match your country’s UHF band (e.g., 902–928 MHz in the U.S.).

c. Update Firmware

Why: Manufacturers like Cykeo release patches to optimize signal algorithms.
Example: Cykeo’s 2023 firmware update boosted range by 22% for legacy antennas.

3. Physics Hacks for Better Signal Travel

a. Angle Antennas Like a Pro

Golden Rule: Tilt antennas 25–40° downward—not straight ahead.
Why: Creates a “signal umbrella” covering more floor space.

b. Elevate and Separate

Height: Mount antennas 10–15 ft high for warehouses; 6–8 ft for retail.
Spacing: Keep antennas 15–20 ft apart to avoid interference.

c. Mirror Magic

DIY Reflectors: Tape aluminum foil behind antennas to focus signals forward (yes, really).

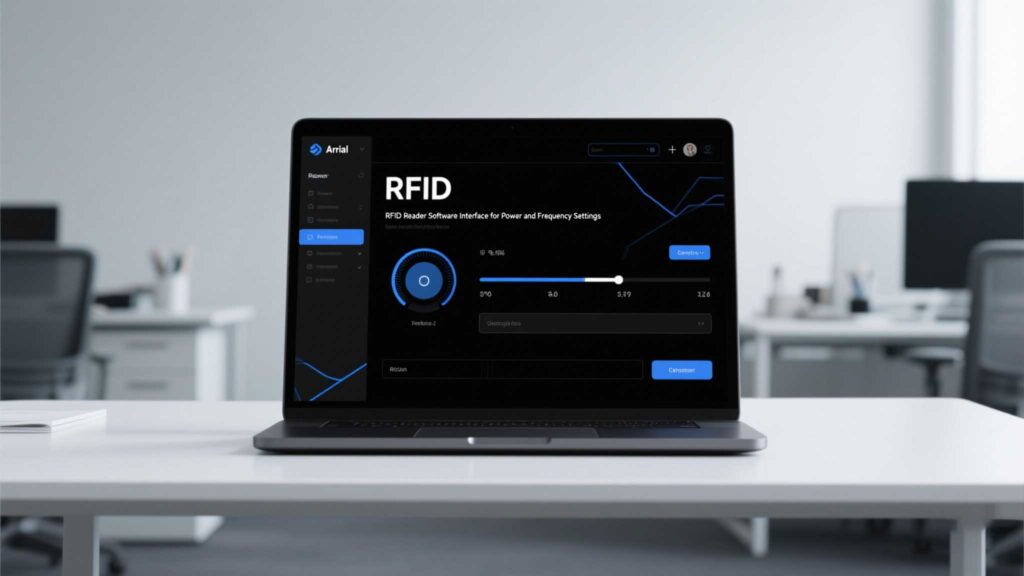

RFID reader software interface showing power and frequency settings.

4. Environmental Cleanup for Stronger Signals

a. Declutter the Path

Move metal carts, tools, or HVAC units blocking the antenna’s line of sight.

b. Tag Smartly

High-Metal Items: Use RFID tags with foam spacers to reduce detuning.
Liquid Containers: Place tags on dry, non-curved surfaces.

c. Schedule Scans Strategically

Run bulk scans during off-hours when machinery is idle and RF noise is low.

5. Free Tools to Test & Validate

RFID Scanner Apps: Apps like “RFID Tools” measure signal strength in real-time.
Heatmap Generators: Free web tools visualize coverage gaps using your phone’s Wi-Fi.
Crowdsourced Data: Check forums for your antenna model’s max-tested ranges.

6. When to Stop and Call a Pro

If DIY boosts aren’t enough:

Antenna Upgrades: Swap to high-gain antennas (6–8 dBi) without replacing the whole system.
Hybrid Systems: Add a single long-range reader to cover stubborn zones.

Takeaway: Boosting RFID antenna range isn’t about spending—it’s about sweating the small stuff. Adjust angles, tweak software, and declutter your space first. Even a 20% improvement can mean fewer missed scans, happier teams, and a smoother supply chain.
