What Is a Fixed RFID Reader? Definition, Applications, and Key Features

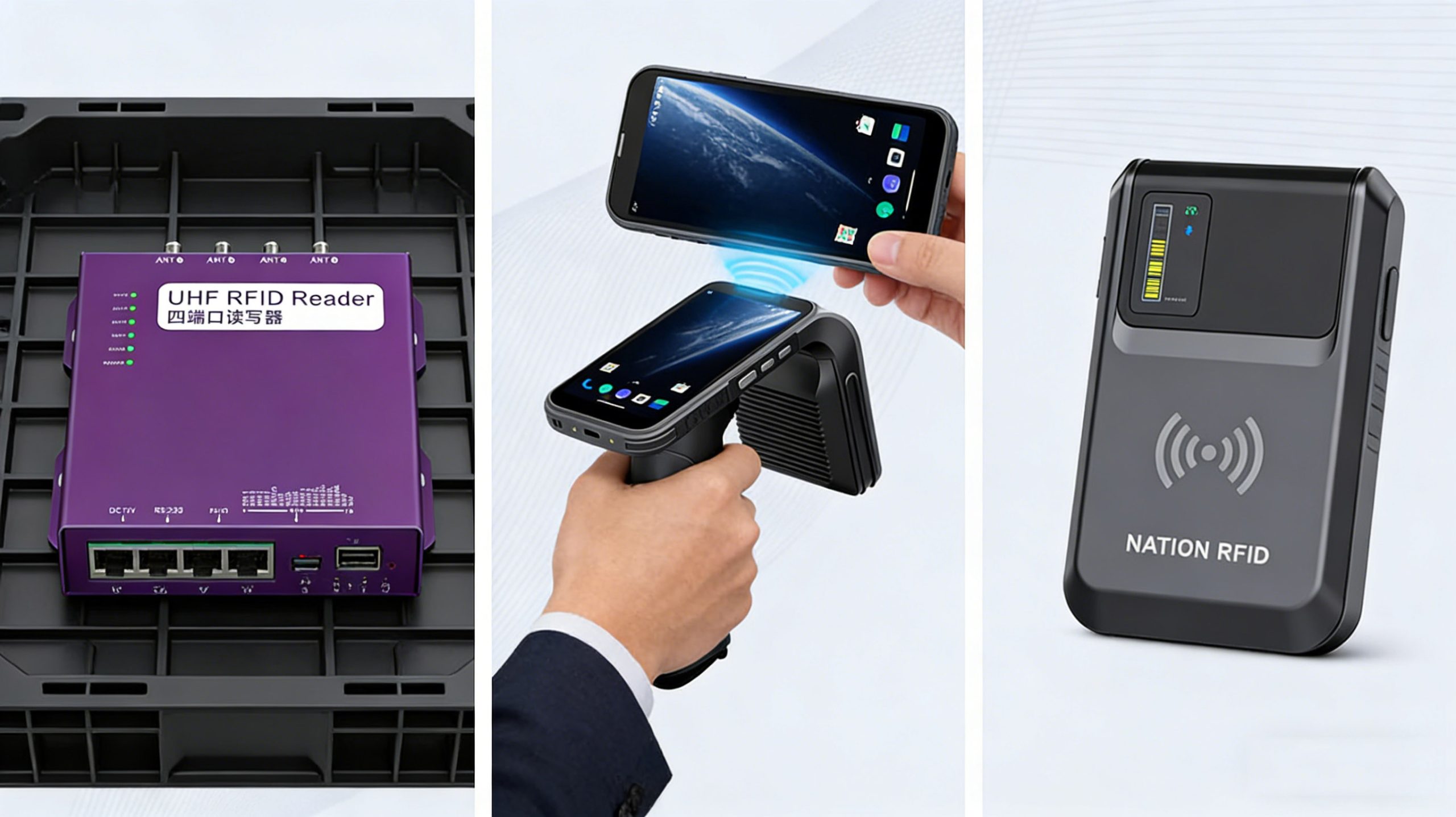

You see pictures of RFID readers online. Some look like chunky mobile phones. Others look like boxes mounted on walls with cables running everywhere. The ones mounted in place—those are fixed readers.

Here is the thing. When people search what is a fixed rfid reader, they usually want to understand how these devices differ from the handheld scanners they see warehouse workers carrying. Fixed readers do the same basic job—reading RFID tags—but they do it automatically, 24/7, without a person pulling a trigger.

Let me explain what fixed RFID readers are, where they are used, and why you might need one.

The Simple Definition

A fixed RFID reader is a stationary device installed at a specific location—like a doorway, conveyor belt, or production line—that automatically reads RFID tags as they pass by . Unlike handheld readers that require a person to operate them, fixed readers work continuously without human intervention .

Think of it like a security camera versus a photographer. The photographer (handheld reader) goes where the action is and captures specific moments. The security camera (fixed reader) stays in one place and records everything that passes through its view.

Fixed readers are sometimes called “stationary readers” or “fixed mount readers.” They are the workhorses of industrial RFID systems .

How Fixed Readers Are Different from Handhelds

The table below shows the key differences :

Feature	Fixed RFID Reader	Handheld RFID Reader
Mobility	Stationary, mounted in one place	Portable, carried by user
Operation	Fully automatic, no human needed	Manual, requires trigger pull
Coverage	Fixed zone (e.g., doorway, conveyor)	Anywhere the user walks
Power	Mains power or PoE	Battery-powered
Antennas	Usually multiple external antennas	Single internal antenna
Best for	Automated checkpoints, portals	Inventory counting, spot checks

Where Fixed RFID Readers Are Used

Fixed readers shine in applications where items move past a known location :

Warehouse dock doors: When a forklift carries pallets through a receiving door, fixed readers with multiple antennas automatically capture every tag on the pallet . No stopping, no scanning—just drive through and the system records everything.

Conveyor systems: Packages moving along conveyors pass fixed readers that read tags and sort items to the correct destination . The reader might be mounted overhead or to the side, reading hundreds of items per minute.

Manufacturing production lines: As work-in-progress moves between stations, fixed readers track each item’s location and status . This gives real-time visibility into production flow.

Access control gates: Vehicles or personnel with RFID badges are automatically identified when they pass through gated entrances .

Retail exit portals: Fixed readers at store exits detect unpaid merchandise and trigger alarms.

Tool cribs and cabinets: Fixed readers inside smart cabinets track which tools are removed and returned .

Key Features of Fixed RFID Readers

Multiple antenna ports are the defining feature of fixed readers. While handhelds have one built-in antenna, fixed readers typically offer 2, 4, or even 8 ports for connecting external antennas . The CYKEO CK-R8L, for example, has eight antenna ports, allowing one reader to cover multiple angles or zones .

High read speed matters when many tags pass through quickly. Fixed readers handle dense tag populations—the CK-R8L reads over 400 tags per second . This ensures every tag on a fast-moving pallet gets captured.

Industrial durability means fixed readers survive harsh environments. Many have IP67 waterproof housings and operate from -20°C to 60°C . They are built for warehouses, factories, and outdoor installations.

Multiple connectivity options include Ethernet, PoE (Power over Ethernet), RS-232, RS-485, and Wi-Fi . PoE is especially useful—one cable provides both power and data, simplifying installation.

GPIO ports allow fixed readers to connect with external devices like light stacks, motion sensors, and conveyor controls . When a tag is read, the reader can trigger a green light or open a gate automatically.

Onboard processing means many fixed readers can run applications locally, storing tag data and making decisions without a separate computer .

Integrated Readers: A Special Category

Some fixed readers are integrated readers, meaning the antenna is built into the same housing as the reader electronics . These are less flexible than multi-port readers but are more compact and aesthetically pleasing—good for retail environments or file tracking applications.

Integrated readers often have one internal antenna plus one external port for expansion . They offer medium to high performance in a single, neat package.

Power and Installation Considerations

Fixed readers can be powered in several ways :

• Power adapter: Plugged into an AC outlet near the installation point
• PoE (Power over Ethernet): Power and data through one Ethernet cable, up to 100 meters
• In-vehicle: Some fixed readers are designed for forklift mounting, powered by the vehicle’s electrical system

Installation requires mounting the reader in a protected location (often a control cabinet) and running cables to antennas positioned where tags will pass. Antenna placement is critical—multiple angles ensure tags are read regardless of orientation .

Do You Need a Fixed Reader?

Choose a fixed reader if:

• Items move through a known location (doorway, conveyor, gate)
• You need automatic, unattended reading
• Multiple tags must be read simultaneously and quickly
• You want to integrate with conveyor controls or automation systems
• The environment is too harsh for handheld operation

Choose a handheld reader if:

• You need mobility for inventory counting in different locations
• The application involves spot checks or searching for specific items
• Installation of fixed infrastructure is impractical or too costly
• Volumes are low enough that manual scanning works

The Bottom Line

What is a fixed RFID reader? It is a permanently installed device that automatically reads RFID tags passing through its zone, without human involvement. With multiple antenna ports, high-speed processing, and industrial durability, fixed readers are essential for automated warehouses, manufacturing lines, and access control systems.

CYKEO offers fixed readers for every need—from the compact CK-R4L with four ports to the powerful CK-R8L with eight ports and 400+ tags per second read speed . All come with free SDKs for Python, Java, and C#, plus open APIs for integration with ERP and WMS systems .

When you are designing an automated tracking system, fixed readers are the foundation. They work tirelessly in the background, capturing every tag that passes, so you always know where your assets are.

---

Need help choosing between fixed and handheld?
CYKEO offers free system design consultations. Tell us about your application and we will recommend the right reader type. Contact our team to get started.
